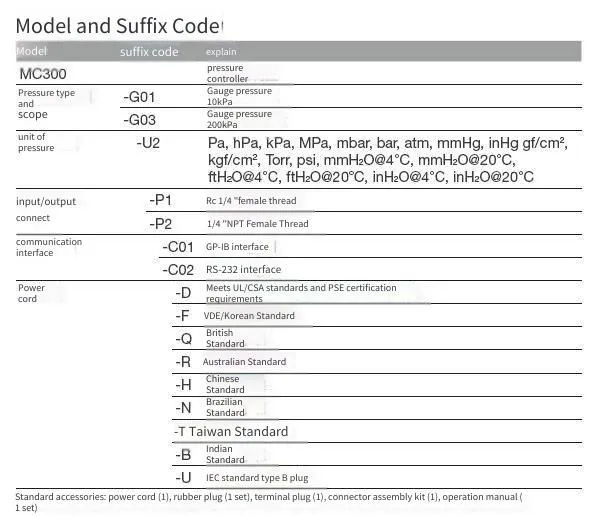

MC300-G03-U2-P1-C01 is a pressure controller, featuring high precision, fast response, and long-term stability.
By adopting Yokogawa's unique silicon resonant sensor and a control system using a needle valve, its relative output accuracy can reach 0.04%.
In addition to excellent linearity and repeatability, it can also achieve smooth pressure control, minimizing the overshoot until reaching the target setpoint.
I. Core Positioning
Product Type: Pneumatic pressure controller (standard pressure generator).
Core Technology: Built-in Yokogawa self-developed silicon resonant sensor + needle valve servo actuator to achieve closed-loop precision control.
Accuracy Level: Relative output accuracy ±0.04%, accuracy guarantee period of 12 months.
II. Key Parameters
Pressure Range (Gauge Pressure):
Low-pressure Type: 0～10 kPa
Standard Type: 0～200 kPa (other ranges are optional)
Control Characteristics:
Stability: Extremely low long-term drift, suitable for laboratory / production line standard sources
Response: High-speed pressure reaching, small overshoot, and smooth pressure curve
Output Medium: Clean and dry air (nitrogen is optional).
Display and Operation: High-definition LCD, supporting digital setting, real-time pressure display, and status monitoring.
III. Main Functions
Basic Control: Fixed-point pressure control, auto-step, sweep, and segmented output.
Advanced Functions:
Tiny negative pressure output (to expand vacuum testing capabilities)
Output status monitoring and external alarm / control signals
It can be linked with the MT300 digital pressure gauge to achieve high-precision calibration automation.
IV. Typical Applications
Calibration and factory testing of pressure sensors / transmitters
Medical Equipment: Accuracy verification and pressure simulation of electronic blood pressure monitors
Air-tightness Testing: Leak detection of small cavities and pipelines
Industrial Automation: Pressure closed-loop control of precision pneumatic systems
