1. Product Overview

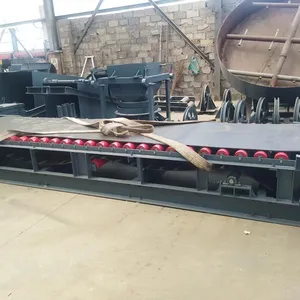

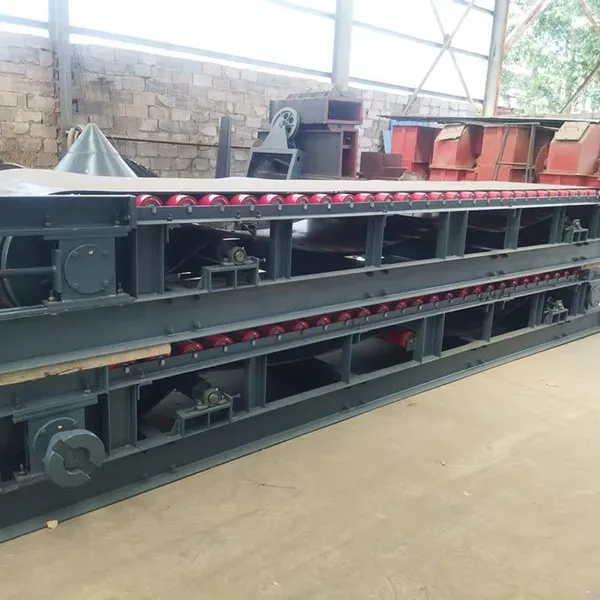

The lime plant belt conveyor is a specialized continuous material conveying equipment designed for the harsh working conditions of lime production lines, targeting the transportation of limestone raw ore, quicklime, hydrated lime, lime powder, and other bulk granular and powdery materials. Adopting mature trough-type belt conveying structure, this equipment realizes stable, continuous, and automated material transportation between crushing, calcining, screening, and packaging processes in lime plants. It effectively solves the problems of low efficiency, high labor cost, and material leakage and dust pollution in traditional manual and intermittent conveying modes. With strong environmental adaptability, wear resistance, and stable operation, it is the core supporting equipment for automated and environmentally friendly production of lime factories.
2. Core Product Features
2.1 Professional Adaptability for Lime Working Conditions
Optimized for the abrasiveness, dustiness, and certain high-temperature characteristics of lime materials. The conveyor belt adopts heat-resistant and wear-resistant rubber material, which can adapt to high-temperature lime materials below 180°C and resist strong friction of limestone gravel. The overall frame is treated with anti-corrosion and rust-proof coating, which effectively avoids equipment aging and damage caused by long-term contact with alkaline lime dust, greatly extending the service life.
2.2 High Conveying Efficiency & Stable Operation
Equipped with standardized drive motor and reducer, the equipment realizes stepless speed regulation and stable transmission. The trough-shaped roller group design increases the material loading capacity, effectively preventing material sliding and scattering during inclined conveying. The conveying speed is uniform and adjustable, matching the operating rhythm of lime crushing, rotary kiln calcination and other equipment, ensuring continuous and stable production line operation.
2.3 Excellent Environmental & Energy-Saving Performance
The fully closed conveying structure is equipped with optional dust cover and dust removal interface, which effectively suppresses lime dust overflow and meets industrial environmental protection emission standards. The low-resistance roller and optimized transmission structure reduce equipment operation resistance, with low energy consumption and low operating noise, realizing energy-saving and green production.
2.4 Safe & Low-Maintenance Design
Configured with multiple safety protection devices including deviation correction, anti-slip, overload protection and emergency stop, which avoids equipment failure and safety accidents caused by material deviation, blockage and overload. The key components such as rollers, pulleys and bearings adopt standardized and modular design, with simple structure, convenient disassembly and maintenance, and low later operation and maintenance cost.
2.5 Flexible Customization
Support customized design of conveying length, belt width, conveying inclination angle and fixed/mobile type according to the actual layout and process requirements of lime plants. It can meet the conveying needs of horizontal, inclined lifting and multi-angle turning working conditions, with strong site adaptability.
3. Technical Parameter Table
Parameter Item |
Specification & Data |
Unit |
|---|---|---|
Applicable Materials |
Limestone, quicklime, hydrated lime, lime powder, lime aggregate |
- |
Belt Width |
500 / 650 / 800 / 1000 / 1200 |
mm |
Conveying Capacity |
40 - 1080 |
t/h |
Conveying Speed |
0.8 - 2.0 (adjustable) |
m/s |
Max Conveying Length (single unit) |
240 |
m |
Max Inclination Angle |
≤30 |
° |
Belt Material |
EP/NN heat-resistant & wear-resistant rubber (T1/T2/T3 optional) |
- |
Heat Resistance Temperature |
≤120 / ≤150 / ≤180 |
°C |
Drive Motor Power |
2.2 - 75 |
kW |
Roller Groove Angle |
35 |
° |
Working Stacking Angle |
20 |
° |
Frame Treatment Process |
Galvanized / anti-corrosion paint coating |
- |
Protection Device |
Deviation correction, anti-slip, overload protection, emergency stop |
- |
Customization Support |
Length, inclination angle, belt type, dust cover, mobile base |
- |
4. Application Scenarios
This series of belt conveyors is specially developed for the whole process of lime production, covering raw material feeding of limestone stockyard, material transportation between crusher and screening equipment, feeding and discharging of lime rotary kiln/vertical kiln, finished lime product conveying, warehouse entry and packaging conveying, and residue cleaning and transportation of lime production line. It is widely applicable to large, medium and small active lime plants, hydrated lime plants, limestone crushing and processing plants, and other related building material and chemical production enterprises.
5. Product Advantages & Value
Compared with ordinary belt conveyors, the lime-specific belt conveyor has targeted optimization in wear resistance, high temperature resistance and dust prevention, which perfectly adapts to the high-dust, abrasive and slightly high-temperature production environment of lime plants. It realizes full-automatic continuous material conveying, effectively improves the overall production efficiency of the lime production line, reduces manual intervention and material loss, lowers production and operation costs, and helps enterprises realize standardized, environmentally friendly and intelligent production management.
