1. Technical Parameters
This series of rotary distributors is customized for different specifications of lime vertical kilns, with stable performance, accurate distribution and strong adaptability. The core technical parameters are listed as follows:
Model |
Matching Kiln Diameter (m) |
Rotating Speed (r/min) |
Motor Power (kW) |
Feeding Capacity (t/h) |
Distribution Accuracy (%) |
Overall Dimension (mm) |
|---|---|---|---|---|---|---|
JY-LQBL2.0 |
2.0 |
2.0-3.0 |
3.0 |
30-80 |
≤±1.5 |
2400×2400×1800 |
JY-LQBL2.5 |
2.5 |
2.0-3.0 |
5.5 |
80-150 |
≤±1.5 |
2700×2700×1900 |
JY-LQBL3.0 |
3.0 |
1.5-2.5 |
7.5 |
150-220 |
≤±1.2 |
3200×3200×2000 |
Note: Customized models and parameters are available according to customer's kiln type and production requirements.
2. Product Introduction

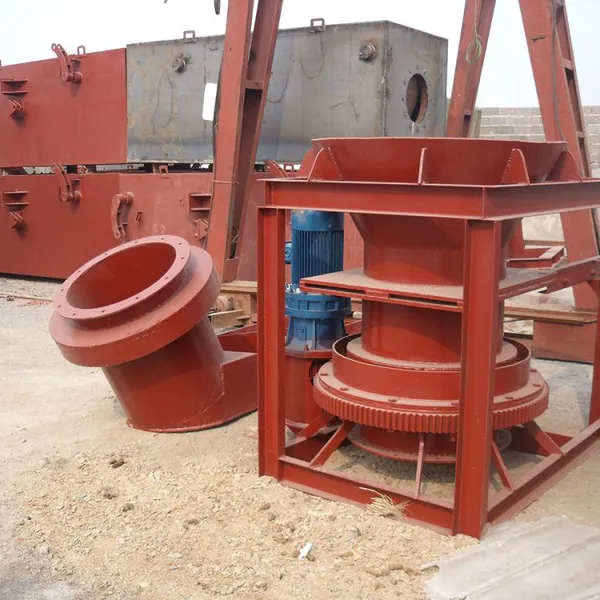

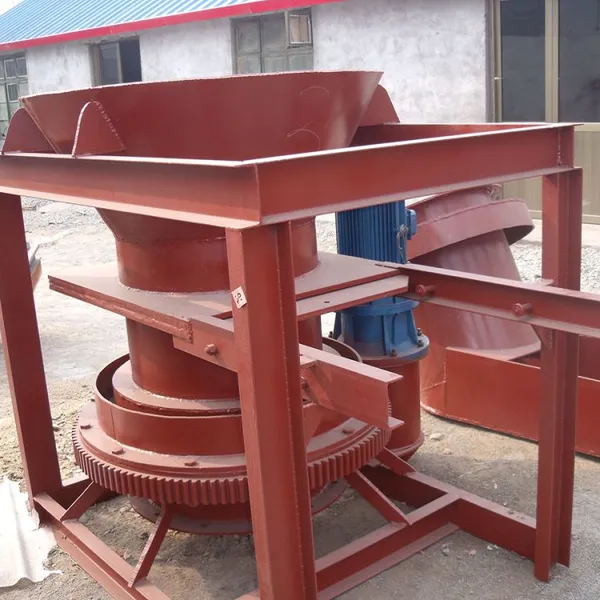

The rotary distributor is the core top feeding and distributing equipment of the lime vertical kiln, independently developed and optimized by Jinyong Kiln Furnace. It integrates mechanical transmission, automatic control and uniform material distribution technology, and is specially designed to solve the problems of uneven material falling, local overheating and incomplete calcination in traditional lime kiln production.
Adopting all-steel heavy-duty structure and precision rotating transmission mechanism, the equipment realizes 360° uniform circular distribution of limestone and fuel. It can automatically adjust rotating speed and feeding amplitude according to the kiln internal temperature and production load, so that the materials are evenly stacked inside the kiln body. This effectively optimizes the internal ventilation and heat exchange environment of the kiln, makes the material calcination more sufficient and uniform, and significantly improves the activity and yield of finished lime.
The whole equipment features simple and compact structure, sealed dust-proof design, low operation noise and stable transmission. It supports manual and automatic dual control modes, with low failure rate and convenient daily maintenance, which perfectly matches the continuous and efficient production requirements of modern lime vertical kilns.
3. Scope of Application
This high-precision rotary distributor is widely applicable to all types of active lime vertical kilns, shaft kilns and related calcination equipment, covering multiple industrial production scenarios:
Building Materials Industry: Special supporting equipment for quicklime and hydrated lime production lines, suitable for large, medium and small lime vertical kiln production bases.
Metallurgical Industry: Matching lime calcination equipment for steel smelting, iron and steel desulfurization and metallurgical auxiliary material production, providing high-activity lime raw materials.
Chemical Industry: Applicable to lime production for calcium carbide, nano calcium carbonate, aerated concrete and chemical raw material processing.
Environmental Protection & Other Fields: Supporting flue gas desulfurization, sewage treatment and other environmental protection projects, as well as lime processing for sugar-making and paper-making auxiliary industries.
It is compatible with various fuel types such as coal, gas and biomass, and adapts to different raw material particle sizes and production capacity demands, with extremely high industrial applicability and versatility.
4. Why Choose Jinyong Kiln Furnace?
4.1 Professional R&D and Customization Strength
Jinyong Kiln Furnace has been focusing on the R&D, design and manufacturing of lime kiln supporting equipment for many years. We have a professional technical team proficient in lime calcination process. Different from universal equipment, our rotary distributors are optimized and upgraded according to the actual working conditions of lime vertical kilns, realizing targeted customization of parameters and structures to meet the personalized production needs of different customers.
4.2 Superior Equipment Performance & High Cost Performance
The equipment adopts high-strength wear-resistant steel and precision processing technology, with strong wear resistance, high temperature resistance and long service life. The precise distribution control effectively reduces material waste, improves lime calcination qualification rate, and reduces unit energy consumption and production cost. Compared with traditional distributors, it can increase lime output by 5%-8% and reduce energy consumption by more than 10%, bringing substantial economic benefits to customers.
4.3 Stable Quality & High Operational Safety
All products undergo strict factory testing and field debugging. The optimized transmission structure avoids jitter and material blockage during operation. The fully sealed dust-proof structure reduces dust pollution and equipment abrasion. The dual safety protection system of mechanical limit and electrical control ensures long-term stable and safe operation of the equipment under high-load continuous working conditions.
4.4 Perfect After-Sales Service System
We provide one-stop full-cycle services including equipment design, manufacturing, on-site installation, commissioning and after-sales maintenance. We support 24-hour technical consultation, rapid response to customer equipment operation problems, and provide regular equipment maintenance guidance and spare parts guarantee, ensuring the long-term stable operation of customer production lines.
