The DIN 97 Slotted Countersunk Head Wood Screw is a fundamental fastening solution widely recognized and utilized across various industries, particularly within European markets. Conforming to the Deutsches Institut für Normung (DIN) 97 standard, this screw is specifically designed for robust and reliable wood-to-wood or hardware-to-wood connections. Its design emphasizes both functional efficiency and aesthetic integration, making it a preferred choice for applications where a flush finish is desired. Despite the ongoing transition towards ISO standards, DIN 97 remains a prevalent and trusted specification for wood screws, especially for applications without direct ISO equivalents or where established practices dictate its use.
Technical Design Features

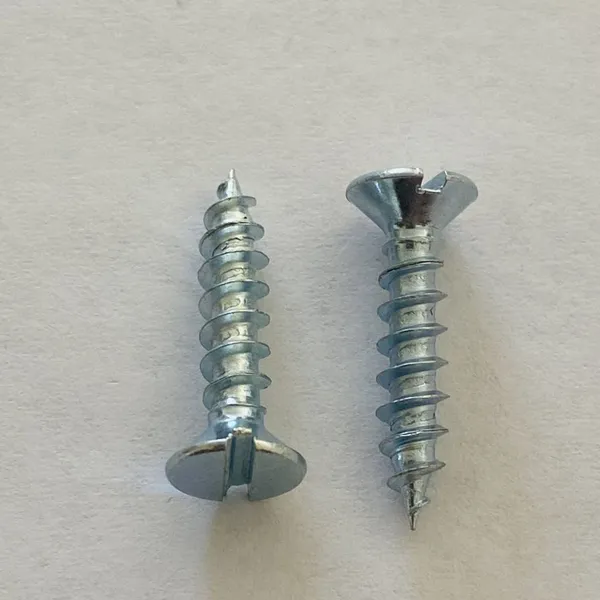

The defining characteristic of the DIN 97 wood screw is its countersunk flat head. This design allows the screw head to sit flush with or slightly below the surface of the material, providing a smooth, unobtrusive finish. The conical underside of the head mates perfectly with a pre-drilled countersink, distributing clamping force evenly and minimizing the risk of wood splitting, particularly in softer woods.
The screw features a single slotted drive requiring a flat blade screwdriver for installation. While modern drive types offer higher torque transmission, the slotted drive remains popular for its simplicity, historical prevalence, and suitability for applications where a classic aesthetic is desired. The slot is precisely dimensioned to ensure proper engagement with the screwdriver, facilitating efficient installation and removal.
DIN 97 wood screws are characterized by a coarse, self-tapping thread with a sharp point. This aggressive thread design is optimized for effective penetration and strong gripping in various wood types, including both hardwoods and softwoods. The partial threading in longer screws allows for a strong clamping action between fastened components, drawing them tightly together. The sharp point facilitates easy starting and reduces the need for extensive pilot drilling.
Dimensional Specifications and Standards Compliance
DIN 97 wood screws adhere to precise dimensional specifications governing thread diameter (d), head diameter (dk), head height (k), slot width (n), and overall length (L). Typical metric diameters range from M3 to M8, with lengths extending up to 100mm. Stainless steel variants additionally comply with DIN EN ISO 3506, ensuring material properties meet international standards for stainless steel fasteners.
Installation Guidance and Best Practices
Always drill appropriate pilot holes with a diameter slightly smaller than the screw's core diameter to allow threads to grip effectively without splitting the wood. Use a countersink bit to create a recess for the screw head, ensuring a flush finish. Use a flat blade screwdriver that correctly fits the slot — an ill-fitting screwdriver can strip the slot. Apply steady, even pressure while driving to prevent cam-out and ensure proper seating. Avoid over-tightening, which can strip the wood threads or damage the screw head. For very dense hardwoods, applying a small amount of wax or soap to the screw threads reduces friction and eases installation.
Quality Assurance and Certifications
Manufacturers adhering to the DIN 97 standard implement stringent quality control measures including material inspection, dimensional checks, and mechanical property testing. For stainless steel variants, compliance with DIN EN ISO 3506 ensures material composition and mechanical strength meet specified international benchmarks. Reputable suppliers provide material certifications and test reports. CE marking may be applicable for certain construction products within the European Economic Area.
Why Choose This Product
Adherence to the long-established DIN 97 standard ensures consistent quality, dimensional accuracy, and predictable performance, reducing the risk of project failures. The countersunk head design allows for a flush installation, providing a clean, smooth, and professional appearance highly valued in finished products and visible applications. Availability in various materials and finishes — from basic zinc-plated steel to premium A4 stainless steel — allows adaptation to a wide range of indoor and outdoor applications. The aggressive self-tapping thread form is specifically engineered for superior holding power in diverse wood types, creating durable and stable joints. For many standard woodworking applications, DIN 97 screws offer an excellent balance of performance and cost. Their compliance with a widely recognized European standard makes them a preferred and easily sourced fastener for projects within European markets.
