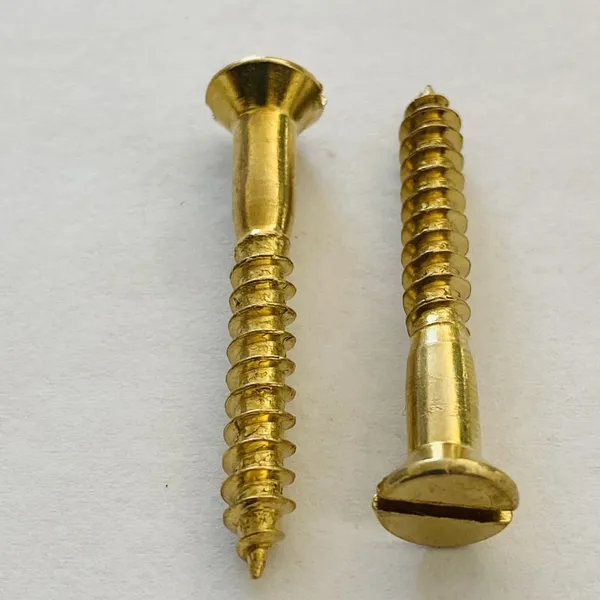

The American Imperial Countersunk Slotted Drive Wood Screw represents a cornerstone of traditional woodworking and construction in North America. Characterized by a flat countersunk head, single slotted drive, imperial threading, and sharp tapered point, this screw embodies a classic design trusted for generations. Its design is optimized for softwoods and hardwoods alike, providing excellent withdrawal resistance and a clean aesthetic when properly installed. These screws are integral to projects demanding both structural integrity and a traditional appearance, making them a preferred choice in historical restorations, fine furniture making, and general carpentry.
Technical Design Features
The flat countersunk head is designed to sit flush with or slightly below the surface of the wood when installed into a properly prepared countersink, creating a smooth, unencumbered surface crucial for aesthetic appeal and preventing snagging. The conical underside features an 82-degree angle — the standard for imperial countersunk screws — ensuring a snug fit within the recess.
The single slotted drive is the most traditional drive type, requiring a flat-bladed screwdriver. While modern drive types offer higher torque transmission, the slotted drive remains popular for its historical accuracy, simplicity, and ease of removal and re-installation, which is beneficial in repair or adjustment scenarios. The slot depth and width are precisely controlled to ensure proper engagement with the screwdriver blade.
The sharp tapered point and partially threaded shank facilitate initial penetration into wood, reducing splitting risk. The coarse threads are designed to grip wood fibers firmly, providing high withdrawal resistance. The unthreaded shank section allows the screw to pull the top piece of wood tightly against the bottom piece, creating a strong clamping force.
Dimensional Specifications and Standards Compliance
These wood screws adhere to ASME B18.6.1 — Wood Screws (Inch Series). Sizes are designated by gauge number from #4 to #20, with lengths in inches (e.g., 1/2 inch to 4 inches). For example, a #4 screw has a major diameter of approximately 0.112 inches, while a #20 screw is approximately 0.320 inches. Length is measured from the top of the head to the tip of the point.
Installation Guidance and Best Practices
A two-step pilot hole is recommended: a clearance hole for the unthreaded shank matching the shank diameter, and a smaller pilot hole for the threaded portion matching the root diameter. A countersink bit matching the 82-degree head angle creates the proper recess for a flush finish. For hardwoods or longer screws, applying wax or soap to the threads significantly reduces driving torque and prevents screw breakage. Use a properly sized flat-bladed screwdriver and apply firm, consistent pressure to prevent cam-out. Avoid over-tightening, especially with softer materials like brass.
Quality Assurance and Certifications
Compliance with ASME B18.6.1 ensures dimensional accuracy, material integrity, and performance characteristics. Reputable suppliers provide material certifications and conduct tests for tensile strength, shear strength, and withdrawal resistance. ISO 9001 certification for manufacturing processes further ensures consistent product quality.
Why Choose This Product
The classic slotted drive and countersunk head provide an authentic, period-appropriate look essential for restoration projects and fine woodworking. The coarse, tapered threads and partially threaded shank create powerful clamping force and excellent withdrawal resistance. Wide material availability — from steel to silicon bronze — caters to diverse environmental conditions and aesthetic requirements. The slotted drive allows for easier removal and re-installation without damaging the screw head, a benefit in repair and adjustment scenarios. Designed to imperial standards, these screws are fully compatible with tools and practices prevalent in the US and Canadian markets.
