The Pan Head Combination Drive Self-Tapping Screw is a highly versatile and essential fastener widely utilized across diverse manufacturing, construction, and assembly sectors. This specialized screw is engineered to cut its own thread as it is driven into a mating material, eliminating the need for a pre-tapped hole. This self-tapping capability significantly streamlines production processes, reducing labor time and associated costs. The integration of a combination drive system further enhances its utility, making it a preferred choice for applications demanding flexibility and reliability.

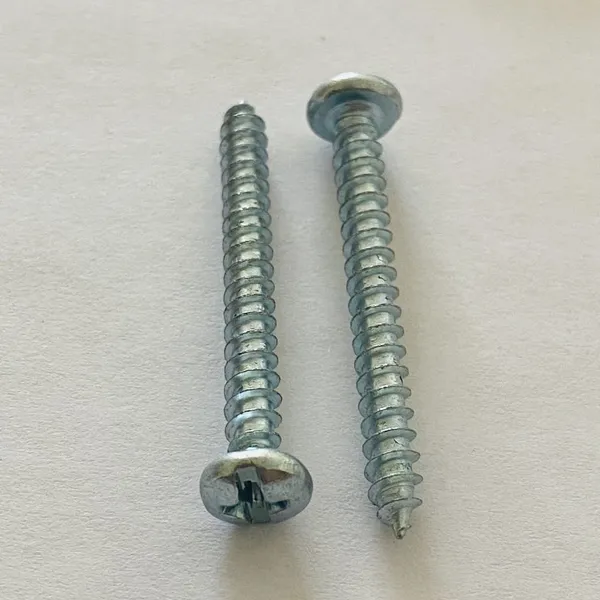

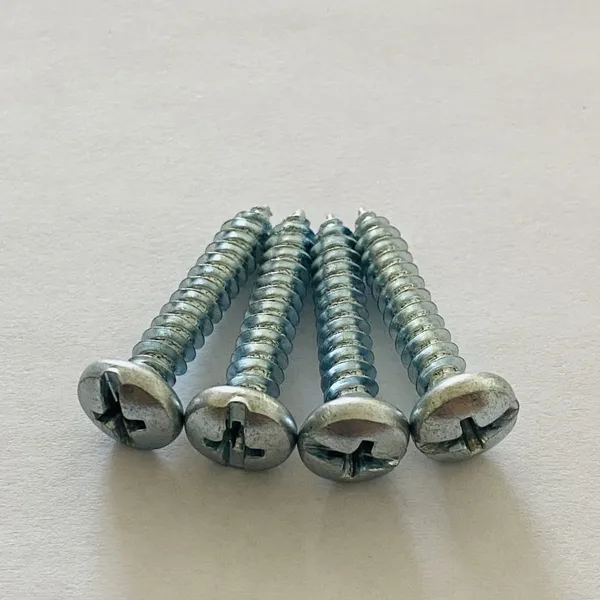

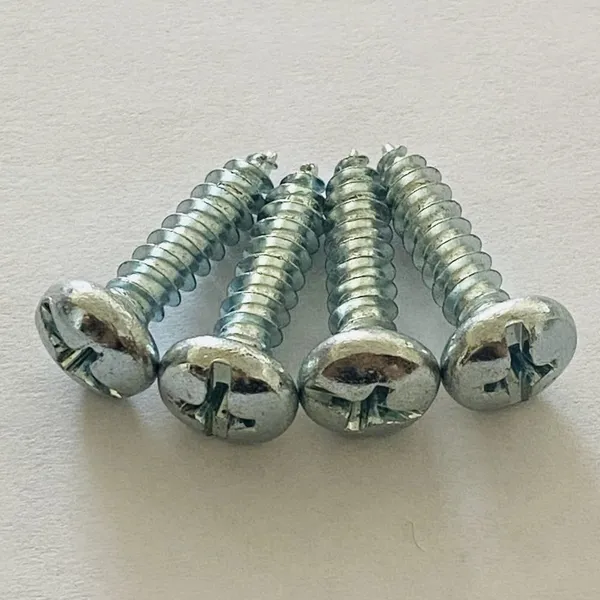

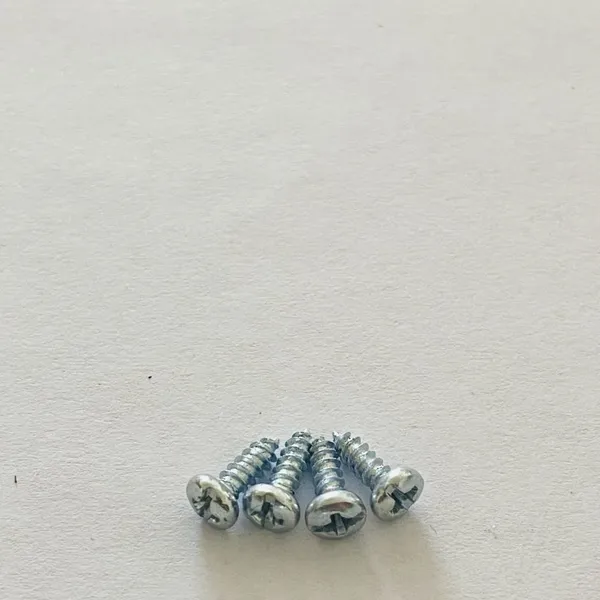

The defining technical feature of this screw is its head geometry and drive system. The pan head design is characterized by a flat bearing surface underneath and a slightly rounded, cylindrical top. This profile provides a larger bearing area than countersunk heads, distributing the clamping load more effectively and minimizing the risk of the screw head pulling through softer materials or thin sheet metal. The combination drive system incorporates both a Phillips cross-recess and a standard single slot. This dual-drive design offers unparalleled flexibility during installation and maintenance, allowing the use of either a Phillips or a flat-blade screwdriver.
These screws are typically manufactured from high-quality materials such as carbon steel and various grades of stainless steel, including AISI-304 and Stainless Steel 410. Carbon steel variants are often heat-treated to achieve superior hardness and strength, crucial for effective thread-forming. Stainless steel options provide excellent corrosion resistance, making them ideal for applications exposed to moisture or harsh environments. To further enhance performance, these screws are available with a variety of surface treatments, including black zinc plated, lacquered, blue zinc plated, nickel, copper, tin plating, phosphate, and oxide lacquer finishes.
Dimensional specifications adhere to rigorous international standards to ensure interchangeability and reliable performance. Key standards include ISO 7049:2011 for cross-recessed pan head tapping screws and DIN 7981. In metric measurements, common sizes range from ST 2.2 to ST 9.5 in diameter, with lengths from 4.5mm to 80mm. In imperial measurements, common sizes range from #0 to #14 in diameter, with lengths from 1/2 inch to 3 inches. Compliance with standards like ASME B18.6.3 and SAE J933 further assures quality and dimensional accuracy.
These versatile fasteners find extensive use across numerous industries. In automotive and aviation, they are critical for assembling interior components and panels. The construction sector utilizes them for fastening sheet metal, light gauge steel, and plastic components. In electronics and appliance manufacturing, their ability to tap into plastic and thin metal makes them ideal for securing enclosures and circuit boards.
For optimal installation, it is crucial to select the correct screw size and type for the specific material and application. Proper torque control is essential to avoid over-tightening, which can strip threads or damage the screw head. Using the appropriate driver bit for the combination drive system ensures efficient engagement and reduces the risk of cam-out. Choosing Pan Head Combination Drive Self-Tapping Screws offers significant competitive advantages, including unparalleled installation flexibility, cost savings, a clean aesthetic, and suitability for diverse environments.
