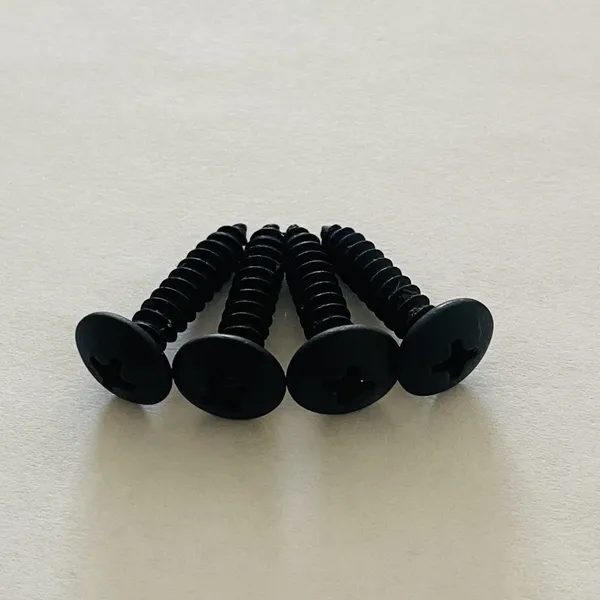

The Large Flat Head Phillips Drive Self-Tapping Screw is a highly versatile and efficient fastening solution designed for a wide array of industrial and commercial applications. This fastener is specifically engineered to create its own mating threads as it is driven into a substrate, eliminating the need for pre-tapping and often pre-drilling. This feature significantly accelerates assembly processes, reducing labor costs and increasing overall productivity. The defining characteristic of this screw is its large flat head, also commonly referred to as a truss or mushroom head.
The large flat head design provides a wider bearing surface compared to standard pan or flat countersunk heads. This increased surface area distributes the clamping force over a larger area, preventing the screw head from pulling through softer or thinner materials, such as plastics, thin sheet metal, or wood composites. Furthermore, the low-profile nature of the head ensures a smooth, unobtrusive finish, making it ideal for applications where aesthetics are important or where clearance is limited. The screw features a Phillips cross-recessed drive, a universally recognized and widely used drive system. The Phillips drive offers excellent centering capability, ensuring the driver bit seats securely and reducing the risk of cam-out during installation.
These self-tapping screws are manufactured from a variety of high-quality materials to suit diverse environmental conditions and performance requirements. Carbon steel is a common choice, offering excellent strength and durability for general-purpose applications. For enhanced corrosion resistance, stainless steel options, such as A2 (304) and A4 (316) grades, are available. These stainless steel variants are particularly suited for outdoor applications, marine environments, or areas exposed to chemicals and moisture. To further improve performance and aesthetics, various surface treatments can be applied. Zinc plating provides a cost-effective barrier against rust, while black oxide or phosphate coatings offer specialized protection and a distinct visual appearance.
Our self-tapping screws adhere to stringent international standards, ensuring consistent quality, interchangeability, and performance. Key standards include ISO 7050, which covers Phillips flat head tapping screws, and DIN 7981, a widely recognized standard for cross-recessed pan head tapping screws. These screws are available in a comprehensive size range to accommodate various project needs, including metric sizes from ST 2.2 to ST 9.5 and common imperial sizes from #6 to #12.
The versatility and robust design of Large Flat Head Phillips Drive Self-Tapping Screws make them indispensable across numerous industries. In the automotive sector, they are used in interior trim, dashboard assembly, and light-duty structural components. In electronics, they are ideal for securing circuit boards and enclosures. The HVAC industry employs them in ductwork assembly and fastening sheet metal panels. They are also widely used in construction for drywall installation and metal stud framing, as well as in furniture and appliance manufacturing.
For optimal performance, follow these installation best practices: While self-tapping, a pilot hole slightly smaller than the screw's major diameter can be beneficial for harder materials. Always use the correct size Phillips drive bit to ensure full engagement and prevent cam-out. Apply consistent and appropriate torque during installation; over-tightening can strip the threads in the material or shear the screw head. Use a moderate drilling speed to avoid generating excessive heat. Choosing our Large Flat Head Phillips Drive Self-Tapping Screws offers enhanced efficiency, superior load distribution, reliable performance, versatile application, an aesthetic finish, and reduced cam-out.
