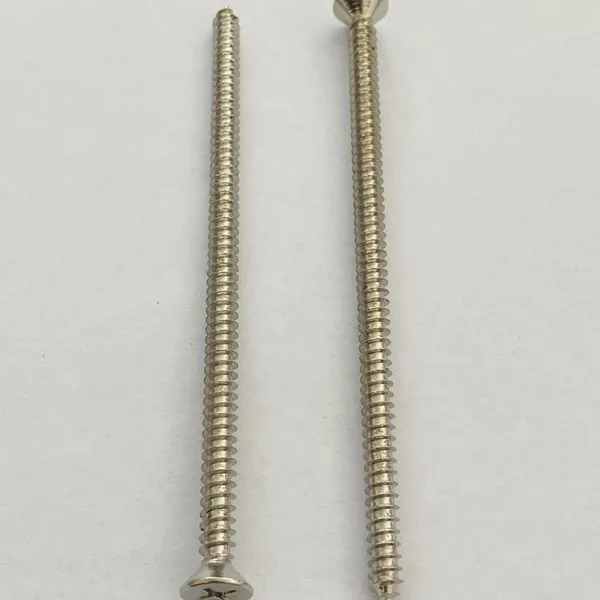

The Nickel-Plated DIN 7982 Countersunk Phillips Head Self-Tapping Screw is a highly specialized and versatile fastener designed to meet the rigorous demands of modern manufacturing and assembly processes. This product is engineered to create its own mating threads in a pre-drilled hole in various materials, including plastics, sheet metal, and wood. The self-tapping capability significantly reduces assembly time and costs by eliminating the need for a separate tapping operation, making it an indispensable component in high-volume production environments.
The defining feature of this screw is its countersunk head geometry. Designed to sit perfectly flush with or slightly below the surface of the substrate, the countersunk head provides a smooth, unencumbered finish. This is particularly crucial in applications where protruding screw heads could cause interference, pose a safety hazard, or detract from the product's aesthetic appeal. The head incorporates a standard Phillips cross-recess drive, which offers excellent centering capability and efficient torque transmission, reducing the risk of driver slippage (cam-out) and ensuring secure installation. The thread form is specifically designed with a sharp cutting edge and a pronounced pitch to efficiently displace material and form strong, reliable internal threads.
The material composition and surface treatment of these screws are critical to their performance and longevity. Typically manufactured from high-quality carbon steel or stainless steel (such as A2 or A4 grades), these screws offer exceptional tensile strength and durability. The defining characteristic of this specific product is its nickel-plated finish. The nickel plating provides a bright, attractive finish and enhances corrosion resistance, particularly against oxidation and wear. It also offers a degree of hardness and lubricity, improving the screw's driving performance and extending its lifespan. This finish is ideal for visible applications where aesthetics and moderate corrosion protection are desired.
Our DIN 7982 self-tapping screws adhere strictly to the dimensional specifications outlined in DIN 7982, which is harmonized with ISO 7050. This ensures universal compatibility and interchangeability. The typical size range includes metric diameters from 2.2mm to 6.3mm and lengths ranging from 6.5mm to 100mm. This broad range allows for selection of the optimal screw size for various material thicknesses and application requirements. Each screw is manufactured to precise tolerances, guaranteeing consistent fit and performance.
These versatile self-tapping screws find extensive use across numerous industries. In the automotive industry, they are used for fastening interior components, trim, and light-duty body panels where a secure, flush finish is required. In electronics, they are ideal for assembling plastic housings, circuit board mounts, and other delicate components. They are also employed in light-gauge sheet metal work, HVAC ducting, furniture manufacturing, and appliance assembly.
For optimal performance, it is recommended to pre-drill a pilot hole before driving the self-tapping screw. The size of the pilot hole should be carefully selected based on the screw's diameter and the material thickness to ensure proper thread engagement and prevent material splitting or stripping. Use a power tool with adjustable torque settings to avoid over-tightening. Ensure the screwdriver bit matches the Phillips recess perfectly to prevent cam-out. Choosing our Nickel-Plated DIN 7982 Countersunk Phillips Head Self-Tapping Screws means opting for a product that combines precision engineering with practical benefits, delivering both performance and aesthetic value.
