Help CenterRotary Dryer for Urban Green Waste Thermal Drying 120 Tpd
Product Spotlights
2.Customizable mineral powder drying line
3.Easy installation & maintenance
4.Global mining project compatible
5.Uniform final moisture control
6.No over-drying mineral powder
7.Adjustable drying temperature
8.Consistent dried powder quality
9.Fine mineral powder drying protection
Related Products
-
Rotary Dryer for Bamboo Residue Processing 150 TpdNegotiableMOQ: 1 Set -
Rotary Dryer for Coconut Pith Briquetting 70 TpdNegotiableMOQ: 1 Set
-
Rotary Dryer for Industrial Sawdust Dewatering 300 TpdNegotiableMOQ: 1 Set
-
Rotary Dryer for Large Scale Wood Chips Drying 400 TpdNegotiableMOQ: 1 Set
-
Rotary Dryer for High Moisture Tree Bark Drying 110 TpdNegotiableMOQ: 1 Set
Product Introduction

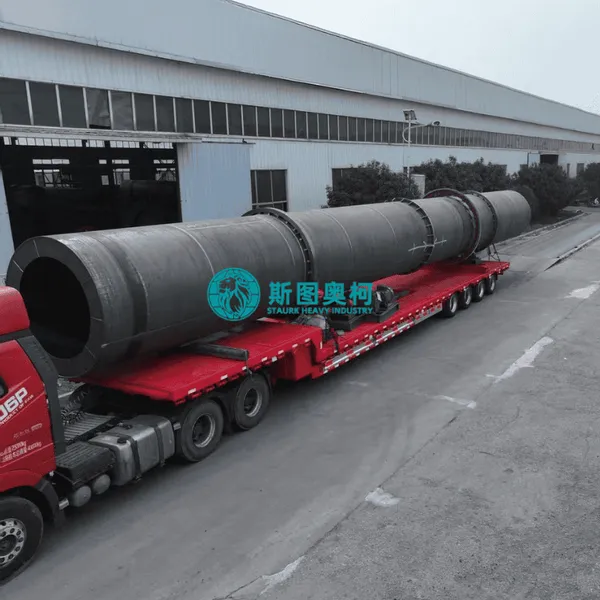

This 120 tpd rotary dryer for urban green waste thermal drying is a professional large-capacity continuous drying equipment tailored for urban landscaping waste centralized treatment scenarios. It adopts a special anti-impurity, anti-fiber-winding and low-dust structure adapted to the characteristics of complex components of urban green waste (pruned branches, fallen leaves, lawn trimmings, flower residues etc.), with a daily processing capacity of 120 tons of fresh wet urban green waste. It can reduce the moisture content of raw materials from 50%~68% to below 12% at one time, and the dried materials can be directly used for subsequent landscaping organic mulch, biomass fuel, organic fertilizer processing and other scenarios. It is the core drying equipment to support the harmless and resourceful treatment of urban green waste.
Working Principle
The obliquely installed heavy-duty multi-cylinder insulation main body is driven by a high-torque transmission system to rotate at a low and uniform speed. The wet urban green waste is fed into the inner cylinder, and the mixed materials of different textures and particle sizes are continuously lifted and scattered by the built-in special anti-winding and impurity-filtering lifting plates as the cylinder rotates, fully contacting with the clean hot air flow. The moisture in the materials is evenly evaporated through the multi-stage temperature control zones, and the dried materials that meet the subsequent processing standards are stably discharged from the discharging end, completing the 120-ton daily continuous thermal drying process.
Core Features
This 120 tpd model has multiple targeted advantages for urban green waste thermal drying. The special impurity-filtering structure effectively filters out small hard impurities mixed in urban green waste, avoiding equipment wear. The multi-cylinder insulation structure greatly improves the thermal efficiency, reducing the energy consumption per ton of green waste by more than 30% compared with ordinary single-cylinder dryers. The fully enclosed low-dust operation meets the strict environmental protection emission requirements of urban areas. The 120-ton daily processing capacity perfectly matches the waste output rhythm of large and medium-sized urban landscaping waste treatment stations.
Technical Specifications
| Product Specs (m) | Capacity (T/H) | Main Motor Power (kW) | Main Motor Model | Main Gearbox Model | Ratio |
| φ1.2×10m | 2.5 | 7.5 | Y160M-R3 | ZL50-16-1 | - |
| φ1.5×12m | 3.3 - 4.9 | 10 | Y160L-6B3 | JZQ500-III-2F | - |
| φ1.5×15m | 4 - 6 | 18.5 | Y200L-6 | JZQ500-III-2F | - |
| φ1.8×12m | 4 - 6 | 11 | Y200L-6 | ZQ50-16II-2 | 16.46 |
| φ2.2×12m | 7 - 12 | 18.5 | Y160L-6 | JZQ650-III | 31.5 |
| φ2.2×14m | 7 - 12 | 18.5 | Y160L-6 | JZQ750-III | 31.5 |
| φ2.2×16m | 12 | 30 | Y225M-6 | JZQ750-III | 31.5 |
| φ2.4×14m | 12 | 30 | Y250M-6 | JZQ750-III | 31.5 |
| φ2.4×18m | 10 - 13 | 37 | Y250M-6 | ZL85-13-1 | 27.16 |
| φ2.4×20m | 10 - 14 | 37 | Y250M-6 | ZL85-13-1 | 27.16 |
| φ3×20m | 25 | 55 | Y250M-4 | ZL100-16-1 | 41.52 |
| φ3×25m | 32 - 36 | 75 | YR280M-4 | ZL100-16-1 | 41.52 |
