Small Capacity Laboratory Gemini Shaking Table Gold Shaker Table for Sale in Australia
🔹 Product Overview

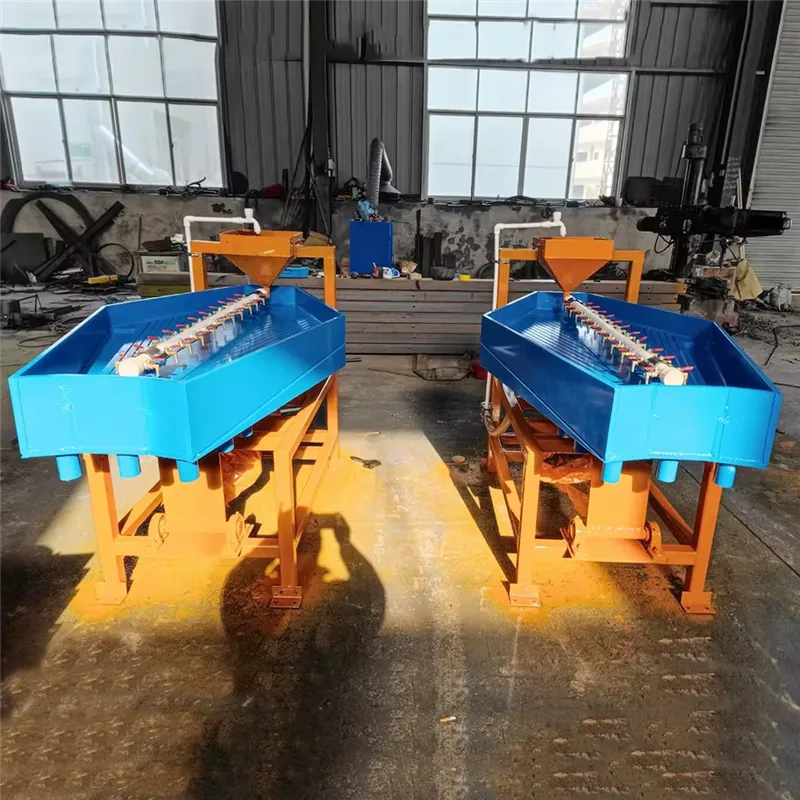

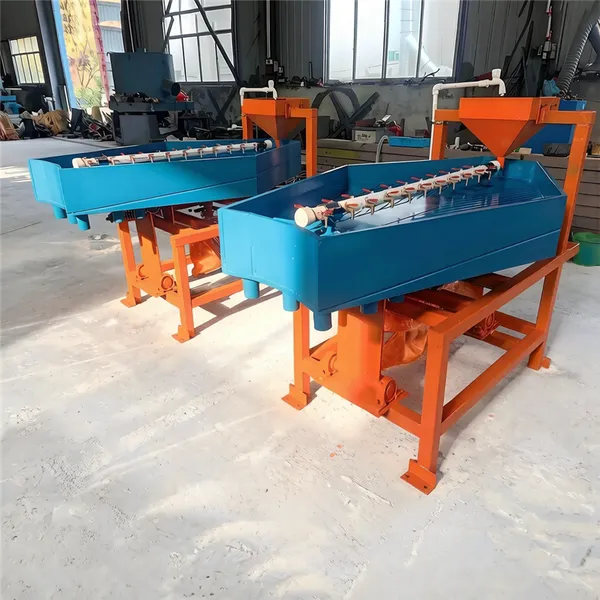

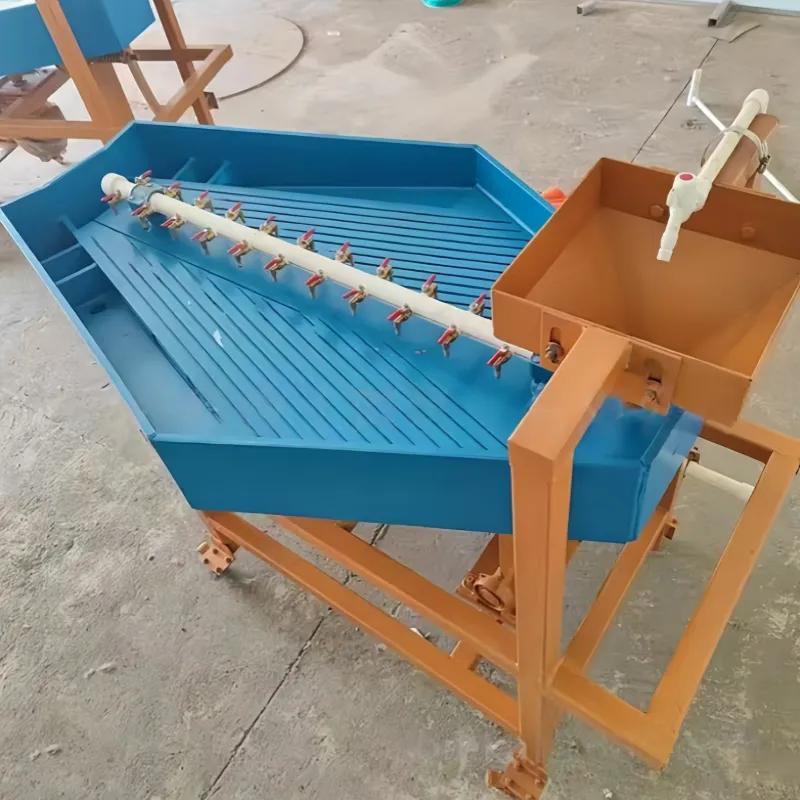

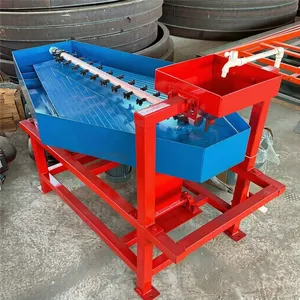

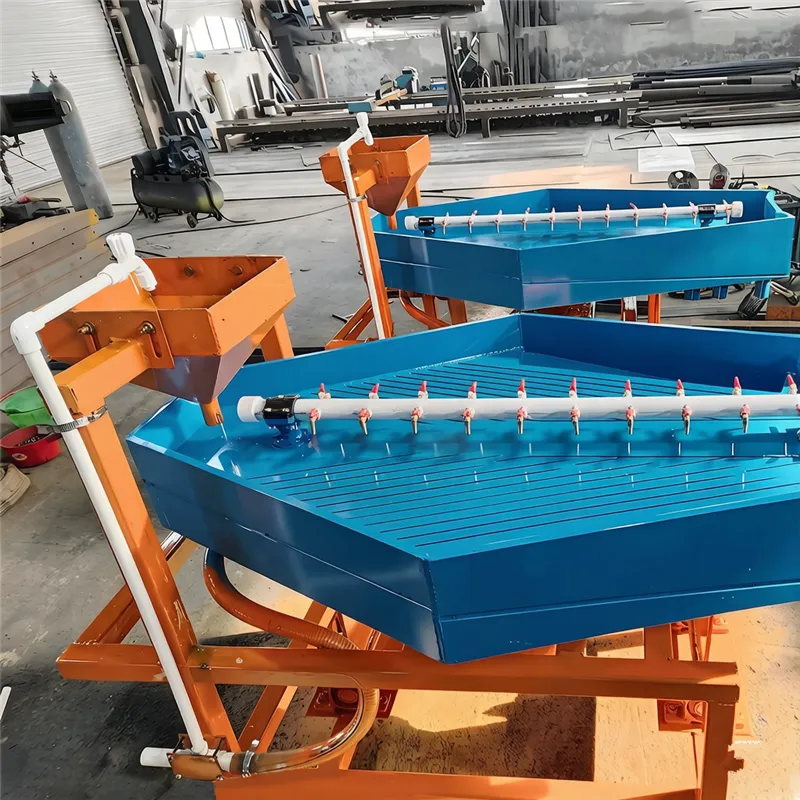

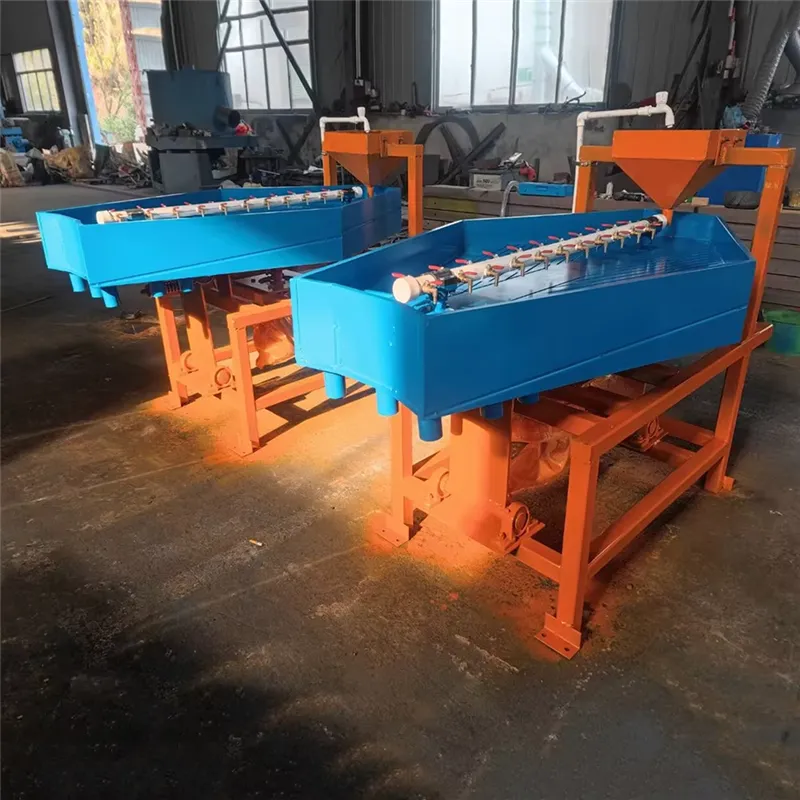

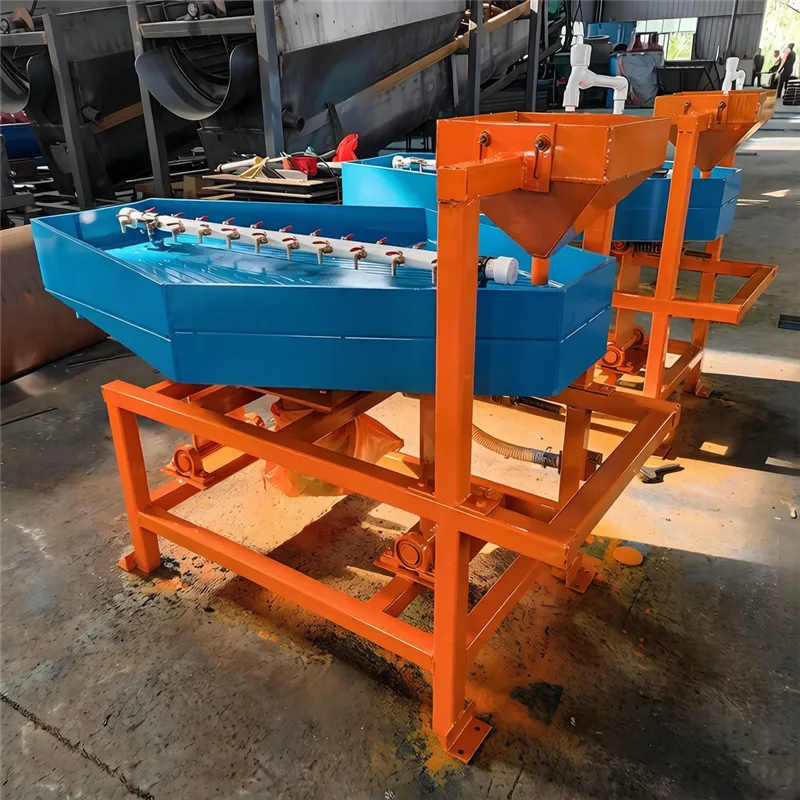

The Gemini Shaking Table is an upgraded gravity separation device based on the traditional 6-S single-deck shaking table. It integrates two separation decks into one unit sharing a single transmission system and water supply, doubling the processing capacity while saving up to 50% floor space.
It is widely used for the final concentration and cleaning of gold (alluvial & hard rock), tungsten, tin (cassiterite), tantalum-niobium, chromite, zircon, and other heavy minerals, as well as for coal desulfurization and tailings re-processing.
🔹 Working Principle
The electric motor drives an eccentric linkage to produce an asymmetric reciprocating motion (slow forward – rapid return) on both decks simultaneously.
Ore pulp is fed from the upper corner of each deck, and transverse wash water is introduced from the side water trough. Under the combined action of deck vibration, gravity, and water flow:
-
High-density (heavy) minerals settle into the riffles and migrate along the deck toward the concentrate launder.
-
Low-density (light) gangue minerals are washed downslope and discharged as tailings.
-
An intermediate fraction (middlings) is also collected.
This allows one-pass separation into Concentrate – Middlings – Tailings with no chemical additives required.
🔹 Key Features & Advantages
-
✅ Double Processing Capacity – Two decks in one machine; capacity ≈ 2× single deck table.
-
✅ Space-Saving Design – Occupies ~50% less area than installing two separate single tables.
-
✅ High Enrichment Ratio & Recovery Rate – Effectively recovers fine heavy minerals down to 0.037 mm (37 μm).
-
✅ Durable FRP Deck – Fiberglass Reinforced Plastic surface with embedded corundum/wear-resistant layer; waterproof, anti-corrosion, non-deforming.
-
✅ Energy & Water Efficient – One motor and unified water system reduce power & water consumption vs. two independent units.
-
✅ Easy Operation & Adjustment – Deck slope, stroke length, and stroke frequency are all manually adjustable to suit different ores.
-
✅ Eco-Friendly – Pure gravity separation, mercury-free and chemical-free.
