Help CenterHigh Efficiency Gold Mining 6S Shaking Gravity Separator Table Machine for Gold Washing Plant
Product Spotlights
Low Operating Cost – No chemicals, minimal power consumption.
Durable Construction – Heavy-duty cast iron/Epoxy fiberglass deck for long service life.
Easy Operation – Simple stroke & slope adjustment, minimal training required.
Low Maintenance – Robust design with fewer wearing parts.
Versatile Application – Ideal for gold, tungsten, tin, tantalum, chrome, etc.
Related Products
-
Alluvial Gold Washing Machine,6S Shaking Table,Gold Shaker Gravity SeparatorUS$ 1160 - 1360MOQ: 1 Set -
Shicheng Manufacturer Gravity Separator 6S Shaking Table for SaleUS$ 1100 - 1400MOQ: 1 Set
-
Africa Small 6/8/10 Nails Gold Mining Ball Mill Grinding Machine for SaleUS$ 6900 - 7300MOQ: 1 Set
-
Mining Ore Grinding Ball Mill Wet Type Gold / Copper / Iron Ore Ball Grinding MachineUS$ 7520 - 7980MOQ: 1 Set
-
Small Scale Gold Mineral Ore Processing GT60 Gravity Separator Shaking Table Gemini for SaleUS$ 3190 - 3490MOQ: 1 Set
Overview
Our Shaking Table is a time-proven gravity concentrator designed to separate fine and micro-fine minerals with exceptional precision. Widely used in gold, tungsten, tin, tantalum-niobium, chrome, and other heavy mineral processing, it delivers high recovery rates, sharp separation, and low operating costs—making it an ideal choice for both small-scale miners and large processing plants.

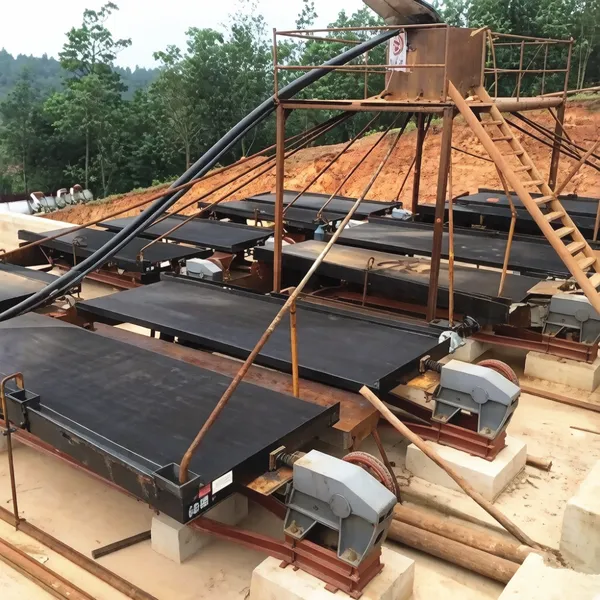

Built with a heavy-duty cast iron head motion and a corrosion-resistant fiberglass deck, our tables perform reliably in roughing, cleaning, and scavenging circuits. Whether you process alluvial deposits or hard rock ores, this machine helps you turn low-grade material into high-value concentrate.
Key Features & Benefits
-
High Recovery of Fine Minerals
Effectively recovers particles as fine as -0.074mm, including free gold and other high-density minerals.
-
Low Operating Cost
No chemicals required; minimal power consumption compared to flotation or centrifugal systems.
-
Durable & Corrosion-Resistant Deck
Epoxy-coated fiberglass surface withstands abrasion and harsh slurry conditions.
-
Adjustable Stroke & Slope
Easy on-site tuning to match ore characteristics and maximize recovery.
-
Clear Mineral Zoning
Distinct bands for concentrate, middlings, and tailings simplify collection and improve grade control.
-
Simple Operation & Maintenance
Fewer moving parts, straightforward adjustments, and easy access for cleaning and inspection.
-
Eco-Friendly Process
100% physical separation—safe for operators and compliant with environmental regulations.
Technical Specifications
Specification |
Data |
|---|---|
Deck Type |
Fiberglass |
Deck Surface |
Corundum, anti-slip, wear-resistant |
Max Feed Size |
≤ 2 mm |
Feeding Density |
15–30% |
Stroke Length |
8–36 mm (adjustable) |
Frequency |
240–380 rpm |
Capacity |
0.5–2 t/h (depending on ore type) |
Motor Power |
1.1 kW |
Overall Dimensions |
~5600 × 1850 × 860 mm |
Weight |
~800 kg |
(Custom sizes and configurations available upon request.)
How It Works
The shaking table separates minerals based on density differences under the combined action of water flow and asymmetric reciprocating motion. As slurry flows across the riffled deck, heavy particles settle into the grooves while lighter particles wash away. The result is a clear separation into concentrate, middlings, and tailings along the length of the table.
This simple yet effective principle allows precise control over concentrate grade and recovery—especially valuable when handling fine or complex ores.
Typical Applications
-
Gold Mining – Alluvial gold, hard rock gold, free gold recovery
Tungsten & Tin – Wolframe, cassiterite concentration
Rare Metals – Tantalum, niobium, zircon, ilmenite
Chrome & Iron Ore – Upgrading and scavenging circuits
-
Laboratory Testing – Ore amenability studies and process verification
