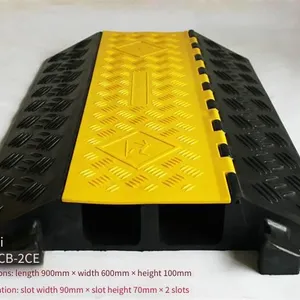

Jiulei Brand Jl-xcb-2ce Rubber and Plastic Bridge Belt [manufacturer] Length: 900mm * Width: 600mm * Height: 100mm - Slot Width: 90mm * Slot Height: 70mm * 2 Wire Slots thumbnail-1
Jiulei Brand Jl-xcb-2ce Rubber and Plastic Bridge Belt [manufacturer] Length: 900mm * Width: 600mm * Height: 100mm - Slot Width: 90mm * Slot Height: 70mm * 2 Wire Slots thumbnail-2
Jiulei Brand Jl-xcb-2ce Rubber and Plastic Bridge Belt [manufacturer] Length: 900mm * Width: 600mm * Height: 100mm - Slot Width: 90mm * Slot Height: 70mm * 2 Wire Slots thumbnail-3
Jiulei Brand Jl-xcb-2ce Rubber and Plastic Bridge Belt [manufacturer] Length: 900mm * Width: 600mm * Height: 100mm - Slot Width: 90mm * Slot Height: 70mm * 2 Wire Slots thumbnail-4
Jiulei Brand Jl-xcb-2ce Rubber and Plastic Bridge Belt [manufacturer] Length: 900mm * Width: 600mm * Height: 100mm - Slot Width: 90mm * Slot Height: 70mm * 2 Wire Slots thumbnail-5

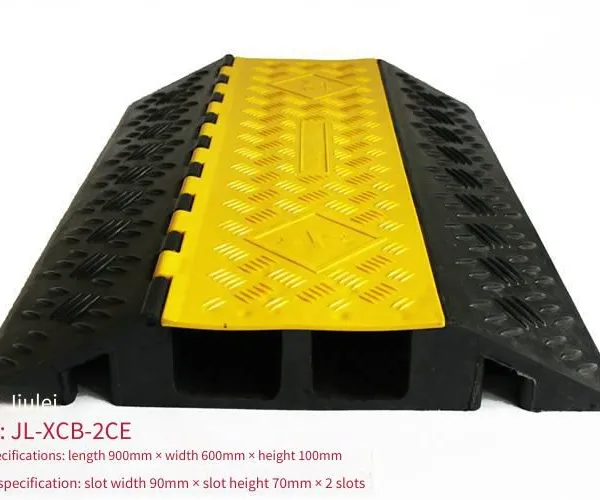

Jiulei Brand Jl-xcb-2ce Rubber and Plastic Bridge Belt [manufacturer] Length: 900mm * Width: 600mm * Height: 100mm - Slot Width: 90mm * Slot Height: 70mm * 2 Wire Slots photo-1

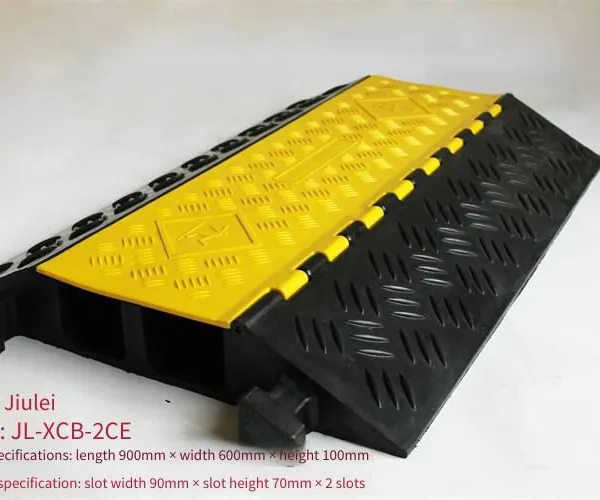

Jiulei Brand Jl-xcb-2ce Rubber and Plastic Bridge Belt [manufacturer] Length: 900mm * Width: 600mm * Height: 100mm - Slot Width: 90mm * Slot Height: 70mm * 2 Wire Slots photo-2

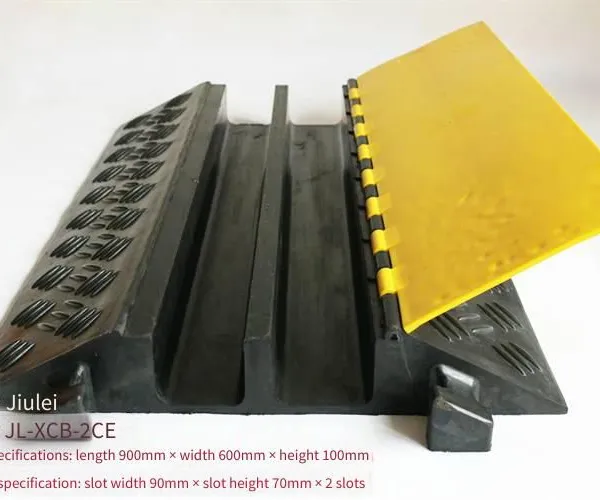

Jiulei Brand Jl-xcb-2ce Rubber and Plastic Bridge Belt [manufacturer] Length: 900mm * Width: 600mm * Height: 100mm - Slot Width: 90mm * Slot Height: 70mm * 2 Wire Slots photo-3

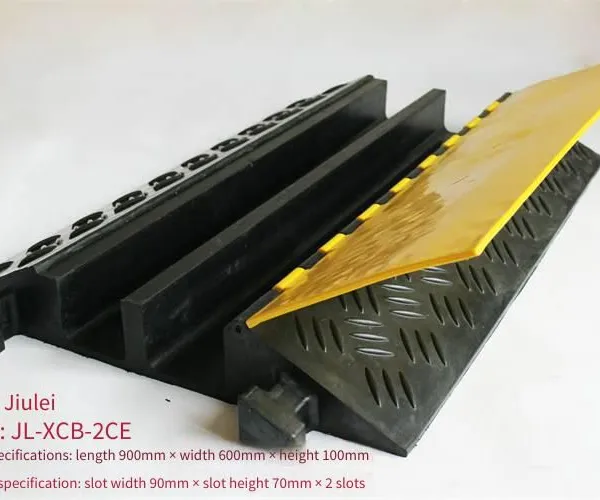

Jiulei Brand Jl-xcb-2ce Rubber and Plastic Bridge Belt [manufacturer] Length: 900mm * Width: 600mm * Height: 100mm - Slot Width: 90mm * Slot Height: 70mm * 2 Wire Slots photo-4
Jiulei Brand Jl-xcb-2ce Rubber and Plastic Bridge Belt [manufacturer] Length: 900mm * Width: 600mm * Height: 100mm - Slot Width: 90mm * Slot Height: 70mm * 2 Wire Slots photo-5
US$ 55.38 ≥1 Piece
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shanghai, China
Contact Supplier Request Quote Chat Now
Shanghai Jiulei Traffic Facilities Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

【Technical parameters of Jiulei brand rubber-plastic bridge belt】

Manufacturer: Shanghai Jiulei Traffic Facilities Co., Ltd.

Product qualifications: Test report, certificate of conformity.

Product name: Jiulei brand JL-XCB-2CE rubber-plastic bridge belt

Brand: JIULEI

Model: Jiulei brand JL-XCB-2CE

Overall specification: Length 900mm * Width 600mm * Height 100mm

Inner dimensions of the groove: Groove width 90mm * Groove height 70mm * 2 grooves

Base material: Rubber

Cover plate material: LDPE

Base color: Black

Cover plate color: Yellow

Number of wire slots: 2 grooves

Load-bearing capacity: 18 tons

Product weight: 28kg

Installation method: Splicing

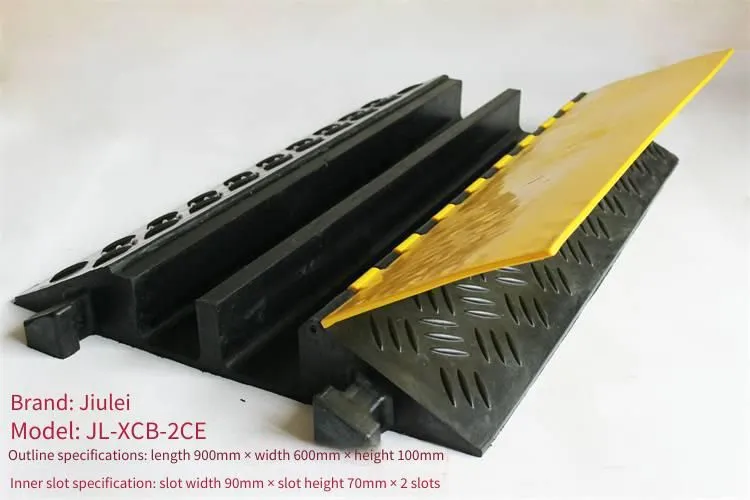

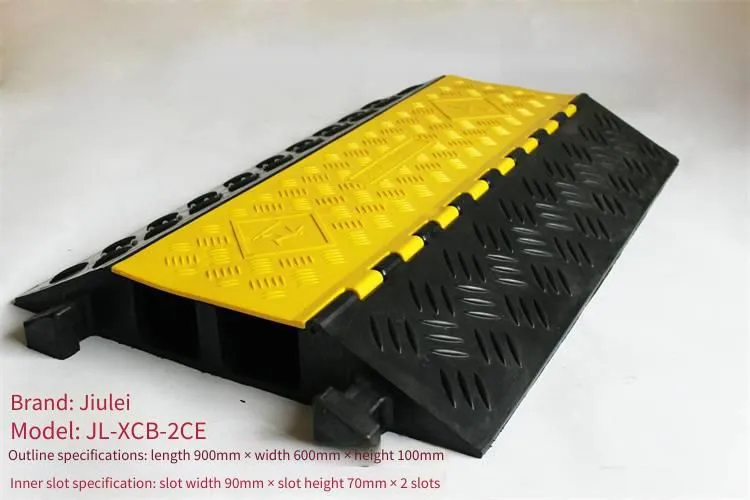

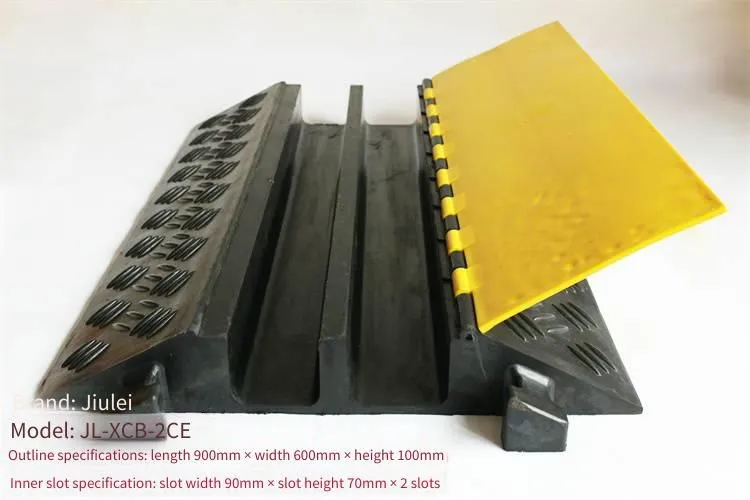

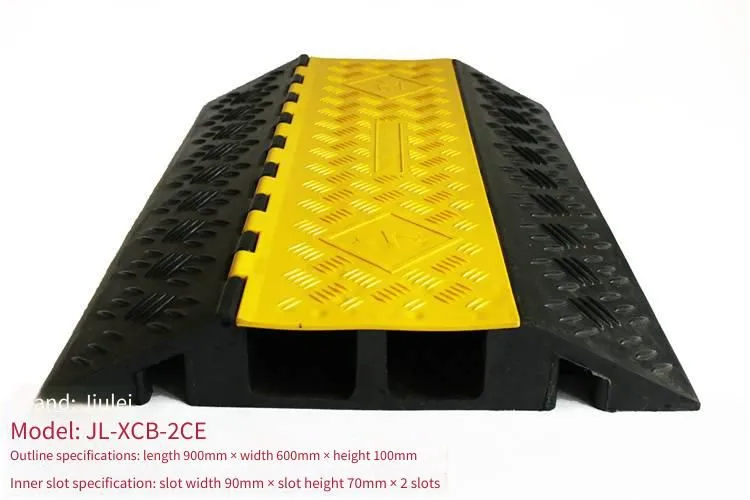

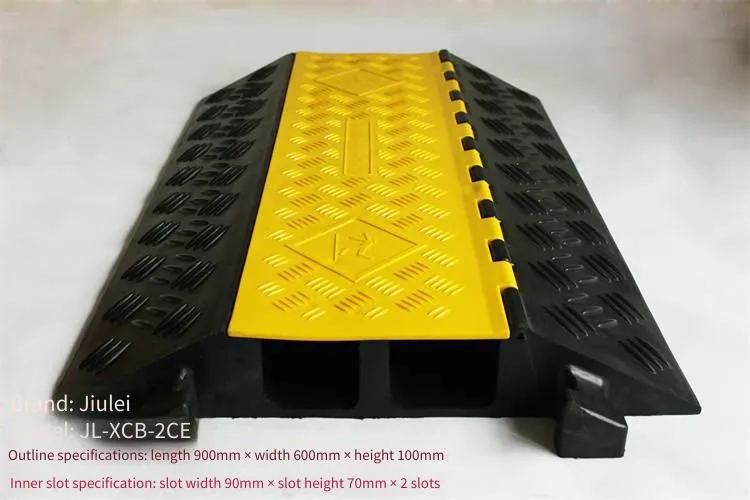

【Pictures of Jiulei brand JL-XCB-2CE rubber-plastic bridge belt】

Pictures of Jiulei brand JL-XCB-2CE rubber-plastic bridge belt

Pictures of Jiulei brand JL-XCB-2CE rubber-plastic bridge belt

Pictures of Jiulei brand JL-XCB-2CE rubber-plastic bridge belt

Pictures of Jiulei brand JL-XCB-2CE rubber-plastic bridge belt

【Features of rubber-plastic bridge belt】

1. Tough, insulating, ultra-high pressure resistance (compressive strength of 50 tons);

2. Suitable for all outdoor weather conditions, rainproof, lightning-proof, moisture-proof, and flame-retardant;

3. Anti-slip surface texture on the surface;

4. Comprehensive protection for all kinds of cables and communication data lines;

5. Unique design, no need to damage the ground for installation;

6. Durable, anti-slip surface texture on the surface;

7. Easy to install, convenient to move, simple and practical structural design;

8. Exclusive right-angle elbows and tees are available for selection;

9. Diverse designs including one groove, 1 hole, single hole, one wire slot, single wire slot, two grooves, 2 holes, two wire slots, two holes, double wire slots, double holes, two wire slots, three grooves, 3 holes, three wire slots, four grooves, 4 holes, four wire slots, five grooves, 5 holes, five wire slots, fully applicable to industries such as media, exhibitions, energy, manufacturing, electricity, communication, and sports;

【Functions of rubber-plastic bridge belt】

The rubber-plastic bridge belt is made of high-strength rubber and high-quality LDPE. It is suitable for temperatures ranging from -32 to 65 degrees Celsius. The product is sturdy and durable, with long-lasting pressure resistance and a long service life. It causes less wear on vehicles, produces no noise, and has excellent shock absorption and compression resistance. It adopts the standard yellow and black alternating production process, with distinct colors and obvious signs. It has high visibility both during the day and at night, attracting drivers' attention to slow down. It is especially suitable for use in amusement parks, entertainment venues, sports events, exhibition halls, and squares, and for temporary emergency applications in most public places, commercial, industrial, and construction sites. It can protect wires, cables, and audio-video data lines in a fast and simple way. It provides a safe and stable crossing passage, continuously protecting various cables and pedestrians' safety. It eliminates the public safety hazards caused by on-site wires and cables and maintains a clean and orderly public activity environment. Optional elbows can allow your protection lines to bend arbitrarily and extend in multiple directions.

【Features of Rubber and Plastic Bridge Crossing Belt】

1: Protect cables. The number of single cables with a large diameter is 5, and the cable diameter reaches 90 mm;

2: Provide all-round protection for various power and communication data cables. All power cables YJVV4*150+1*70mm2 are applicable;

3: Load-bearing capacity: 45 tons/cm². High-load vehicles such as generator emergency vehicles, launch and relay vehicles, and telecommunication signal vehicles can drive normally;

4: Suitable for all outdoor weather conditions, rainproof, lightning-proof, moisture-proof, with a fire-retardant rating of Class III, and a breakdown voltage of 3500 volts;

5: Outdoor applicable temperature range: -35°C to +75°C;

6: The convenient and flexible hinge cover design makes it extremely easy to lay and disassemble wires and cables;

7: The bottom is designed with strong adhesion. It can be placed and installed arbitrarily without using bolts to damage the ground or tools, and it can also prevent running and shifting;

8: The elbow and tee connection accessories enable the protected line to bend arbitrarily and extend infinitely in multiple directions;

9: The separately designed shape after multiple demonstrations is light in weight, convenient for transportation, installation, disassembly, and handling;

10: The unique bottom groove treatment allows the cable to maintain a circular appearance even under high pressure;

11: The advanced surface vulcanization treatment process makes its appearance more beautiful;

12: Conspicuous safety warning signs comply with the regulations for road traffic facilities signs;

13: Eliminate the metal keel support of the rubber and plastic bridge crossing belt. It is entirely cast with high-strength rubber, completely eliminating the electromagnetic eddy current thermal effect;

【Scope of Application of Rubber and Plastic Bridge Crossing Belt】

1. On the passageways where cars pass in stages, hotels, exhibition halls, large conference venues, sports fields, etc.;

2. On the ground where wiring is required in the parking lots of residential communities, shopping malls, and office buildings;

3. In places where vehicles enter and exit, such as material warehouses and personnel and goods gathering places;

4. On the passages in factory workshops where forklifts often come and go;

【Installation Method of Rubber and Plastic Bridge Crossing Belt】

1. Lay the special rubber and plastic bridge crossing belt along the electrical circuit path;

2. Open the upper cover and put the cables into the rubber and plastic bridge crossing belt;

3. After closing the cover of the rubber and plastic bridge crossing belt, vehicles and pedestrians can pass freely;

【Use and Maintenance of Rubber and Plastic Bridge Crossing Belt】

The protruding part at the head of the rubber and plastic bridge crossing belt is stuck in the groove part at the tail of another rubber and plastic bridge crossing belt. They can be stuck to each other to prevent the rubber and plastic bridge crossing belt from moving forward or backward with the vehicle, better protecting the cables. In addition, although the rubber and plastic bridge crossing belt is a rubber product with a certain degree of flexibility, in order to extend its service life, do not throw it from a high distance. After use, if it needs to be cleaned, wipe it with a damp cloth. Then, place them all on a flat ground and stack them face up to prevent the bottom from deforming and affecting the fit with the cover.
