【Technical parameters of Jiulei brand rubber-plastic bridge belt】

Manufacturer: Shanghai Jiulei Traffic Facilities Co., Ltd.

Product qualifications: Test report, certificate of conformity.

Product name: Jiulei brand JL-XCB-2CD rubber-plastic bridge belt

Brand: JIULEI

Model: Jiulei brand JL-XCB-2CD

Overall specification: Length 1000mm * Width 250mm * Height 50mm

Inner dimensions of the groove: Groove width 32mm * Groove height 32mm * 2 grooves

Base material: Rubber

Cover plate material: PVC

Base color: Black

Cover plate color: Yellow

Number of wire grooves: 2 grooves

Load-bearing capacity: 5 tons

Product weight: 7kg

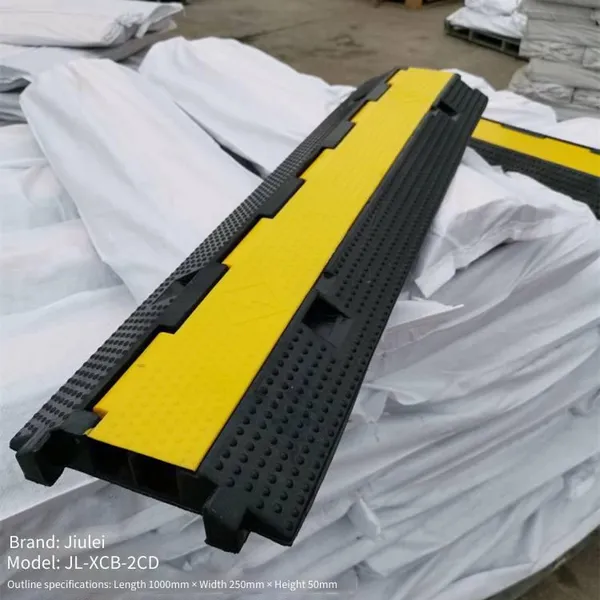

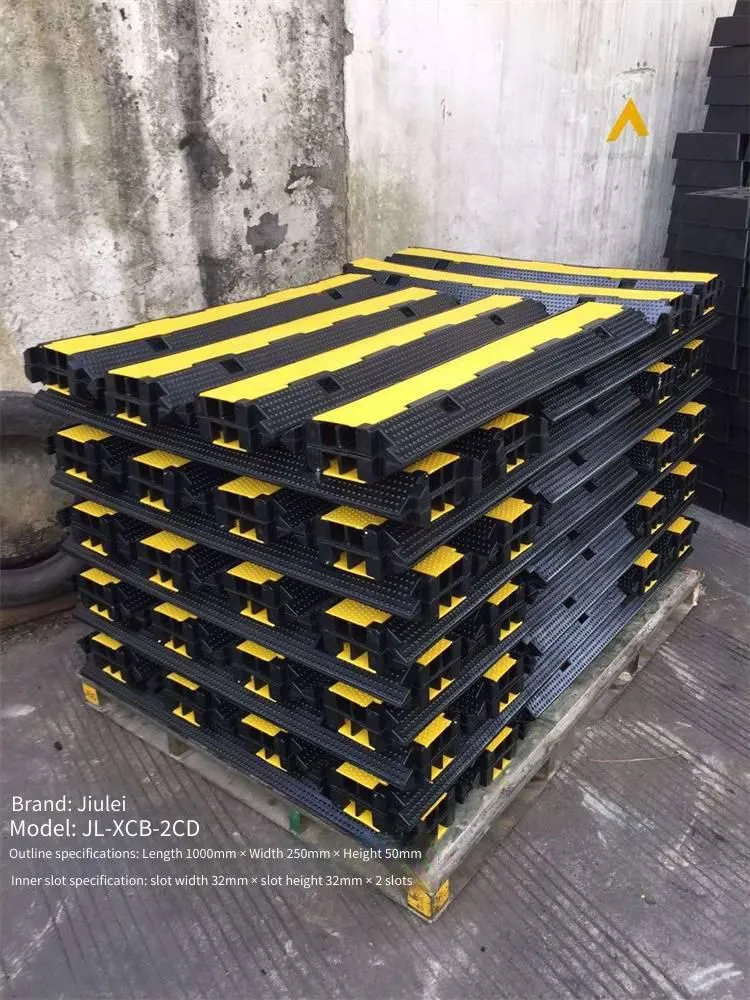

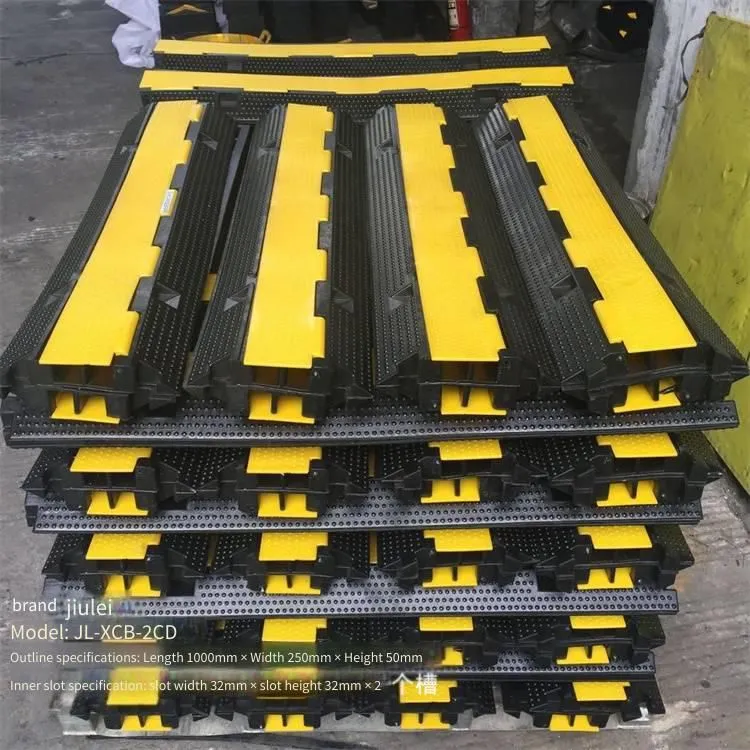

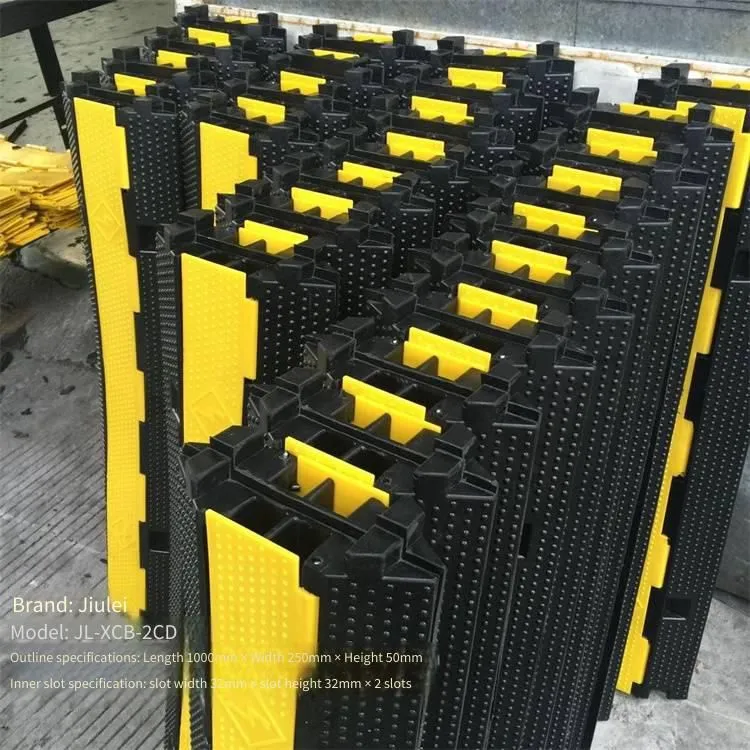

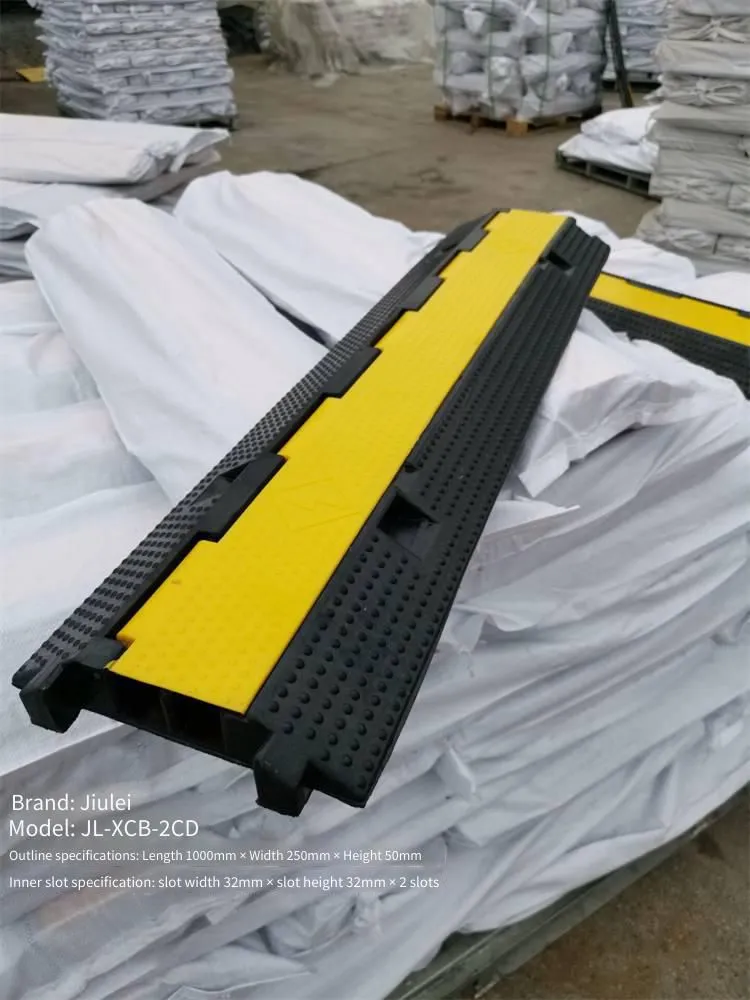

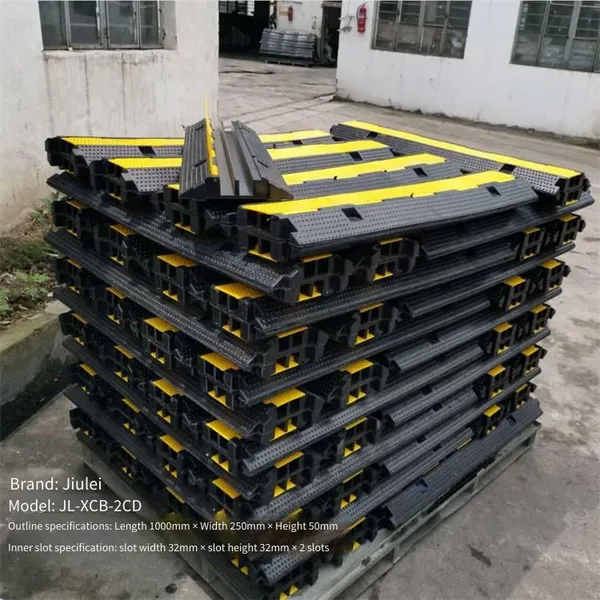

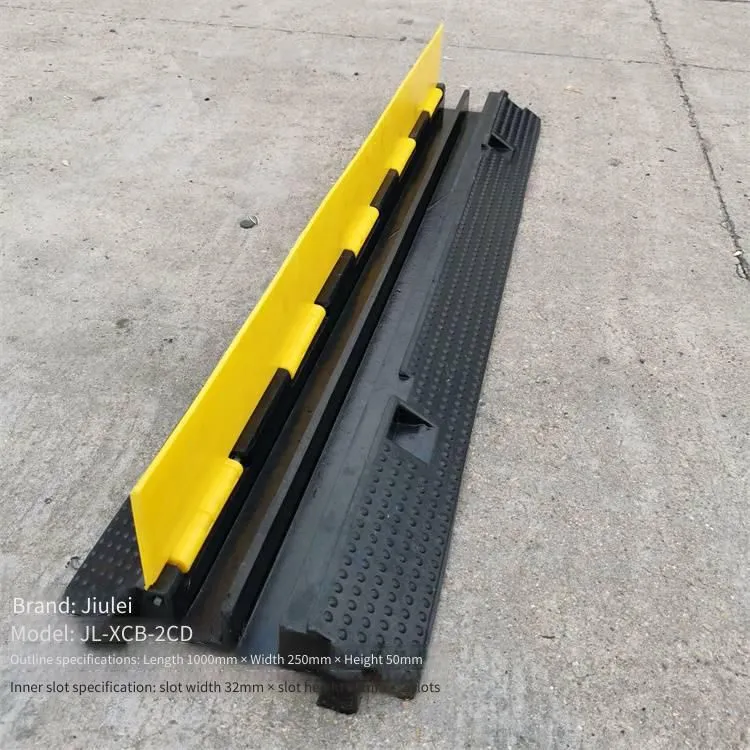

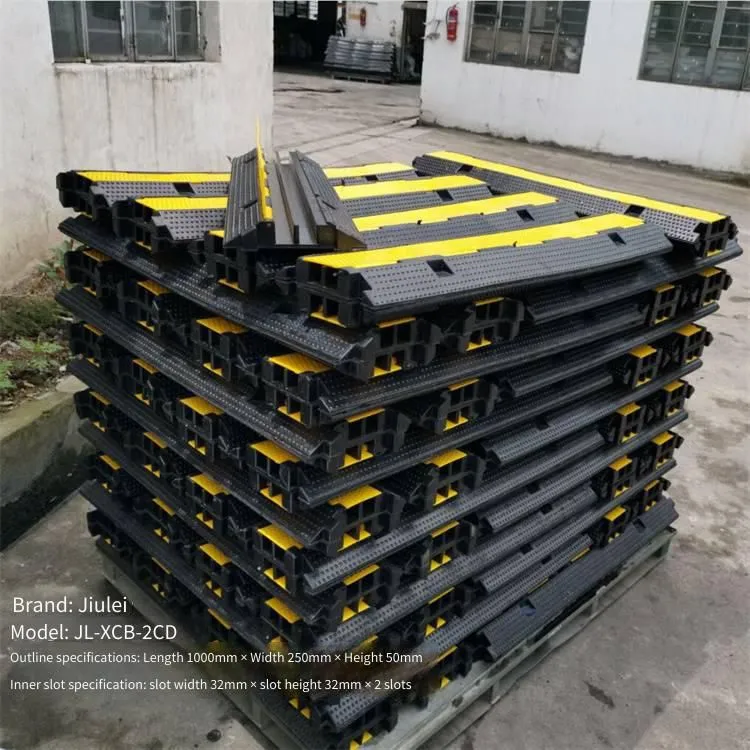

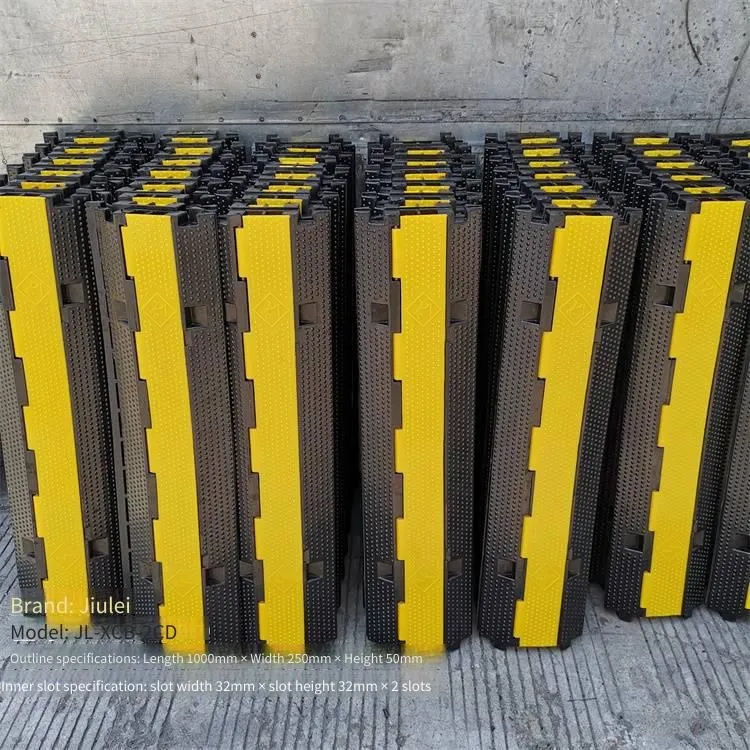

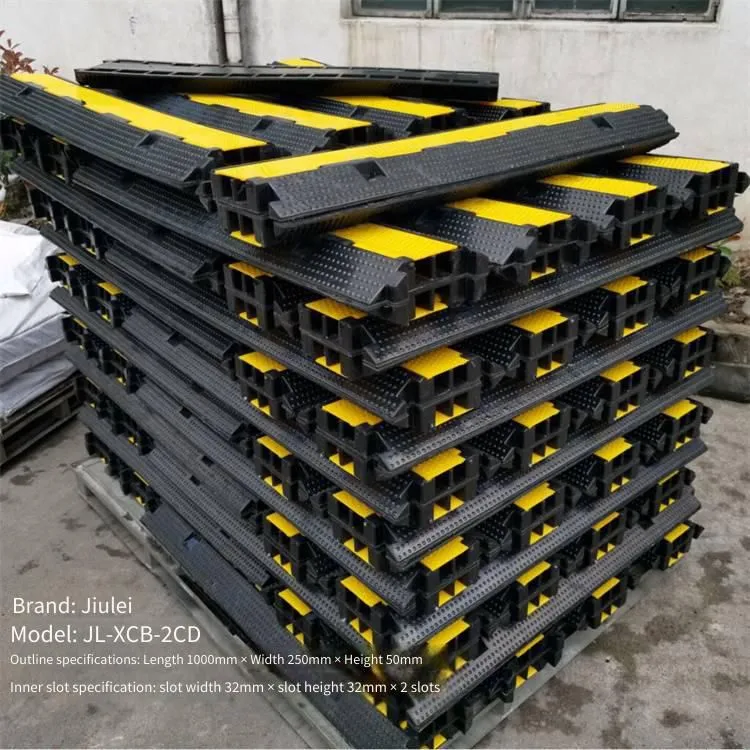

【Pictures of Jiulei brand JL-XCB-2CD rubber-plastic bridge belt】

Pictures of Jiulei brand JL-XCB-2CD rubber-plastic bridge belt

Pictures of Jiulei brand JL-XCB-2CD rubber-plastic bridge belt

Pictures of Jiulei brand JL-XCB-2CD rubber-plastic bridge belt

Pictures of Jiulei brand JL-XCB-2CD rubber-plastic bridge belt

Pictures of Jiulei brand JL-XCB-2CD rubber-plastic bridge belt

Pictures of Jiulei brand JL-XCB-2CD rubber-plastic bridge belt

Pictures of Jiulei brand JL-XCB-2CD rubber-plastic bridge belt

【Features of rubber-plastic bridge belt】

1. Tough, insulating, ultra-high pressure resistance (compressive strength of 50 tons);

2. Suitable for all outdoor weather conditions, rainproof, lightning-proof, moisture-proof, and flame-retardant;

3. Anti-slip surface texture on the surface;

4. Provide all-round protection for various cables and communication data lines;

5. Uniquely designed, no need to damage the ground for installation;

6. Durable, with anti-slip surface texture on the surface;  　

7. Easy to install, convenient to move, with a simple and practical structural design;

8. Unique right-angle elbows and tees are available for selection;

9. Diverse designs including one groove, 1 hole, single hole, one wire groove, single wire groove, two grooves, 2 holes, two grooves, two holes, double grooves, double holes, two wire grooves, three grooves, 3 holes, three wire grooves, four grooves, 4 holes, four wire grooves, five grooves, 5 holes, five wire grooves, which are fully applicable to industries such as media, exhibitions, energy, manufacturing, electricity, communication, and sports.

【Functions of Rubber and Plastic Bridge Crossing Belt】

The rubber and plastic bridge crossing belt is made of high-strength rubber and high-quality PVC. It is suitable for temperatures ranging from -32 to 65 degrees Celsius. The product is sturdy and durable, with long-lasting pressure resistance and a long service life. It causes less wear and tear on vehicles, produces no noise, and has excellent shock absorption and compression resistance. It adopts the standard yellow and black alternating manufacturing process, with distinct colors and obvious signs. It has high visibility both during the day and at night, attracting drivers' attention to slow down. It is especially suitable for use in playgrounds, entertainment venues, sports events, exhibition halls, and squares, and can be used for temporary emergency applications in most public places, commercial, industrial, and construction areas. It can protect wires, cables, and audio-video data cables in a fast and simple way. It provides a safe and stable crossing passage, continuously protecting various cables and pedestrians' safety. It eliminates public safety hazards caused by on-site wires and cables and maintains a clean and orderly public activity environment. Optional elbows can make your protection lines bend arbitrarily and extend in multiple directions.

【Features of Rubber and Plastic Bridge Crossing Belt】

1: It can protect up to 5 single cables with a large diameter of 90 millimeters.

2: It provides all-round protection for various power and communication data cables. All electric cables YJVV4*150+1*70mm2 are fully applicable.

3: Load-bearing capacity: 45 tons per square centimeter, allowing high-load vehicles such as generator emergency vehicles, launch and relay vehicles, and telecommunications signal vehicles to drive normally.

4: It is suitable for all outdoor weather conditions, rainproof, lightning-proof, moisture-proof, with a flame retardant and fireproof rating of three, and a breakdown voltage of 3500 volts.

5: Outdoor applicable temperature range: -35 degrees Celsius to +75 degrees Celsius.

6: The convenient and flexible hinge cover design makes it extremely easy to install and disassemble wires and cables.

7: The bottom is designed with strong adhesion, allowing for arbitrary placement and installation without using bolts to damage the ground or tools, and it can also prevent running and shifting.

8: The elbows and three-way connection accessories enable the protection lines to bend arbitrarily and extend infinitely in multiple directions.

9: The independently designed shape after multiple demonstrations is lightweight, convenient for transportation, installation, disassembly, and handling.

10: The unique bottom groove treatment allows the cables to maintain a circular appearance even under high pressure.

11: The advanced surface vulcanization treatment process makes its appearance more exquisite.

12: The eye-catching safety warning signs comply with the regulations for road traffic facility markings.

13: The metal keel support of the traditional rubber and plastic bridge crossing belt is eliminated. It is entirely cast with high-strength rubber, completely eliminating the electromagnetic eddy current thermal effect.

【Application Scope of Rubber and Plastic Bridge Crossing Belt】

1. On the passages where cars pass in stages, hotels, exhibition halls, large conference venues, sports fields, etc.

2. On the floors that need wiring in the parking lots of residential communities, shopping malls, and office buildings.

3. In places where vehicles enter and exit, such as material warehouses and personnel and goods gathering places.

4. On the passages where forklifts often pass in factory workshops.

【Installation method of rubber-plastic cable crossing strip】

1. Lay the special rubber-plastic cable crossing strip along the cable route;

2. Open the upper cover and put the cables into the rubber-plastic cable crossing strip;

3. After closing the cover of the rubber-plastic cable crossing strip, vehicles and pedestrians can pass freely;

【Use and maintenance of rubber-plastic cable crossing strip】

The protruding part at the head of the rubber-plastic cable crossing strip is inserted into the groove at the tail of another rubber-plastic cable crossing strip. This interlocking design can prevent the rubber-plastic cable crossing strip from moving forward or backward with the vehicle, thus better protecting the cables. In addition, although the rubber-plastic cable crossing strip is made of rubber and has a certain degree of flexibility, to extend its service life, do not throw it from a great height. After use, if it needs to be cleaned, wipe it with a damp cloth. Then, place all the strips on a flat surface and stack them face up to prevent the bottom from deforming and affecting the fit with the cover.
