Help CenterJiulei Brand Jl-xc-3c3 Road Surface Cable Cover Plate_appearance: Length 800mm × Width 530mm × Height 80mm_inside the Groove: Groove Width 65mm × Groove Height 65mm × 3 Holes
Related Products
-
Jiulei Brand Jl-xc-4c1 Road Surface Cable Cover Plate. Dimensions: Length 800mm × Width 500mm × Height 70mm. Inside the Grooves: Groove Width 50mm × Groove Height 50mm × 4 GroovesUS$ 33.85MOQ: 1 Piece -
Jiulei Brand Jl-xc-3c2 - Road Surface Cable Cover Plate - Dimensions: Length 1000mm × Width 345mm × Height 50mm - Inside the Grooves: Groove Width 30mm × Groove Height 30mm × 3 GroovesUS$ 24.62MOQ: 1 Piece
-
Jiulei Brand Jl-xc-3c1 | Roadway Cable Cover Plate | Dimensions: Length 800mm × Width 430mm × Height 50mm | Inside the Groove: Groove Width 30mm × Groove Height 30mm × 3 GroovesUS$ 24.62MOQ: 1 Piece
-
Jiulei Brand Jl-xc-5c1 Road Surface Cable Cover Plate. Dimensions: Length 800mm × Width 500mm × Height 50mm. Inside the Grooves: Groove Width 30mm × Groove Height 30mm, 5 GroovesUS$ 33.85MOQ: 1 Piece
-
Jiulei Brand Jl-xc-2c3, Road Surface Cable Cover Plate, Dimensions: Length 800mm × Width 430mm × Height 70mm, Inside the Groove: Groove Width 50mm × Groove Height 50mm × 2 Wire GroovesUS$ 27.69MOQ: 1 Piece
【Parameters of Jiulei Brand Road Surface Cable Cover】
Manufacturer: Shanghai Jiulei Traffic Facilities Co., Ltd.
Product Qualifications: Test Report, Certificate of Conformity.
Product Name: Jiulei Brand JL-XC-3C3 Road Surface Cable Cover
Brand: JIULEI
Model: Jiulei Brand JL-XC-3C3
External Dimensions: Length 800mm × Width 530mm × Height 80mm
Inner Dimensions of the Groove: Groove Width 65mm × Groove Height 65mm × 3 Grooves
Base Material: Rubber
Cover Material: TPE
Base Color: Black
Cover Color: Yellow
Number of Wire Slots: 3 Grooves
Load Capacity: 40 Tons
External Weight: ≈17.8~18kg
Packaging Quantity: 2 Pieces/Braided Bag

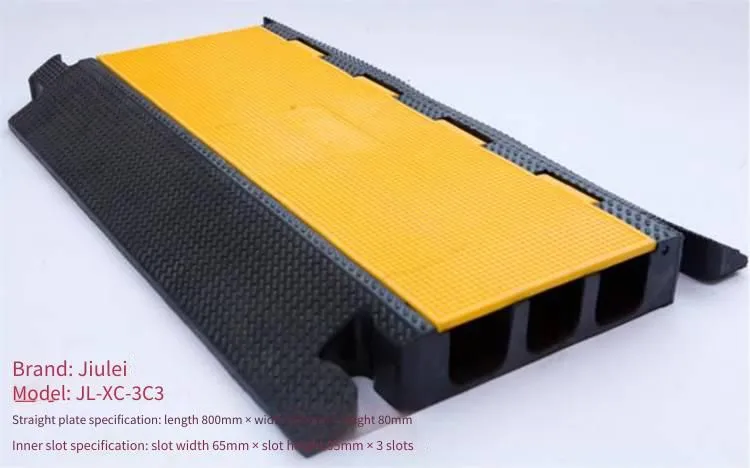

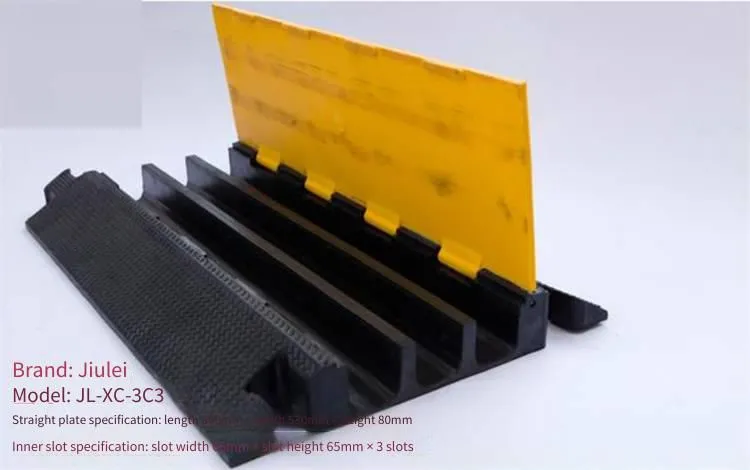

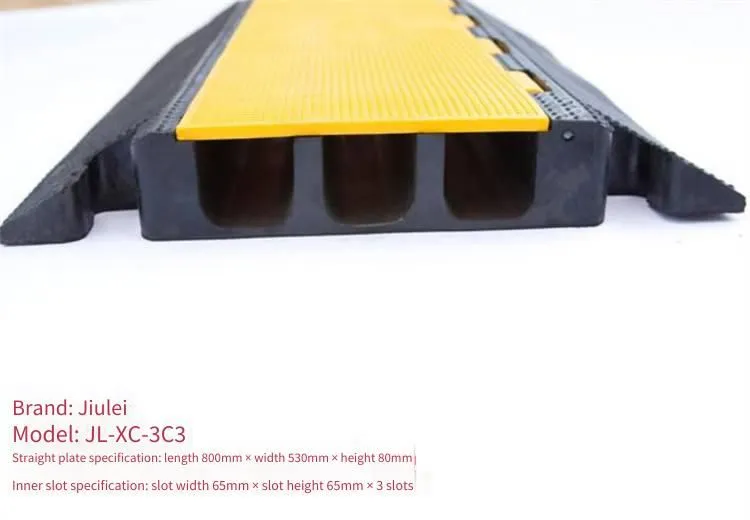

【Pictures of Jiulei Brand JL-XC-3C3 Road Surface Cable Cover】
Pictures of Jiulei Brand JL-XC-3C3 Road Surface Cable Cover
Pictures of Jiulei Brand JL-XC-3C3 Road Surface Cable Cover
【Features of Road Surface Cable Cover】
1. Tough, Insulated, Ultra-high Pressure Resistance (Compressive Resistance of 50 Tons);
2. Suitable for All Outdoor Weather Conditions, Rainproof, Lightning-proof, Moisture-proof, Flame-retardant;
3. Anti-slip Surface Texture on the Surface;
4. All-round Protection for Various Cables and Communication Data Lines;
5. Unique Design, No Need to Damage the Ground for Installation;
6. Durable, Anti-slip Surface Texture on the Surface;
7. Easy to Install, Convenient to Move, Simple and Practical Structural Design;
8. Exclusive Right-angle Elbows and Tees are Available for Selection;
9. Diverse Designs of One Groove, 1 Hole, Single Hole, One Wire Slot, Single Wire Slot, Two Grooves, 2 Holes, Two Grooves, Two Holes, Double Grooves, Double Holes, Two Wire Slots, Three Grooves, 3 Holes, Three Wire Slots, Four Grooves, 4 Holes, Four Wire Slots, Five Grooves, 5 Holes, Five Wire Slots, Fully Applicable to Industries Such as Media, Exhibition, Energy, Manufacturing, Power, Communication, Sports, etc.
【Functions of Road Surface Cable Cover】
The road surface cable cover is made of high-strength rubber and high-quality TPE. It is suitable for temperatures ranging from -32 to 65 degrees Celsius. The product is sturdy and durable, with long-lasting pressure resistance and a long service life. It causes less wear and tear on vehicles, produces no noise, and has excellent shock absorption and pressure resistance. It adopts the standard yellow and black alternating production process, with distinct colors and obvious signs. It has high visibility both during the day and at night, attracting the attention of drivers to slow down. It is especially suitable for use in amusement parks, entertainment venues, sports events, exhibition halls, and squares, as well as for temporary emergency applications in most public places, commercial, industrial, and construction sites. It can protect wires, cables, and audio-video data lines in a fast and simple way. It provides a safe and stable cable cover across the road surface, continuously protecting various cables and the safety of pedestrians. It eliminates the public safety hazards caused by on-site wires and cables, and maintains a clean and orderly public activity environment. Optional elbows can allow your protection lines to bend arbitrarily and extend in multiple directions.
【Features of Road Surface Cable Cover】
1: Protect cables. The number of single cables with a large diameter is 5, and the cable diameter reaches 90 mm;
2: Provide all-round protection for various power and communication data cables. All power cables YJVV49150 + 1970mm2 are applicable;
3: Load-bearing capacity: 45 tons/cm². High-load vehicles such as generator emergency vehicles, transmission and relay vehicles, and telecommunication signal vehicles can drive normally;
4: Suitable for all outdoor weather conditions, rainproof, lightning-proof, moisture-proof, with a fire-retardant grade of three, and a breakdown voltage of 3500 volts;
5: Applicable outdoor temperature range: -35°C to +75°C;
6: The convenient and flexible hinge cover design makes the installation and disassembly of wires and cables extremely easy;
7: The design of strong adhesion at the bottom allows for arbitrary placement and installation. There is no need to use bolts to damage the ground or use tools, and it can also prevent running and displacement;
8: The elbow and tee connection accessories enable the protection line to bend arbitrarily and extend infinitely in multiple directions;
9: The separately designed shape after multiple demonstrations is light in weight, convenient for transportation, installation, disassembly, and handling;
10: The unique bottom groove treatment allows the cable to maintain a circular appearance even under high pressure;
11: The advanced surface vulcanization treatment process makes its appearance more beautiful;
12: Conspicuous safety warning signs comply with the regulations for road traffic facility markings;
13: Eliminate the metal keel support of the road surface cable cover. It is entirely cast with high-strength rubber, completely eliminating the electromagnetic eddy current thermal effect;
【Scope of Application of Road Surface Cable Cover】
1. On the aisles with vehicle traffic in stages, hotels, exhibition halls, large conference venues, sports fields, etc.;
2. On the ground that needs wiring in the parking lots of residential communities, shopping malls, and office buildings;
3. In places with vehicle access such as material warehouses and personnel and goods gathering places;
4. On the road surface cable cover where forklifts often pass in factory workshops;
【Installation Method of Road Surface Cable Cover】
1. Lay the special road surface cable cover along the cable path;
2. Open the upper cover and put the cables into the road surface cable cover;
3. After closing the cover of the road surface cable cover, vehicles and pedestrians can pass freely;
【Use and Maintenance of Road Surface Cable Cover】
The protruding part at the head of the road surface cable cover is stuck in the groove at the tail of another road surface cable cover. They can be stuck to each other to prevent the road surface cable cover from moving forward or backward with the vehicle, better protecting the cables. In addition, although the road surface cable cover is a rubber product with a certain degree of flexibility, in order to extend its service life, do not throw it from a high distance. After use, if it needs to be cleaned, wipe it with a damp cloth. Then place them all on a flat surface and stack them face up to prevent the bottom from deforming and affecting the fit with the cover.
