Help CenterJiulei Brand Jl-xc-4c1 Road Surface Cable Cover Plate. Dimensions: Length 800mm × Width 500mm × Height 70mm. Inside the Grooves: Groove Width 50mm × Groove Height 50mm × 4 Grooves
Related Products
-
Jiulei Brand Jl-xc-3c2 - Road Surface Cable Cover Plate - Dimensions: Length 1000mm × Width 345mm × Height 50mm - Inside the Grooves: Groove Width 30mm × Groove Height 30mm × 3 GroovesUS$ 24.62MOQ: 1 Piece -
Jiulei Brand Jl-xc-3c1 | Roadway Cable Cover Plate | Dimensions: Length 800mm × Width 430mm × Height 50mm | Inside the Groove: Groove Width 30mm × Groove Height 30mm × 3 GroovesUS$ 24.62MOQ: 1 Piece
-
Jiulei Brand Jl-xc-5c1 Road Surface Cable Cover Plate. Dimensions: Length 800mm × Width 500mm × Height 50mm. Inside the Grooves: Groove Width 30mm × Groove Height 30mm, 5 GroovesUS$ 33.85MOQ: 1 Piece
-
Jiulei Brand Jl-xc-2c3, Road Surface Cable Cover Plate, Dimensions: Length 800mm × Width 430mm × Height 70mm, Inside the Groove: Groove Width 50mm × Groove Height 50mm × 2 Wire GroovesUS$ 27.69MOQ: 1 Piece
-
Jiulei Brand Jl-xc-2c2, Road Surface Cable Cover Plate, Dimensions: Length 1000mm × Width 250mm × Height 40mm, Inside the Groove: Groove Width 25mm × Groove Height 25mm × 2 HolesUS$ 20MOQ: 1 Piece
【Parameters of Jiulei Brand Road Surface Cable Cover Plate】
Manufacturer: Shanghai Jiulei Traffic Facilities Co., Ltd.
Product Qualifications: Test Report, Certificate of Conformity.
Product Name: Jiulei Brand JL-XC-4C1 Road Surface Cable Cover Plate
Brand: JIULEI
Model: Jiulei Brand JL-XC-4C1
External Dimensions: Length 800mm × Width 500mm × Height 70mm
Inner Dimensions of the Groove: Groove Width 50mm × Groove Height 50mm × 4 Grooves
Three-way Model: Jiulei Brand JL-XC-4C1-ST
Three-way Specifications: Length 740mm × Width 500mm × Height 70mm 【Inner Dimensions of the Groove are the same as the External Dimensions】
Elbow Model: Jiulei Brand JL-XC-4C1-WT
Elbow Specifications: Length 600mm × Width 500mm × Height 70mm 【Inner Dimensions of the Groove are the same as the External Dimensions】
Base Material: Rubber
Cover Plate Material: TPE
Base Color: Black
Cover Plate Color: Yellow
Number of Cable Slots: 4 Grooves
Load-bearing Capacity: 40 Tons
External Weight: ≈15.3~15.5kg
Three-way Weight: ≈15.3kg
Elbow Weight: ≈15.1kg
Packing Quantity: 2 Pieces/Braided Bag
【Pictures of Jiulei Brand JL-XC-4C1 Road Surface Cable Cover Plate】

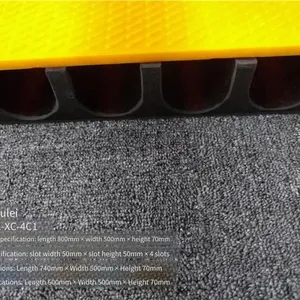

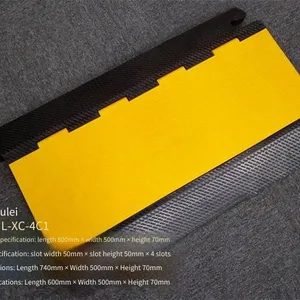

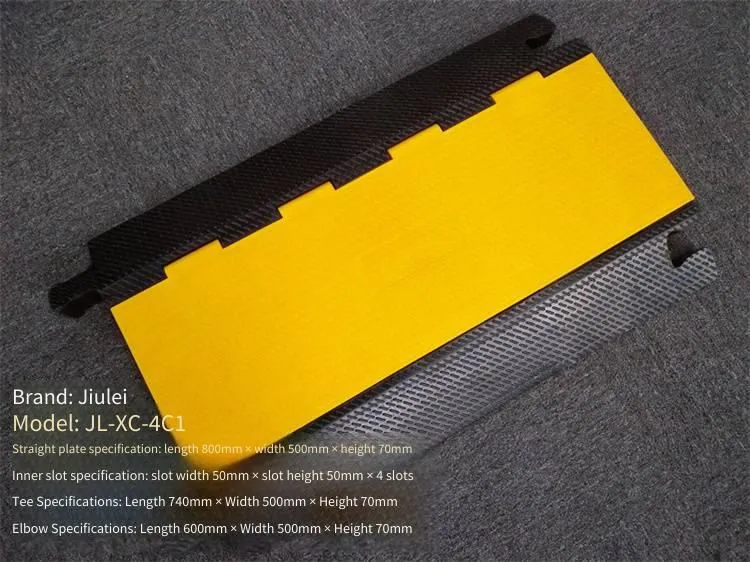

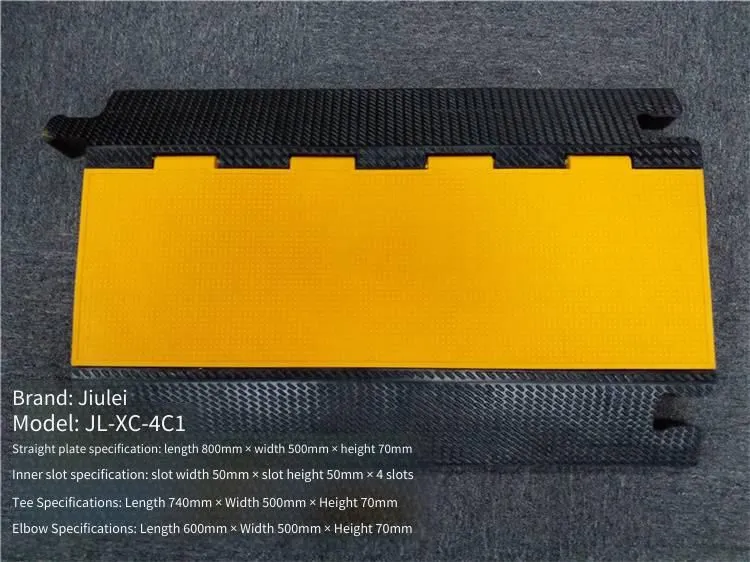

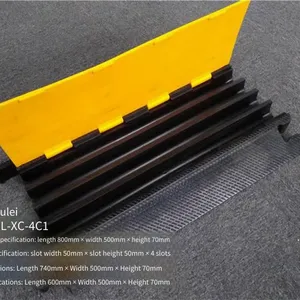

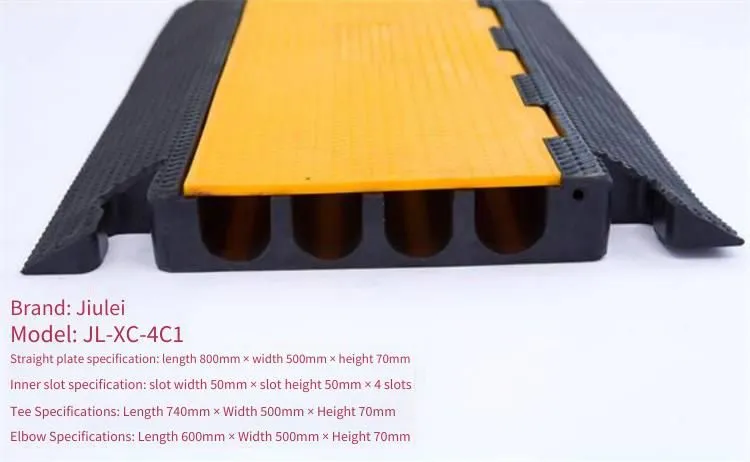

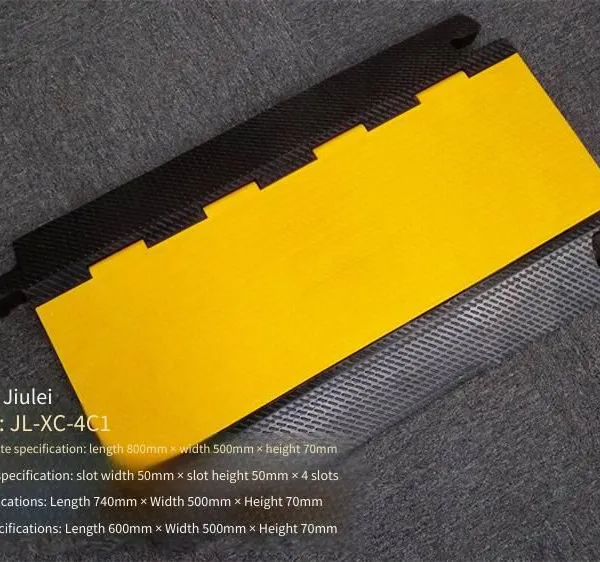

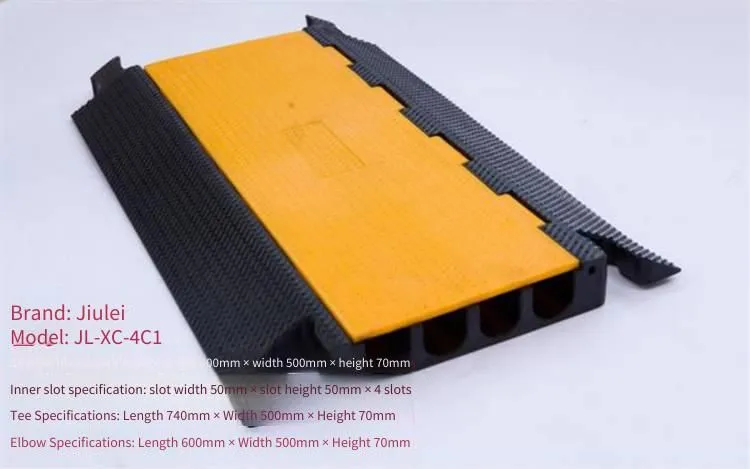

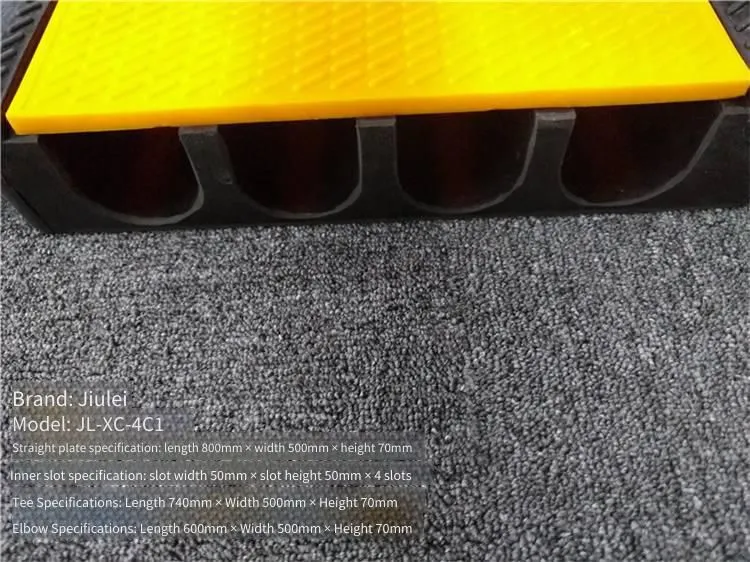

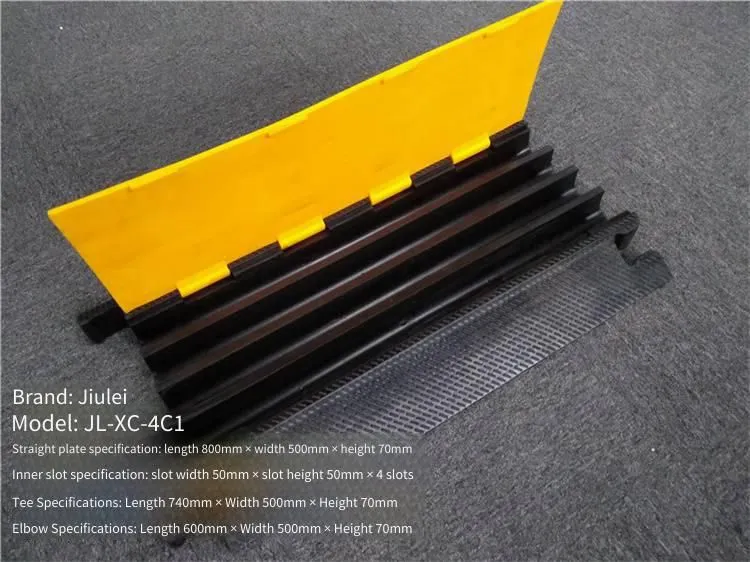

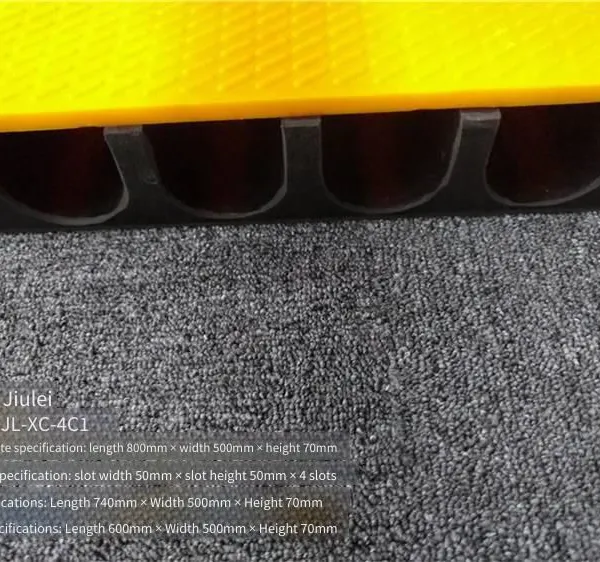

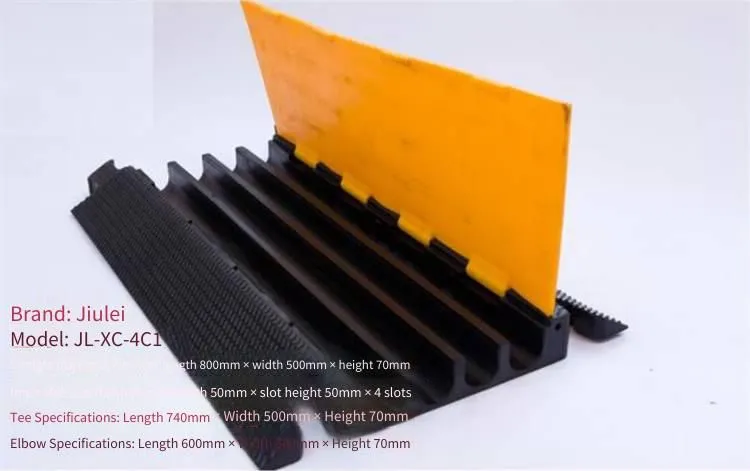

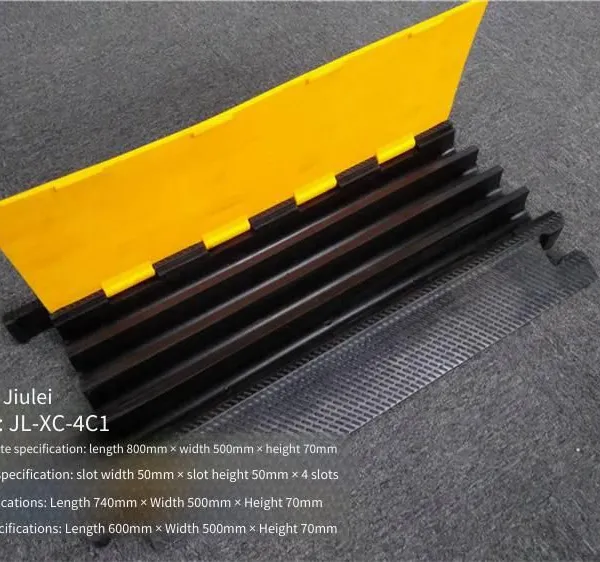

Straight-through Picture of Jiulei Brand JL-XC-4C1 Road Surface Cable Cover Plate
Straight-through Picture of Jiulei Brand JL-XC-4C1 Road Surface Cable Cover Plate
Straight-through Picture of Jiulei Brand JL-XC-4C1 Road Surface Cable Cover Plate
Straight-through Picture of Jiulei Brand JL-XC-4C1 Road Surface Cable Cover Plate

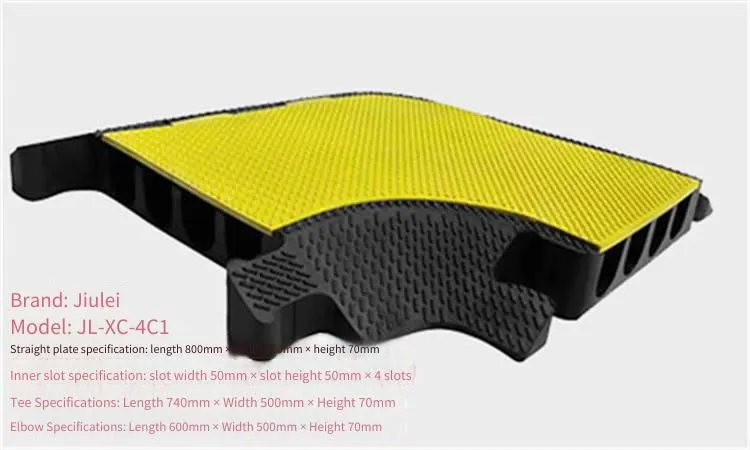

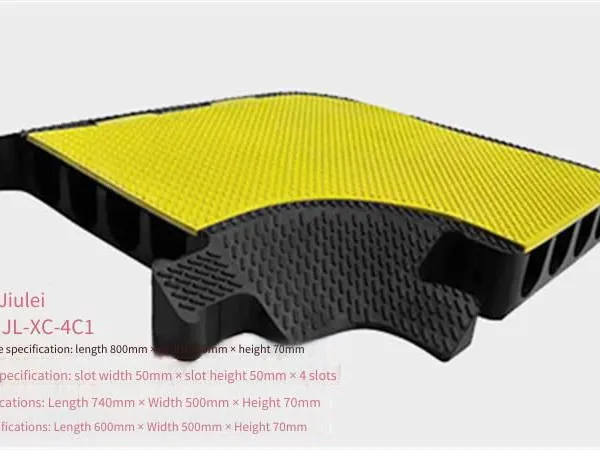

Elbow Picture of Jiulei Brand JL-XC-4C1 Road Surface Cable Cover Plate

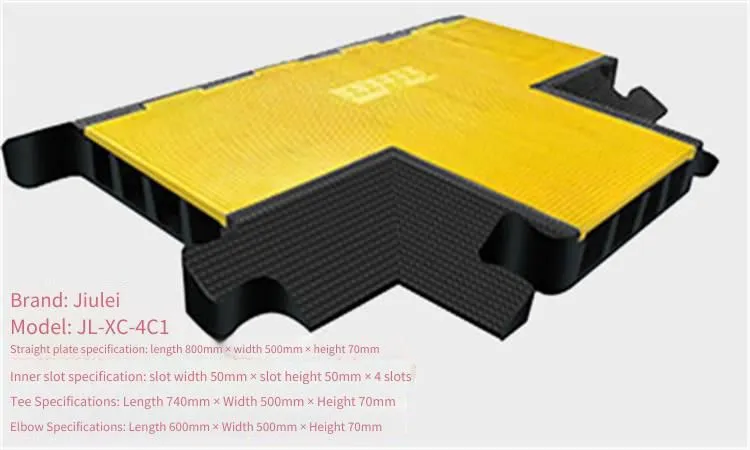

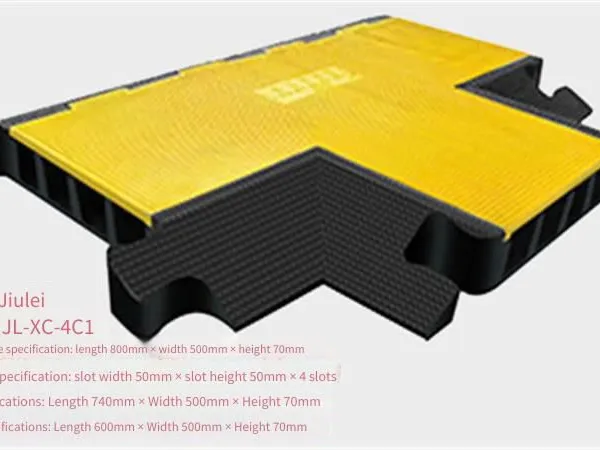

Three-way Picture of Jiulei Brand JL-XC-4C1 Road Surface Cable Cover Plate
Straight-through Picture of Jiulei Brand JL-XC-4C1 Road Surface Cable Cover Plate
Straight-through Picture of Jiulei Brand JL-XC-4C1 Road Surface Cable Cover Plate
Straight-through Picture of Jiulei Brand JL-XC-4C1 Road Surface Cable Cover Plate
[Features of Road Surface Cable Covers]
1. Tough, insulating, with ultra-high pressure resistance (compressive strength of 50 tons);
2. Suitable for all outdoor weather conditions, rainproof, lightning - proof, moisture - proof, and flame - retardant;
3. Anti - slip surface texture;
4. Provide all - around protection for various cables and communication data lines;
5. Uniquely designed, no need to damage the ground for installation;
6. Durable, with anti - slip surface texture;
7. Easy to install and move, with a simple and practical structural design;
8. Unique right - angled elbows and tees are available for selection;
9. Various designs including one slot, 1 hole, single hole, one wire slot, single wire slot, two slots, 2 holes, two slots, two holes, double slots, double holes, two wire slots, three slots, 3 holes, three wire slots, four slots, 4 holes, four wire slots, five slots, 5 holes, five wire slots, fully suitable for industries such as media, exhibition, energy, manufacturing, power, communication, sports, etc.;
[Functions of Road Surface Cable Covers]
The road surface cable covers are made of high - strength rubber and high - quality TPE. They are suitable for temperatures ranging from - 32 to 65 degrees Celsius. The products are sturdy and durable, with long - term pressure resistance and a long service life. They cause less wear and tear to vehicles, produce no noise, and have excellent shock - absorbing and compressive properties. They are made with the standard yellow - black alternating manufacturing process, with distinct colors and obvious signs, having high visibility both during the day and at night to attract drivers' attention and make them slow down. They are especially suitable for use in playgrounds, entertainment venues, sports events, exhibition halls, squares, and most public places, as well as for temporary emergency applications in commercial, industrial, and construction fields. They can protect wires, cables, and audio - video data lines in a fast and simple way. They provide a safe and stable cable cover for crossing the road surface, continuously protecting various cables and pedestrians' safety. They eliminate the public safety hazards caused by on - site wires and cables and keep the public activity environment clean and orderly. Optional elbows can make your protection lines bend arbitrarily and extend in multiple directions.
[Characteristics of Road Surface Cable Covers]
1: It can protect up to 5 single cables with a large diameter of up to 90 mm;
2: Provide all - around protection for various power - level communication data lines, fully applicable to power cables YJVV49150 + 1970mm2;
3: Load - bearing capacity: 45 tons per square centimeter, allowing high - load vehicles such as generator emergency vehicles, transmission and relay vehicles, and telecommunication signal vehicles to drive normally;
4: Suitable for all outdoor weather conditions, rainproof, lightning - proof, moisture - proof, with a flame - retardant rating of Class III, and a breakdown voltage of 3500 volts;
5: Outdoor applicable temperature range: from - 35 degrees Celsius to + 75 degrees Celsius;
6: The convenient and flexible hinged cover design makes the installation and disassembly of wires and cables extremely easy;
7: The bottom is designed with strong adhesion, allowing for arbitrary placement and installation without using bolts to damage the ground or tools, and also preventing running and displacement;
8: Elbows and tee connection accessories enable the protection lines to bend arbitrarily and extend infinitely in multiple directions;
9: Individually designed shape after multiple verifications, featuring light weight, convenient for transportation, installation, disassembly, and handling.
10: The unique bottom groove treatment enables the cable to maintain a circular appearance even under high pressure.
11: Advanced surface vulcanization treatment process makes its appearance more exquisite.
12: Conspicuous safety warning signs comply with the regulations for road traffic facility markings.
13: Eliminating the metal keel support of the road cable cover, it is entirely cast with high-strength rubber, completely eliminating the electromagnetic eddy current thermal effect.
【Scope of application of road cable covers】
1. On the aisles where cars pass in places such as stages, hotels, exhibition halls, large conference venues, and sports fields.
2. On the ground where wiring is required in the parking lots of residential communities, shopping malls, and office buildings.
3. In places such as material warehouses and personnel and goods gathering areas where vehicles enter and exit.
4. On the road cable covers where forklifts frequently pass in factory workshops.
【Installation method of road cable covers】
1. Lay the special road cable covers along the cable route.
2. Open the upper cover and put the cables into the road cable covers.
3. After closing the road cable cover, vehicles and pedestrians can pass freely.
【Use and maintenance of road cable covers】
The protruding part at the head of the road cable cover is stuck in the groove at the tail of another road cable cover. They are mutually locked to prevent the road cable cover from moving forward or backward with the vehicle, better protecting the cable. In addition, although the road cable cover is a rubber product with a certain degree of flexibility, to extend its service life, do not throw it from a high distance. After use, if it needs to be cleaned, wipe it with a damp cloth. Then place all the covers on a flat surface and stack them face up to prevent the bottom from deforming and affecting the fit with the cover.
