【Parameters of Jiulei Brand Road Surface Cable Cover】
Manufacturer: Shanghai Jiulei Traffic Facilities Co., Ltd.
Product Qualifications: Test Report, Certificate of Conformity.
Product Name: Jiulei Brand JL-XC-2C3 Road Surface Cable Cover
Brand: JIULEI
Model: JL-XC-2C3
External Dimensions: Length 800mm × Width 430mm × Height 70mm
Inner Dimensions of Grooves: Groove Width 50mm × Groove Height 50mm × 2 Grooves
Tee Model: JL-XC-2C3-ST
Tee Specifications: Length 470mm × Width 430mm × Height 70mm 【Inner Dimensions of Grooves are the same as the appearance】
Elbow Model: JL-XC-2C3-WT
Elbow Specifications: Length 520mm × Width 430mm × Height 70mm 【Inner Dimensions of Grooves are the same as the appearance】
Base Material: Rubber
Cover Material: TPE
Base Color: Black
Cover Color: Yellow
Number of Cable Trays: 2 Grooves
Load Capacity: 40 Tons
External Weight: ≈11.2kg
Tee Weight: ≈8.0kg
Elbow Weight: ≈8.6kg
Packaging Quantity: 2 Pieces/Braided Bag
【Pictures of Jiulei Brand JL-XC-2C3 Road Surface Cable Cover】

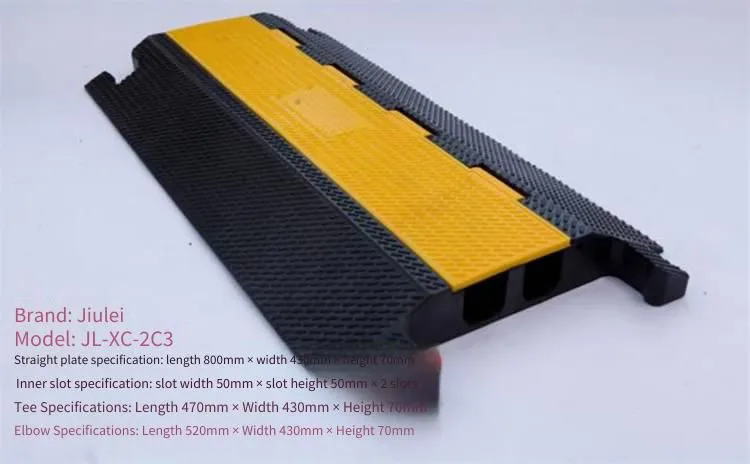

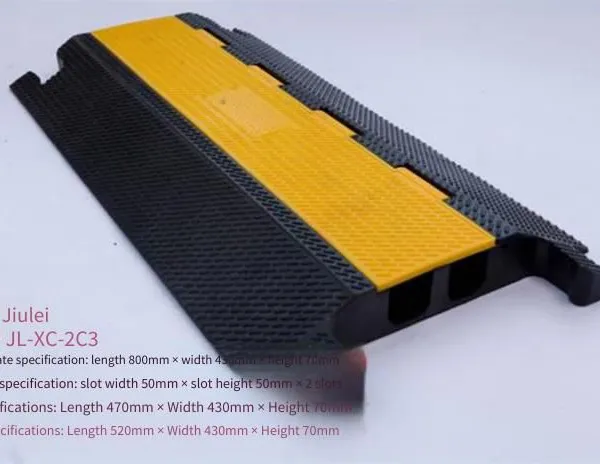

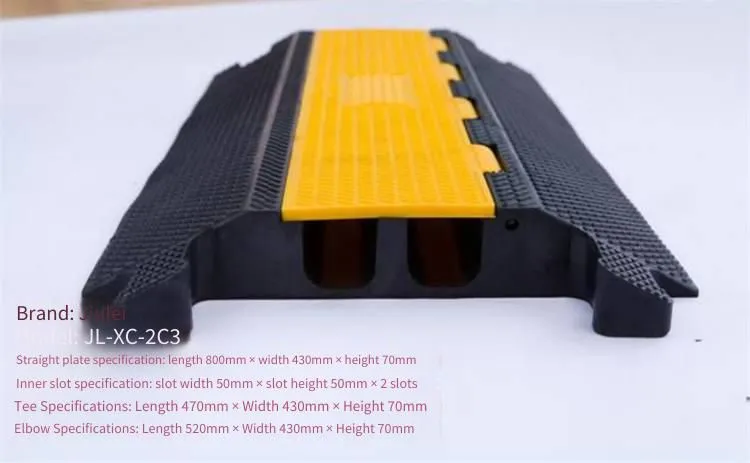

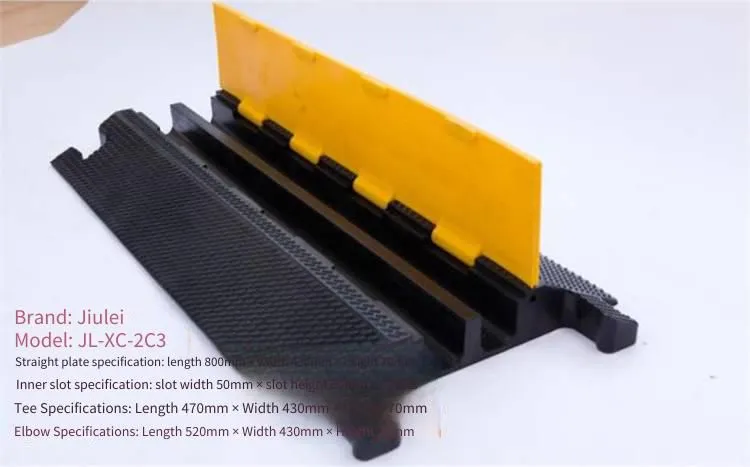

Picture of Straight Section of Jiulei Brand JL-XC-2C3 Road Surface Cable Cover

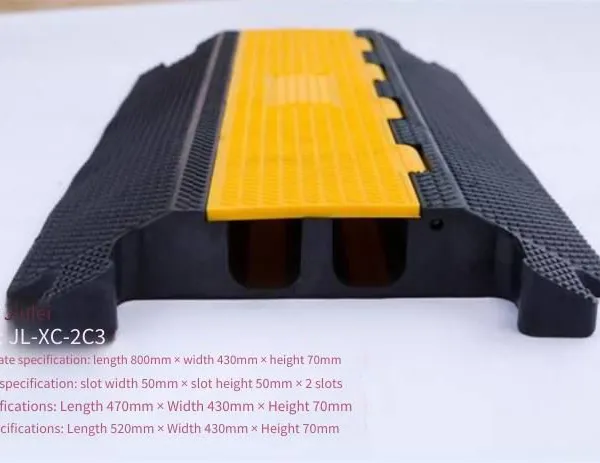

Picture of Straight Section of Jiulei Brand JL-XC-2C3 Road Surface Cable Cover

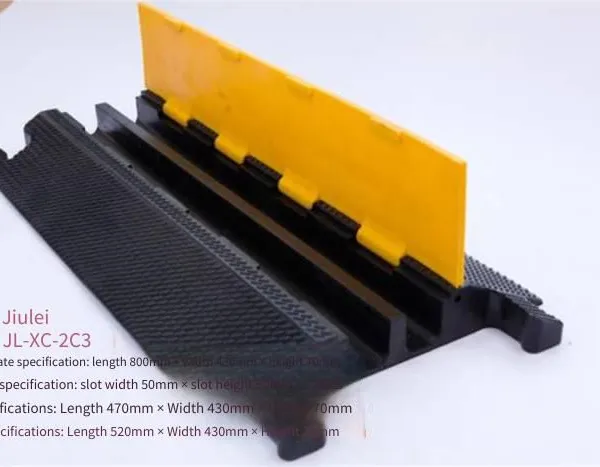

Picture of Straight Section of Jiulei Brand JL-XC-2C3 Road Surface Cable Cover

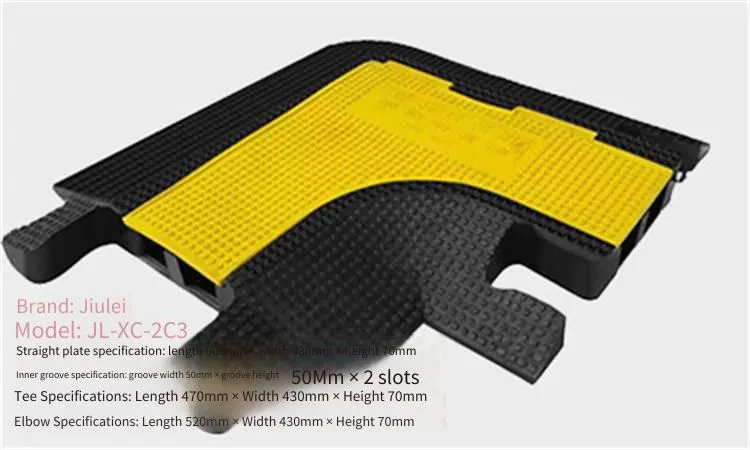

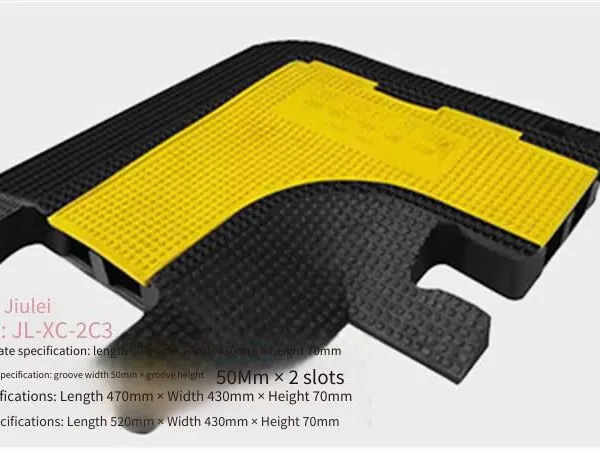

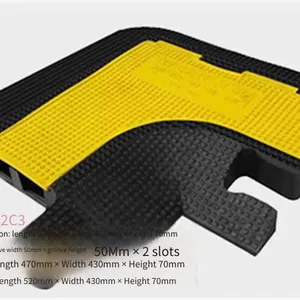

Picture of Elbow of Jiulei Brand JL-XC-2C3 Road Surface Cable Cover

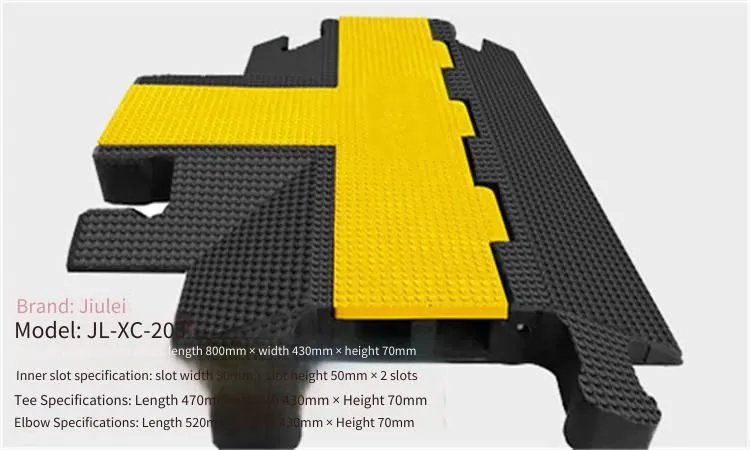

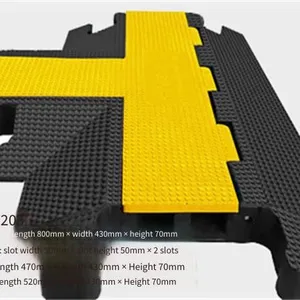

Picture of Tee of Jiulei Brand JL-XC-2C3 Road Surface Cable Cover
【Features of Road Surface Cable Cover】
1. Tough, Insulating, Ultra-high Pressure Resistance (Compressive Strength of 50 Tons);
2. Suitable for all outdoor weather conditions, Rainproof, Lightning-proof, Moisture-proof, Flame-retardant;
3. Anti-slip Surface Texture;
4. Comprehensive Protection for Various Cables and Communication Data Lines;
5. Unique Design, No Need to Damage the Ground for Installation;
6. Durable, Anti-slip Surface Texture;
7. Easy to install and move, with a simple and practical structural design;
8. Exclusive right-angle elbows and tees are available for selection;
9. Diverse designs including one slot, 1 hole, single hole, one cable trough, single cable trough, two slots, 2 holes, two cable troughs, two holes, double cable troughs, double holes, two cable troughs, three slots, 3 holes, three cable troughs, four slots, 4 holes, four cable troughs, five slots, 5 holes, five cable troughs, which are fully applicable to industries such as media, exhibition, energy, manufacturing, power, communication, sports, etc.;
【Functions of Road Cable Covers】
Road cable covers are made of high-strength rubber and high-quality TPE. They are suitable for temperatures ranging from -32 to 65 degrees Celsius. The products are sturdy and durable, with long-lasting pressure resistance and a long service life. They cause less wear and tear on vehicles, produce no noise, and have excellent shock absorption and compression resistance. They are made using the standard yellow and black alternating production process, with distinct colors and obvious signs, making them highly visible both during the day and at night to attract drivers' attention and make them slow down. They are especially suitable for use in amusement parks, entertainment venues, sports events, exhibition halls, and squares, as well as for temporary emergency applications in most public places, commercial, industrial, and construction sites. They can protect wires, cables, and audio - video data cables in a fast and simple way. They provide a safe and stable road cable cover to continuously protect various cables and pedestrians' safety. They eliminate the public safety hazards caused by on - site wires and cables and keep the public activity environment clean and orderly. Optional elbows can make your protected lines bend arbitrarily and extend in multiple directions.
【Features of Road Cable Covers】
1: It can protect up to 5 single cables with a large diameter of 90 millimeters;
2: It provides all - round protection for various power and communication data cables, and is fully applicable to power cables YJVV49150 + 1970mm2;
3: Load - bearing capacity: 45 tons per square centimeter, allowing high - load vehicles such as generator emergency vehicles, transmission and relay vehicles, and telecommunication signal vehicles to drive normally;
4: Suitable for all outdoor weather conditions, rainproof, lightning - proof, moisture - proof, with a fire - retardant rating of Class III and a breakdown voltage of 3500 volts;
5: Outdoor temperature range: from -35 degrees Celsius to +75 degrees Celsius;
6: The convenient and flexible hinge cover design makes the installation and disassembly of wires and cables extremely easy;
7: The strong adhesion design at the bottom allows for arbitrary placement and installation without the need to damage the ground with bolts or use tools, and can also prevent running and shifting;
8: The elbows and tee connection accessories enable the protected lines to bend arbitrarily and extend infinitely in multiple directions;
9: The individually designed shape after multiple demonstrations is lightweight, convenient for transportation, installation, disassembly, and handling;
10: The unique bottom groove treatment allows the cables to maintain a circular appearance even under high pressure;
11: The advanced surface vulcanization treatment process makes the appearance more beautiful;
12: The eye - catching safety warning signs comply with the regulations for road traffic facility markings;
13: The metal keel support of the road cable cover is eliminated, and it is entirely cast with high - strength rubber, completely eliminating the electromagnetic eddy current heat effect;
【Scope of application of road cable covers】
1. On the passageways with vehicle traffic in stages, hotels, exhibition halls, large conference venues, sports fields, etc.;
2. On the ground where wiring is required in the parking lots of residential communities, shopping malls, and office buildings;
3. In places with vehicle access such as material warehouses and personnel and cargo gathering areas;
4. On the road cable covers where forklifts often pass in factory workshops;
【Installation method of road cable covers】
1. Lay the special road cable covers along the cable route;
2. Open the upper cover and put the cables into the road cable covers;
3. After closing the covers of the road cable covers, vehicles and pedestrians can pass freely;
【Use and maintenance of road cable covers】
The protruding part at the head of the road cable cover is stuck in the groove part at the tail of another road cable cover. Being stuck to each other can prevent the road cable covers from moving forward or backward with the vehicles, thus better protecting the cables. In addition, although the road cable covers are rubber products with a certain degree of flexibility, in order to extend their service life, do not throw them from a high distance. After use, if cleaning is required, wipe them with a wet cloth. Then, place them all on a flat ground and stack them face - up to prevent the bottom from deforming and affecting the fit with the covers.
