【Product parameters of Jiulei Brand Rubber and Plastic Bridge Belt】

Manufacturer: Shanghai Jiulei Traffic Facilities Co., Ltd.

Product qualifications: Test report, certificate of conformity.

Product name: Jiulei Brand JL-XCB-1CE Rubber and Plastic Bridge Belt

Brand: JIULEI/ Jiulei

Model: Jiulei Brand JL-XCB-1CE

Overall specifications: Length 1000mm * Width 260mm * Height 70mm

Inner dimensions of the groove: Groove width 70mm * Groove height 50mm * 1 groove

Base material: Rubber

Cover plate material: PVC

Base color: Black

Cover plate color: Yellow

Number of cable troughs: 1 groove

Load-bearing capacity: 5 tons

Product weight: 8kg

Installation method: Splicing

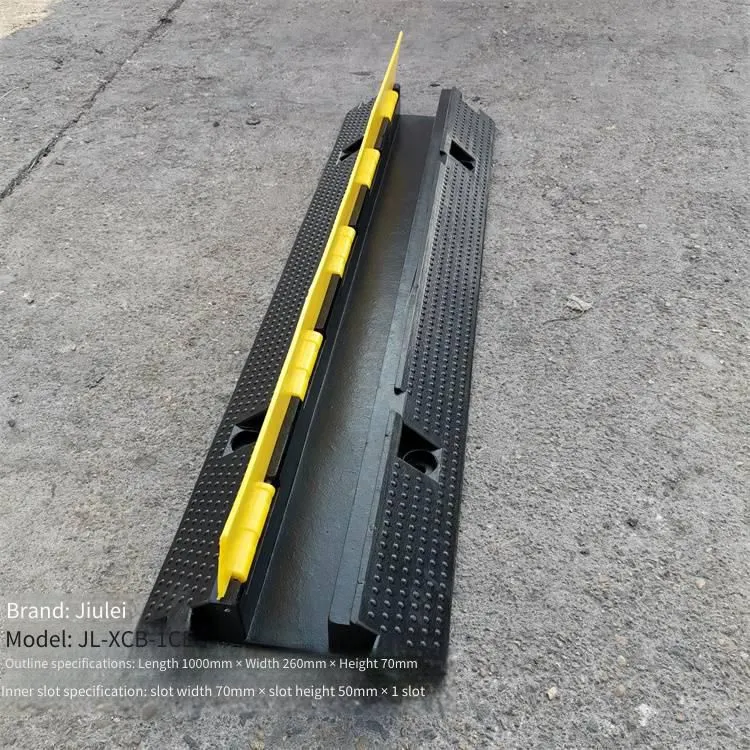

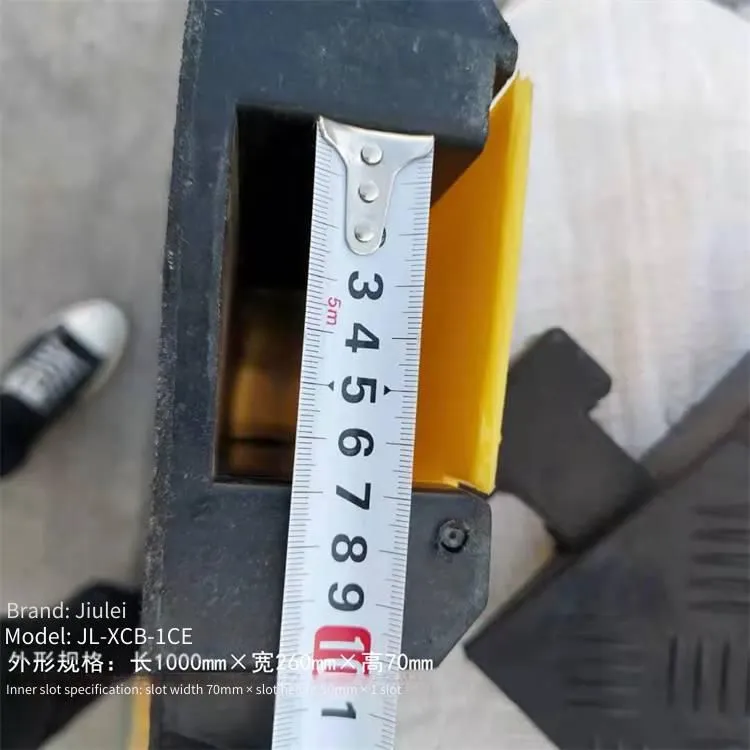

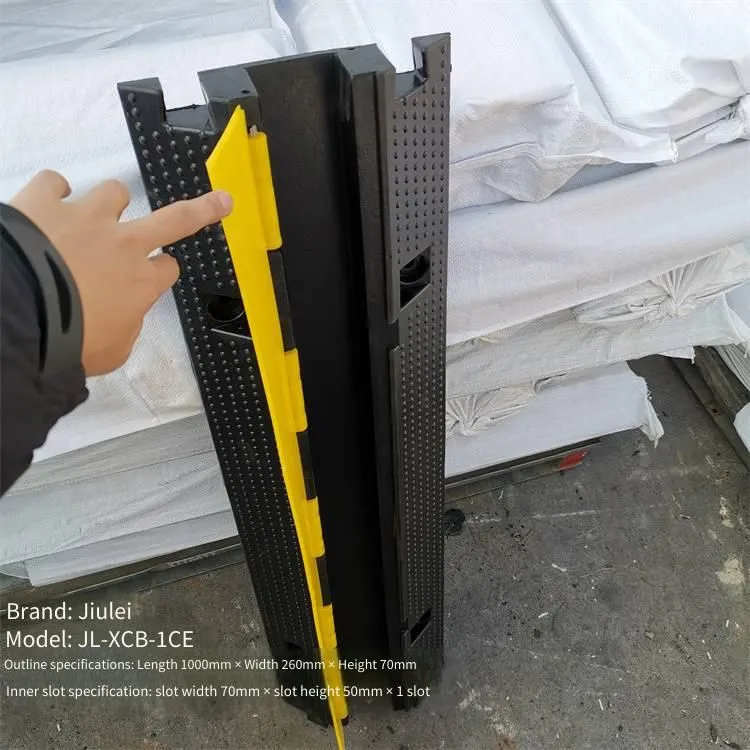

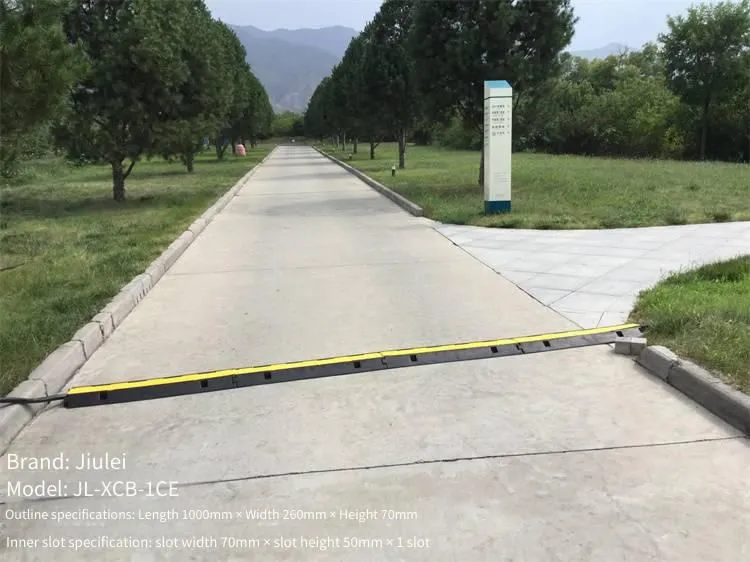

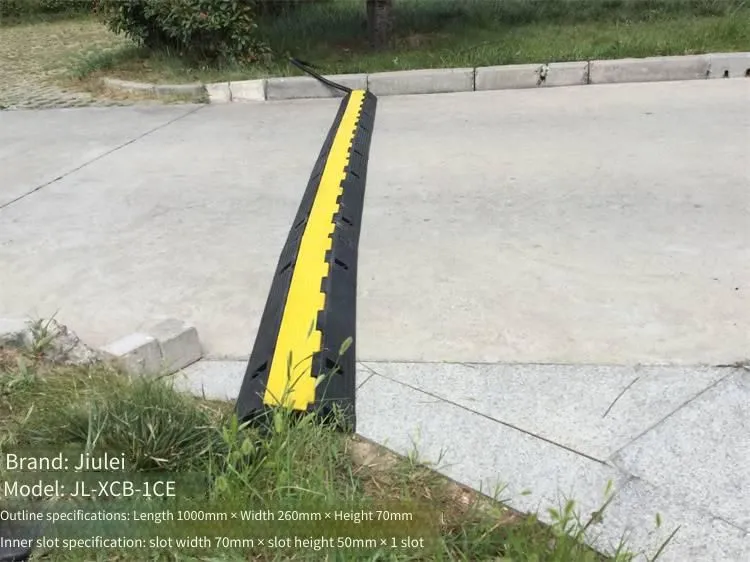

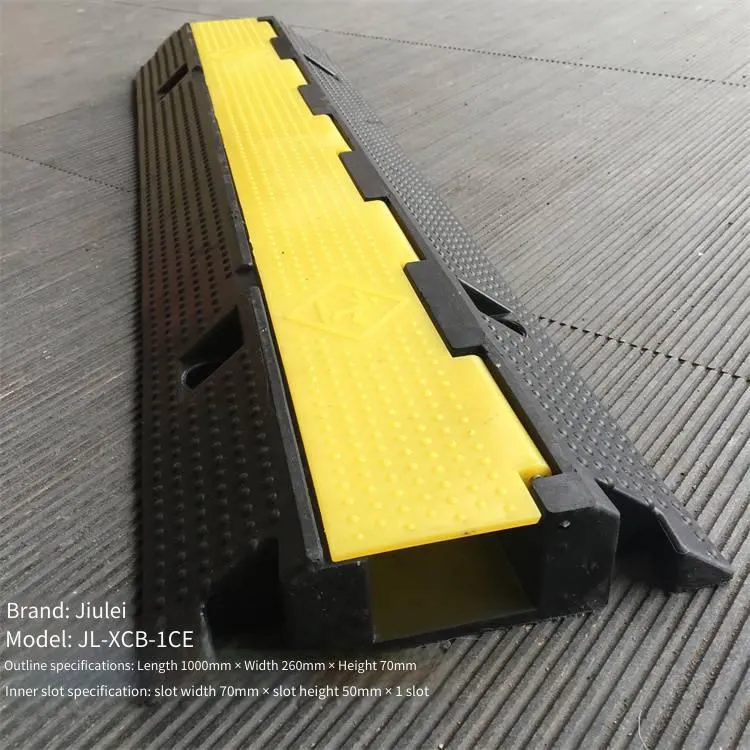

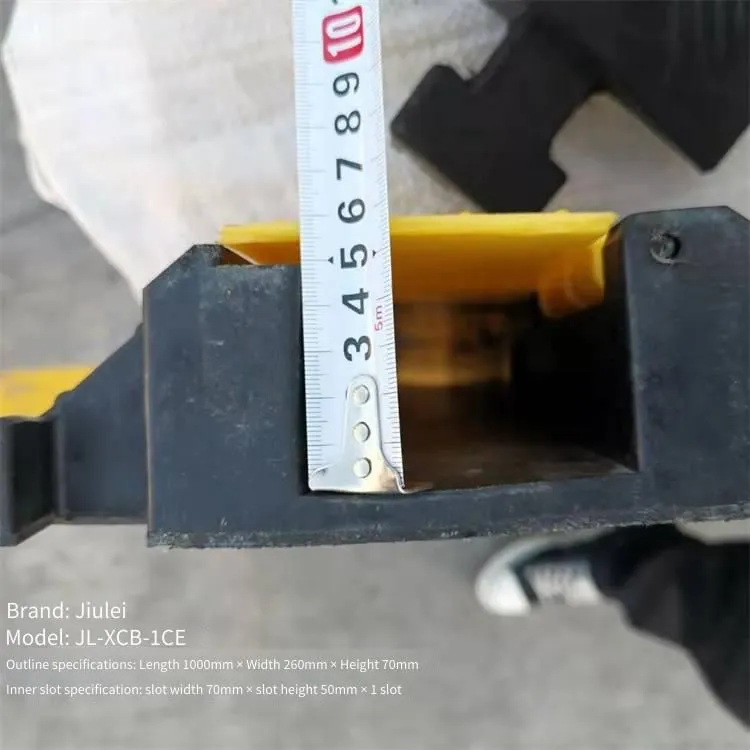

【Pictures of Jiulei Brand JL-XCB-1CE Rubber and Plastic Bridge Belt】

Pictures of Jiulei Brand JL-XCB-1CE Rubber and Plastic Bridge Belt

Pictures of Jiulei Brand JL-XCB-1CE Rubber and Plastic Bridge Belt

Pictures of Jiulei Brand JL-XCB-1CE Rubber and Plastic Bridge Belt

Pictures of Jiulei Brand JL-XCB-1CE Rubber and Plastic Bridge Belt

Pictures of Jiulei Brand JL-XCB-1CE Rubber and Plastic Bridge Belt

Pictures of Jiulei Brand JL-XCB-1CE Rubber and Plastic Bridge Belt

【Features of Rubber and Plastic Bridge Belt】

1. Tough, insulating, and ultra-high voltage resistance (compressive strength of 50 tons);

2. Suitable for all outdoor weather conditions, rainproof, lightning-proof, moisture-proof, and flame-retardant;

3. Anti-slip surface texture;

4. Provide all-round protection for various cables and communication data lines;

5. Uniquely designed, no need to damage the ground for installation;

6. Durable, with anti-slip surface texture;  　

7. Easy to install, convenient to move, and the structural design is simple and practical;

8. Unique right-angle elbows and tees are available for selection;

9. Diverse designs including one groove, 1 hole, single hole, one cable trough, single cable trough, two grooves, 2 holes, two cable troughs, two holes, double grooves, double holes, two cable troughs, three grooves, 3 holes, three cable troughs, four grooves, 4 holes, four cable troughs, five grooves, 5 holes, five cable troughs, which are fully applicable to industries such as media, exhibitions, energy, manufacturing, electricity, communication, and sports.

【Scope of Application for Rubber and Plastic Bridge Crossing Strips】

1. On the aisles with vehicle traffic in stages, hotels, exhibition halls, large conference venues, sports fields, etc.;

2. On the floors that need wiring in the parking lots of residential communities, shopping malls, office buildings, and government agencies;

3. In places with vehicle access such as material warehouses and personnel and goods gathering areas;

4. On the passages in factory workshops where forklifts often come and go;

【Functions of Rubber and Plastic Bridge Crossing Strips】

The rubber and plastic bridge crossing strips are made of high-strength rubber and high-quality PVC. They are suitable for temperatures ranging from -32 to 65 degrees Celsius. The products are sturdy and durable, with long-lasting pressure resistance and a long service life. They cause less wear and tear to vehicles, produce no noise, and have excellent shock absorption and compression resistance. They are made using the standard yellow and black alternating production process, with distinct colors and obvious signs. They are highly visible both during the day and at night, attracting the attention of drivers to slow down. They are especially suitable for use in amusement parks, entertainment venues, sports events, exhibition halls, and squares, and for temporary emergency applications in most public places, commercial, industrial, and construction sites. They can protect wires, cables, and audio and video data cables in a fast and simple way. They provide a safe and stable crossing passage, continuously protecting various cables and the safety of pedestrians. They eliminate the public safety hazards caused by on-site wires and cables and keep the public activity environment tidy and orderly. Optional elbows can make your protection lines bend arbitrarily and extend in multiple directions.

【Installation Method of Rubber and Plastic Bridge Crossing Strips】

1. Lay the special rubber and plastic bridge crossing strips along the cable path;

2. Open the upper cover and put the cables into the rubber and plastic bridge crossing strips;

3. After closing the cover of the rubber and plastic bridge crossing strips, vehicles and pedestrians can pass freely;

【Features of Rubber and Plastic Bridge Crossing Strips】

1: It can protect up to 5 single cables with a large diameter, and the cable diameter can reach 90 mm;

2: It provides all-round protection for various power and communication data cables, and is fully applicable to the power cable YJVV4*150 + 1*70mm2;

3: Load-bearing capacity: 45 tons per square centimeter, allowing high-load vehicles such as generator emergency vehicles, launch and relay vehicles, and telecommunication signal vehicles to drive normally;

4: It is suitable for all outdoor weather conditions, rainproof, lightning-proof, moisture-proof, with a fire-retardant rating of Class III and a breakdown voltage of 3500 volts;

5: Outdoor applicable temperature range: -35 degrees Celsius to +75 degrees Celsius;

6: The convenient and flexible hinge cover design makes the installation and disassembly of wires and cables extremely easy;

7: The strong adhesion design at the bottom allows for arbitrary placement and installation without using bolts to damage the ground or tools, and can also prevent running and displacement;

8: The elbows and tee connection accessories enable the protection lines to bend arbitrarily and extend infinitely in multiple directions;

9: The independently designed shape after multiple demonstrations is lightweight, convenient for transportation, installation, disassembly, and handling;

10: The unique bottom groove treatment allows the cables to maintain a circular appearance even under high pressure.

11: Advanced surface vulcanization treatment process makes its appearance more exquisite;

12: Conspicuous safety warning signs comply with the regulations for road traffic facility markings;

13: The metal keel support of the rubber-plastic bridge belt is eliminated, and it is entirely cast with high-strength rubber, completely eliminating the electromagnetic eddy current heating effect;

【Use and Maintenance of Rubber-Plastic Bridge Belt】

The protruding part at the head of the rubber-plastic bridge belt is stuck in the groove at the tail of another rubber-plastic bridge belt. Being stuck to each other can prevent the rubber-plastic bridge belt from moving forward and backward with the vehicle, better protecting the cables. In addition, although the rubber-plastic bridge belt is a rubber product and has a certain degree of flexibility, in order to extend its service life, do not throw it from a high distance. If it needs to be cleaned after use, you can wipe it with a damp cloth. Then, place them all on a flat surface and stack them face up to prevent the bottom from deforming and affecting the fit with the cover plate.
