【Product Parameters of Jiulei Brand Rubber and Plastic Bridge Belt】

Manufacturer: Shanghai Jiulei Traffic Facilities Co., Ltd.

Product Name: Jiulei Brand JL-XCB-1CK Rubber and Plastic Bridge Belt

Brand: JIULEI/ Jiulei

Model: Jiulei Brand JL-XCB-1CK

Overall Specification: Length 1000mm * Width 350mm * Height 80mm

Inner Dimensions of the Slot: Slot Width 55mm * Slot Height 55mm * 1 Slot

Product Material: Rubber

Product Color: Yellow and Black Interphase

Number of Cable Trays: 1 Slot

Load Capacity: 30 Tons

Product Weight: 18kg

Screw Fixing: 8 Pieces/Meter

Packaging Method: Woven

Installation Method: Screw Fixing

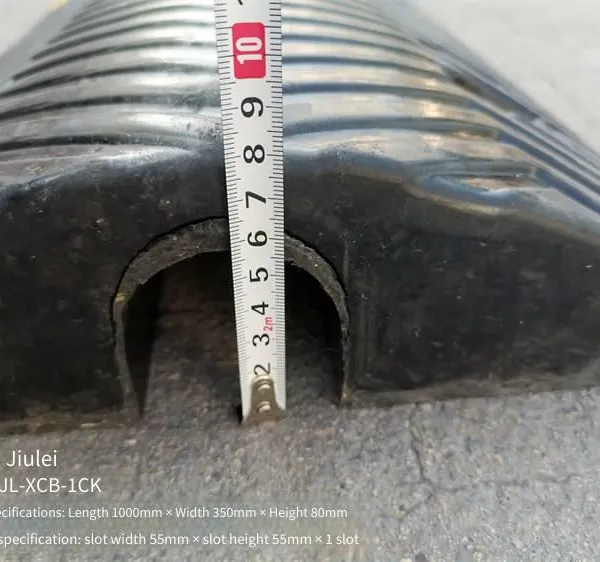

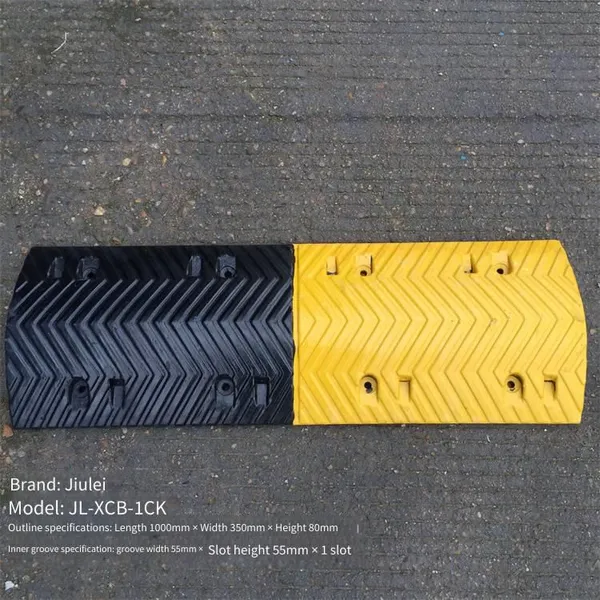

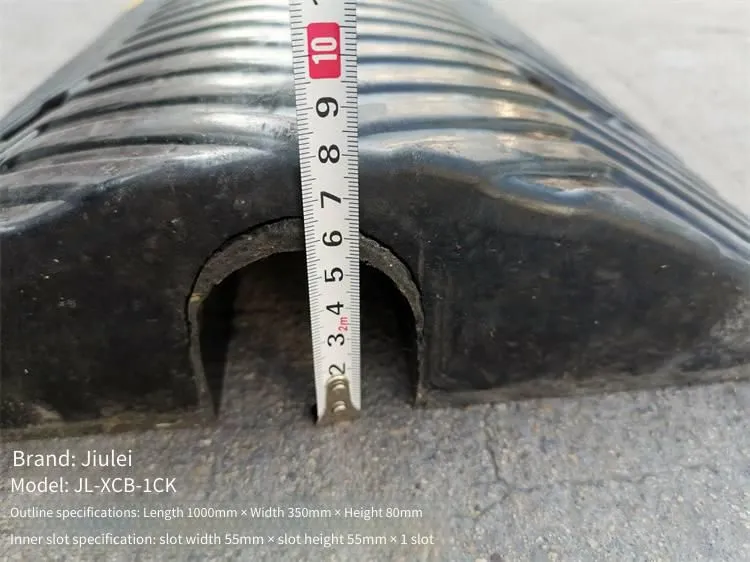

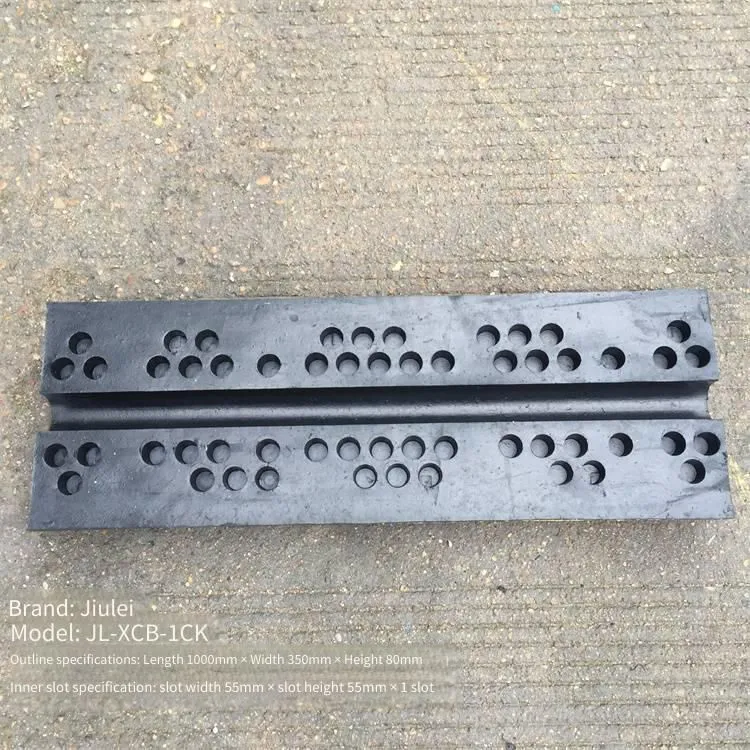

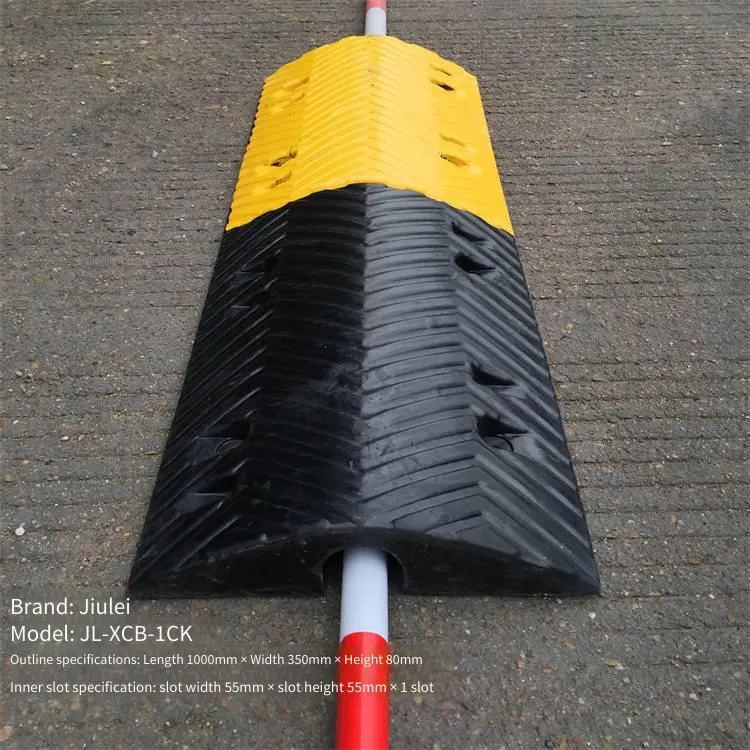

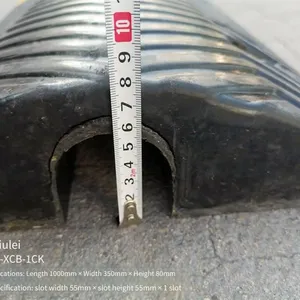

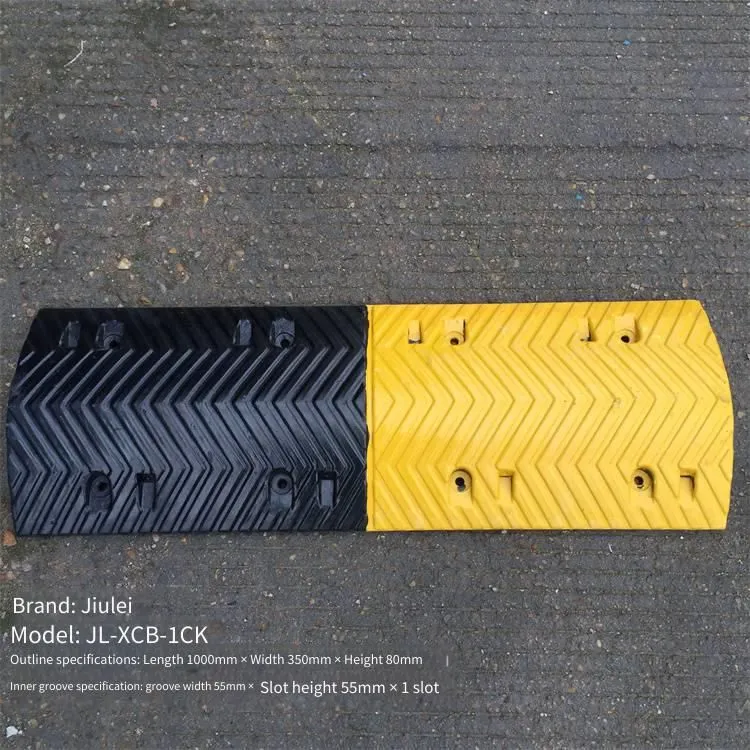

【Pictures of Jiulei Brand JL-XCB-1CK Rubber and Plastic Bridge Belt】

Pictures of Jiulei Brand JL-XCB-1CK Rubber and Plastic Bridge Belt

Pictures of Jiulei Brand JL-XCB-1CK Rubber and Plastic Bridge Belt

Pictures of Jiulei Brand JL-XCB-1CK Rubber and Plastic Bridge Belt

【Features of Rubber and Plastic Bridge Belt】

1. Tough, Insulated, and Ultra-high Pressure Resistance (Compressive Resistance of 50 Tons);

2. Suitable for All Outdoor Weather Conditions, Rainproof, Lightning-proof, Moisture-proof, and Flame-retardant;

3. Anti-slip Surface Texture on the Surface;

4. All-round Protection for Various Cables and Communication Data Lines;

5. Unique Design, No Need to Damage the Ground for Installation;

6. Durable, Anti-slip Surface Texture on the Surface;  　

7. Simple Installation, Easy to Move, and Practical Structural Design;

8. Exclusive Right-angled Elbows and T-joints are Available for Selection;

9. Diverse Designs including One Slot, 1 Hole, Single Hole, One Cable Tray, Single Cable Tray, Two Slots, 2 Holes, Two Cable Trays, Two Holes, Double Cable Trays, Double Holes, Two Cable Trays, Three Slots, 3 Holes, Three Cable Trays, Four Slots, 4 Holes, Four Cable Trays, Five Slots, 5 Holes, Five Cable Trays, fully applicable to industries such as Media, Exhibition, Energy, Manufacturing, Electric Power, Communication, and Sports;

【Scope of Application of Rubber and Plastic Bridge Belt】

1. On the passages with vehicle traffic in stages, hotels, exhibition halls, large conference venues, sports fields, etc.;

2. On the floors that need wiring in the parking lots of residential communities, shopping malls, office buildings, and government agencies;

3. In places with vehicle access such as material warehouses and personnel and goods distribution centers;

4. On the passages where forklifts often pass in factory workshops;

【Functions of Rubber and Plastic Bridge Belt】

The rubber and plastic bridge belt is made of high-strength rubber, suitable for temperatures ranging from -32 to 65 degrees Celsius. The product is sturdy and durable, with long-lasting pressure resistance and a long service life. It causes less wear on vehicles, produces no noise, and has excellent shock absorption and compression resistance. It adopts the standard yellow and black interphase manufacturing process, with bright colors, distinct colors, and obvious signs. It has high visibility both during the day and at night, attracting drivers' attention to slow down. It is especially suitable for use in amusement parks, entertainment venues, sports events, exhibition halls, and squares, and for temporary emergency applications in most public places, commercial, industrial, and construction areas. It can protect wires, cables, and audio and video data lines in a fast and simple way. It provides a safe and stable crossing passage, continuously protecting various cables and pedestrians' safety. It eliminates the public safety hazards caused by on-site wires and cables, and maintains a clean and orderly public activity environment. Optional elbows can allow your protection lines to bend arbitrarily and extend in multiple directions.

【Installation Method of Rubber and Plastic Bridge Belt】

1. Lay the special rubber and plastic bridge belt along the electrical circuit path;

2. Open the upper cover plate and put the cables into the rubber and plastic bridge belt;

3. After closing the cover of the rubber and plastic bridge belt, vehicles and pedestrians can pass freely;

【Features of Rubber and Plastic Bridge Belt】

1: It can protect single cables with a large diameter, and the number of such cables is 5, with a cable diameter reaching 90 mm;

2: It provides all-round protection for various power and communication data cables, and is fully applicable to power cable YJVV4*150+1*70mm2;

3: Load-bearing capacity: 45 tons per square centimeter. High-load vehicles such as generator emergency vehicles, transmission and relay vehicles, and telecommunication signal vehicles can drive normally;

4: It is suitable for all outdoor weather conditions, rainproof, lightning-proof, moisture-proof, with a fire-retardant grade of three, and a breakdown voltage of 3500 volts;

5: The applicable outdoor temperature range is from -35 degrees Celsius to +75 degrees Celsius;

6: The convenient and flexible hinge cover design makes the installation and disassembly of wires and cables extremely easy;

7: The strong adhesion design at the bottom allows for arbitrary placement and installation without the need to damage the ground with bolts or use tools, and it can also prevent running and displacement;

8: The elbow and three-way connection accessories enable the protected line to bend arbitrarily and extend infinitely in multiple directions;

9: The separately designed shape after multiple verifications is light in weight, convenient for transportation, installation, disassembly, and handling;

10: The unique bottom groove treatment ensures that the cable can maintain a circular appearance even under high pressure;

11: The advanced surface vulcanization treatment process makes its appearance more exquisite;

12: The eye-catching safety warning signs comply with the regulations for road traffic facility markings;

13: The metal keel support of the traditional rubber and plastic bridge belt is eliminated, and it is entirely cast from high-strength rubber, completely eliminating the electromagnetic eddy current heating effect;

【Use and Maintenance of Rubber and Plastic Bridge Belt】

The protruding part at the head of the rubber and plastic bridge belt is stuck in the groove at the tail of another rubber and plastic bridge belt. This mutual locking can prevent the rubber and plastic bridge belt from moving forward and backward with the vehicle, better protecting the cables. In addition, although the rubber and plastic bridge belt is a rubber product with a certain degree of flexibility, to extend its service life, do not throw it from a high distance. After use, if it needs to be cleaned, wipe it with a damp cloth. Then, place all of them on a flat surface and stack them face up to prevent the bottom from deforming and affecting the fit with the cover plate.


Product Tags: Rubber and plastic transition belt size , Rubber and plastic transition belt , Rubber and plastic transition belt with a single hole , Rubber and plastic transition belt with a single groove , Cable trough transition belt
