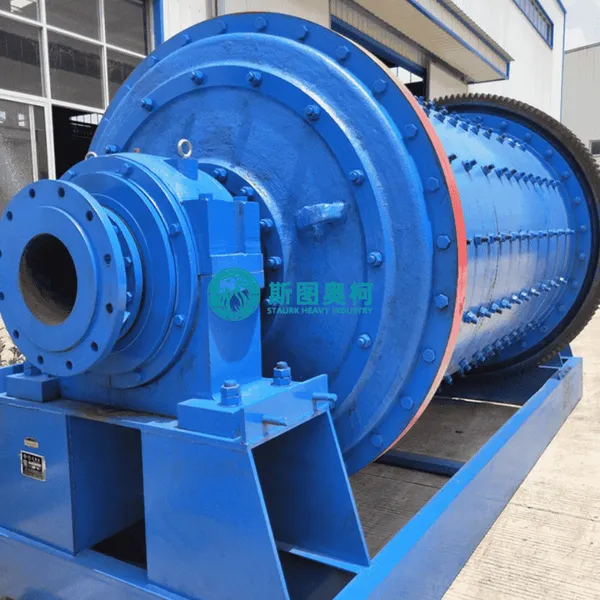

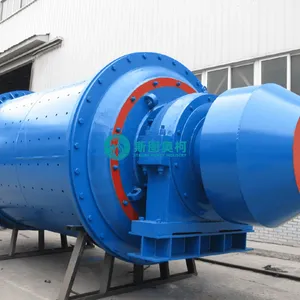

Help CenterBall Mill for Gold Tailings Regrinding System
Product Spotlights
Related Products
-
Ball Mill for Copper Ore Grinding PlantNegotiableMOQ: 1 Set -
Copper Flotation Ball Mill Grinding SystemNegotiableMOQ: 1 Set
-
Ball Mill for Zinc Lead Ore BeneficiationNegotiableMOQ: 1 Set
-
Ball Mill for Polymetallic Ore Processing PlantNegotiableMOQ: 1 Set
-
Mining Ball Mill for Copper Concentrator PlantNegotiableMOQ: 1 Set
Product Introduction
This ball mill for gold tailings regrinding system is a professional fine grinding equipment tailored for gold tailings resource recovery scenarios. It adopts a low-impact, high-uniformity grinding structure, covering full-series specifications from small test units to large industrial continuous regrinding systems. It can perform ultra-fine grinding on gold tailings that have completed the primary beneficiation, fully dissociate the residual fine-grained wrapped gold, and the ground ultra-fine pulp can be directly connected to the subsequent tailings re-separation process, which is the core equipment to improve the comprehensive recovery rate of gold resources.
Working Principle
The low-speed stable rotating cylinder drives the built-in small-diameter graded wear-resistant steel balls to rise to a reasonable height along the special fine-grinding liner and then fall in a gentle trajectory. The gold tailings raw material with low hardness and fine particle size is stably fed into the cylinder, and the residual wrapped gold in the tailings is fully dissociated through the uniform grinding effect between the media, without causing excessive over-grinding. The ultra-fine pulp that meets the re-separation fineness requirement (200-400 mesh) is stably discharged through the overflow discharge port, completing the whole tailings regrinding process.
Core Features
This product has multiple targeted advantages for gold tailings regrinding systems. The optimized fine-grinding structure can stably control the regrinding fineness between 200 mesh and 400 mesh, fully dissociate the residual fine-grained wrapped gold in the tailings, and significantly improve the recovery rate of tailings re-separation. The low-impact grinding design effectively reduces the over-grinding phenomenon, avoids the difficulty of subsequent separation caused by too fine particle size. The high material adaptability can handle various types of gold tailings, and the operation energy consumption is low. It can be seamlessly connected with the original tailings treatment process of the gold plant, and the transformation cost is low.
Technical Specifications
Category |
Model |
Effective Volume |
Capacity |
Impeller |
Impeller RPM Motor Power |
(kW)-Agitating |
Motor Power |
Single Weight (t) |
XJK type |
XJK-0.35 |
0.35 |
0.18-0.4 |
300 |
480 |
1.5 |
0.75 |
0.6 |
XJK-0.62 |
0.3-0.9 |
350 |
400 |
3 |
1.1 |
0.9 |
||
XJK-1.1 |
0.6-1.6 |
500 |
330 |
5.5 |
1.1 |
1.3 |
||
XJK-2.8 |
1.5-3.5 |
600 |
280 |
11 |
1.5 |
2.5 |
||
XJK-5.8 |
5.8 |
5-7 |
750 |
240 |
15 |
1.5 |
3.6 |
|
SF type Flotation |
SF-0.37 |
0.37 |
0.2-0.4 |
300 |
352-442 |
1.5 |
0.55 |
0.5 |
SF-0.65 |
0.65 |
0.3-1.0 |
350 |
336 |
3 |
1.1 |
1 |
|
SF-1.2 |
1.2 |
0.6-1.6 |
450 |
298 |
5.5 |
1.1 |
1.5 |
|
SF-2.8 |
2.8 |
1.5-3.5 |
550 |
268 |
11 |
1.5 |
2.3 |
|
SF-4 |
4 |
2-4 |
650 |
237 |
15 |
2.2 |
2.8 |
|
SF-8 |
8 |
4-8 |
760 |
191 |
30 |
2.2 |
4.3 |
|
SF-10 |
10 |
5-10 |
760 |
191 |
30 |
3 |
4.6 |
|
SF-16 |
16 |
6-16 |
850 |
180 |
45 |
3 |
7.8 |
|
SF-20 |
20 |
8-20 |
730 |
186 |
55 |
3 |
9.8 |
|
| JJF type Flotation machine | JJF-2 |
2 |
1-3 |
370 |
400 |
11 |
1.1 |
1.9 |
JJF-4 |
4 |
2-4 |
410 |
305 |
15 |
1.5 |
2.3 |
|
JJF-8 |
8 |
4-8 |
540 |
233 |
22 |
2.2 |
4.5 |
|
JJF-10 |
10 |
5-10 |
540 |
233 |
22 |
2.2 |
4.9 |
|
JJF-16 |
16 |
5-16 |
700 |
180 |
37 |
2.2 |
8.2 |
|
JJF-20 |
20 |
5-20 |
730 |
180 |
37 |
2.2 |
10.5 |
