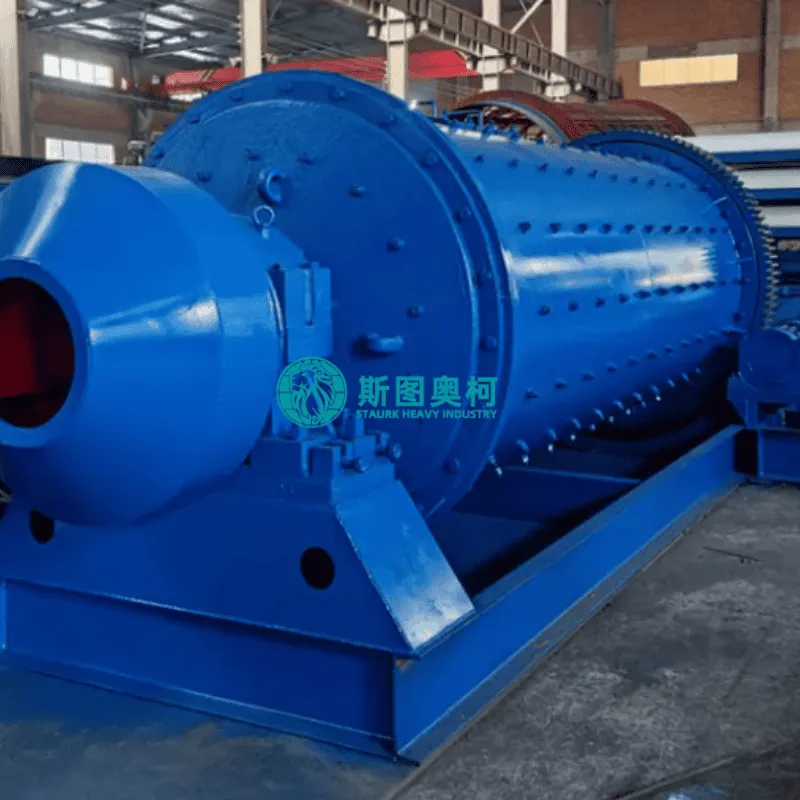

Help CenterBall Mill for Lead Zinc Flotation Plant
Product Spotlights
Related Products
-
Industrial Copper Ore Grinding Ball MillNegotiableMOQ: 1 Set -
Ball Mill for Base Metal Mining PlantNegotiableMOQ: 1 Set
-
High Capacity Copper Ball Mill SystemNegotiableMOQ: 1 Set
-
Ball Mill for Sulfide Ore Grinding SystemNegotiableMOQ: 1 Set
-
Ball Mill for Iron Ore Beneficiation PlantNegotiableMOQ: 1 Set
Product Introduction
This ball mill for lead zinc flotation plant is a professional targeted grinding equipment tailored for lead-zinc ore flotation beneficiation scenarios. It adopts a special anti-corrosion and wear-resistant structure adapted to the characteristics of high-sulfur lead-zinc ore, covering full-series specifications from small test units to large industrial continuous closed-circuit grinding systems. It can fully dissociate lead, zinc minerals and gangue monomers, and the ground pulp that meets the flotation fineness requirements can be directly sent to the subsequent flotation unit, which is the core front-end grinding equipment to ensure the recovery rate of lead and zinc concentrates.
Working Principle
The heavy-duty cylinder with anti-corrosion treatment is driven by a high-torque transmission system to rotate at a precisely controlled constant speed, driving the built-in graded high-chromium wear-resistant steel balls to rise to the optimal height along the thickened manganese steel liner and then fall in a parabolic trajectory. The lead-zinc raw ore is continuously fed into the cylinder, and is fully crushed and ground by the impact force of the steel balls and the continuous grinding effect between the media. The ground pulp is classified by the classifier, the coarse-grained underflow returns to the ball mill for regrinding, and the qualified fine-grained overflow pulp that meets the flotation fineness requirement (0.074mm accounts for 60%~70%) is stably sent to the flotation operation, realizing the full closed-circuit continuous grinding process.
Core Features
This product has multiple targeted advantages for lead-zinc flotation plants. The optimized grinding parameters can stably control the pulp fineness, fully dissociate lead and zinc minerals, and avoid the over-grinding phenomenon that affects the flotation index. The anti-corrosion and wear-resistant design of the contact parts effectively resists the erosion of high-sulfur lead-zinc ore, greatly extending the service life of vulnerable parts. The heavy-duty structure can adapt to 24-hour uninterrupted high-load operation, perfectly matching the continuous production rhythm of large lead-zinc flotation plants. It can be seamlessly connected with subsequent flotation units, effectively improving the comprehensive recovery rate of lead and zinc.
Technical Specifications
| Model | Cylinder RPM (r/min) | Ball Load (t) | Feeding Size (mm) | Discharging Size (mm) | Capacity (t/h) | Motor Model | Power (kW) | Weight (t) |
| MQG600*1800 | 45.5 | 0.5 | ≤ 10 | 0.074-0.5 | 0.2-0.5 | Y160M-6 | 7.5 | 2.5 |
| MQG900*1800 | 38 | 1.8 | ≤ 20 | 0.074-0.6 | 0.8-2 | Y180L-6 | 15 | 5.8 |
| MQG900*3000 | 37.4 | 2.7 | ≤ 20 | 0.074-0.3 | 0.8-3 | Y200L2-6 | 22 | 7.5 |
| MQG1200*2400 | 32 | 4.8 | ≤ 25 | 0.074-0.6 | 1.5-4 | Y225M-6 | 30 | 9.8 |
| MQG1200*4500 | 30 | 5.2 | ≤ 25 | 0.074-0.6 | 1.5-6 | Y280S-6 | 45 | 13.2 |
| MQG1300*4000 | 36 | 5.8 | ≤ 25 | 0.074-0.6 | 2-6 | Y280S-8 | 45 | 14.8 |
| MQG1500*3500 | 28.8 | 8.3 | ≤ 25 | 0.074-0.6 | 3-6 | YR280M-8 | 90 | 17.6 |
| MQG1500*4500 | 28.8 | 10 | ≤ 25 | 0.074-0.4 | 4-8 | JR125-8 | 95 | 22.3 |
| MQG1500*5700 | 28.8 | 12 | ≤ 25 | 0.074-0.4 | 5-10 | JR126-8 | 110 | 26.7 |
| MQG1500*6400 | 28.8 | 13 | ≤ 25 | 0.074-0.4 | 8-12 | JR127-8 | 130 | 29.2 |
| MQG1830*3600 | 24.5 | 12 | ≤ 25 | 0.074-0.4 | 5-10 | JR127-8 | 130 | 31.4 |
| MQG1830*5400 | 24.5 | 15 | ≤ 25 | 0.074-0.4 | 5-20 | JR137-8 | 210 | 33.6 |
| MQG1830*6400 | 24.5 | 19 | ≤ 25 | 0.074-0.4 | 6-25 | JR137-8 | 210 | 36.5 |
| MQG1830*7000 | 24.5 | 20 | ≤ 25 | 0.074-0.4 | 8-30 | JR138-8 | 245 | 39.6 |
| MQG2100*3600 | 24.1 | 21 | ≤ 25 | 0.074-0.6 | 8-20 | YR355L1-8 | 210 | 43.2 |
| MQG2100*4500 | 24.57 | 26 | ≤ 25 | 0.074-0.6 | 8-35 | JR138-8 | 280 | 53.6 |
| MQG2200*3600 | 21.8 | 22 | ≤ 25 | 0.074-0.6 | 9-25 | JR138-8 | 245 | 47.8 |
| MQG2200*4500 | 21.4 | 27 | ≤ 25 | 0.074-0.6 | 10-30 | JR138-8 | 280 | 54.7 |
| MQG2200*7500 | 21.8 | 35 | ≤ 25 | 0.074-0.6 | 10-40 | JR158-8 | 380 | 68.4 |
| MQG2200*9000 | 21.4 | 36 | ≤ 25 | 0.074-0.6 | 10-45 | JR1510-8 | 475 | 76.5 |
| MQG2400*3600 | 21.26 | 26 | ≤ 25 | 0.074-0.6 | 10-40 | JR138-8 | 280 | 63.8 |
| MQG2400*7000 | 21.8 | 36 | ≤ 25 | 0.074-0.6 | 10-45 | JR1510-8 | 475 | 82.4 |
| MQG2400*8000 | 21.8 | 42 | ≤ 25 | 0.074-0.6 | 13-50 | JR630-8 | 560 | 85.7 |
| MQG2400*10000 | 21 | 65 | ≤ 25 | 0.074-0.6 | 15-60 | YR560-8 | 710 | 88.6 |
| MQG2600*8000 | 19.6 | 52 | ≤ 25 | 0.074-0.6 | 16-70 | JR1512-8 | 630 | 97.8 |
| MQG2700*3600 | 21.4 | 39 | ≤ 25 | 0.074-0.4 | 13-75 | JR158-8 | 380 | 86.8 |
| MQG2700*4500 | 21.4 | 43 | ≤ 25 | 0.074-0.4 | 13-90 | JR1510-8 | 475 | 91.8 |
| MQG3000*5400 | 19 | 58 | ≤ 25 | 0.074-0.6 | - | TDMK-30 | 630 | 119.7 |
| MQG3000*9000 | 18.3 | 78 | ≤ 25 | 0.074-0.4 | 20-90 | YR1000-8/1180 | 1000 | 152.4 |
| MQG3000*11000 | 18 | 100 | ≤ 25 | 0.074-0.6 | 30-90 | YR6306-8 | 1120 | 166.7 |
| MQG3200*3600 | 18.6 | 56.5 | ≤ 25 | 0.074-0.6 | 20-80 | YR6302-8 | 630 | 127.4 |
| MQG3200*4500 | 18.6 | 65 | ≤ 25 | 0.074-0.6 | 20-90 | YR6302-8 | 800 | 138.6 |
| MQG3200*5400 | 18 | 72 | ≤ 25 | 0.074-0.6 | 30-100 | YR1000-8 | 1000 | 146.7 |
| MQG3200*9000 | 18 | 85 | ≤ 25 | 0.074-0.6 | 30-100 | YR6302-8 | 1250 | 168.6 |
| MQG3600*4500 | 18 | 86 | ≤ 25 | 0.074-0.6 | 30-100 | YR6302-8 | 1250 | 158.7 |
| MQG3600*6000 | 18 | 117 | ≤ 25 | 0.074-0.6 | 45-180 | - | 14000 | 195.6 |
| MQG4000*6000 | 16.9 | 145 | ≤ 25 | 0.074-0.6 | 60-230 | - | 1800 | 221.7 |
| MQG4500*6000 | 15.6 | 180 | ≤ 25 | 0.074-0.6 | 80-300 | - | 2300 | 269.6 |
