Help CenterM22759/11 Hookup Wire 600V 260℃ PTFE Insulation for Auto and Heating Applications
Product Spotlights
2. High voltage: Rated 600 V / 1000 V
3. Tough & durable: Resists acids, alkalis, solvents, UV, moisture, and flame
4. Space‑saving: Standard wall thickness only 0.254 mm
5. Customizable: PTFE/ETFE, 12+ colors, dual‑stripes, or custom colors.
Related Products
-
TRX179 Series Coaxial Cable PTFE Insulation With 3 Shield for Aerospace SystemsNegotiableMOQ: 1000 Meters -
RF1.13 Miniature Coax Cable 50 Ohm FEP Insulation for Communication SystemsUS$ 0.22MOQ: 1000 Meters
-
RG Coaxial Cable PTFE Insulation Shielded M17 Compliant Coax for RF TransmissionUS$ 1.33MOQ: 1000 Meters
-
0.250" Low Loss Semi‑Rigid Coaxial Cable 50 Ohm SR-250C-LL Feeder Cable for RF SystemUS$ 63.99MOQ: 500 Meters
-
M22759/11 Hookup Wire 600V 260℃ PTFE Insulation for Auto and Heating ApplicationsUS$ 1.36MOQ: 1000 Meters
Product Overview

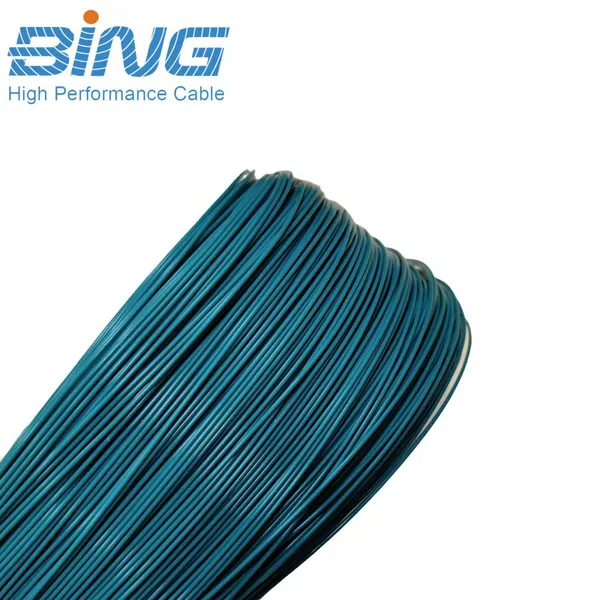

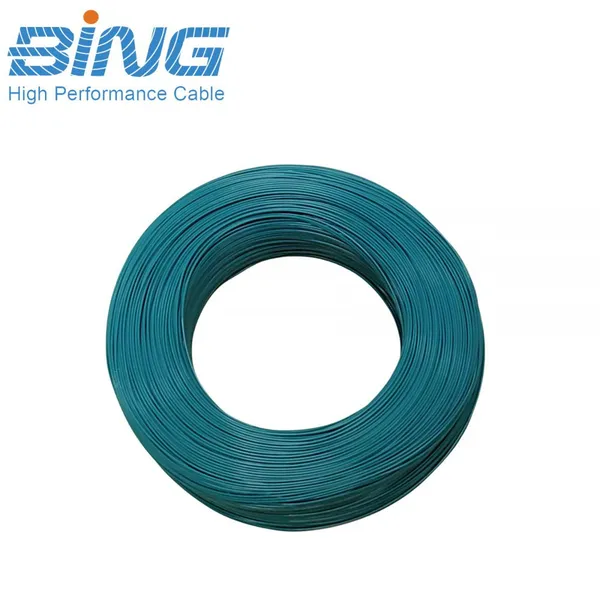

The M22759 series wire offers a wide operating temperature range of -55℃ to +260℃, providing reliable performance in the most extreme aviation and aerospace environments. With a rated voltage of 600V / 1000V, it is suitable for systems with high current overload or mechanical pressure, and is ideal for space-constrained, weight-sensitive instruments and electronic equipment. Its PTFE insulation is highly resistant to thermal shock from welding processes, making it an excellent choice for areas like aircraft engine compartments.
Product Specifications
Conductor: silver-plated copper/ tinned copper
Insulation: PTFE / ETFE
Rated Voltage: 600V /1000V
Operating Temperature: -55℃ to +260℃
Insulation Thickness: 0.010 inches (0.254mm) [standard wall thickness]
Color Options: Black, brown, red, orange, yellow, green, blue, purple, gray, white, natural, dual-color stripes, or custom colors.
Product Features
1. High Breakdown Voltage: PTFE insulation has a volume resistivity of up to 10¹⁸ Ω·cm, low dielectric loss, and excellent resistance to high-voltage arcing.
2. Wide Temperature Tolerance: PTFE performs reliably from -190℃ to +260℃ (with short-term exposure up to 300℃), and is fire-resistant, self-extinguishing when removed from the flame.
3. Superior Chemical Resistance: PTFE is inert to almost all chemicals, including acids, alkalis, and solvents, and remains stable even in humid or saline environments.
4. Excellent Weatherability: Non-hygroscopic, non-flammable, and highly resistant to oxygen and UV radiation, ensuring long-term durability in outdoor and harsh conditions.
If you give me your drawings, and I will render you the perfect products! If you tell me your needs, and I will depict you the satisfying drawings! We hope to obtain your trust and affirmation with our speciality and sincere.! We treasure every opportunity to cooperate with you!
