Product Introduction

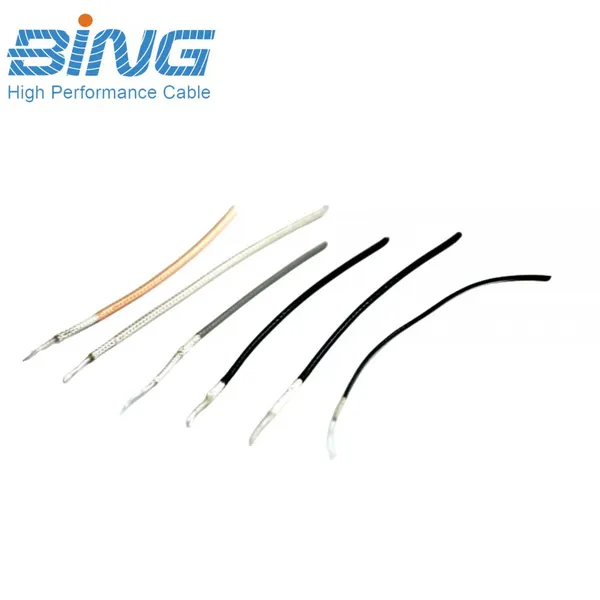

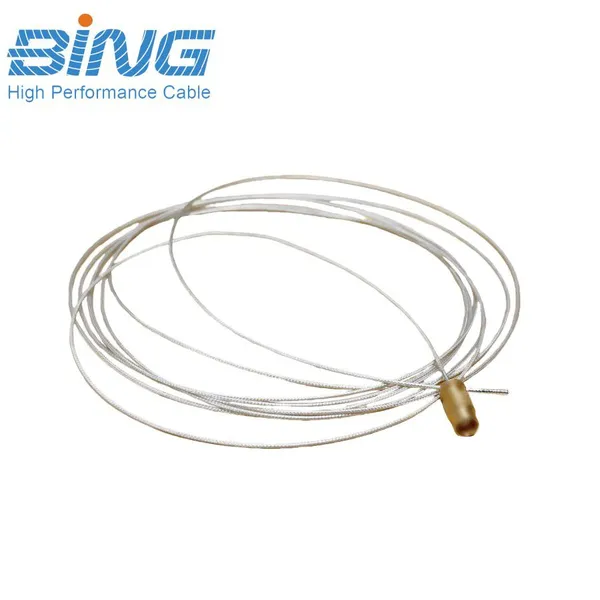

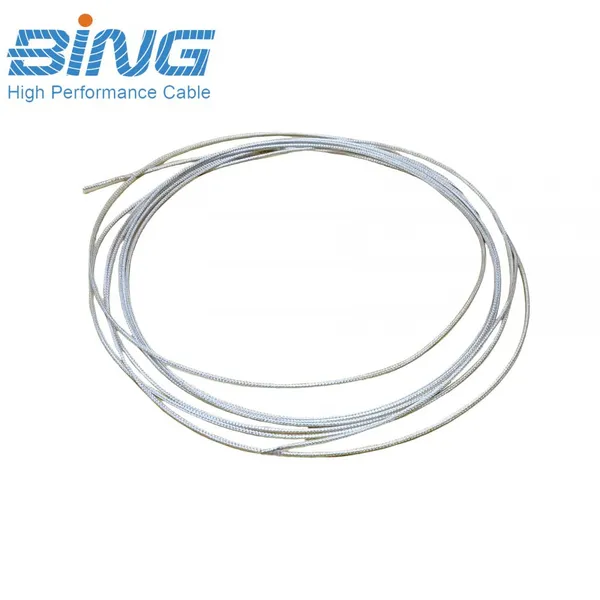

Our RF Series Ultra-Thin Coaxial Cables (including RF0.81, RF1.13, RF1.32, RF1.37, RF1.48) are high-performance, miniature RF interconnect solutions. Designed for compact, high-frequency applications, these cables combine excellent flexibility, durability, and signal integrity.
Core Features
· Superior Flexibility & Bend Resistance: Engineered to withstand repeated bending without performance degradation, ideal for tight spaces and moving applications.
· High Durability: Corrosion-resistant, flame-retardant, and aging-resistant construction ensures long-term reliability in harsh environments.
· Stable Signal Performance: Optimized design improves data transmission accuracy and stability for high-frequency signals.
· Ultra-Compact Form Factor: Small outer diameters make them perfect for space-constrained consumer electronics and medical devices.
Layer |
Parameter |
RF0.81 |
RF1.13 |
RF1.32 |
RF1.37 |
RF1.48 |
Inner Conductor |
Material |
Silver-plated Copper Wire |
Silver-plated Copper Wire |
Silver-plated Copper Wire |
Silver-plated Copper Wire |
Silver-plated Copper Wire |
Structure (No./mm) |
7/0.05 |
7/0.08 |
7/0.08 |
7/0.102 |
1/0.16 |
|
Nominal Diameter (mm) |
0.15 |
0.24 |
0.24 |
0.306 |
0.16 |
|
Dielectric (Insulation) |
Material |
FEP |
FEP |
FEP |
FEP |
FEP |
Nominal Insulation Thickness (mm) |
0.13 |
0.22 |
0.21 |
0.29 |
0.34 |
|
Minimum Insulation Thickness (mm) |
0.11 |
0.20 |
0.19 |
0.26 |
0.32 |
|
Nominal Diameter (mm) |
0.40 |
0.68 |
0.66 |
0.89 |
0.84 |
|
Color |
Natural |
Natural |
Natural |
Natural |
Natural |
|
Shield |
Material |
Silver/Tin-plated Copper Wire |
Silver/Tin-plated Copper Wire |
Silver/Tin-plated Copper Wire |
Silver/Tin-plated Copper Wire |
Silver/Tin-plated Copper Wire |
Structure |
0.05mm Wire, Single Braid |
0.05mm Wire, Single Braid |
0.05mm Wire, Double Braid |
0.05mm Wire, Single Braid |
0.08mm Wire, Single Braid |
|
Shielding Density (%) |
95 |
95 |
91 + 93 |
95 |
95 |
|
Jacket |
Material |
FEP |
FEP |
FEP |
FEP |
FEP |
Nominal Thickness (mm) |
0.11 |
0.12 |
0.12 |
0.11 |
0.15 |
|
Minimum Thickness (mm) |
0.09 |
0.10 |
0.10 |
0.09 |
0.10 |
Typical Applications
These ultra-thin coaxial cables are widely used in:
· Consumer Electronics: Mobile phones, laptops, digital cameras
· Navigation & Positioning: GPS receivers and tracking systems
· Medical Devices: Ultrasound equipment and diagnostic instruments
· High-Frequency Interconnects: Compact RF modules and test equipment
