China Factory XLPE Insulated Wire Electric Wire Cable Hookup Wire With UL

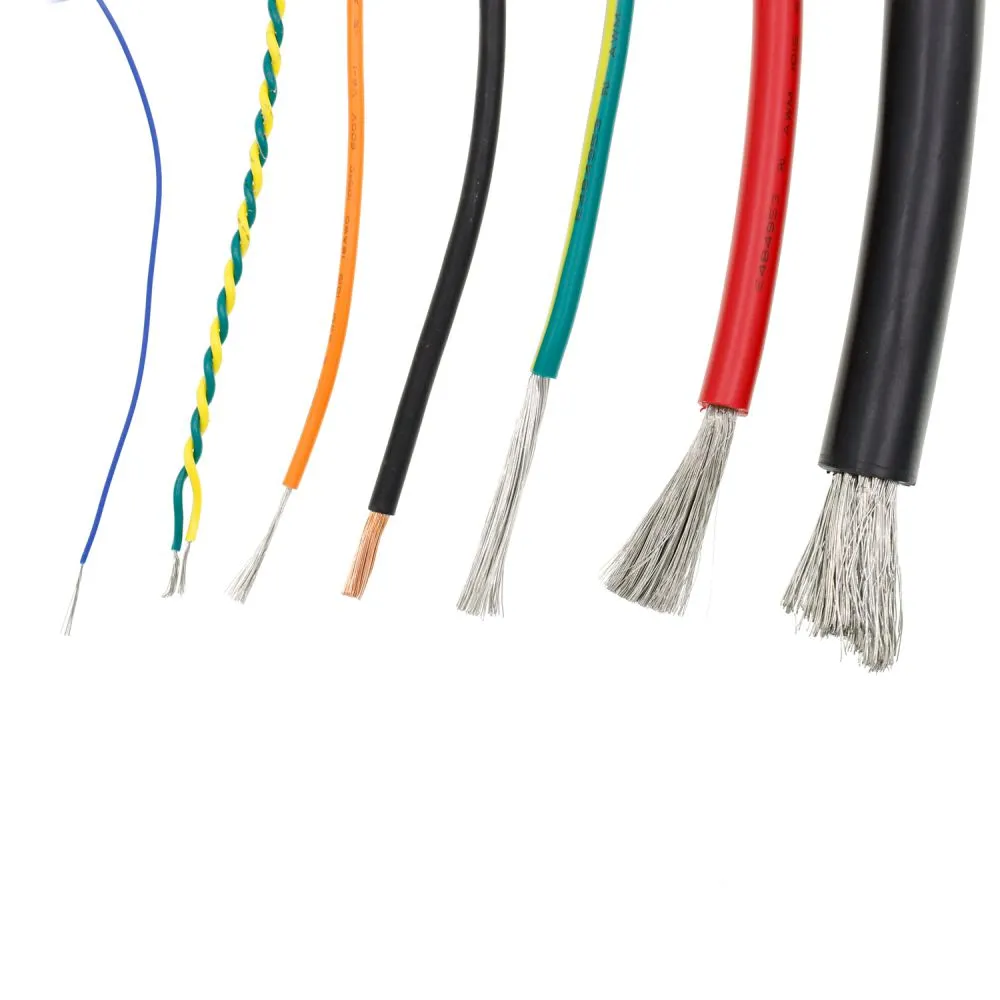

China Factory XLPE Insulated Wire Electric Wire Cable Hookup Wire With UL photo-1

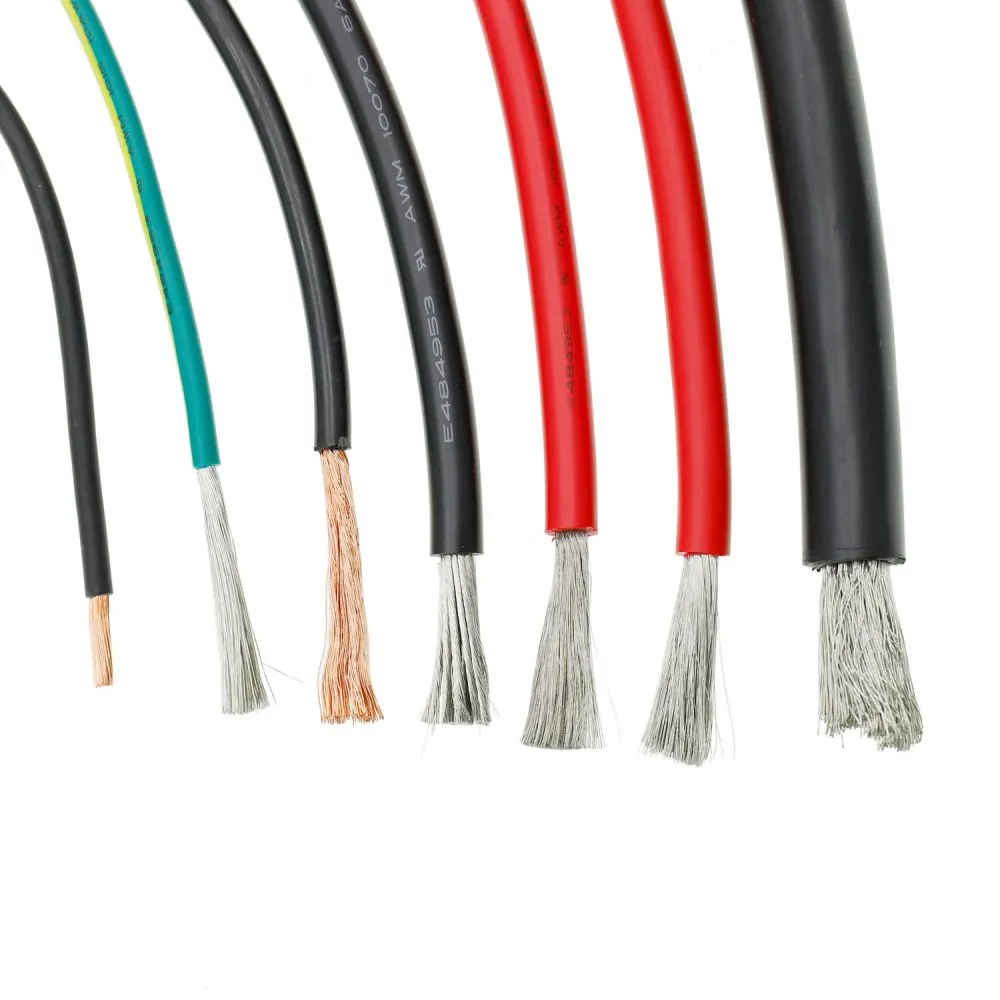

China Factory XLPE Insulated Wire Electric Wire Cable Hookup Wire With UL photo-2

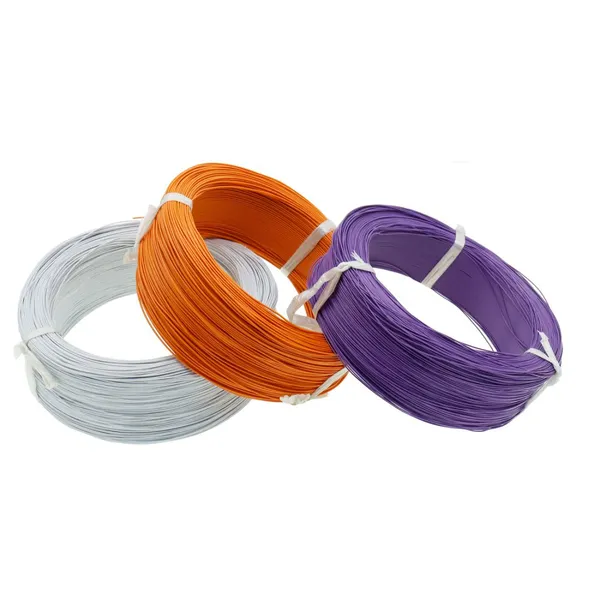

China Factory XLPE Insulated Wire Electric Wire Cable Hookup Wire With UL photo-3
China Factory XLPE Insulated Wire Electric Wire Cable Hookup Wire With UL photo-4
China Factory XLPE Insulated Wire Electric Wire Cable Hookup Wire With UL photo-5
US$ 0.01 - 1 MOQ: 3050 Meters
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
UL3321
Type:
Insulated
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin China
Model Number UL3321
Type Insulated
Application Other, Internal Wiring of Appliances
Insulation Material PVC
Conductor Material Copper
Conductor Type Other, Tinned or Bare, Stranded or Solid Copper

UL3321 Electric Wire Heating Wire XLPE Insulated Wire
-Rated temperature: 150ºC
-Rated voltage: 600V
-Reference Standard: UL758, UL1581, C22.2 No.210
-Passes FT2 vertical flame test.
-Uniform insulation thickness of wire to ensure easy stripping and cutting.
-For internal wiring of electronic and electrical equipment and appliance.



Conductor Insulation Max. Cond Resistance at 20°C
(Ω/km)
AWG Construction
(No./mm)
Diameter
(mm)
Thickness
(mm)
Diameter
(mm)
30 7/0.10 0.30 0.80 1.90 381
28 7/0.127 0.38 0.80 1.98 239
26 7/0.16 0.48 0.80 2.08 150
24 11/0.16 0.61 0.80 2.21 94.2
22 17/0.16 0.76 0.80 2.36 59.4
20 26/0.16 0.94 0.80 2.54 37.4
18 16/0.254 1.18 0.80 2.80 23.5
16 26/0.254 1.50 0.80 3.10 14.7
14 41/0.254 1.90 0.80 3.70 9.25


Dongguan XSD Cable Technology Co., Ltd (subsidiary of Shenzhen Singder Insulation Materials Co., Ltd) is a Chinese professional manufacturer with "ISO9001, IATF16949, UL, cUL, CCC" approved in Dongguan city next to Shenzhen and Guangzhou.

★Main Products: UL/cUL AWM Wires&Cables, Automotive Wire, Industrial Wire, Hook-up&Lead Wire, Solar Cable(PV Wire), Heating Wire, FFC Wire, Flat Ribbon Cable, BV, RV, BVR, RVV, RVB, AVVR, RVVP, USB Cable, HDMI, DVI, VGA, Cable Assembly, Wire Harness and so on.

★Insulation Materials: PVC/PE/XLPE/LSZH/TEFLON/FEP/SILICONE RUBBER/TPU and so on.


UL AWM Listing(Line Card)


SHENZHEN SINGDER INSULATION MATERIALS CO LTD (E484953)
Table of Recognized Styles
Single-conductor, thermoplastic insulation.
1007 1061 1330 1332 1430 1571 10269 10702
1015 1185 1331 1333 1569 1589 10368
Multiple-conductor, thermoplastic insulation.
2464 2648 2678 20080 21016 21513

2468 2651 2725 20276 21370


Single-conductor, thermoset insulation.
3173 3271 3321 3386 3656


3266 3302 3385 3619



Multiple-conductor, thermoset insulation.
4478








DONGGUAN XSD CABLE TECHNOLOGY CO LTD (E506386)
Table of Recognized Styles
Single-conductor, thermoplastic insulation.
1007 1015 1061 1569 10070 10368

1013 1032 1185 1571 10269 11627

Multiple-conductor, thermoplastic insulation.
2464 2468 2517 2547 2651 2725 2835 20276
Single-conductor, thermoset insulation.
3173 3266 3289 3321 3386


3196 3271 3302 3385 3656



We are keen to talk more and support you more whether it is a deal or not. Please contact us without hesitation if you have any demands.
