Product Introduction

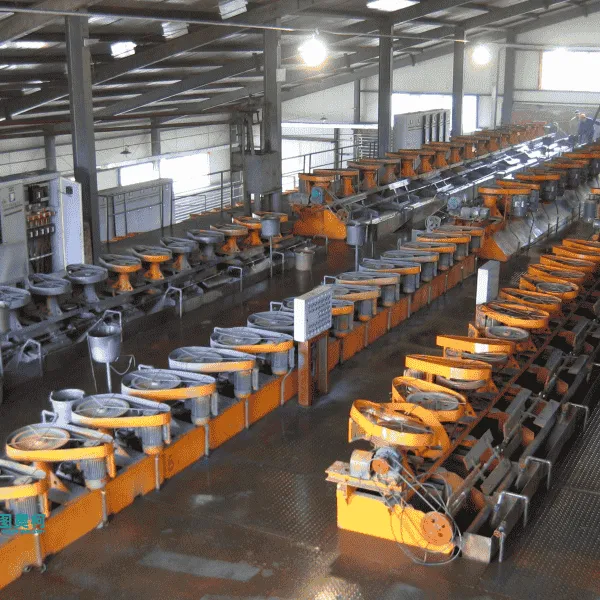

This flotation cell for global mining projects is a high-adaptability beneficiation separation equipment tailored for international mining projects of different scales and mineral types. It strictly complies with international mining industry quality and safety standards, covers full-series specifications from small modular units to large industrial flotation systems, and can adapt to the beneficiation demands of gold, copper, lithium, iron and various non-metallic ores in different regions around the world. It supports flexible configuration adjustment and multi-scenario adaptation, and can be quickly deployed in various complex global mining site environments.
Working Principle
The optimized international standard stirring and aeration system generates stable and sufficient negative pressure to continuously suck in air and raw ore pulp. The precisely designed internal flow field structure fully mixes pulp, air and flotation reagents to produce a large number of uniform micro-bubbles. Target mineral particles selectively attach to the bubble surface and rise to form a stable froth layer. The froth carrying target minerals is scraped out as qualified concentrate, while the remaining pulp flows smoothly to subsequent process units, maintaining stable and efficient separation performance under different working conditions.
Core Features
This product has multiple targeted advantages for global mining projects. It has passed international authoritative quality certifications and can adapt to different local safety and operation specifications. The modular design is convenient for container transportation and on-site quick assembly, shortening the project construction cycle. It can adapt to different harsh environments such as high temperature, low temperature and high altitude in global mining sites. The highly versatile spare parts design facilitates local procurement and maintenance in different regions, effectively reducing the long-term operation cost of overseas projects.
Technical Specifications
Category |
Model |
Effective Volume |
Capacity |
Impeller |
Impeller RPM Motor Power |
(kW)-Agitating |
Motor Power |
Single Weight (t) |
XJK type |
XJK-0.35 |
0.35 |
0.18-0.4 |
300 |
480 |
1.5 |
0.75 |
0.6 |
XJK-0.62 |
0.3-0.9 |
350 |
400 |
3 |
1.1 |
0.9 |
||
XJK-1.1 |
0.6-1.6 |
500 |
330 |
5.5 |
1.1 |
1.3 |
||
XJK-2.8 |
1.5-3.5 |
600 |
280 |
11 |
1.5 |
2.5 |
||
XJK-5.8 |
5.8 |
5-7 |
750 |
240 |
15 |
1.5 |
3.6 |
|
SF type Flotation |
SF-0.37 |
0.37 |
0.2-0.4 |
300 |
352-442 |
1.5 |
0.55 |
0.5 |
SF-0.65 |
0.65 |
0.3-1.0 |
350 |
336 |
3 |
1.1 |
1 |
|
SF-1.2 |
1.2 |
0.6-1.6 |
450 |
298 |
5.5 |
1.1 |
1.5 |
|
SF-2.8 |
2.8 |
1.5-3.5 |
550 |
268 |
11 |
1.5 |
2.3 |
|
SF-4 |
4 |
2-4 |
650 |
237 |
15 |
2.2 |
2.8 |
|
SF-8 |
8 |
4-8 |
760 |
191 |
30 |
2.2 |
4.3 |
|
SF-10 |
10 |
5-10 |
760 |
191 |
30 |
3 |
4.6 |
|
SF-16 |
16 |
6-16 |
850 |
180 |
45 |
3 |
7.8 |
|
SF-20 |
20 |
8-20 |
730 |
186 |
55 |
3 |
9.8 |
|
| JJF type Flotation machine | JJF-2 |
2 |
1-3 |
370 |
400 |
11 |
1.1 |
1.9 |
JJF-4 |
4 |
2-4 |
410 |
305 |
15 |
1.5 |
2.3 |
|
JJF-8 |
8 |
4-8 |
540 |
233 |
22 |
2.2 |
4.5 |
|
JJF-10 |
10 |
5-10 |
540 |
233 |
22 |
2.2 |
4.9 |
|
JJF-16 |
16 |
5-16 |
700 |
180 |
37 |
2.2 |
8.2 |
|
JJF-20 |
20 |
5-20 |
730 |
180 |
37 |
2.2 |
10.5 |
