5MP support 30x optical zoom and 8x digital zoom,total 240x zoom
This is an automatic tracking camera based on human figure recognition. The camera supports a maximum resolution of 5MP, is equipped with a 40X optical zoom lens, and the maximum viewing distance is 3000 meters. The camera supports horizontal 360° infinite rotation, equipped with 11 infrared lights, and the night vision distance can reach 120 meters. Using the new SONY IMX series, it can present excellent picture quality at night.

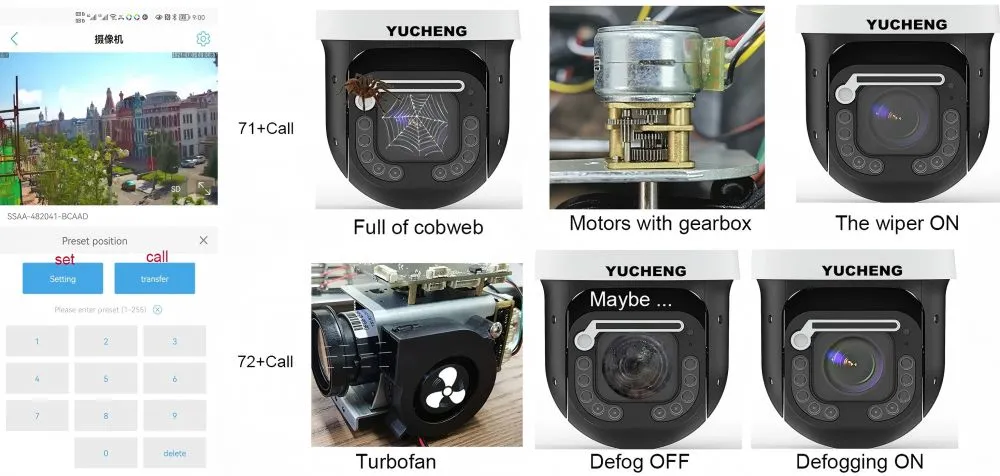

How to activate the wiper function and defogging function.
In the PTZ control interface of the APP,
Enter 71 in the preset position bar, then click "Call", and the camera will automatically activate the wiper function,
Enter 72 in the preset position bar, then click "Call", and the camera will automatically activate the defogging function. The default defogging time is 1 hour.

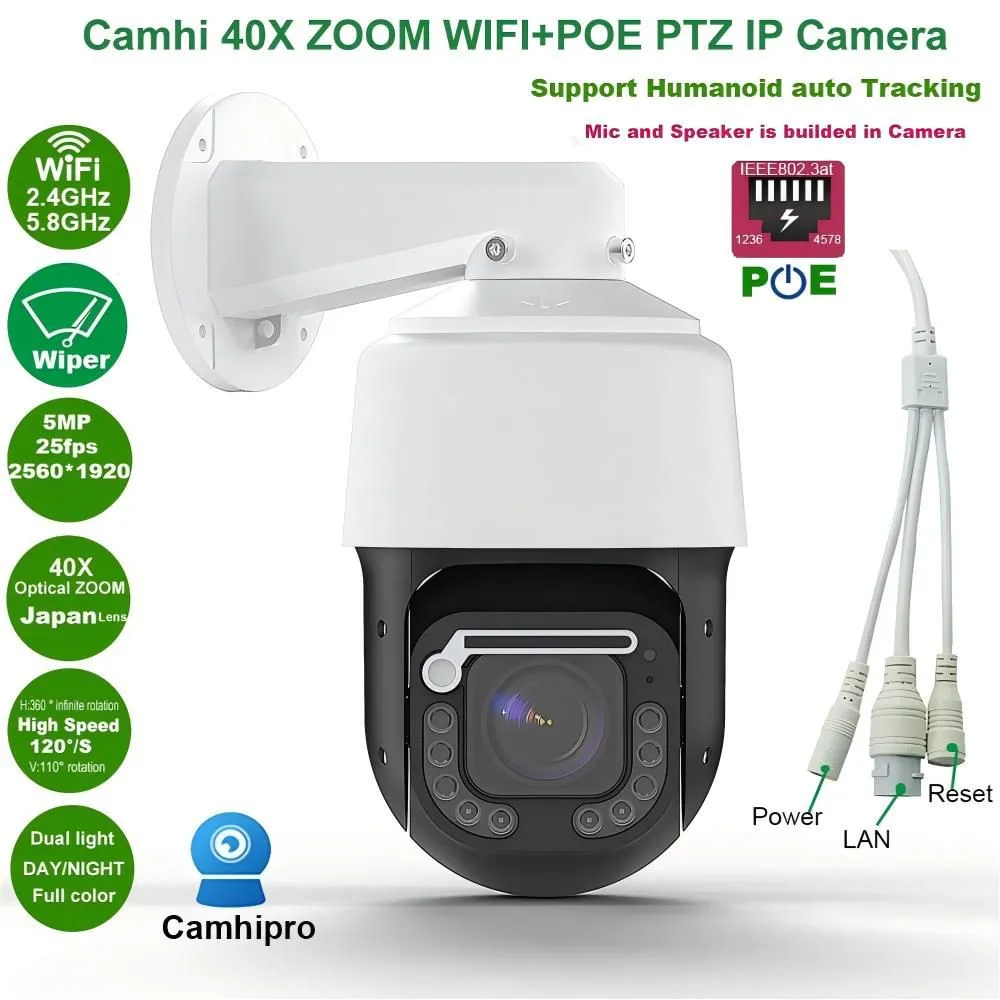

Product appearance introduction:
The languages supported by IE browser are: English, French, German, Italian, Spanish and Chinese
Mobile APP language support: Russian, English, French, German, Italian, Spanish and Chinese
1,High sensitivity, high signal-to-noise CMOS image sensorUsing the GK7205V300 processing chip+SONY IMX335 CMOSThe highest pixel is up to 5MP,
2,Support 5MP 25fps
3,H.265 compression algorithm, effectively reducing network bandwidth, supporting dual stream,
4,H.265 ,H.264 compression algorithm, effectively reducing network bandwidth,
5,supporting 2 streams, supporting mobile phone monitoring

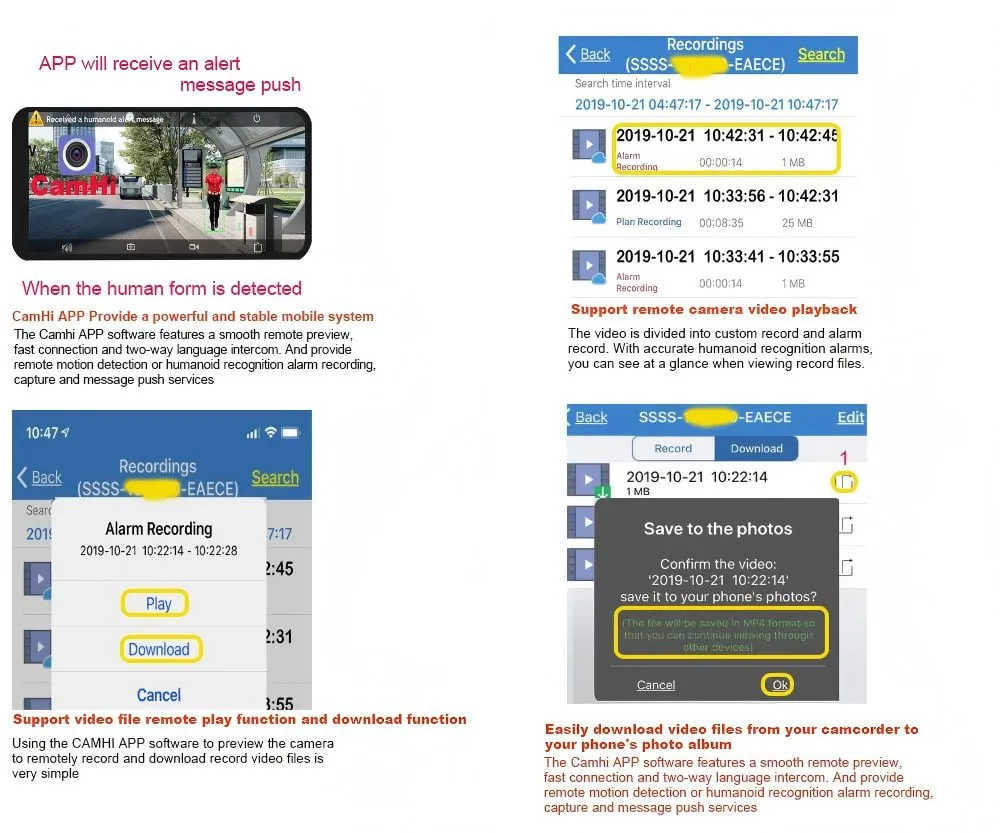

6,Support humanoid recognition to trigger SD card recording, SD card capture, voice alarm, mobile app message push and the picture is captured, and the current video playback can be accurately positioned,
7,support fog function, support WDR. Support strong light suppression function.
8,Support humanoid Car Pet recognition, alarm and auto tracking
9,Support multiple network protocols: TCP/IP, HTTP, TCP, ICMP, UDP, ARP,IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP,etc.
10,Support ONVIF protocol
11,Support alarm sound outputs
12,Support alarm recording time customization, 20 seconds to 10 minutes can be set
13,Support static IP, also support dynamic IP (DHCP)
14,Support custom network card (Mac)address
15,Support P2P plug and play and mobile phone
16,Support IE, Google, Firefox browser
17,Supports custom users and authority management
18,Provide motion detection (area, sensitivity can be set) alarm function
19,Support Micro SD card function, and support up to 128GB Micro SD card
20,Support PC client to download SD card video
21,Support mobile phone download and playback SD card recording
PTZ Speed dome introduction
1. Support horizontal 360 infinite rotation and vertical 110° rotation. Rotation speed adjustable from 0.1 to 120/second
2. Support 3 groups of light control: infrared short-distance light, infrared long-distance light and white light, which can realize full color day and night, full infrared and other modes
3. Support humanoid/vehicle tracking;
4. Support fixed-point tracking, cruise tracking, 360 horizontal scanning tracking, limit scanning tracking and other tracking modes
5. Support limited time tracking/continuous tracking mode adjustable and support adjustable tracking speed
6. Support 2 groups of cruises, each group of cruises supports a maximum of 64 preset positions. And supports the cruise point stay time and cruise speed adjustable.
7. Supports regular functions such as guard position, 360-degree horizontal scanning, limit scanning, and idle action. And supports adjustable dwell time and rotation speed
8, IP66 waterproof grade.

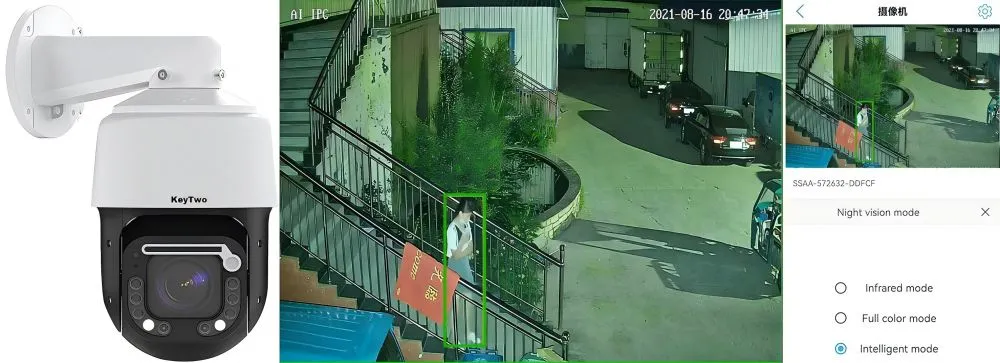

Support multi-mode lighting control

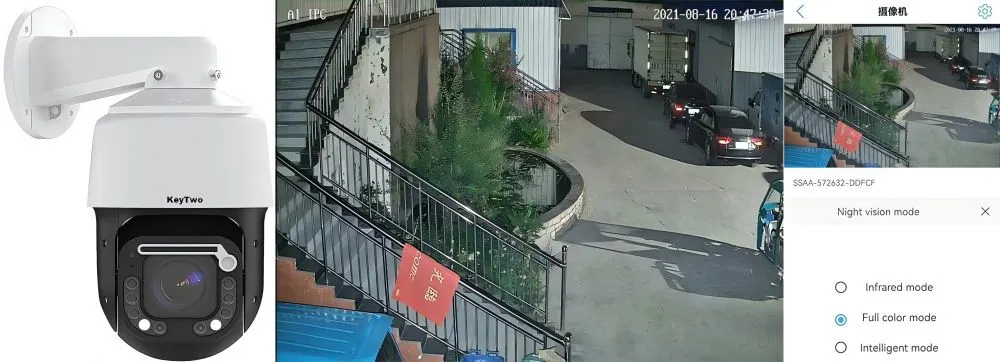

2:Manual Full color night vision mode
Users can switch the lights to Full color night vision mode at night.

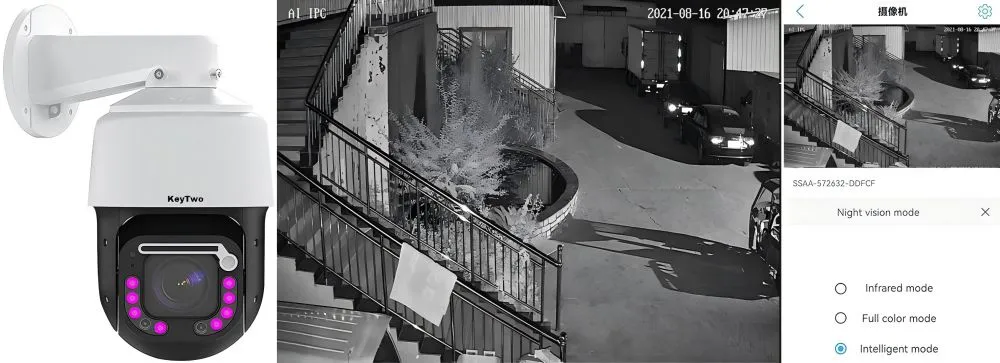

3，Intelligente night vision mode
The infrared night vision mode is automatically turned on at night. Once the alarm is triggered, the camera will automatically turn on the alarm night vision mode.
4：Alarm Full color mode
When the camera detects a person , the camera automatically turns on the white LED light, and the image presents a color night vision mode. When the person leaves, the camera will automatically switch to infrared night vision mode.
Electrical technical parameters
Basic parameters |
|
Chip solution |
GK7205V300+SONY IMX335 |
Minimum illumination |
Color:0.03Lux @(F1.8,AGC ON);B/W:0Lux @(F1.6,AGC ON),0 Lux with IR |
|
Resolution frame rate |
Main stream: 2560*1940,1920*1440,1920*1080 25fps can be set |
Substream:704*576,640*352, |
|
Video Encoding format |
H.265,H.264 |
Audio Encoding format |
G711 |
IR night vision distance |
120 meters |
White balance |
Auto |
Anti-flash mode |
50HZ,60HZ,OFF |
Digital ZOOM |
Optional |
Focus mode |
Fully automatic, semi-automatic, manual |
LENS |
|
focal length |
40X ZOOM (4.8-192mm) |
Zoom speed |
about 6 seconds (optical, wide-angle-telephoto) |
Horizontal-viewing angle |
About 65.5-5 degrees (wide angle-telephoto) |
Close-up distance |
1.5-100meters (wide angle-telephoto) |
Number of aperture |
F1.6-F3.0 |
Features |
|
Smart Detect |
humaniod ,car,pet detection, motion detection, |
Smart Tracking |
Fixed-point tracking, cruise tracking |
Smart record |
Motion detection recording, humanoid,car,pet detection recording, timing recording |
Smart code |
Smart 265/264,Dynamic code stream, fixed code stream, low code stream |
Horizontal-vertical range |
horizontal 360 degrees without limit, vertical 0-110rotation |
Rotation speed |
automatic Variable speed,0.1° to 120 /Second. And speed adjustable |
Tracking solution |
Humanoid car pet coordinate positioning |
Proportional zoom |
Support |
Preset |
256 |
Cruise scan |
Support one Cruise scan, up to 32 presets for each patrol |
Home(return) position |
support |
Power-Off Memory |
Support |
limit position scan |
Support ,and support speed and stay time modify |
Supplement Light |
10 pcs IR LED light, IR Distance 120 meters,2x white LED light for 20meters color night vision |
Network |
|
Network protocol |
IPv4,HTTP,HTTPS,802.1x ,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,DHCP,PPPoE,RTSP |
Application Programming |
Support open API for software integration, support standard protocol (ONVIF), support Hikvision protocol and third-party management platform access |
Wifi |

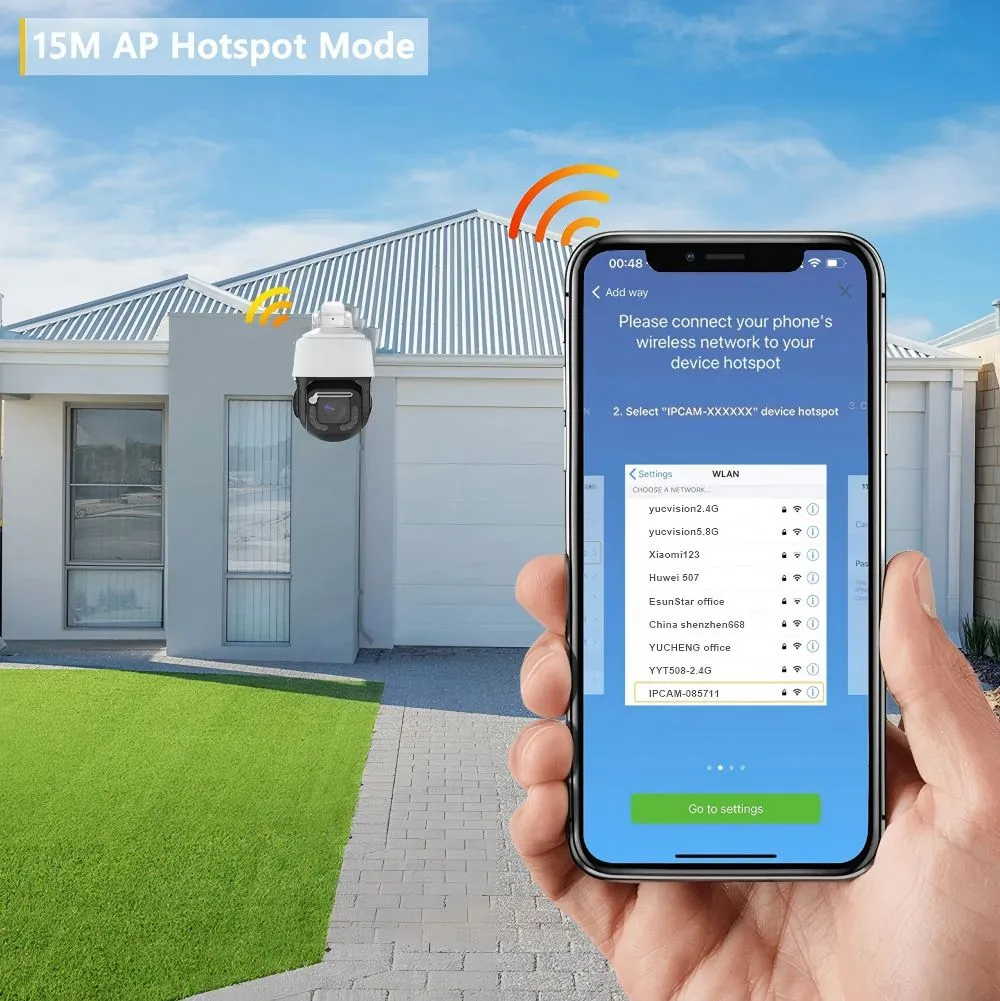

Support wifi AP hotpoint,and support 2.4GHz and 5.8GHz connection |
preview videos |
MAX 3 user sametime preview |
POE |

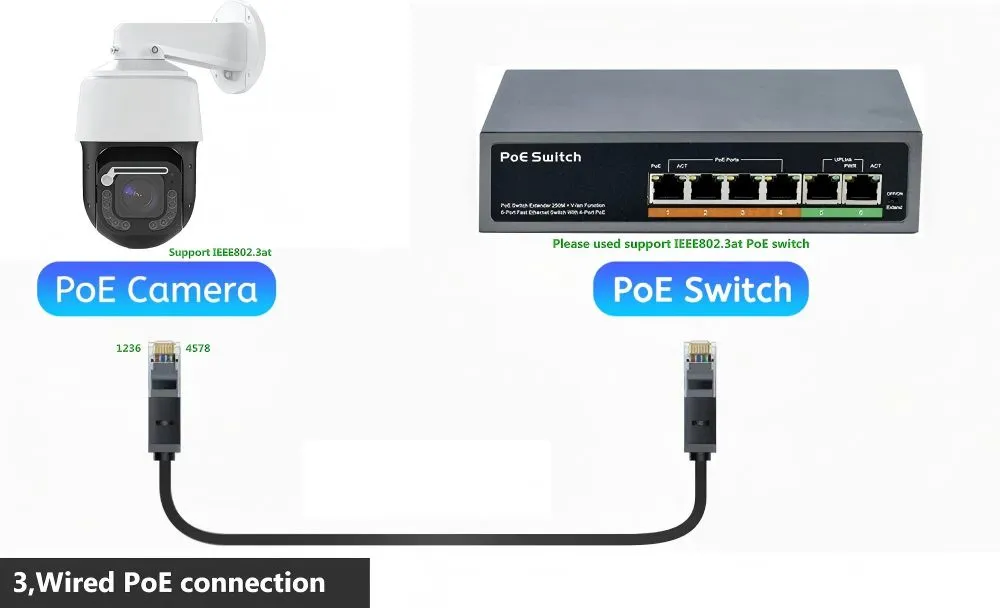

support IEEE802.3AT PoE(20W up) |
Time |
,time.nist.gov,time.kriss.re.kr, etc.,Network Time Protocol |
Alarm |
|
Snapshot |
Support Remote timing snapshot,and support mobile view images |
Motion detection |
At most 4 respective regions |
Humanoid detection |
Support Humanoid detection record,snapshot,alarm ouput,tracking |
Alarm linkage |
E-mail Alarm and Send with Picture, Save picture/video to sd card, Save Picture and video to FTP Server, Relay out, alarm send message to mobile phone APP |
Record |
|
Record |
Support SD card record,computer local record,Browser record,P2P client software record.NVR record |
SD card |
Support SD card storage,Max support 256GB |
Interface |
|
Power interface |
DC12V |
Network |
RJ45 10Base-T/100Base-TX, support 2.4GHz and 5.8GHz WIFI |
Audio |
Mic Build in camera, and support one 3W speaker |
SD card |
Max support 256GB SD card(Need to purchase by oneself) |
Reset button |
one built-in reset button, one external reset button |
General specification |
|
Power |
Max 25W POE/DC12V 2A |
Working |
-35℃-65℃; humidity is less than 90% |
Protection grade |
IP66; TVS 4000V lightning protection, anti-surge, anti-surge, in line with GB/T17626.5 level four standards |
Weight |
2.3KG |
