Deqing Leixin Coating Equipment Co., Ltd., established in 2011 as a professional manufacturer, proudly presents our Industrial Curing Oven with Explosion-Proof Construction and CE-Compliant Safety Interlock System. This advanced oven is designed to meet the most stringent safety and performance requirements in industrial coating processes, ensuring a reliable and efficient curing solution for your production line. With over a decade of experience and a dedicated team of 51-100 employees, we deliver precision-engineered equipment that balances robust construction with user-friendly operation.
Our curing oven integrates an explosion-proof structure and a fully compliant safety interlock system, providing maximum protection against hazardous environments. It is ideal for curing powder coatings, paints, adhesives, and other heat-sensitive materials in industries such as automotive, aerospace, electronics, and metal finishing. With customizable temperature ranges up to 300°C and precise control via PLC touch screen, this oven offers unmatched process consistency and energy efficiency.
Key Features & Technical Specifications
- Explosion-Proof Construction: Built with heavy-duty steel panels and pressure-relief vents, the oven meets ATEX-equivalent standards (upon request) for use in volatile environments, minimizing risk of ignition.
- CE-Compliant Safety Interlock System: Automatic door lock prevents opening when temperature exceeds 50°C; emergency stop button and over-temperature protection ensure operator safety.
- High-Temperature Uniformity: Aerodynamic hot air circulation design guarantees temperature deviation within ±5°C across the entire chamber, verified by multiple thermocouples.
- Touch Screen Control with Data Logging: Programmable PID controller with recipe storage (up to 100 profiles) and real-time monitoring via USB or Ethernet connection.
- Energy-Saving Insulation: 100mm thick rock wool insulation reduces heat loss, cutting energy consumption by up to 30% compared to conventional ovens.

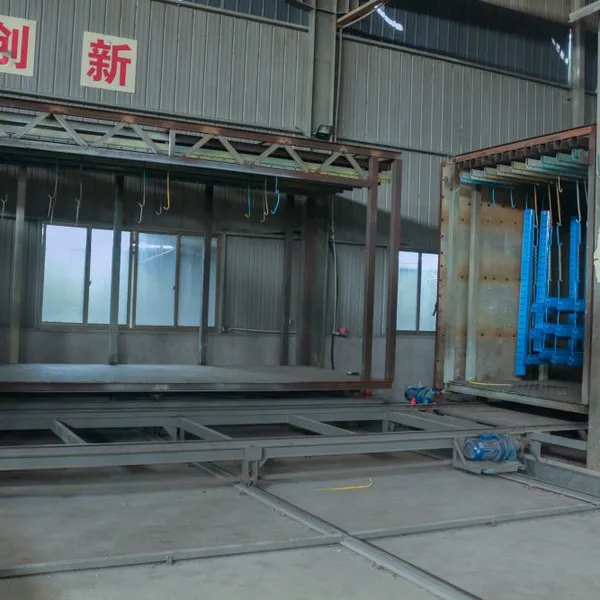

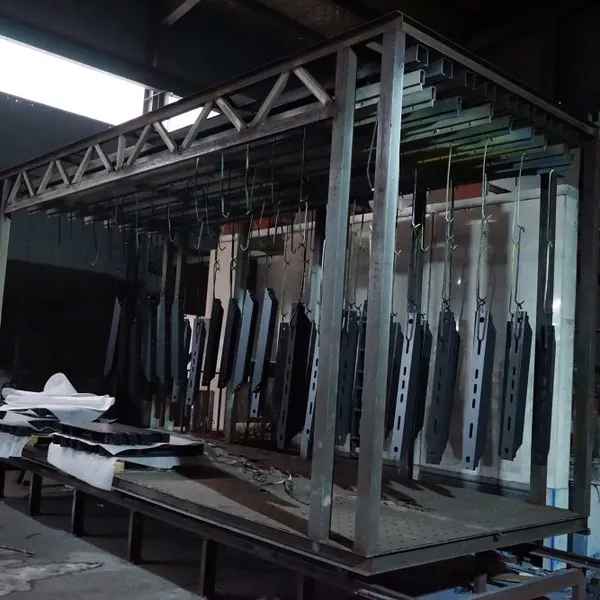

- Customizable Interior & Loading: Available in stainless steel (304/316) or carbon steel; shelf, tray, or car-type loading systems to fit your workflow.
| Parameter | Standard Values | Options/Custom |
|---|---|---|
| Internal Volume | 500L, 1000L, 2000L, 3000L | 50L – 5000L (custom sizes available) |
| Max Temperature | 250°C (standard), 300°C (optional) | Up to 500°C with special heating elements |
| Heating Power | 12kW – 60kW (electric) | Gas-fired or thermal oil heating upon request |
| Airflow Rate | Horizontal/vertical circulation, 10–20 air changes/min | Variable frequency drive for precise airflow |
| Exterior Dimensions (W×D×H) | Varies by volume; example 2000L: 1800×1500×2000 mm | Tailored to your factory layout |
| Safety Compliance | CE, ISO9001:2015 | ATEX, GOST, UL (subject to engineering review) |
Benefits for Your Business
- Enhanced Safety: The explosion-proof design and interlock system protect personnel and assets, reducing downtime and liability risks.
- Higher Productivity: Uniform heating and fast ramp-up times (typically 20–40 min to 200°C) shorten curing cycles and increase throughput.
- Lower Operating Costs: Excellent insulation and efficient heat recovery system lower electricity consumption; maintenance-free heating elements extend service life.
- Future-Proof Investment: Modular construction allows easy upgrades – add remote monitoring, automatic door opener, or additional safety sensors.
- Global Compatibility: Supports voltages from 220V to 690V (50/60Hz); our ovens are shipped to over 20 countries across North America, Europe, Asia, and Oceania.
Trusted Manufacturer with Proven Track Record
Deqing Leixin Coating Equipment Co., Ltd. operates from a 1,000–3,000 m² factory in Huzhou, Zhejiang, with an annual export value of US$1–1.5 million. Our team of 51–100 experienced personnel ensures every oven is built under strict ISO9001 quality management. We have delivered curing solutions to clients in North America, South America, Eastern Europe, Southeast Asia, Africa, and the Middle East, earning a reputation for reliability and on-time delivery. Our engineers provide comprehensive technical support including installation guidance, commissioning, and remote troubleshooting. With port of shipment from Ningbo and Shanghai, we offer competitive shipping rates and fast lead times (typically 25–40 working days).
Why choose Deqing Leixin? Because we combine 12+ years of specialized manufacturing experience with a customer-centric approach. Our explosion-proof curing ovens are CE-compliant, fully tested before delivery, and backed by a 2-year warranty. Contact us today to discuss your specific requirements – whether you need a standard 500L oven or a custom 3000L unit with multi-zone control, we have the expertise to deliver.
Frequently Asked Questions (FAQ)
Q1: Is the explosion-proof construction certified for ATEX zones?
A: Our standard model meets CE requirements and is designed with explosion relief panels and spark-proof components. For specific ATEX or Zone classification, please contact our engineering team for a feasibility study – we can adapt the design to your local safety standards.
Q2: What is the maximum weight capacity of the oven shelves?
A: Standard shelves support up to 50 kg each, with reinforced options available up to 200 kg per shelf. For heavy parts, we recommend a car-type loading system with a maximum load of 1000 kg (customizable).
Q3: Can the oven be connected to an existing exhaust or solvent recovery system?
A: Yes, our ovens include a standard exhaust port (DN150). We can provide optional flanges, dampers, and filtration units to integrate with your plant’s ventilation or solvent capture system.
Q4: What type of controller is used – programmable logic controller (PLC) or simple thermostat?
A: All models come with a PID controller with digital display as standard. The advanced option features a Siemens or Omron PLC and a 7-inch color touch screen with data logging, remote monitoring (Ethernet/WiFi), and multi-step recipe programming.
Q5: How long does it take to reach 200°C from room temperature?
A: For a standard 1000L oven with 30kW heating power, the ramp-up time is approximately 25–35 minutes. Larger ovens or lower power ratings will take slightly longer. We can optimize heating elements for faster heating if needed.
Q6: What maintenance is required for the safety interlock system?
A: The interlock system is designed for low maintenance. We recommend monthly visual inspection of door seals, limit switches, and emergency stops. The controller self-checks daily. Full maintenance kit with spare parts is available upon request.
Q7: Do you provide installation and training for overseas customers?
A: Yes, we offer on-site installation and training services (travel expenses quoted separately). Alternatively, we provide detailed video manuals and remote assistance via video call. Our technical support team is available 24/7 for urgent issues.
Q8: What is the warranty period and after-sales support?
A: Our standard warranty is 2 years from the date of shipment, covering defects in materials and workmanship. We stock critical spare parts (heating elements, controllers, fans) and can ship replacement components within 48 hours. Extended warranty up to 5 years is available.
