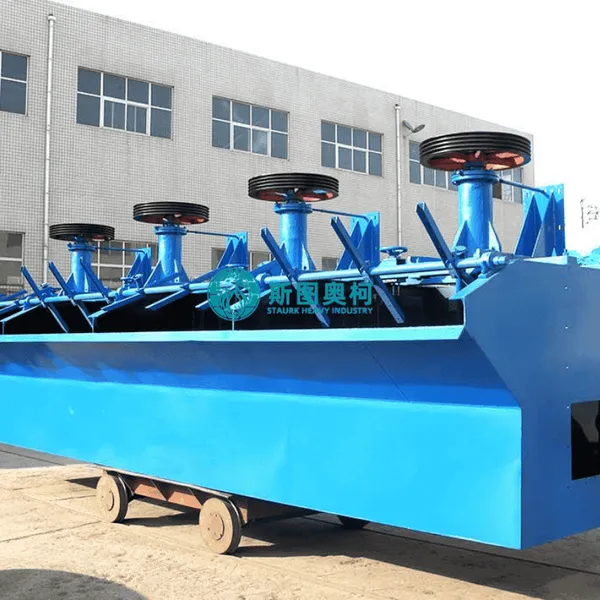

Help CenterFlotation Cell for Fine Particle Flotation
Product Spotlights
Related Products
-
Flotation Cell for Mining Beneficiation LineNegotiableMOQ: 1 Set -
Flotation Cell System for Ore Processing PlantNegotiableMOQ: 1 Set
-
Flotation Cell for Mineral Separation PlantNegotiableMOQ: 1 Set
-
Flotation Cell for Tailings Recovery PlantNegotiableMOQ: 1 Set
-
Flotation Cell for Gold CIP PlantNegotiableMOQ: 1 Set
1.Product Introduction
The flotation cell for fine particle flotation is a highly specialized mineral separation machine designed specifically to overcome the inherent physical challenges of recovering ultra-fine and micro-fine mineral particles. Fine particles suffer from low mass and momentum, which makes it incredibly difficult for them to collide with and attach to conventional, large air bubbles. This equipment solves that problem by using advanced aeration technology to generate an ultra-dense cloud of micro-bubbles or nano-bubbles. The resulting massively increased bubble surface area drastically boosts collision probabilities, allowing processing plants to efficiently capture valuable fine fractions that are typically lost to tailings in standard flotation circuits.
2.Application
This equipment is primarily applied in the scavenging and cleaning circuits of processing plants handling finely disseminated ores, or in the reprocessing lines of old tailings dams. It is widely used for recovering fine-grained copper, gold, silver, lead, zinc, and tungsten minerals, as well as fine non-metallic industrial minerals like kaolin, fluorite, and fine coal. It is particularly crucial in modern operations where easy-to-process ores have been depleted, forcing mines to grind raw materials much finer to successfully liberate the target minerals from the host rock.
3.Working Principle
The operation is centered on maximizing particle-bubble collision frequencies and reducing turbulent detachment forces. As the fine-particle slurry enters the cell, a high-shear rotor-stator assembly or a specialized cavitation nozzle inserts air under controlled pressure, creating micro-bubbles that are significantly smaller than those in standard cells. Because these bubbles are tiny, they rise slowly, creating a calmer hydrodynamic environment. The fine, hydrophobic mineral particles easily attach to these micro-bubbles due to the minimized fluid drag. The bubble-particle aggregates float gently to the surface, forming a stable, tightly packed froth layer that is skimmed off, while the unattached fine waste remains suspended and exits.
4.Advantages
High-efficiency separation and broad applicability: Dramatically improves the recovery rates of ultra-fine minerals down to a few microns in size, effectively preventing valuable fine particles from escaping into the waste stream and boosting overall plant yield. Robust and Flexible Processing Capacity: Offers adaptable tank designs and flow configurations that can be seamlessly tailored to match the specific retention times and dilute slurry conditions required for fine particle processing. Low Energy Consumption and Stable Operation: Employs an optimized, low-turbulence agitation design that generates high quantities of micro-bubbles without requiring excessive power, ensuring stable 24-hour full-load operation while minimizing energy intensity. Convenient Operation and Maintenance: Constructed with premium, wear-resistant polyurethane components and specialized liners that prevent the scaling and localized wear common in fine-particle slurries, ensuring a long operational lifespan with low maintenance needs. High Intelligence and Automation: Features highly sensitive, automated air-to-pulp ratio controls and precise level regulation systems that maintain the delicate pulp-froth interface balance necessary to prevent fine gangue from mechanically entraining into the concentrate. Optimized structural design: The internal cell geometry is engineered to prevent pulp short-circuiting and eliminate dead zones, ensuring that every fine particle is thoroughly exposed to the micro-bubble cloud while maintaining a completely calm froth zone for clean drainage.
