Model: JH12F-21-300X
Operating System
Embedded LINUX system
Main
SSC338G
Image Sensor
OS12D40 1/2.5-inch ultra-low illumination CMOS sensor
Compression Standard
Video compression algorithms support H265, H.264, MJPEG
Audio Compression Algorithm
G.726/G.711/AAC
Compression Bitrate
51Kbps-12288bps (customizable)
Maximum Image Size
8 Megapixels (3840*2160)
Resolution
Main: 12 Megapixels (3840*3104), 10 Megapixels (3840*3000), (38402160), 3072*1728, 2592*1944, 2560*1440,2304*1296, 1080P, 720P (supports defog function, Wide Dynamic Range WDR, HDR, strong light suppression function)
Sub Stream: 720*480, VGA, 640*360, 480*360, CIFVideo Frame Rate
12MP/11.5MP/10MP 15fps, 8MP 20fps, 6MP/5MP/4/3MP/2MP/1MP 30fps
Character Overlay

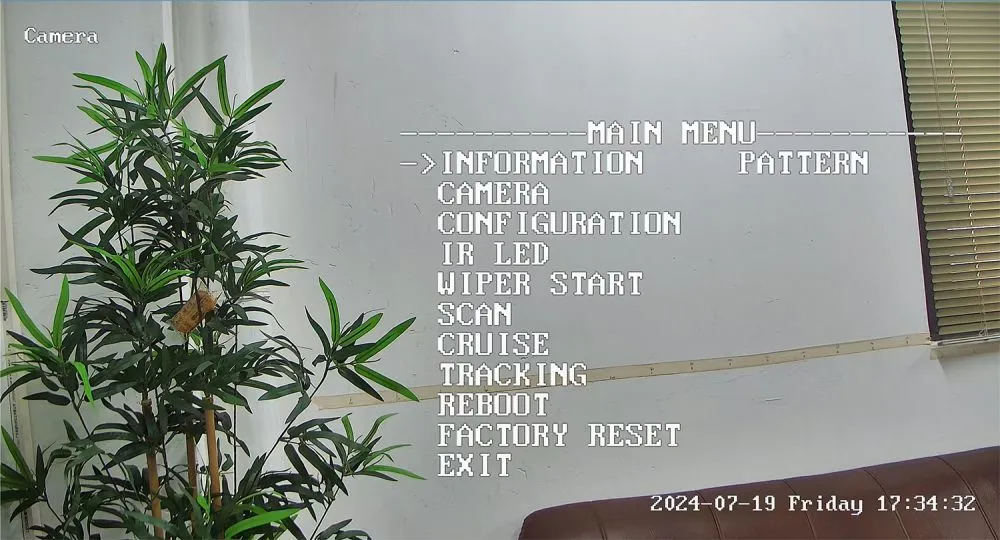

Supports OSD name, time, and date information overlay, and supports external MCU to achieve full character overlay
Image Settings
Adjustable brightness, contrast, saturation, exposure, up/down flip, left/right mirror, white balance, etc.
Storage Function
Supports up to 12G Micro SD card storage, supports scheduled recording storage
Motion Detection
4 independent detection areas can be set (sensitivity 1-100 adjustable)
AI Intelligent
Supports human, car, electric vehicle, and motorcycle recognition
Alarm Linkage
Sends images to a designated email when an alarm occurs; uploads images and videos to an FTP server an alarm occurs, links to presets or alarm outputs
Network Protocol
Supports TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP DHCP, DNS, DDNS, NTP, UPNP, RTSP, RTMP
Access Protocol
Supports ONVIF 2.4 protocol, and supports ONV absolute and relative coordinate protocols
Audio Input/Output
Supports audio input and output, requires external speaker and microphone
Tracking Function
Supports human and vehicle tracking
Focus Mode
Manual semi-automatic, fully automatic
Minimum Focus Distance
1.5 meters, 3 meters, 6 meters, and infinity
Infrared Night Vision
Supports infrared night vision supports manual, automatic, and external control modes
Lens

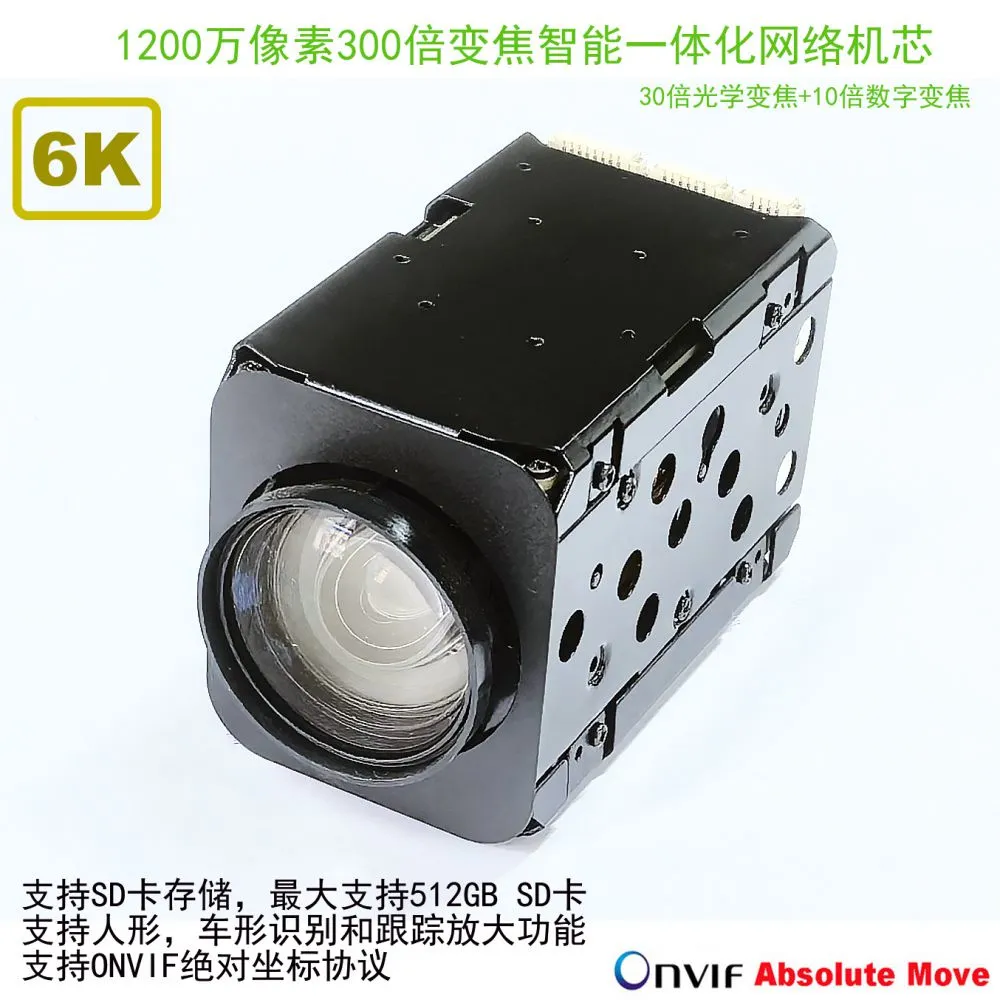

Uses 30x optical zoom 4.7-141mm, and supports 10x digital zoom totaling 300x
Operating Temperature
-40℃ to 85℃

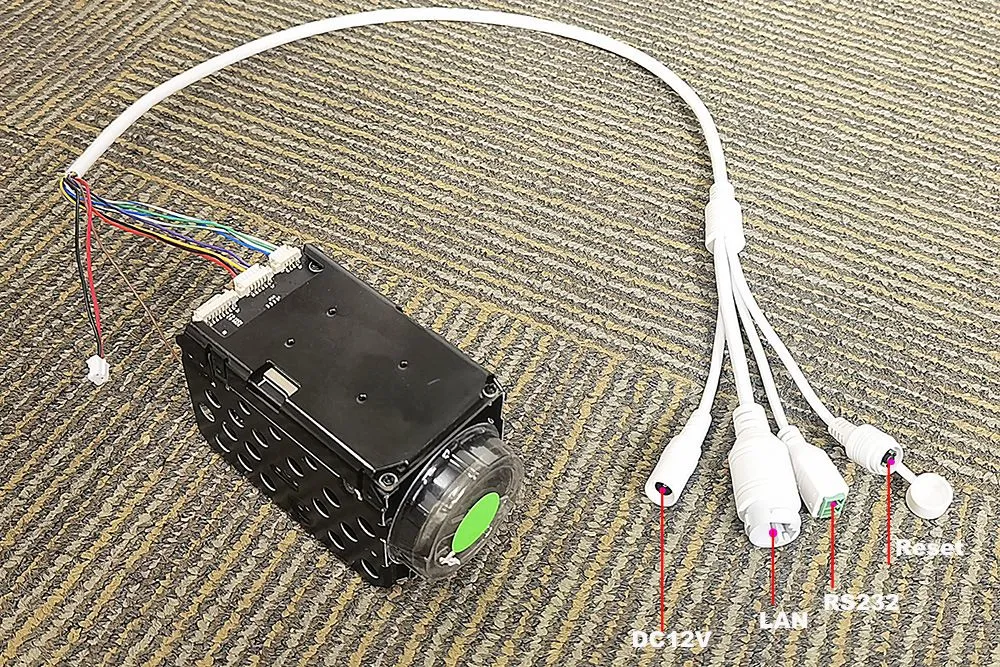

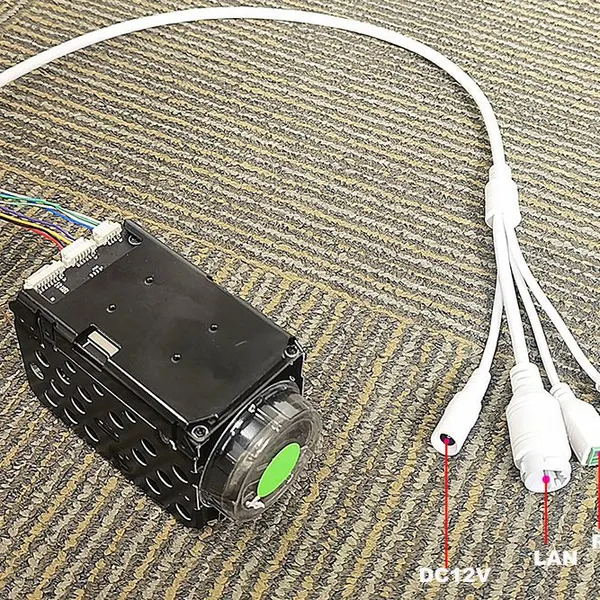

Power Supply
DC12V 1A
Customization Support
Supports function
