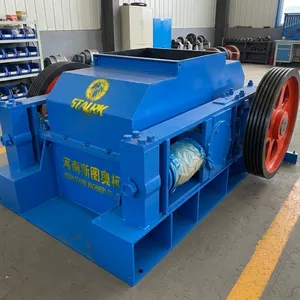

150 tph double roller crusher system
1. Product Introduction
A 150 TPH Double Roller Crusher System is an industrial-grade, medium-to-high capacity processing line designed to handle 150 tons of material per hour. Utilizing two heavy-duty, counter-rotating rollers, this system is a staple in coal processing, mining, cement, and power plants. It is highly optimized for the secondary, tertiary, or fine crushing of medium-hard materials such as coal, coke, soft limestone, slag, and shale.
2. Working Principle
Feeding: Raw material enters the system and drops evenly into the crushing chamber directly above the rollers.
Compression: Two rollers rotate toward each other at high pressure, pulling the material into the "nip area" and crushing it primarily through mechanical compression and shear forces.
Discharge: Once the material is smaller than the preset gap between the rollers, it falls out through the bottom via gravity.
Safety Reset: If an uncrushable object (like tramp iron) enters, a hydraulic or spring-loaded safety system allows one roller to retract, letting the object pass without damaging the machine before resetting automatically.
3.System Advantages
High Efficiency & Cube Yield: It produces a highly uniform, cubical end-product with an exceptionally low percentage of over-crushed material (minimal dust and fines).
Excellent Wet/Sticky Handling: Unlike cone or jaw crushers that easily clog, the roller system effectively processes wet, muddy, or sticky materials without jamming.
Precise Size Control: The hydraulic gap adjustment allows operators to precisely fine-tune the distance between rollers to quickly change the output size.
Low Operating Costs: The simple mechanical design translates to low energy consumption, highly durable roller shells, and minimal maintenance downtime.
