Product Introduction: PNI Magnetic Sensor Element SEN-Z, PNI Magnetic Sensor 13101, Displacement Sensor

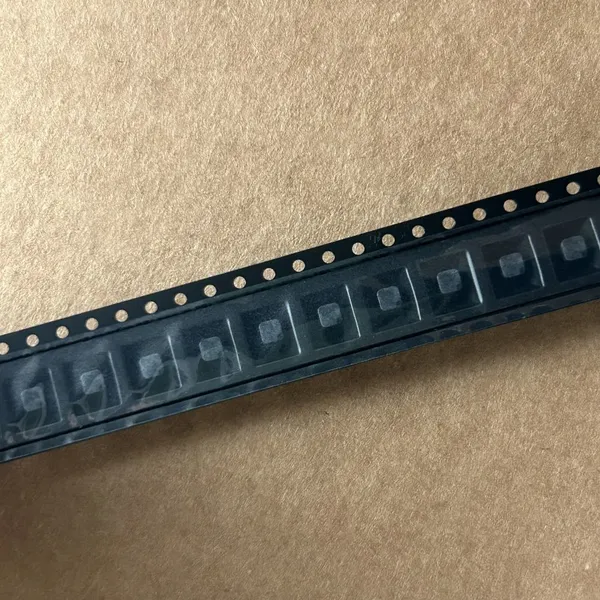

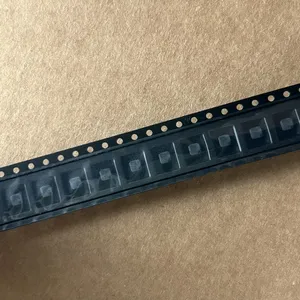

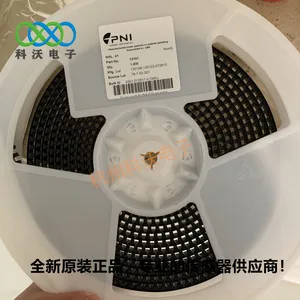

PNI magnetic sensor element SEN-Z (13101)
Model: SEN-Z
Type: Z-axis
Sensor measurement range: +/-1100uT
Resolution: 0.015uT
Linearity: 0.60%
Power supply: N/A
Operating current: 0.5mA
Operating temperature: -40~+85℃
Communication interface: N/A
PNI is a globally reliable supplier of magnetic sensors, holding market and technological advantages in the electronic compass market. PNI's electronic compass system typically includes dedicated driver ICs such as 11096, as well as high-precision magnetic sensors like Sen-Z and SEN-XY. Our company will provide customers with PNI's full range of advantageous products and technical support.
The structures of magnetic sensors SEN-Z and SEN-XY are similar. However, the difference lies in that SEN-XY is installed on a parallel circuit board, while SEN-Z is installed on a vertical circuit board, ensuring the implementation of a three-axis magnetometer or a three-axis electronic compass.
Main parameters:
Power supply: Typically 3.3V
Power consumption: 0.5mA (max)
Resolution: 0.015 uT
Measurement range: +/-11 Gauss
Operating temperature: -40~85
Size: 3*3*0.5mm (SEN-Z)
