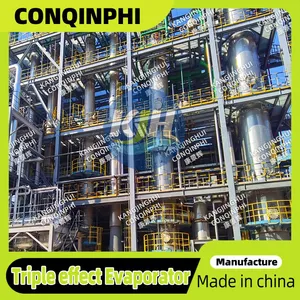

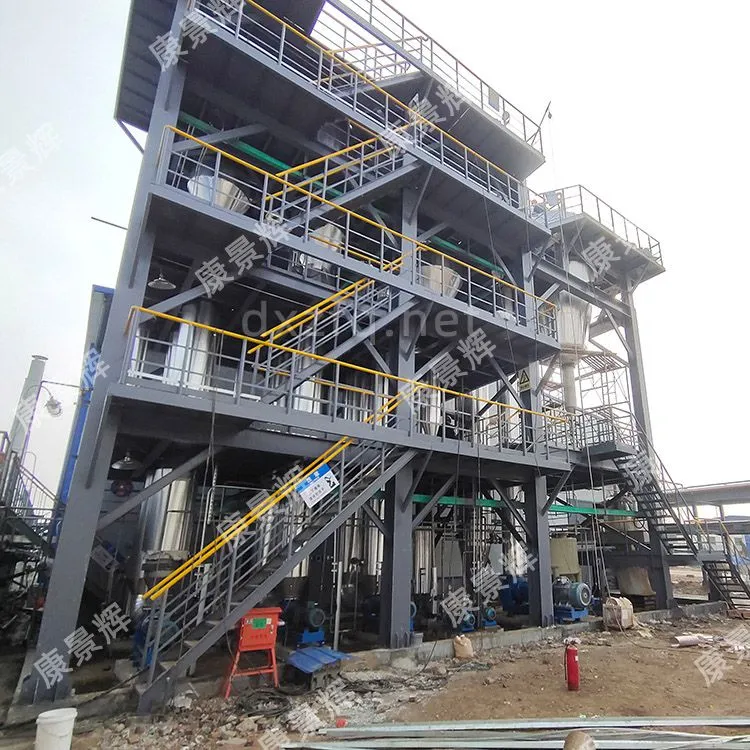

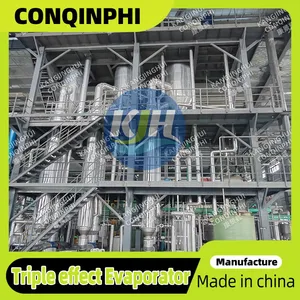

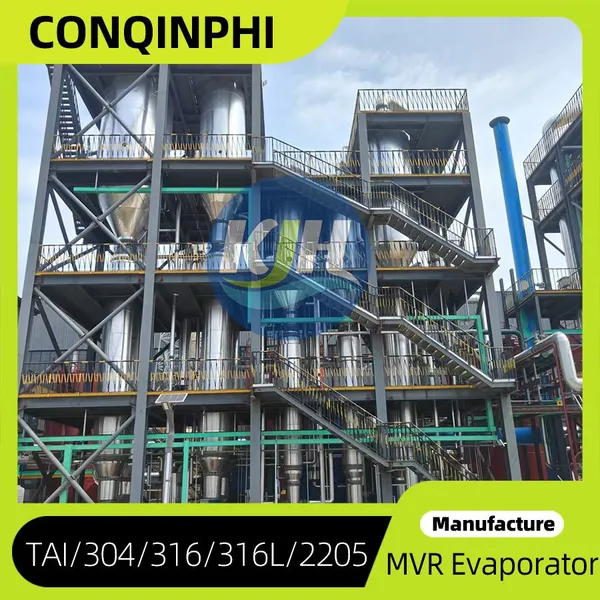

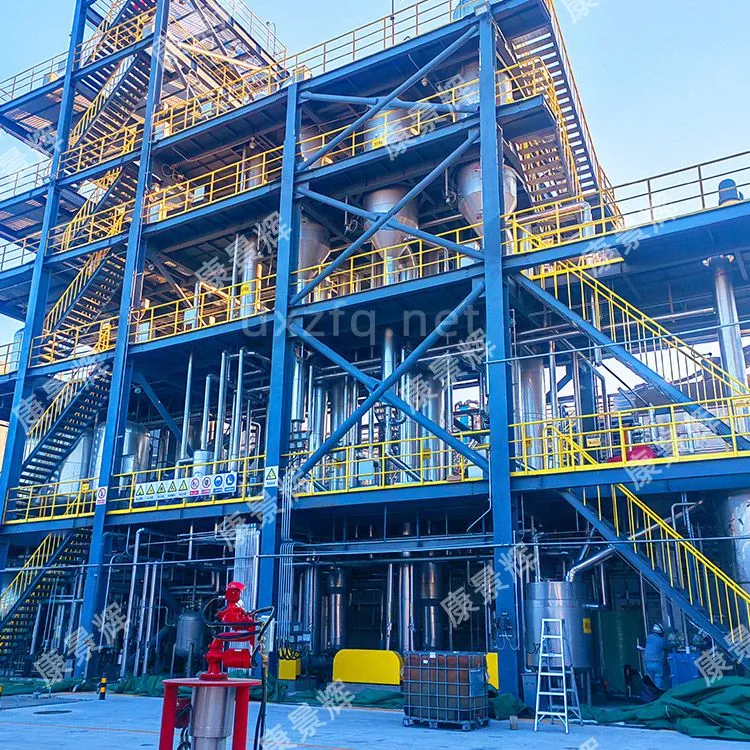

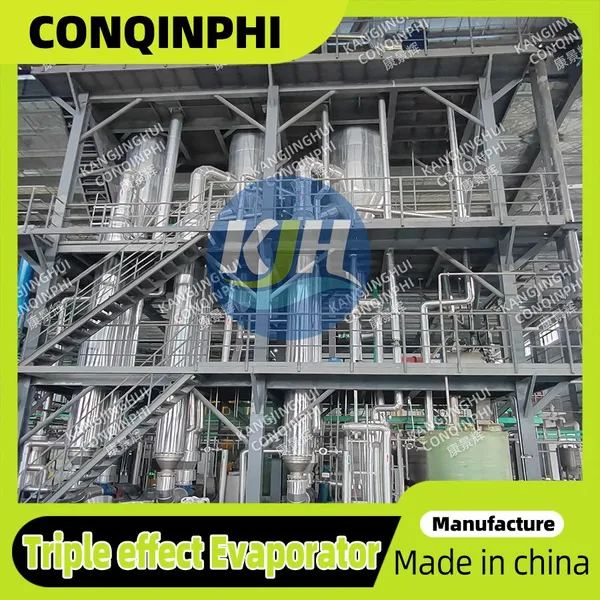

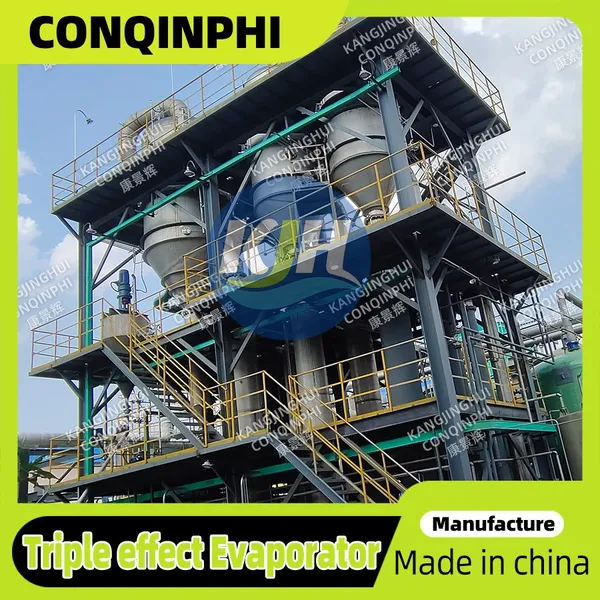

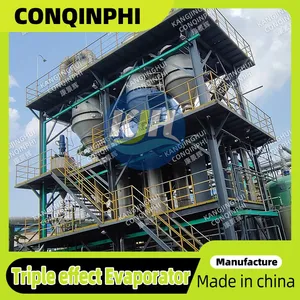

As a leading manufacturer with over 8 years of expertise in environmental technology, Qingdao Conqinphi Environmental Technology Group specializes in delivering high-efficiency separation solutions. Our Industrial Four-Effect Evaporation Crystallization System with PLC Control represents the culmination of advanced engineering, designed to tackle the most challenging concentration and recovery tasks in industrial processes. By integrating multiple evaporation effects with precise crystallization control, this system dramatically reduces energy consumption while maximizing product yield and purity, offering a sustainable and cost-effective answer for zero-liquid-discharge (ZLD) goals and resource recovery.
The system's intelligent design is built for reliability and ease of operation, making it an ideal choice for industries ranging from chemicals and pharmaceuticals to food processing and wastewater treatment. We understand that every application has unique demands, which is why our systems are engineered to be highly customizable, ensuring optimal performance for your specific feed composition and production targets. Backed by our substantial manufacturing footprint and a proven track record of exporting to global markets, we provide not just equipment, but a comprehensive partnership for your process success.
Core System Features & Technical Advantages:
- High-Efficiency Four-Effect Design: Utilizes the latent heat from vapor in successive stages. The vapor from the first effect becomes the heating source for the second, and so on, significantly lowering steam consumption compared to single or double-effect systems. This cascading energy reuse can lead to steam economy ratios as high as 3.5-4.0, translating to direct and substantial operational cost savings.
- Integrated Crystallization Unit: The system doesn't stop at concentration. It features a dedicated crystallizer—often a forced circulation or draft tube baffle (DTB) type—that provides controlled conditions for crystal growth, ensuring uniform crystal size distribution (CSD) which is critical for downstream filtration, washing, and product quality.
- Advanced PLC-Based Control System: At the heart of the operation is a fully automated Programmable Logic Controller (PLC) with a user-friendly touch-screen Human-Machine Interface (HMI). This allows for precise control over critical parameters such as temperature, pressure, level, density, and feed rate. Automated sequences for startup, shutdown, cleaning (CIP), and emergency procedures enhance safety, consistency, and reduce operator intervention.
- Superior Construction Materials: Contact parts are typically constructed from corrosion-resistant 316L or 304 stainless steel to handle aggressive process liquors, acids, and alkalis. For highly corrosive applications, options like duplex stainless steels, titanium, or specialized alloys are available upon request, ensuring long service life and minimal maintenance.
- Comprehensive Energy Integration: Includes heat exchangers, condensers, and thermal vapor recompression (TVR) or mechanical vapor recompression (MVR) as optional upgrades to further boost energy efficiency. Pre-heaters recover heat from hot condensate and product streams, minimizing thermal waste.
- Robust Ancillary Systems: The package is complete with all necessary components for a closed-loop operation: vacuum system (e.g., steam ejectors or liquid ring pumps), condensate collection tanks, product/crystal separation cyclones or centrifuges, and CIP systems for thorough cleaning.
Key Technical Specifications (Typical Range):
| Parameter | Specification / Range | Notes |
|---|---|---|
| Evaporation Effects | 4 (Quadruple Effect) | Configurable as forward, backward, or mixed feed. |
| Evaporator Type | Forced Circulation (FC), Falling Film | Selected based on product characteristics. |
| Crystallizer Type | Forced Circulation, DTB, OSLO | Designed for optimal crystal growth. |
| Control System | Siemens/Allen-Bradley PLC + Color HMI | Data logging, recipe management, remote monitoring optional. |
| Design Pressure | Full Vacuum to 0.6 MPa (Customizable) | ASME or PED design codes applicable. |
| Steam Consumption | ~0.25 - 0.3 kg steam / kg water evaporated | Highly efficient compared to single-effect (~1 kg/kg). |
| Material of Construction | SS304/SS316L, Hastelloy, Titanium | Selected per process fluid corrosivity. |
Tangible Benefits for Your Operation:
- Major Reduction in Operating Costs: The primary benefit is drastically lower energy consumption. By reusing vapor heat across four effects, steam requirements can be reduced by up to 75% versus a single-effect system, offering a rapid return on investment.
- High-Purity Product Recovery: Achieve consistent concentration to super-saturation and recover valuable salts, chemicals, or products as high-purity, marketable crystals, turning waste streams into revenue.
- Environmental Compliance & ZLD: Effectively minimizes liquid waste volume, often producing only a small amount of solid residue for disposal, helping you meet stringent environmental regulations and achieve sustainable water management.
- Process Reliability & Automation: The PLC control ensures stable operation, consistent product quality, and reduced labor costs. Automated alarms and interlocks protect the equipment and process.
- Scalability & Flexibility: Systems are designed to be modular and scalable. They can be tailored for different feed capacities, inlet concentrations, and desired final product forms (solution or crystals).
Choosing Qingdao Conqinphi means partnering with a manufacturer of substantial scale and proven capability. Our operations, spanning a factory size of 10,000-30,000 square meters and supported by a dedicated team of 201-300 professionals, are built to deliver quality and reliability. We hold multiple international management system certifications, including ISO 9001 for quality, ISO 14001 for environmental management, and OHSAS 18001 for occupational health and safety, which govern our design, manufacturing, and testing processes. Our products have gained trust in diverse markets across North America, Europe, Southeast Asia, and beyond, with an annual export value reflecting our global reach and customer satisfaction.
This Four-Effect Evaporation Crystallization System is more than just equipment; it's a strategic investment in the efficiency and sustainability of your plant. It delivers unmatched energy savings, robust performance, and the reliability you need for continuous operation. Let us provide you with a detailed proposal tailored to your specific process data. Contact Qingdao Conqinphi Environmental Technology Group today to discuss how our advanced crystallization technology can solve your concentration challenges and improve your bottom line.
Frequently Asked Questions (FAQ):
-
Q: What are the main industries that use this type of system?
A: This system is highly versatile and is commonly deployed in the chemical industry for salt recovery (e.g., NaCl, KCl), in pharmaceuticals for solvent recovery and API crystallization, in food & beverage for concentrating juices or recovering lactose, in wastewater treatment for ZLD applications, and in mining for metal salt recovery (e.g., lithium, cobalt). -
Q: How does the four-effect design save energy compared to a single-effect evaporator?
A: In a single-effect unit, steam is used once to evaporate water, and the vapor is then condensed and discarded. In a four-effect system, the vapor from the first effect (which is still hot) is used as the heating steam for the second effect. This process repeats, reusing the latent heat three additional times. This cascading reuse dramatically reduces the total amount of fresh steam required from the boiler. -
Q: Can the system handle feeds that are prone to fouling or scaling?
A: Yes. For scaling feeds, Forced Circulation (FC) evaporators are typically recommended because the high fluid velocity inside the tubes helps minimize scale deposition. Additionally, the system design includes provisions for easy cleaning, such as Clean-in-Place (CIP) systems, and can incorporate anti-scalant dosing points. The choice of smooth-surface materials also helps. -
Q: What level of automation can we expect?
A: The system comes with full PLC automation as standard. This includes automatic control of levels, temperatures, pressures, and densities. It can manage sequential startup and shutdown, switch between different operating modes, and includes comprehensive alarm and safety interlock systems. Remote monitoring capabilities are often available as an option. -
Q: Is the capacity fixed, or can it be customized?
A: Capacity is fully customizable. We design the system based on your specific feed flow rate (e.g., tons per hour), inlet concentration, desired final concentration or crystal yield, and operating hours. We will conduct a detailed process design to size each effect, the crystallizer, and all ancillary equipment accordingly. -
Q: What after-sales support do you provide?
A: Our support package typically includes detailed installation manuals, comprehensive operator training (on-site or at our facility), a warranty period for parts and workmanship, and readily available technical support via email, phone, or video call. We also maintain a stock of commonly required spare parts and offer maintenance service contracts. -
Q: How long is the delivery time for a typical system?
A: Delivery time depends on the system's complexity, size, and customization level. For a standard design, it generally ranges from 4 to 8 months from order confirmation to ex-works readiness. This includes engineering, procurement, fabrication, assembly, and factory acceptance testing (FAT). A precise schedule is provided with the formal quotation. -
Q: Can you integrate MVR (Mechanical Vapor Recompression) instead of using steam?
A: Absolutely. While the standard design is based on a multi-effect thermal setup, we can integrate an MVR unit. An MVR system uses a compressor to recompress the vapor from the last effect, raising its temperature and pressure so it can be reused as heating steam, potentially eliminating the need for external steam altogether. This is an excellent option for sites with expensive or limited steam.
