As a leading manufacturer in environmental technology, Qingdao Conqinphi Environmental Technology Group is proud to offer our advanced Four-Effect Evaporation Crystallizer. With a factory spanning over 10,000 square meters and a dedicated team of over 200 professionals, we engineer robust solutions for complex industrial separation challenges. This system is designed to deliver exceptional efficiency in concentrating and crystallizing solutions, significantly reducing energy consumption and operational costs for our clients worldwide. We back every unit with comprehensive technical support and a detailed Mill Test Report, ensuring material integrity and performance transparency from the very start.

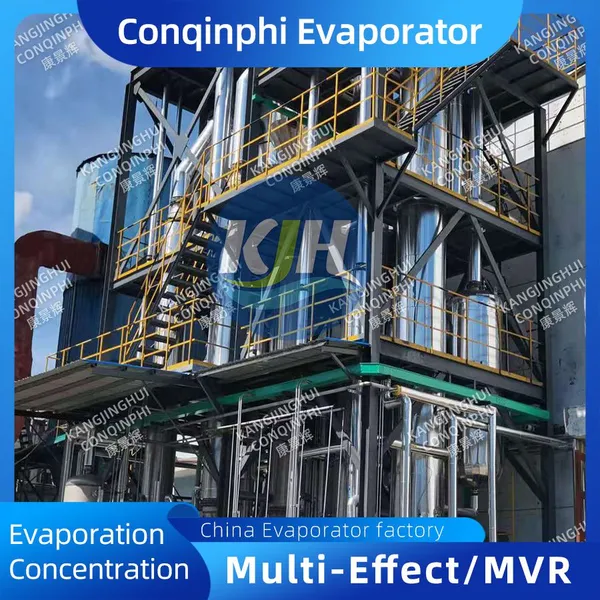

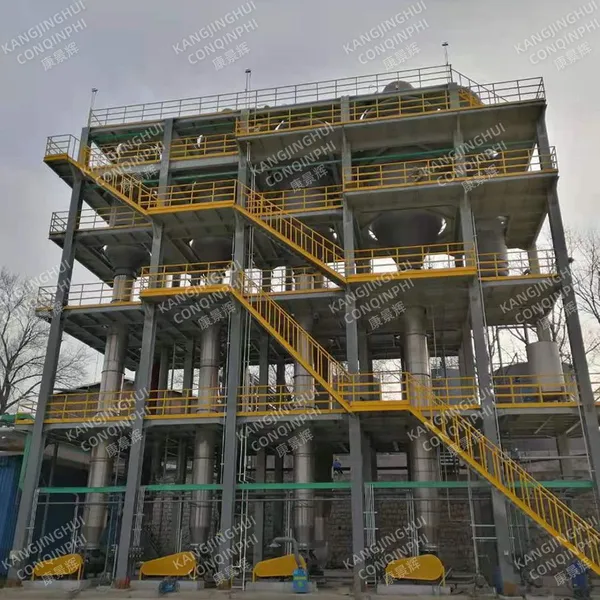

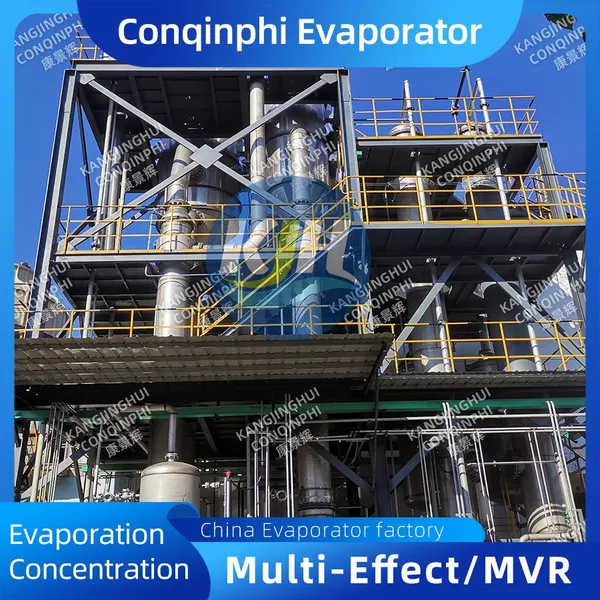

Our Four-Effect Evaporation Crystallizer is engineered for high-performance separation and recovery in demanding industrial applications. The system leverages a multi-effect design to maximize thermal efficiency, where vapor from one effect serves as the heating medium for the next. This cascading energy reuse is the cornerstone of its operational economy.
- Superior Energy Efficiency: The four-effect configuration dramatically reduces steam consumption compared to single or double-effect units. By reusing latent heat across multiple stages, it achieves a high steam economy, leading to substantial savings on energy bills.
- High-Purity Crystallization: Integrated crystallization technology allows for the controlled production of solid crystals from concentrated brines or solutions. This is crucial for zero-liquid discharge (ZLD) strategies and valuable product recovery.
- Robust Construction & Corrosion Resistance: Manufactured from high-grade materials like SS304 or SS316L stainless steel, the system is built to withstand corrosive process streams and ensure long service life. The Mill Test Report provides verifiable proof of material composition and quality.
- Advanced Process Control: Equipped with a programmable logic controller (PLC) and human-machine interface (HMI), the system offers precise control over parameters such as temperature, pressure, level, and density, ensuring consistent product quality and stable operation.
- Versatile Application Scope: This unit is highly effective for treating high-salinity wastewater, concentrating chemical products, recovering salts, and processing industrial effluents in sectors like chemicals, pharmaceuticals, food & beverage, and mining.
The technical specifications can be tailored to meet specific project requirements. Below is a general overview of key parameters:
| Parameter | Description / Typical Range |
|---|---|
| Evaporation Type | Forced Circulation / Falling Film (Selectable) |
| Number of Effects | Four (4) |
| Design Material | SS304, SS316L, or other alloys upon request |
| Heating Source | Saturated Steam / Electric Thermal Oil / Waste Heat |
| Control System | PLC with Touch Screen HMI, Optional SCADA |
| Vacuum System | Water Ring Vacuum Pump or Steam Ejector |
| Final Product | Concentrated Liquid and/or Dry Crystals |
For businesses, the advantages are clear. This system helps in achieving regulatory compliance for effluent discharge, reduces wastewater disposal volumes and costs, recovers valuable by-products for potential revenue, and enhances overall plant sustainability. The reliable performance minimizes downtime, while our technical support ensures smooth integration and operation.
With an annual export value reaching up to US$50 million and a presence in major markets across North America, Europe, Asia, and beyond, Qingdao Conqinphi has established a strong reputation for quality and reliability. Our adherence to recognized management standards, including ISO 9001 for quality and ISO 14000 for environmental management, underscores our commitment to excellence. When you choose our Four-Effect Evaporation Crystallizer, you are not just purchasing equipment; you are gaining a partnership with a manufacturer dedicated to providing effective environmental solutions backed by solid documentation and continuous support. Contact us today to discuss how this system can be optimized for your specific process needs.
Frequently Asked Questions (FAQ)
Q1: What is the primary advantage of a four-effect system over a single-effect evaporator?
A: The key advantage is significantly higher energy efficiency. A four-effect system reuses vapor from one effect to heat the next, reducing steam consumption by approximately 75% compared to a single-effect unit, which leads to lower operational costs.
Q2: Can this system handle my specific feed solution or wastewater stream?
A: The system is highly customizable. We evaluate your feed composition, flow rate, concentration goals, and scaling potential to recommend the optimal design, material of construction, and process configuration to ensure effective handling.
Q3: What does the 'Mill Test Report' include, and why is it important?
A: The Mill Test Report (MTR) is a certified document from the material mill that verifies the chemical composition and mechanical properties (like tensile strength) of the stainless steel or alloy used. It is crucial for quality assurance, corrosion resistance validation, and compliance with project specifications.
Q4: What kind of technical support do you provide?
A: Our support encompasses process design consultation, installation guidance, comprehensive operator training, commissioning assistance, and readily available after-sales service for maintenance and troubleshooting.
Q5: How is the final crystal quality and moisture content controlled?
A: Crystal size, purity, and moisture are controlled through precise regulation of evaporation rate, slurry density, residence time in the crystallizer, and the final solid-liquid separation step (e.g., centrifuge or dryer), which can be integrated into the system.
Q6: Is the system suitable for a Zero Liquid Discharge (ZLD) process?
A: Yes, this crystallizer is a core component in many ZLD systems. It concentrates the brine to saturation, leading to crystallization of dissolved solids, thereby minimizing or eliminating liquid waste discharge.
Q7: What are the typical maintenance requirements?
A: Regular maintenance includes cleaning heat exchanger tubes to prevent scaling, inspecting and servicing pumps and valves, checking instrumentation calibration, and monitoring the vacuum system. A detailed maintenance schedule is provided.
Q8: Can the system utilize waste heat from other processes?
A> Absolutely. The design can be adapted to use low-grade waste heat as a primary or supplementary energy source, enhancing overall plant energy integration and further reducing operating costs.
