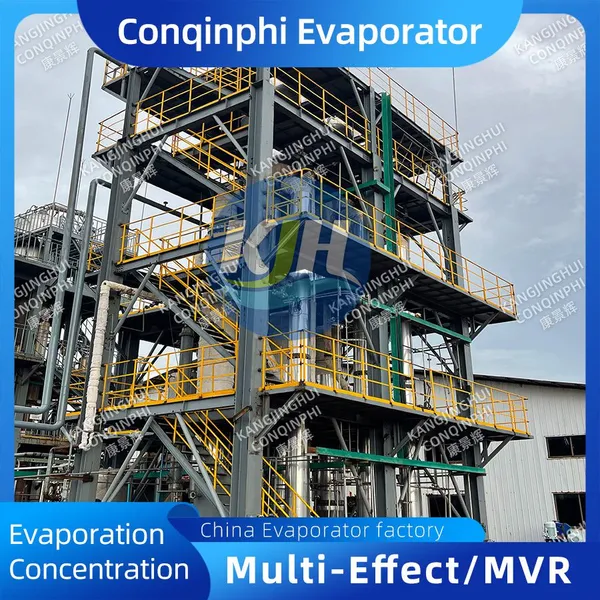

Help CenterThree-Effect Continuous Crystallization Evaporator 800L Working Volume PID Temperature Control
Product Spotlights
Related Products
-
Industrial Forced Circulation Evaporator With Automatic Temperature ControlUS$ 54300 - 829000MOQ: 1 Combo -
Energy Efficient Forced Circulation Evaporator for Wastewater TreatmentUS$ 54300 - 829000MOQ: 1 Combo
-
Large Capacity Forced Circulation Evaporator for Chemical ConcentrationUS$ 54300 - 829000MOQ: 1 Combo
-
Compact Forced Circulation Evaporator With CIP Cleaning SystemUS$ 54300 - 829000MOQ: 1 Combo
-
Forced Circulation Evaporator for Pharmaceutical Crystallization ProcessesUS$ 54300 - 829000MOQ: 1 Combo
As a leading manufacturer with nearly a decade of expertise in separation and purification technology, Qingdao Conqinphi Environmental Technology Group is proud to introduce our advanced Three-Effect Continuous Crystallization Evaporator with an 800L working volume and precise PID temperature control. Engineered for high-efficiency and consistent output, this system is designed to meet the rigorous demands of modern industrial processes in chemical synthesis, pharmaceutical production, and high-value food ingredient manufacturing. Our commitment to integrating robust engineering with intelligent control makes this evaporator a cornerstone for operations seeking to enhance purity, yield, and energy efficiency.
This sophisticated crystallization system leverages a continuous three-effect evaporation design to maximize thermal economy and process stability. Below are its core features and technical advantages:
- Continuous Three-Effect Operation: Unlike batch systems, our evaporator operates continuously across three stages (effects). This design significantly reduces energy consumption by reusing vapor from one effect to heat the next, leading to substantial operational cost savings.
- Precision PID Temperature Control: The heart of the system is an advanced PID (Proportional-Integral-Derivative) digital controller. It ensures precise and stable temperature regulation throughout the crystallization process, which is critical for controlling crystal size distribution, purity, and repeatability.
- Optimized 800L Working Volume: With an 800-liter capacity, this unit is ideal for pilot-scale projects, medium-scale production, and R&D applications. It offers a perfect balance between throughput and flexibility for process development and scaling.
- Superior Construction & Customization: The main vessel and wetted parts are typically constructed from high-grade stainless steel (SS304 or SS316L), ensuring excellent corrosion resistance and compliance with hygienic standards. Material specifications can be customized based on your process requirements.
- Intelligent PLC-Based Control System: Operation is managed through a user-friendly touch-screen PLC interface. This system allows for automated control of key parameters, recipe storage, data logging, and alarm functions, minimizing operator intervention and human error.
- Integrated Agitation & Scraping: The system is equipped with a configurable mechanical agitation system, which may include anchor or scraper-type stirrers. This prevents scaling on heat transfer surfaces, promotes uniform heat distribution, and ensures consistent crystal slurry mixing.
- Versatile Heating Options: The evaporator can be configured with a steam jacket or electric heating elements to suit your facility's available utilities, providing flexibility in plant integration.
- Enhanced Separation & Efficiency: The multi-effect design, combined with controlled evaporation rates, promotes the formation of uniform crystals and efficient mother liquor separation, leading to higher product purity and reduced waste.
To provide a clearer overview, here are some typical technical specifications:
| Parameter | Specification |
|---|---|
| Model | CWE-800T |
| Working Volume | 800 Liters |
| Evaporation Type | Continuous Three-Effect |
| Temperature Control | PID Digital Controller (±0.5°C) |
| Control System | Touch Screen PLC with Data Logging |
| Construction Material | Stainless Steel 304/316L (Standard) |
| Heating Source | Steam Jacket or Electric Heater (Optional) |
| Agitation | Variable Speed Mechanical Stirrer |
| Design Pressure | Customizable (Typically -0.1 to 0.3 MPa) |
Benefits for Your Business:
- Significant Energy Savings: The triple-effect design can reduce steam consumption by up to 60-70% compared to single-effect evaporators, directly lowering your utility costs.
- Consistent High-Quality Output: Precise PID control ensures process repeatability, leading to consistent crystal size and purity batch after batch, which is vital for product specifications.
- Increased Production Capacity: Continuous operation eliminates downtime between batches, maximizing equipment utilization and overall plant throughput.
- Reduced Labor & Operational Risk: Automated controls and monitoring reduce the need for constant manual supervision, lowering labor costs and minimizing the potential for operational errors.
- Scalability & Process Development: The 800L capacity is an excellent platform for scaling up laboratory formulas to commercial production, reducing technology transfer risks.
Backed by Qingdao Conqinphi Environmental Technology Group's strong manufacturing foundation—including a 10,000-30,000 square meter factory and a dedicated team of 201-300 professionals—this evaporator is built to international standards. Our company's commitment to quality is reflected in our adherence to management systems, and our products are trusted by clients across North America, South America, Europe, Asia, Africa, and Oceania, with an annual export value reaching tens of millions of USD. Choosing our Three-Effect Continuous Crystallization Evaporator means investing in a reliable, efficient, and intelligent solution designed to future-proof your crystallization process. We invite you to contact us to discuss how this system can be tailored to your specific application and to request a detailed quotation.
Frequently Asked Questions (FAQ)
Q1: What is the main advantage of a "three-effect" design over a single-effect evaporator?
A: The primary advantage is dramatic energy efficiency. In a three-effect system, vapor produced from boiling in the first effect is used to heat the second effect, and vapor from the second heats the third. This heat recycling can reduce steam consumption by approximately 60-70% compared to a single-effect unit, leading to much lower operating costs.
Q2: How does the PID temperature control benefit the crystallization process?
A: Precise temperature control is critical for determining crystal growth rate, final size, and morphology. The PID controller automatically adjusts heating power to maintain a stable, set temperature with minimal fluctuation. This ensures consistent crystal quality, improves yield, and enhances batch-to-batch reproducibility.
Q3: Can this 800L evaporator handle corrosive or high-viscosity materials?
A: Yes, it can be customized for such applications. While standard construction is stainless steel (SS304/316L), we can fabricate wetted parts from more resistant alloys like Hastelloy or use special coatings upon request. The agitation system (e.g., heavy-duty scrapers) can also be specified to handle viscous slurries effectively.
Q4: Is the system suitable for sterile or aseptic processing, such as in pharmaceutical API production?
A: Absolutely. The design can be adapted for clean-in-place (CIP) and sterilize-in-place (SIP) requirements. We can use polished interior surfaces, sanitary fittings, and validate the system according to relevant guidelines to meet stringent pharmaceutical standards.
Q5: What level of automation does the control system offer?
A: The system features a programmable logic controller (PLC) with a touch-screen human-machine interface (HMI). It allows for full recipe programming, automatic sequence control, real-time monitoring of temperature/pressure/level, data recording and export, and comprehensive alarm management for safe, unattended operation.
Q6: Do you provide installation, commissioning, and training services?
A: Yes, as a full-service manufacturer, we offer comprehensive support. This includes detailed installation drawings, on-site or remote commissioning assistance, and thorough operator training to ensure you can run the equipment safely and efficiently from day one.
Q7: How do we determine the right heating method (steam vs. electric) for our plant?
A: The choice depends on your facility's infrastructure and utility costs. Steam heating is generally more efficient for large-scale, continuous operation if steam is readily available. Electric heating offers easier control and is ideal where steam is not accessible. Our engineers can help you evaluate the best option based on your specific conditions.
Q8: What is the typical lead time for manufacturing and delivery?
A: Lead time varies based on the level of customization and current production schedule. For a standard configuration, it typically ranges from 12 to 16 weeks. We provide accurate timelines upon finalizing the technical specifications and order confirmation.
