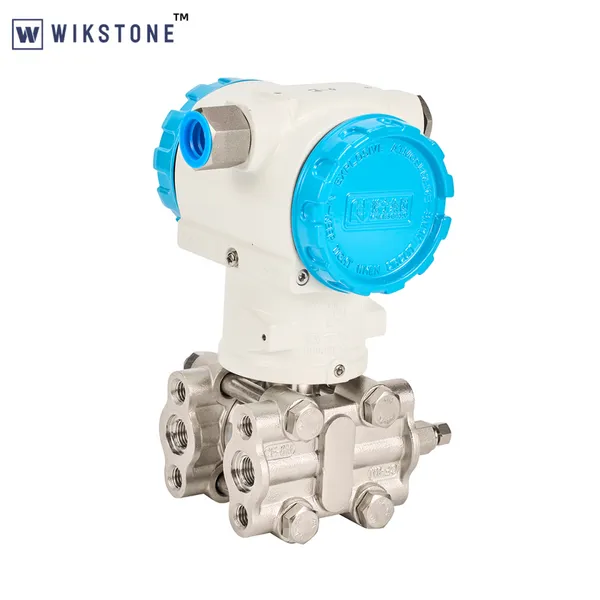

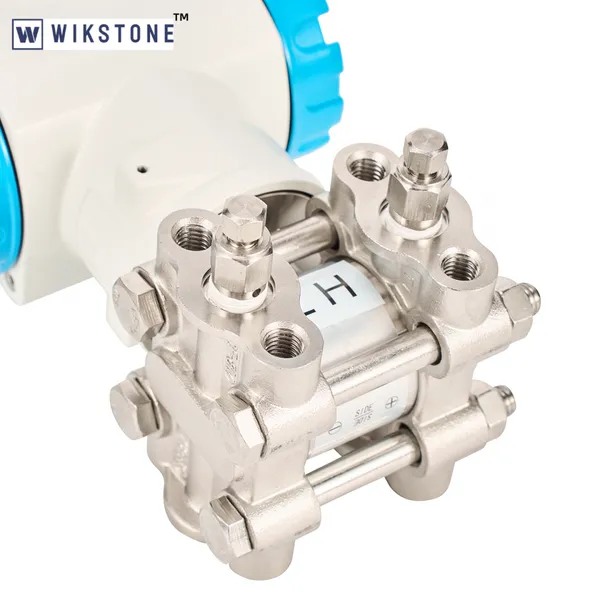

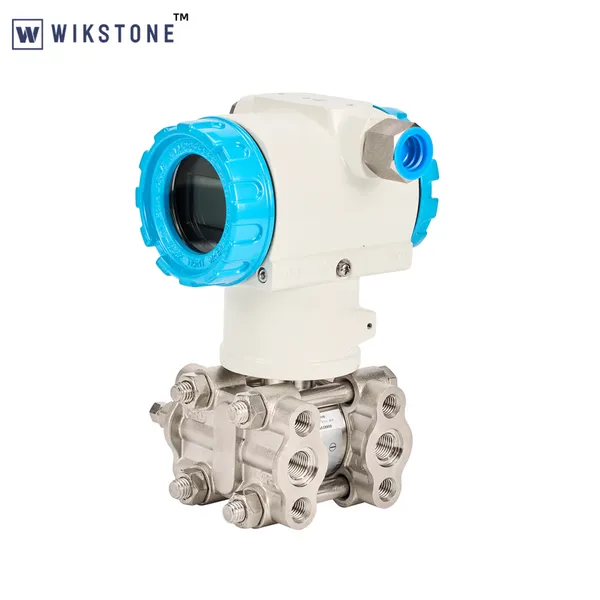

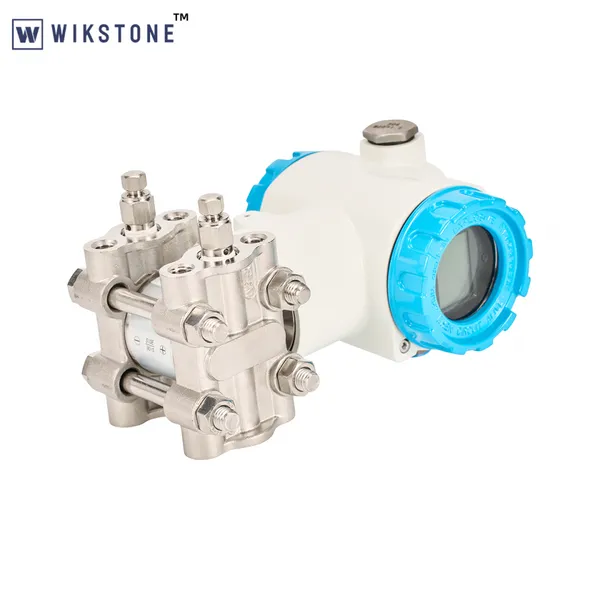

Smart Differential Pressure Transmitter for Flow, Level and Process Monitoring
WIKSTONE smart differential pressure transmitter is used to measure the pressure difference between two points in a process system. It is suitable for liquid, gas, steam, and industrial process media. The transmitter converts differential pressure into a stable 4-20mA or digital signal for flow measurement, tank level measurement, filter monitoring, and process control.
It is widely used together with orifice plates, Venturi tubes, Pitot tubes, impulse lines, capillary remote seals, and flange-mounted level measurement systems.
Main Features
Measures differential pressure, liquid level, flow, and filter pressure drop
4-20mA output, optional HART communication
LCD display for local reading and configuration
High accuracy and long-term stability
High static pressure models available
Stainless steel, Hastelloy, and other wetted materials optional
Remote seal and flange diaphragm configurations available
Suitable for corrosive, high-temperature, viscous, or crystallizing media with proper seal selection
Compatible with PLC, DCS, and process control systems
Customized range, connection, diaphragm material, and filling fluid available
Technical Parameters
Product name |
Differential Pressure Transmitter |
Model number |
HN-1851DP |
Case filling |
Silicone Oil/Fluorine Oil |
Measuring Range |
-10MPa···0~0.1kPa···10MPa |
Static Pressure |
25MPa/ 40MPa |
Accuracy |
0.075%FS |
Long-Term Stability |
±0.1% URL/5year |
Housing materials |
Stainless Steel or Aluminum alloy |
Wetted Materials |
Standard: SS316L Exotic: Hastelloy C276, Tantalum, Monel Alloy |
Ambient Temperature |
-40~85°C |
Temperature Coefficient |
±(0.015%URL+0.08%Span)/28°C(≤400kPa); ±(0.03%URL+0.08%Span)/28°C;(>400kPa); |
Process Temperature |
-40°C~+400°C (with remote seal) |
Explosion-proof grade |
Exia II CT6 /Exd II BT5 |
Process connection |
Flange/ Thread/ Special Customization available |
Power supply |
24V DC |
Output signal |
4-20mA/HART/Profibus/Modbus Optional wireless transmission via Bluetooth/NB-IoT |
Warranty |
1year |
Protection |
IP66/IP67 |
Differential Pressure Measurement Solutions
WIKSTONE provides complete differential pressure measurement solutions according to different process conditions. For clean liquid or gas applications, a standard DP transmitter with impulse lines can be used. For corrosive, viscous, high-temperature, crystallizing, or sanitary media, a remote seal differential pressure transmitter is recommended.
For tank level measurement, the transmitter can be configured with flange diaphragm seals, capillary tubes, special filling fluid, and suitable diaphragm materials. For flow measurement, it can be matched with orifice plates, Venturi tubes, nozzles, and other primary flow elements.
FAQ
Q1: What is a differential pressure transmitter used for?
A1: It is used to measure the pressure difference between two points. Common applications include flow measurement, tank level measurement, filter monitoring, and process pressure control.
Q2: Can this DP transmitter be used for tank level measurement?
A2: Yes. It can measure liquid level in closed tanks, pressurized tanks, and vessels. Remote seal or flange-mounted types can be selected according to the medium.
Q3: Can it measure steam flow?
A3: Yes. When matched with an orifice plate or other primary flow element, the DP transmitter can be used for steam, gas, or liquid flow measurement.
Q4: Do you provide remote seal differential pressure transmitters?
A4: Yes. WIKSTONE can provide remote seal, flange diaphragm, capillary, and special filling fluid configurations.
Q5: How should I choose the right DP transmitter?
A5: Please provide medium, temperature, working pressure, differential pressure range, process connection, installation method, and output signal. WIKSTONE can help select the proper model.
