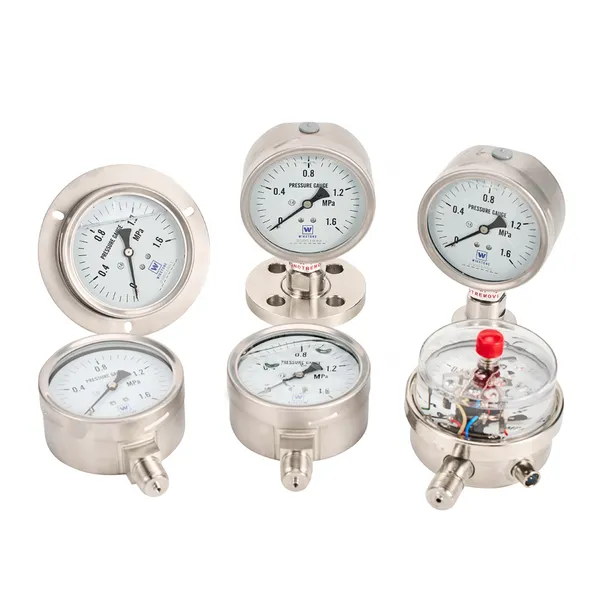

HNYB60 Stainless Steel Manometer Glycerine or Silicone Oil Filled Pressure Gauge,1/4" NPT Lower Mount,16 BarUS$ 12 - 15MOQ: 10 Pieces
The Stainless Steel Pressure Gauge is a robust and corrosion-resistant instrument designed for accurate pressure measurement in demanding industrial environments. Housed in a corrosion‑resistant stainless steel case and featuring a precision Bourdon tube element, this gauge delivers reliable, real‑time readings on a clear, easy‑to‑read dial. Its all‑metal construction and durable window ensure long service life even in harsh environments. Its hermetically sealed design and liquid-filled options make it suitable for high-vibration or pulsating systems.
The Bourdon tube Stainless Steel Pressure Gauge is widely used in oil and gas, chemical processing, marine, food and beverage, and pharmaceutical industries. It provides reliable performance for liquids, gases, and steam applications.
Product name |
Stainless Steel Pressure Gauge |
Model number |
HNYB |
Dial size |
40mm/50 mm/60mm/100mm/150mm/ 200mm/250mm |
Measuring Range(Mpa) |
0~0.1,0.16,0.25,0.4,0.6,1,1.6,2.5,4,6,10,16,25,40,60MPa Vacuum:-0.1~0,0.06,0.15,0.3,0.5,0.9,1.5,2.4MPa |
Accuracy |
2.5%,1.6% |
Thread |
¼" NPT,½" NPT, G¼" ,M20×1.5, G½", Tri-Clamp (can be customized for other threads) |
Material |
SS304/SS316 |
Ambient Temperature |
-40~70℃ |
Medium Temperature |
-20~150℃ |
Warranty |
1year |
Protection |
IP65/IP67 |
Applications:
Hydraulic/Pneumatic Systems: Pumps, compressors, and turbines in manufacturing plants
Marine & Offshore: Engine monitoring, ballast systems (saltwater-resistant)
Chemical Processing: Agitators, reactors with pulsating flows
Power Generation: Steam lines, boiler feed pumps
Transportation: Diesel engines, braking systems, rail hydraulics
Mining Machinery: Drilling rigs, hydraulic fracturing equipment
Benefits:
Corrosion Resistance: Full Stainless Steel construction withstands aggressive chemicals and marine environments.
Corrosion Immunity: SS304/SS316 case, movement, and wetted parts withstand acids, alkalis, and seawater.
Zero-Pointer Flutter: Oil filling eliminates vibration-induced reading errors
Extended Lifespan: Fluid lubrication reduces wear by 80% vs. dry gauges.
