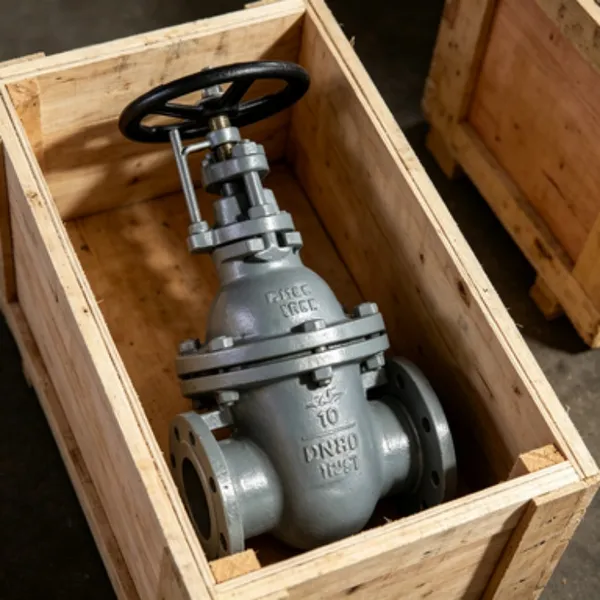

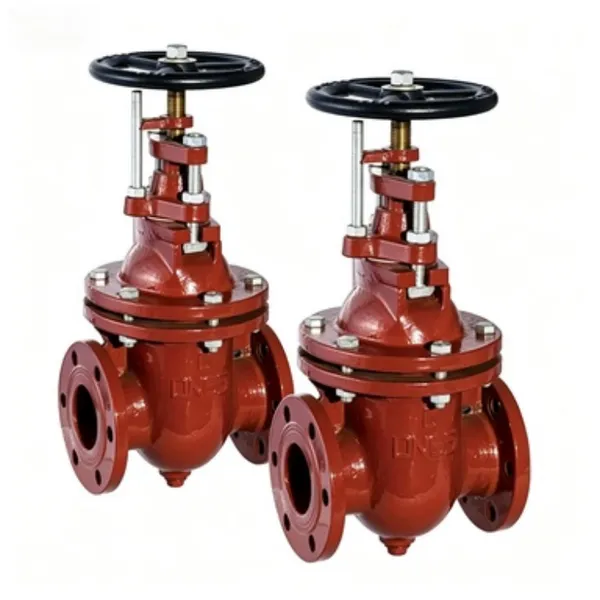

Help CenterDIN 3352 Gate Valve for Offshore Platform Seawater Intake Systems
Product Spotlights
Related Products
-
Standard Compliant DIN 3352 Marine Gate Valve With Mill Test ReportNegotiableMOQ: 1 Unit -
DIN 3352 Marine Gate Valve for Shipboard Ballast Water TreatmentNegotiableMOQ: 1 Unit
-
Ductile Iron DIN 3352 Marine Gate Valve for Seawater Systems, PN16 RatedNegotiableMOQ: 1 Unit
-
DIN 3352 Gate Valve for Seawater, Provided With Installation Technical SupportNegotiableMOQ: 1 Unit
-
Cast Steel DIN 3352 Electric Gate Valve, DN80 to DN300, PN16 Pressure RatingNegotiableMOQ: 1 Unit
As a dedicated manufacturer with years of experience in industrial valve production, Shanghai Zhibang Valve Manufacture Co., Ltd. proudly presents our high-performance DIN 3352 Gate Valve, engineered specifically for the demanding conditions of offshore platform seawater intake systems. Our commitment to quality, backed by an ISO9001-certified management system, ensures that every valve delivers reliable shut-off and flow control, safeguarding critical marine operations. We understand the challenges of corrosion, high pressure, and abrasive media in seawater applications, which is why our gate valves are designed to meet these challenges head-on. With an annual export value reflecting our global reach and customer trust, we are your reliable partner for robust fluid handling solutions.
The core design of our DIN 3352 Gate Valve focuses on durability and leak-tight performance in seawater service. Key features and advantages include:
- Corrosion-Resistant Construction: Available in a range of materials like cast steel, stainless steel (CF8, CF8M), and duplex steel to combat the corrosive nature of seawater and extend service life.
- Robust Sealing: Features hardened seat rings (e.g., Stellite overlays) and a wedge gate designed for excellent sealing, minimizing internal leakage even after prolonged cycling.
- Full Bore Design: Provides minimal pressure drop and unrestricted flow, which is crucial for efficient seawater intake with minimal pumping energy loss.
- DIN Standard Compliance: Manufactured to DIN 3352 standards, ensuring dimensional interchangeability, reliable flange connections, and compatibility with European system specifications.
- Versatile Actuation: Offered with manual handwheel operation, bevel gearboxes for high-torque applications, or electric actuators for remote and automated control, integrating seamlessly into platform SCADA systems.
- Easy Maintenance: The bolted bonnet design allows for relatively straightforward inspection and maintenance of internal components, reducing downtime.
Detailed technical specifications for our standard offering are summarized below. Custom configurations are available upon request.
| Parameter | Specification / Option |
|---|---|
| Design Standard | DIN 3352 F4 / F5 |
| Pressure Rating (PN) | PN10, PN16, PN25, PN40 |
| Size Range (DN) | DN50, DN65, DN80, DN100, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600 |
| Body Material | Cast Steel (WCB), Stainless Steel (CF8/304, CF8M/316), Duplex Steel (F51/F53) |
| Seat & Wedge Material | 13% Cr Stainless Steel + Stellite, Full Stellite, or Hardened Stainless Steel |
| Stem Material | Stainless Steel (410, 304, 316) |
| Packing Material | Graphite, PTFE, or Flexible Graphite for high-temperature sealing |
| End Connection | Flanged to DIN 2501, PN10-PN40, RF face |
| Operation | Handwheel (Rising Stem), Bevel Gear Operator (Ratio 2:1 to 100:1), Electric Actuator (optional) |
| Test Standards | Shell Test & Seat Test per API 598 / EN 12266-1 |
For operators and engineers, the benefits of choosing our gate valve translate directly into operational efficiency and cost savings:
- Enhanced System Reliability: The robust build and reliable sealing prevent unplanned shutdowns caused by valve failure, ensuring continuous seawater supply for cooling, firewater, or desalination processes.
- Reduced Lifecycle Cost: The use of premium corrosion-resistant materials and hardened trim significantly extends maintenance intervals and valve lifespan, lowering total cost of ownership.
- Global Compliance & Compatibility: Adherence to DIN standards simplifies procurement, installation, and spare parts management for projects worldwide, particularly in regions following European specifications.
- Operational Safety: A secure, bubble-tight shut-off is vital for isolating sections of the seawater system during maintenance or emergencies, protecting personnel and equipment.
With our products successfully supplied to markets across North and South America, Europe, Asia, Africa, and Oceania, Shanghai Zhibang has built a reputation for delivering valves that withstand the test of time and environment. Our established supply chain from major Chinese ports like Shanghai, Guangzhou, and Hong Kong ensures timely delivery to your project site. We invite you to leverage our manufacturing expertise and proven track record. Contact us today to discuss how our DIN 3352 Gate Valves can be tailored to meet the specific pressure, size, and material requirements of your offshore seawater intake system, and experience the reliability that global operators trust.
Frequently Asked Questions (FAQ)
Q1: Why is the DIN 3352 standard important for offshore platform valves?
A: The DIN 3352 standard defines the design, dimensions, pressure ratings, and testing requirements for flanged gate valves. Using a valve compliant with this widely recognized European standard ensures proper fit, performance predictability, and interchangeability within systems designed to European specifications, which is common in many international offshore projects.
Q2: What material is recommended for seawater service in your gate valves?
A: For seawater, which is highly corrosive and may contain abrasives, we typically recommend stainless steel (ASTM A351 CF8M/316) or super duplex stainless steel (ASTM A995 Grade 4A/F53). These materials offer excellent resistance to chloride-induced pitting and crevice corrosion. The specific choice depends on the chloride content, temperature, and required service life.
Q3: Can this valve be supplied with an electric actuator for remote operation?
A: Yes, absolutely. While the standard offering is a manual handwheel or gear-operated valve, we can integrate it with electric actuators from reputable brands or provide our own actuator package. This allows for integration into your platform's Distributed Control System (DCS) for automated or remote open/close commands.
Q4: What is the typical delivery lead time for a custom-sized valve (e.g., DN450, PN25)?
A: Lead times vary based on material availability, actuation package, and order quantity. For a standard material like WCB or CF8M in common sizes, production typically takes 6-8 weeks. For larger sizes or special alloys like duplex steel, please contact us for a precise schedule. We maintain efficient logistics from Shanghai, Guangzhou, or Hong Kong ports.
Q5: Do you provide full testing documentation with the valves?
A: Yes. Each valve undergoes rigorous pressure testing (shell and seat tests) according to standards like API 598 or EN 12266-1. We provide a test certificate detailing the test pressure, duration, and results. Additional documentation like material certificates (3.1/3.2) is available upon request.
Q6: Is the valve suitable for both submerged (in-sea) and above-deck piping applications?
A: Our DIN 3352 gate valve is primarily designed for in-line piping systems. For submerged seawater intake applications, specific design considerations like extended stems, special coatings, or different material grades might be necessary. We can engineer solutions for such demanding subsea or splash zone services based on your detailed requirements.
Q7: How does the gearbox operator benefit the valve operation?
A: A bevel gear operator provides a significant mechanical advantage, reducing the input force required to open or close the valve. This is crucial for larger valve sizes (typically DN300 and above) or higher pressure classes where stem thrust is substantial. It allows for safer and easier manual operation by a single person.
Q8: What after-sales support do you offer?
A: As a manufacturer, we provide comprehensive technical support, including installation guidance, operation manuals, and troubleshooting assistance. We also supply genuine spare parts like packing sets, gaskets, and seal rings to ensure long-term performance. Our team is committed to supporting your operational needs.
