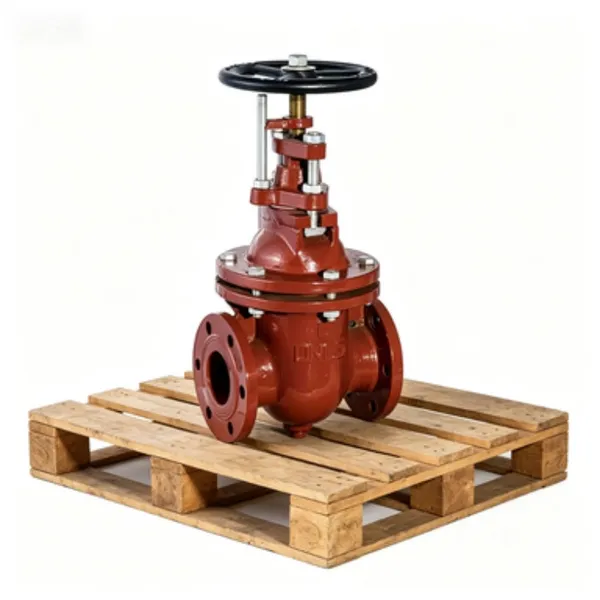

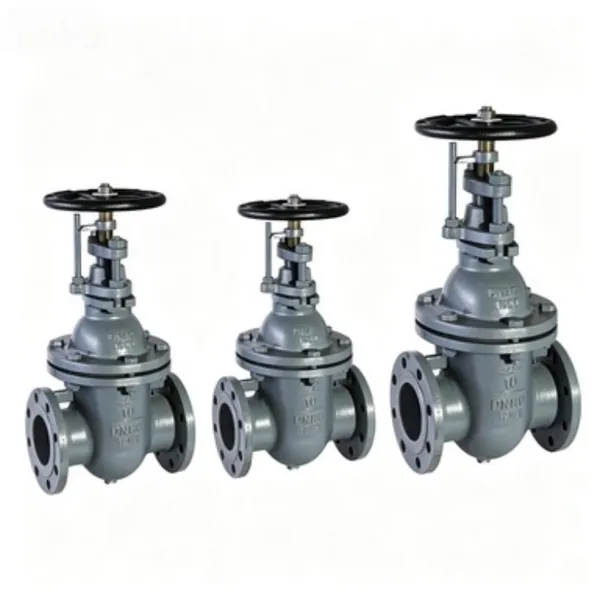

As a specialized manufacturer of industrial valves, Shanghai Zhibang Valve Manufacture Co., Ltd. offers the DIN 3352 Marine Gate Valve, engineered specifically for demanding shipboard applications such as ballast water treatment. Our valves are designed to provide reliable isolation and control in critical marine piping systems, ensuring operational safety and environmental compliance. With our focus on quality manufacturing since 2016 and adherence to ISO9001 standards, we deliver products that meet the rigorous requirements of the global maritime industry.
This marine gate valve is a cornerstone component for ballast water management systems, which are essential for modern vessels to prevent the transfer of invasive aquatic species. Its robust construction and precise operation allow for secure shut-off of ballast water lines, facilitating treatment processes and system integrity.
Key Features and Technical Advantages:
- Standardized Connection: Manufactured according to DIN 3352 standards, ensuring compatibility with European and international marine piping systems. This facilitates easier installation and replacement.
- Material Durability: Available in materials such as cast steel, stainless steel (e.g., 316L), and bronze, selected for corrosion resistance in seawater environments and long service life.
- Robust Sealing: Features metal-to-metal or resilient sealing designs. The wedge and seat are precision-machined to provide a tight seal, minimizing leakage and ensuring effective isolation during ballast water treatment cycles.
- Full Port Design: Typically offers a full bore, minimizing flow resistance and pressure drop, which is crucial for efficient ballast water transfer and treatment system performance.
- Versatile Operation: Can be operated via a manual handwheel for smaller sizes or equipped with a gearbox operator for larger diameters (e.g., DN300+), allowing for easier actuation under high-pressure conditions.
- High Pressure & Temperature Rating: Engineered to withstand the pressure and temperature ranges common in ballast systems. Standard pressure ratings often include PN10, PN16, and PN25, with higher ratings available.
- Application-Specific Design: The design considers the specific needs of ballast water treatment, including compatibility with treatment chemicals and resistance to biofouling.
Technical Specifications Overview:
| Parameter | Typical Range / Option |
|---|---|
| Connection Standard | DIN 3352 Flange |
| Size Range (Nominal Diameter) | DN50, DN80, DN100, DN150, DN200, DN250, DN300, DN350, DN400, DN500, DN600 (Custom sizes available) |
| Pressure Rating (PN) | PN10, PN16, PN25 (Higher ratings upon request) |
| Primary Materials | Cast Steel (WCB), Stainless Steel (CF8/304, CF8M/316), Bronze |
| Temperature Range | -20°C to 200°C (Material dependent) |
| Operation Mode | Manual Handwheel, Gearbox Operator (Optional) |
| Sealing Type | Metal Seat (Standard), Resilient Seat (Optional) |
Benefits for Our Clients:
- System Reliability: Provides a dependable shut-off mechanism, crucial for the safe and controlled operation of ballast water treatment systems, preventing cross-contamination and ensuring treatment efficacy.
- Compliance Support: Helps vessel operators meet international ballast water management conventions (e.g., IMO BWM Convention) by enabling proper isolation and control of treatment system components.
- Reduced Maintenance: The durable materials and robust design minimize corrosion, wear, and leakage, leading to lower lifecycle costs and reduced downtime for maintenance.
- Global Compatibility: The DIN 3352 flange standard ensures the valve can be integrated into ships built or serviced in various regions, simplifying procurement and logistics for shipyards and operators.
- Customization Potential: We can tailor specifications such as materials, coatings, and operators to suit specific project requirements or harsh operating conditions.
Shanghai Zhibang Valve Manufacture Co., Ltd. combines manufacturing expertise with a global trade perspective. Established in 2016 and holding ISO9001 certification, our quality management system underpins every product. With an annual export value ranging between US$1 Million and US$1.5 Million, we have successfully supplied valves to diverse markets including North America, South America, Europe, Asia, Africa, and Oceania. Our products are shipped from major ports like Shanghai, Guangzhou, Hong Kong, and Beijing, ensuring efficient logistics. This DIN 3352 Marine Gate Valve embodies our commitment to delivering reliable, specification-compliant components for the marine industry. For a valve that enhances the reliability and compliance of your ballast water treatment system, contact us for detailed specifications or a quotation.
Frequently Asked Questions (FAQ):
Q1: What is the primary purpose of this DIN 3352 Marine Gate Valve in a ballast water treatment system?
A: Its primary function is to provide a reliable isolation valve within the ballast water piping network. It allows operators to securely shut off sections of the system for treatment, maintenance, or to prevent untreated water from mixing with treated water, which is vital for effective treatment and regulatory compliance.
Q2: Does the DIN 3352 standard refer to the valve body design or just the flange?
A: DIN 3352 is a German standard that specifies requirements for gate valves, including dimensions, pressure ratings, testing, and marking. For this product, it particularly ensures that the flange connection dimensions and face type comply with the standard, promoting interchangeability and fit with DIN-flanged piping.
Q3: What material options are most suitable for seawater ballast applications?
A: For optimal corrosion resistance in seawater, stainless steel grades such as 316/316L (CF8M) are highly recommended. Bronze is also a traditional and effective material for marine environments. Cast steel (WCB) is suitable but typically requires protective coatings or cathodic protection in continuous seawater service.
Q4: Can this valve be supplied with actuators for remote operation?
A: While the standard configuration is manual operation (handwheel or gearbox), we can interface the valve with various actuators (electric, pneumatic, hydraulic) upon request. This requires specifying the desired actuator type and control signals during the order process.
Q5: How does the sealing performance hold up over time with frequent cycling?
A: The metal-to-metal sealing wedge and seat are designed for durability. For applications requiring frequent operation or where a bubble-tight seal is needed initially, an optional resilient seal (e.g., an insert on the wedge) can be provided, which offers excellent sealing but may have a different lifecycle.
Q6: What is the typical delivery lead time for these valves?
A: Lead times depend on the specific size, material, and quantity ordered. For standard sizes and materials in moderate quantities, production can typically be completed within a few weeks. We provide estimated lead times upon receipt of a detailed inquiry or order.
Q7: Are these valves suitable for other marine applications besides ballast water treatment?
A: Absolutely. While designed for ballast systems, this DIN 3352 gate valve is also suitable for general seawater service, cooling water systems, firefighting lines, and other onboard piping applications where a robust isolation valve is required.
Q8: What documentation and support do you provide with the valves?
A: We provide essential documentation including material certificates, test reports (e.g., pressure test), and dimensional drawings. For specific projects, additional documentation like certifications of conformity can be arranged. Our technical team is available to support installation and operational queries.
