As a dedicated manufacturer since 2010, Qingdao Yongke Machinery Co., Ltd specializes in providing advanced infrastructure solutions. Our UV CIPP Liner System represents a significant leap in non-invasive pipeline rehabilitation technology. Designed for municipal sewer and stormwater networks, this system offers a durable, efficient, and cost-effective alternative to traditional excavation-based repairs. Operating from a substantial 10,000-30,000 square meter facility, we combine rigorous ISO-certified processes with innovative engineering to deliver products that meet the demanding requirements of global markets, including North America, Europe, and Asia.

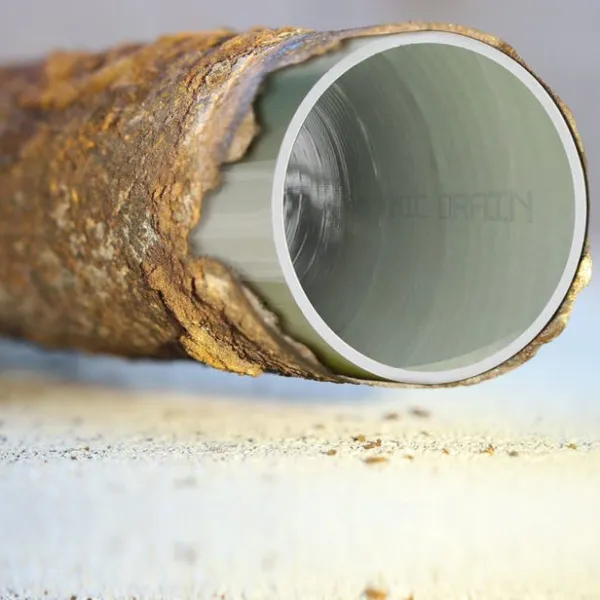

The core of our solution is the Cured-In-Place-Pipe (CIPP) method enhanced with Ultraviolet (UV) light curing. This process involves inserting a flexible, resin-impregnated liner into the damaged pipe. Upon inflation, the liner is exposed to high-intensity UV light, triggering a rapid polymerization reaction that transforms it into a rigid, structurally sound new pipe wall within the old host pipe. This creates a seamless, jointless, and corrosion-resistant inner layer.
Key Product Features & Technical Advantages:
Minimal Social & Environmental Impact: The trenchless technology eliminates the need for extensive excavation, drastically reducing traffic disruption, noise, dust, and damage to surrounding landscapes and utilities.
Rapid Installation & Cure Time: UV curing is significantly faster than traditional thermal or steam curing methods. Installation and curing can often be completed within a single day, minimizing service downtime.
High Structural Performance: The cured liner forms a composite pipe with high strength-to-weight ratio, capable of handling internal pressures and external loads, effectively restoring the pipe's original capacity or even enhancing it.
Excellent Chemical Resistance: The cured resin matrix provides robust resistance to acids, alkalis, salts, and other corrosive elements commonly found in sewer and stormwater systems.
Long Service Life & Hydraulic Efficiency: The smooth inner surface reduces friction, improving flow characteristics and preventing future sedimentation. The system significantly extends the functional lifespan of the host pipe.
Versatile Application Range: Suitable for repairing pipes made of concrete, clay, cast iron, ductile iron, PVC, and other materials across a wide diameter spectrum.
Customizable Solutions: Liners can be tailored in terms of diameter, length, thickness, and resin formulation to meet specific project requirements, including different pressure classes and environmental conditions.
Technical Specifications Overview:
| Parameter | Typical Range / Specification |
| Applicable Pipe Diameter (ID) | 100 mm – 1500 mm (Customizable) |
| Standard Liner Thickness | 3 mm – 12 mm (Based on design requirements) |
| Curing Technology | UV Light Polymerization |
| Curing Time (Approximate) | 1 – 4 hours (Depends on diameter & thickness) |
| Liner Material Options | UV-resistant Fiberglass, Polyester Fabric |
| Resin System | UV-curable Acrylate or Vinyl Ester Resins |
| Installation Temperature Range | Ambient to 40°C |
| Estimated Service Life | 50+ years |
Benefits for Municipalities & Contractors:
Cost Savings: Reduces direct costs related to excavation, backfill, and surface restoration. Lower labor costs due to faster installation.
Reduced Risk & Liability: Minimizes risks associated with open trenches, such as worker safety hazards, utility strikes, and collateral damage.
Project Scheduling Efficiency: Faster turnaround allows for more repairs within a budget cycle and reduces public inconvenience.
Environmental Compliance: Trenchless methods are often viewed favorably in environmental assessments and help preserve existing ecosystems.
System Integrity: Creates a continuous, leak-proof barrier that stops infiltration and exfiltration, improving system efficiency and preventing groundwater contamination.
Backed by over a decade of manufacturing expertise and a track record of exporting to diverse markets worldwide—from North America and Europe to Southeast Asia and Africa—Qingdao Yongke Machinery delivers reliability and quality. Our operations are governed by ISO9001 (Quality Management), ISO14000 (Environmental Management), and OHSAS18001 (Occupational Health & Safety) certifications, ensuring every UV CIPP Liner System meets stringent production standards. With an annual export value reflecting consistent global demand, our products are trusted for their performance and durability. We invite municipal authorities, engineering firms, and specialized contractors to explore this efficient pipeline rehabilitation solution. Contact us to discuss your specific project needs and benefit from our technical support and customizable product offerings.
Frequently Asked Questions (FAQ):
Q: How does UV curing compare to traditional steam curing for CIPP?
A: UV curing is generally faster, more energy-efficient, and offers better control over the curing process. It doesn't require large amounts of water or steam generation equipment, simplifying onsite operations.Q: Can the UV CIPP liner repair pipes with significant structural damage or collapses?
A: The system is primarily designed for pipes that are structurally sound but suffering from leaks, corrosion, or diameter loss. It may not be suitable for fully collapsed sections. A preliminary inspection is recommended to assess suitability.Q: What is the typical lifespan of a UV CIPP repair?
A: When installed correctly in a suitable host pipe, the cured liner can extend the pipe's functional life for decades, often exceeding 50 years, depending on operating conditions.Q: Does the installation require bypass pumping or flow diversion?
A: Yes, for live sewer lines, temporary bypass pumping is usually necessary to divert flow during the installation and curing period. For stormwater pipes, work is often scheduled during dry periods.Q: Are there limitations regarding the pipe's condition before installation?
A: The host pipe should be cleared of major obstructions, debris, and significant misalignments. Some preparation, like cleaning and minor defect removal, might be required for optimal results.Q: How customizable are the liner dimensions and properties?
A: We offer customization in diameter, length, wall thickness, and resin type to match specific design pressures, chemical exposure, and installation conditions. Please provide your project specifications for a tailored solution.Q: What training or support is provided for first-time users?
A: We provide detailed technical manuals, installation guidelines, and can offer on-site technical support or training sessions for contractor teams, available upon request.Q: How does the system handle connections to manholes or lateral pipes?
A: Special techniques and fittings are used to ensure a proper seal at connections. The liner can be trimmed and sealed at manhole entries, and lateral reinstatement can be performed after curing using specialized cutting tools.
