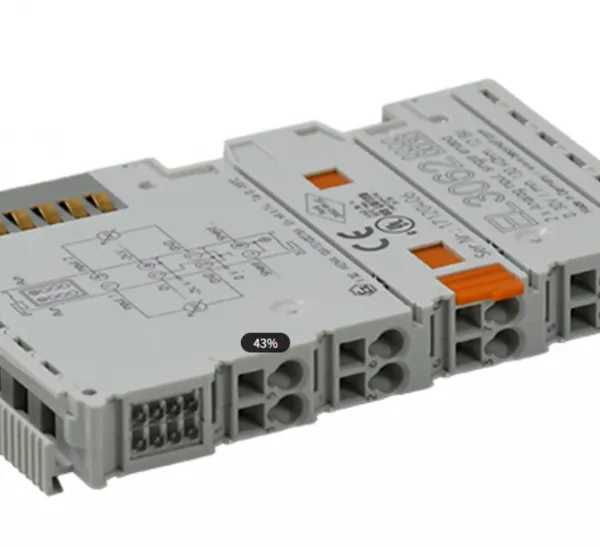

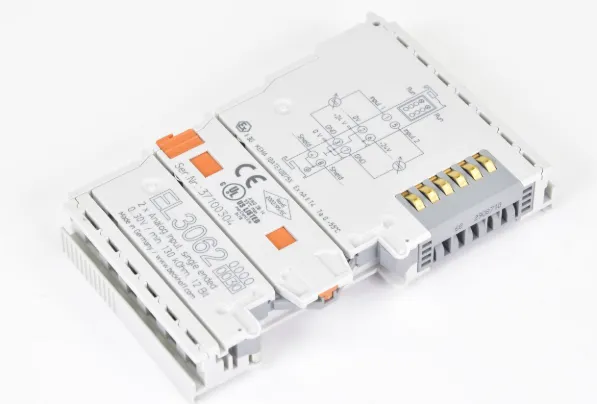

BECKHOFF EL3062-0030 EtherCAT 2 Channel Analog Voltage Input Terminal
The Beckhoff EL3062-0030 is a compact EtherCAT analog input terminal designed for accurate acquisition of 0–10V voltage signals. The module provides two independent input channels and converts analog signals into high-resolution digital values for processing by PLC and automation systems.
With reliable measurement performance and seamless EtherCAT integration, the EL3062-0030 is widely used in industrial process control, machine automation, energy management, and OEM equipment.
Key Features
2-channel analog voltage input
Input range: 0–10V
High-resolution 16-bit conversion
EtherCAT real-time communication
Electrical isolation up to 500V
Compact 12 mm housing width
DIN rail mounting
LED status indication
Stable industrial performance
Easy PLC integration
Applications
Industrial Process Automation
PLC Control Systems
Machine Monitoring
Factory Automation
Building Automation
Energy Management
OEM Machinery
Signal Acquisition Systems
Technical Specifications
Brand: Beckhoff
Model: EL3062-0030
Communication Protocol: EtherCAT
Number of Inputs: 2
Signal Type: Voltage Input
Input Range: 0–10V
Resolution: 16-bit
Conversion Time: Approx. 1 ms
Electrical Isolation: 500V
Dimensions: 12 × 100 × 68 mm
Weight: Approx. 60 g
Operating Temperature: -25°C to +60°C
Protection Rating: IP20
Advantages
Original Beckhoff product
Accurate voltage signal measurement
Reliable industrial performance
Fast EtherCAT communication
Compact and space-saving design
Suitable for automation projects and maintenance replacement
Worldwide shipping available
