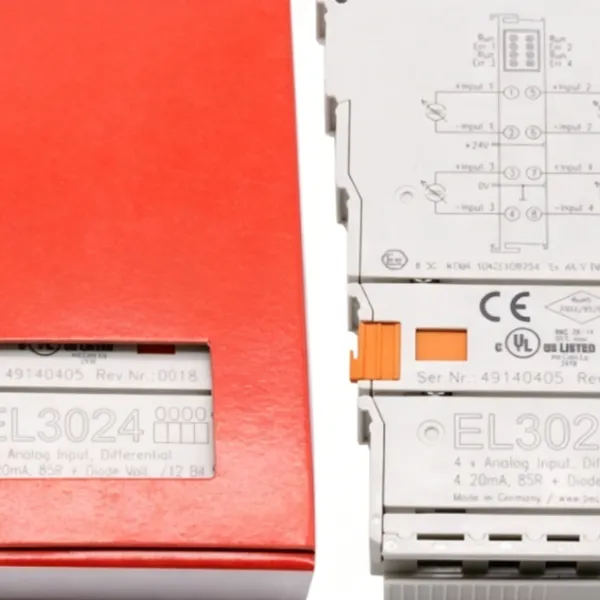

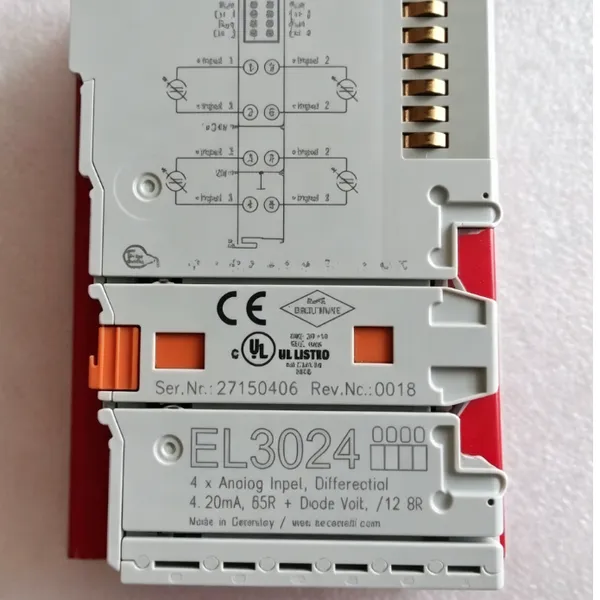

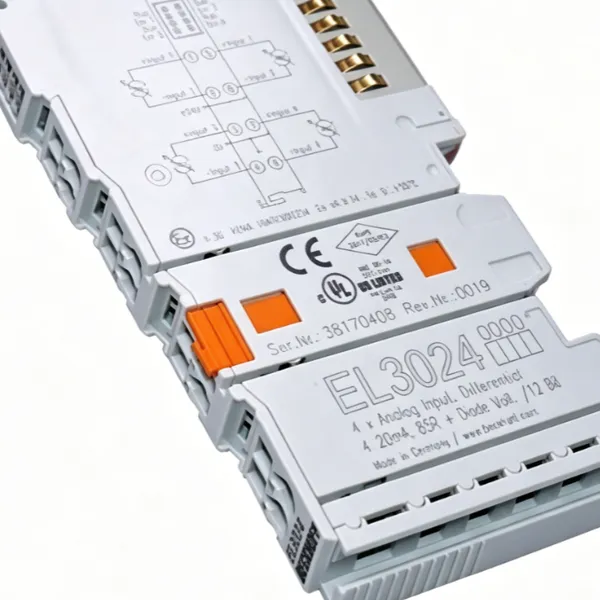

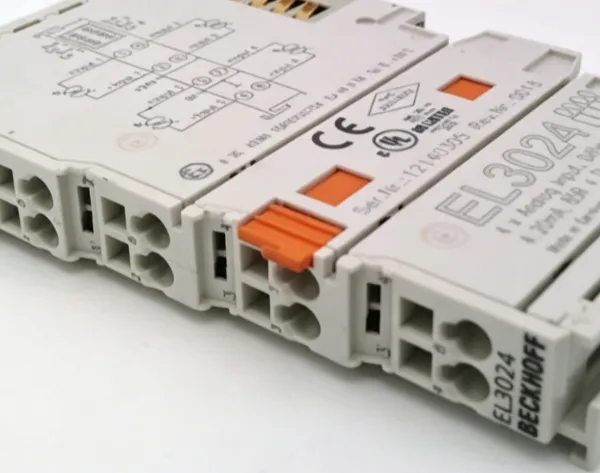

BECKHOFF EL3024 EtherCAT 4 Channel Analog Current Input Terminal
The Beckhoff EL3024 is a compact EtherCAT analog input terminal designed for acquiring standard industrial current signals in the range of 4–20 mA. The terminal features four differential input channels and provides reliable, high-precision signal conversion for process automation and control systems.
Its integrated diagnostics, wire-break detection, and overload monitoring functions help improve system reliability and maintenance efficiency. The compact 12 mm housing saves cabinet space while delivering excellent measurement performance.
Key Features
4-channel analog current input
Input range: 4–20 mA
Differential signal acquisition
12-bit resolution
Wire-break detection
Overload monitoring
500V electrical isolation
EtherCAT real-time communication
Compact DIN rail mounting
LED channel diagnostics
Applications
Process Automation
Water Treatment Systems
Chemical Industry
Power Generation Plants
Industrial Measurement Systems
PLC Control Systems
Factory Automation
OEM Equipment Manufacturing
Technical Specifications
Brand: Beckhoff
Model: EL3024
Communication Protocol: EtherCAT
Number of Inputs: 4
Signal Type: Current Input
Input Range: 4–20 mA
Input Method: Differential
Resolution: 12-bit
Electrical Isolation: 500V
Housing Width: 12 mm
Mounting: DIN Rail
Dimensions: 12 × 100 × 68 mm
Weight: Approx. 60 g
Operating Temperature: -25°C to +60°C
Protection Rating: IP20
Advantages
Original Beckhoff product
Accurate industrial signal acquisition
Reliable wire-break diagnostics
Stable EtherCAT communication
Compact and space-saving design
Easy PLC integration
Suitable for new projects and spare parts replacement
Worldwide shipping available
