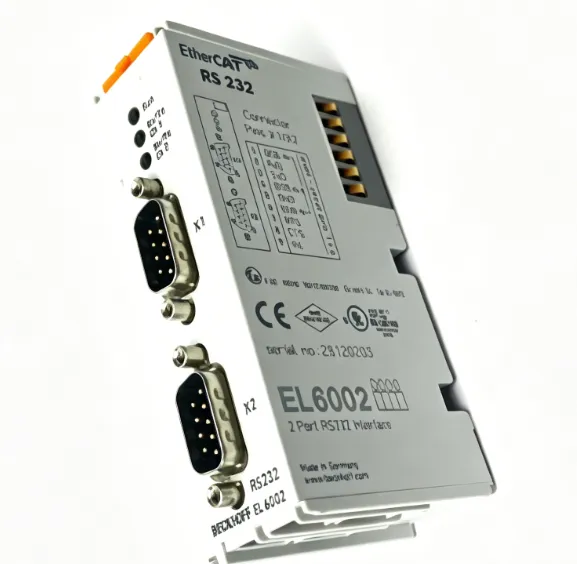

The Beckhoff EL6002 EtherCAT Serial Interface Terminal is a compact communication module featuring two independent RS232 channels for integrating serial devices into EtherCAT-based automation systems.
The module enables reliable communication with barcode scanners, label printers, industrial weighing systems, HMI panels, data acquisition devices, and other RS232-compatible equipment. Both channels operate independently and support configurable serial communication parameters for maximum flexibility.
Key Features
2 independent RS232 communication channels
Full-duplex serial communication
Baud rates up to 115.2 kbaud
Configurable data bits, parity, and stop bits
EtherCAT communication interface
Galvanic isolation between field side and E-bus
Compact 12 mm terminal width
DIN rail mounting
LED status indicators for diagnostics
Technical Specifications
Interface: RS232
Channels: 2
Transmission Mode: Full Duplex
Max Baud Rate: 115.2 kbaud
Protocol: EtherCAT
Isolation Voltage: 500 V
Protection Rating: IP20
Operating Temperature: -25°C to +60°C
Dimensions: 12 × 100 × 68 mm
Applications
Barcode Scanner Integration
Label Printing Systems
Industrial Weighing Equipment
HMI Communication
Data Collection Systems
Manufacturing Automation
Packaging Machinery
Process Control Systems
The Beckhoff EL6002 provides a reliable and cost-effective solution for connecting legacy RS232 devices to modern EtherCAT automation architectures while maintaining deterministic industrial communication performance.
