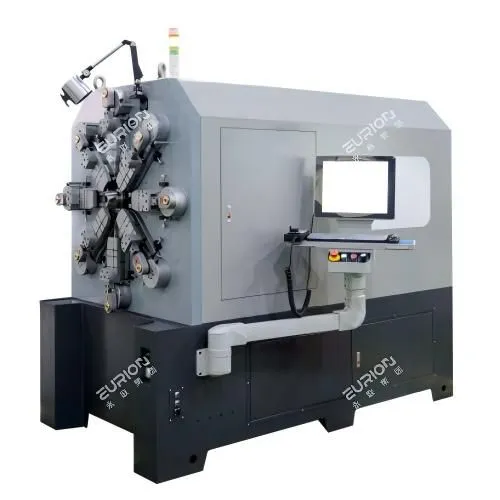

Help CenterCNC Camless Wire Rotary Spring Machine for Automotive and EV Spring Manufacturing ES-1280R
Product Spotlights
Ideal for shaped springs and wire forms used in automotive seats, appliance components, electronics, and decorative parts.
Related Products
-
Multi Axis CNC Camless Spring Machine for Complex Wire Forming Applications ES-1010NegotiableMOQ: 5 Cases -
High Speed Camless Spring Forming Machine for Automotive Parts Production ES-1025NegotiableMOQ: 5 Cartons
-
CNC Camless Spring Machine for EV, Automotive and Precision Component Manufacturing ES-1040NegotiableMOQ: 5 Cartons
-
Multi Axis CNC Spring Machine for High Precision Compression Spring Manufacturing ES-608NegotiableMOQ: 5 Cartons
-
Automatic Compression Spring Machine for Robotics and Industrial Automation ApplicationsES-620NegotiableMOQ: 5 Cartons
Cam-free design with fully servo-driven axes allows for rapid setup and high flexibility, ideal for small-batch and multi-variety spring production.
Equipped with a wire rotation mechanism, enabling 3D forming for complex shaped springs and wire forms.
Multi-axis servo motors independently control feeding, rotating, forming, and cutting, ensuring consistent precision throughout the production process.
Intelligent HMI with recipe memory allows for spring program storage and quick retrieval, reducing operator dependency and increasing efficiency.

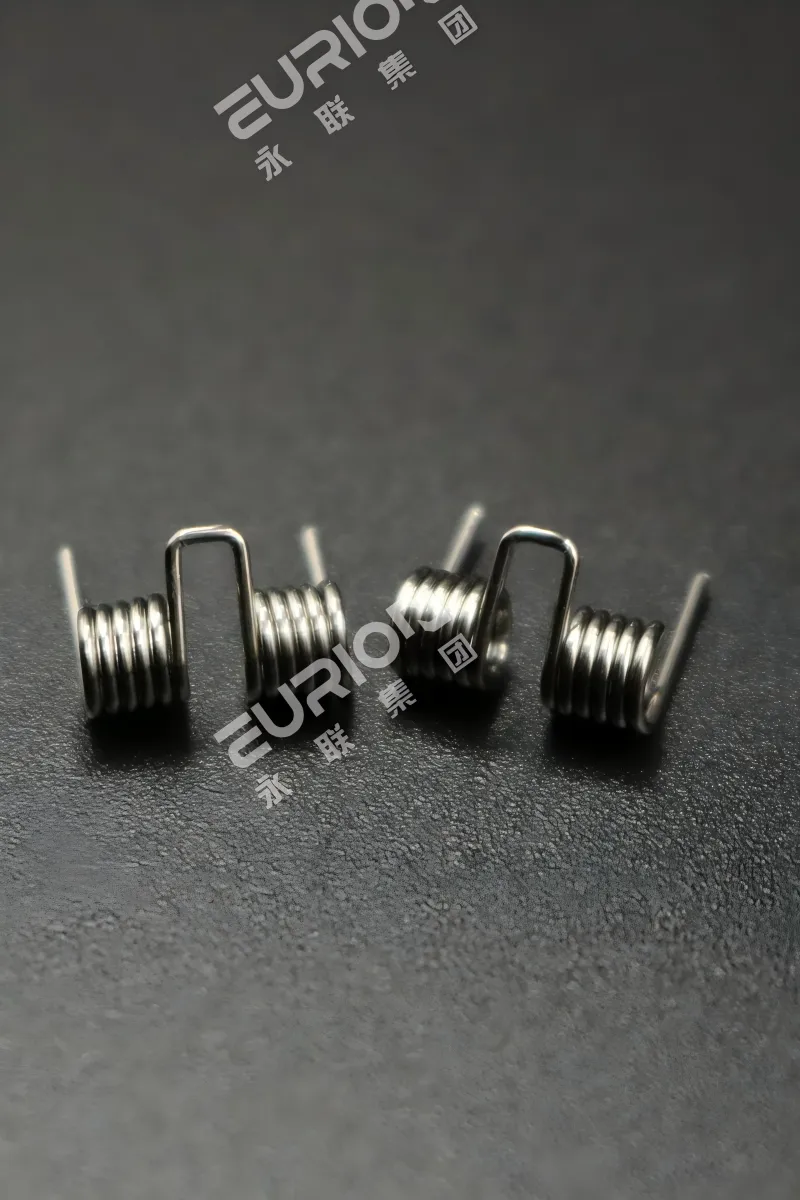

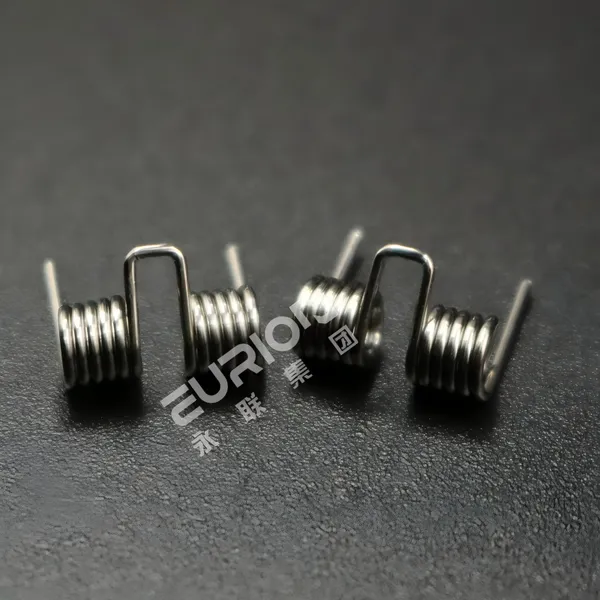

Ideal for shaped springs and wire forms used in automotive seats, appliance components, electronics, and decorative parts.
Model |
ES-1280R |
Wire Diameter |
Ø3.0～Ø8.0MM |
Axis |
12-14 |
Wire Feed Wheel Sets |
4Sets |
Wire Feeding Axis |
15KW |
Wire Rotary Axis |
7.5KW |
Quill Rotary Axis |
2.0KW |
Slide Axis |
5.5KW×8 |
Spinner Axis(Optional) |
2.7KW |
Servo cutter(Optional) |
1.0KW |
Dimension (LxWxH) |
3.2x2.1x2.48 |
Weight (kg) |
9500kg |
Send Inquiry to This Supplier
