Help CenterCNC Enamel Wire Busbar Bending Machine for EV Motor and Hairpin Stator Manufacturing EB-1250ZP
Product Spotlights
Related Products
-
Automatic Hairpin Winding Machine for Electric Vehicle Drive Motor Production EC-680NegotiableMOQ: 5 Cartons -
CNC Flat Wire Winding Machine for EV Motor and Hairpin Stator Manufacturing EC-650NegotiableMOQ: 5 Cartons
-
Flat Wire Winding Machine for Axial Flux Motor Manufacturing EC-205FNegotiableMOQ: 5 Cartons
-
Servo Controlled Flat Wire Winding Machine for Automotive Motor Production EC-230FNegotiableMOQ: 5 Cases
-
Intelligent Hairpin Coil Winding Machine for New Energy Vehicle Motors EC-320FXNegotiableMOQ: 5 Cartons
Machine Features:
1.Rotary Bending & Forming: Adopts a panel rotation that drives the guide rail to rotate, enabling multi-angle and multi-directional forming.
2.Multi-Station, Multi-Axis Independent Control: Equipped with multiple servo motors for independent drive, ensuring quick response and high precision to easily achieve complex forming.

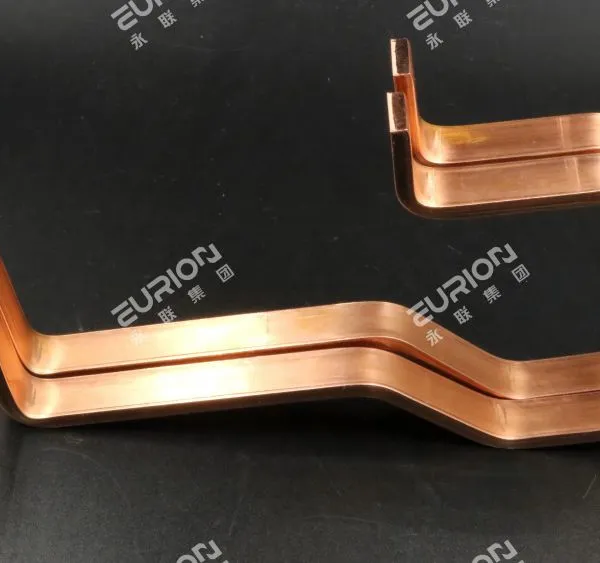

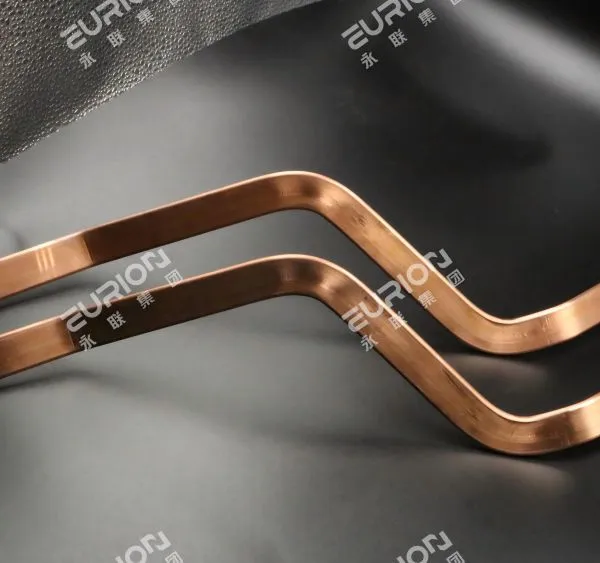

3.Adaptability for High-Difficulty Products: Handles complex busbar products and special-shaped wire bending with ease, while offering fast and efficient setup.
4.Intelligent Operation: Industrial PC control system with Chinese-English interface, intuitive, user-friendly, and easy to learn.
5.Application Fields: Widely used for enameled wire coils, busbars, inductors, transformers, and special spring forming.
Model |
EB-1250ZP |
Round Wire Processing Capacity |
Ø0.5MM～Ø5.0MM（CU） |
|
Flat Wire Processing Capacity |
Thickness : 0.3mm ≤ T ≤ 5.0mm Width : 3.0mm ≤ W ≤ 10.0mm S=W*T≤ 50mm2 |
Axis |
8~14 |
Wire Feed Wheel Sets |
3Sets |
Wire Feeding Motor Power |
2.7 KW |
Mandrel Rotation Motor Power |
1.0KW |
Slide Motor Power |
0.75KW×4 |
Turntable Rotation Motor Power |
2.7KW |
Cutter Holder Lifting Motor Power |
0.4KW |
Spinner Motor Power (Optional) |
0.4KW |
Free Arm Motor Power (Optional) |
0.4KW |
Dimension(LxWxH) |
1750x1550x1950(mm³) |
Weight |
1500kg |
