Help CenterCNC Copper Aluminum Busbar Bending Machine for Lithium Battery Pack and ESS Production Line EB-55E-8
Product Spotlights
Related Products
-
CNC Busbar Processing Machine for EV Battery, Energy Storage and Smart Grid Manufacturing EB-120TP-10NegotiableMOQ: 5 Cartons -
Automatic Busbar Processing Machine for Energy Storage Cabinet and Battery Pack Manufacturing EB-60TP-6NegotiableMOQ: 5 Cartons
-
CNC Copper Aluminum Busbar Punching Bending Cutting Machine for EV Battery and Energy Storage Systems EB-40TP-5NegotiableMOQ: 5 Cartons
-
AI Smart New Energy Copper Aluminum Busbar Bending Machine for EV Battery & Energy Storage Manufacturing EB-40E-6NegotiableMOQ: 5 Pieces
-
Automatic Wiper Arm Forming Machine for Automotive and EV Manufacturing EB-15W-4TNegotiableMOQ: 5 Cartons
Specially designed for insulated busbars: structure and tooling are optimized for plastic-coated copper/aluminum busbars to prevent insulation damage and rebound.
Multi-angle bending capability: supports U-shape, Z-shape, L-shape and other complex bends to meet diverse wiring layouts.
High level of automation: full-servo drive system ensures stable operation and precise angle control.
Supports 3D drawing import: auto-generates bending programs and simulates bending paths to reduce setup time and material cost.

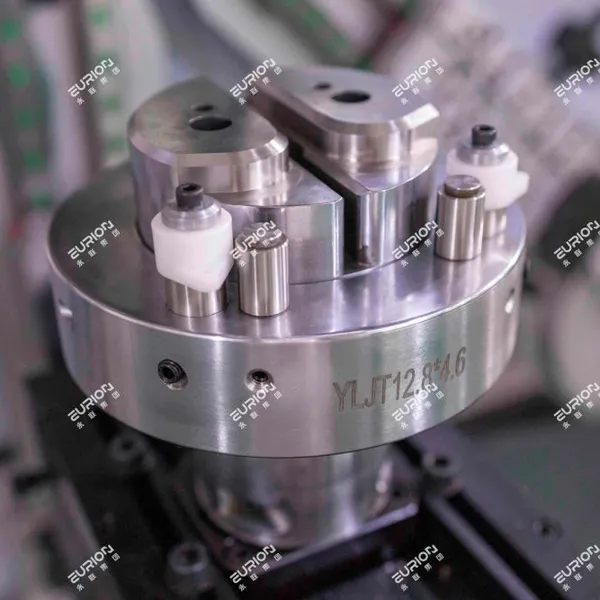

Customizable tooling: bending radius and structure can be tailored based on insulation thickness and material hardness.
High-efficiency production: easy to operate with fast tool change, suitable for flexible and multi-variety manufacturing.
Model |
EB-55E-8 |
Processing Capacity |
Thickness : 3.0mm ~ 8.0mm Width : 20.0mm ~ 55.0mm |
Axis |
13 |

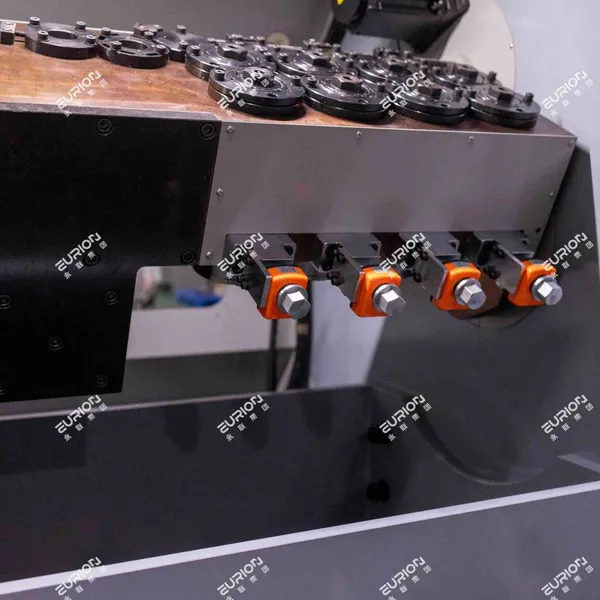

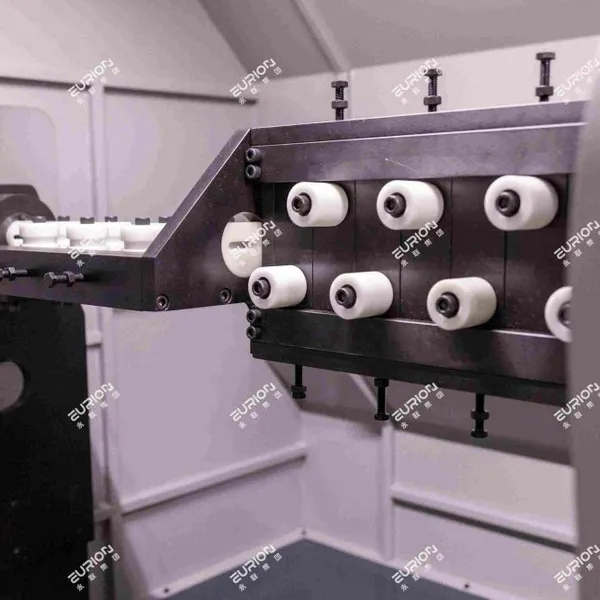

Wire Feed Wheel Sets |
4Sets |
Wire Feeding Motor Power |
7.5KW |
Wire Rotation Motor Power |
4.5KW |
Mandrel Rotation Motor Power |
2.0KW |
Slide Motor Power |
4.5KW×8 |
Spinner Motor Power |
1.8KW |
Cutter Motor Power |
1.5KW |
Dimension (LxWxH) |
3200X2150X2480（mm3） |
Weight |
9000kg |
