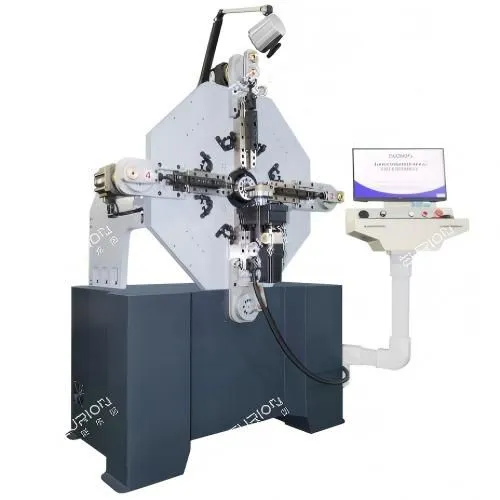

Help CenterAutomatic Hairpin Winding Machine for Electric Vehicle Drive Motor Production EC-680
Product Spotlights
Related Products
-
CNC Flat Wire Winding Machine for EV Motor and Hairpin Stator Manufacturing EC-650NegotiableMOQ: 5 Cartons -
Flat Wire Winding Machine for Axial Flux Motor Manufacturing EC-205FNegotiableMOQ: 5 Cartons
-
Servo Controlled Flat Wire Winding Machine for Automotive Motor Production EC-230FNegotiableMOQ: 5 Cases
-
Intelligent Hairpin Coil Winding Machine for New Energy Vehicle Motors EC-320FXNegotiableMOQ: 5 Cartons
-
CNC Vertical Coil Winding Machine for High Efficiency Motor Production EC-850NegotiableMOQ: 5 Cartons
High-Precision Servo Control System：Equipped with an industrial-grade control platform and imported servo motors with planetary reducers, ensuring high efficiency, accuracy, and stability during operation.
Six-Axis Coordinated Motion Design：Includes feeding, winding, traversing, and multi-axis forming units. Each axis is independently controlled and works in coordination to perform complex forming tasks.

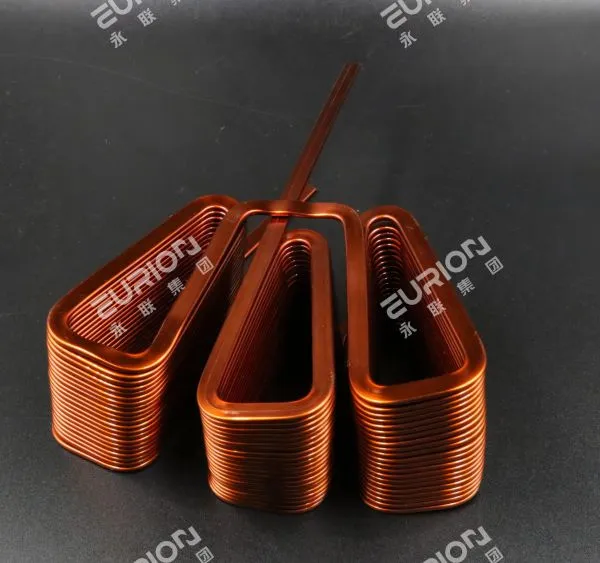

Multiple Winding Modes and Coil Shapes：Supports clockwise/counterclockwise winding, dense winding, variable pitch, single/multi-layer configurations. Capable of forming square, round, trapezoidal, oval, and triangular coils.
Quick Changeover and Efficient Setup：Tooling change allows for different wire specifications; machine parameters can be saved and quickly recalled for fast model switching and reduced setup time.
Industrial Control Interface with Flexible Numeric Programming：Features an intuitive industrial HMI, supporting numeric input programming and graphical path simulation for easy operation and quick learning curve.
Model |
EC-680 |
Processing Capacity |
Thickness : 1.0mm ≤ T ≤ 6.0mm Width : 5.0mm ≤ W ≤ 20.0mm S=W*T≤ 80mm2 |
Winding Direction |
Right and Left Winding |
Max. Coil Height |
≤200mm |
Slide Axis Stroke |
≤90mm |
Wire Feeding Motor Power |
5.5kw |
Winding Motor Power |
1.0kw |
Slide Motor Power |
1.8KWX4 |
Dimension(LxWxH) |
1700X1250X1900(mm³) |
Weight |
1400KG |
