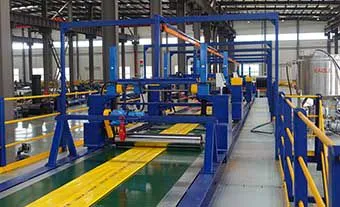

As a leading manufacturer with over a decade of expertise in pipeline rehabilitation equipment, Qingdao Yongke Machinery Co., Ltd. proudly presents our advanced CIPP Glass Liner Machine. Engineered for demanding industrial sewer line repair projects, this machine represents a significant leap in trenchless technology, offering municipalities and contractors a reliable, efficient, and cost-effective solution for pipeline renewal. Operating from our expansive 10,000-30,000 square meter facility, we integrate robust manufacturing with stringent quality controls to deliver equipment that meets the rigorous demands of global infrastructure projects. Our machine is designed to restore structural integrity to aging sewer systems with minimal surface disruption, translating into substantial savings on time, labor, and community impact.
The core of our system lies in its precision and reliability for the Cured-in-Place Pipe (CIPP) process using a glass fiber reinforced liner. This method is widely recognized for creating a seamless, jointless, and corrosion-resistant new pipe within the old host pipe. Let's delve into the key features, technical specifications, and tangible benefits this machine delivers to your project.
Key Features & Technical Advantages:
High-Performance Impregnation & Winding: The machine features a precisely controlled resin impregnation system that ensures the glass fiber liner is uniformly saturated. A synchronized winding mechanism guarantees consistent liner thickness and optimal material properties for the final cured pipe.
Intelligent PLC Control System: Operation is streamlined through a user-friendly touchscreen interface powered by a Programmable Logic Controller (PLC). This allows for precise control over critical parameters like resin mix ratio, liner feed speed, and curing cycle monitoring, ensuring repeatable, high-quality results.
Robust & Modular Construction: Built with a heavy-duty steel frame, the machine is designed for stability and durability in harsh industrial and construction site environments. Its modular design facilitates easier transportation, setup, and potential future upgrades.
Versatile Liner Compatibility: While optimized for glass fiber liners, the system can be adapted to handle various resin and felt liner combinations, providing flexibility for different project specifications and pipe conditions.
Efficient Curing Integration: The machine is engineered to work seamlessly with various curing methods, including hot water, steam, or UV light systems, offering a complete solution for the CIPP process.
Technical Specifications Overview:
| Parameter | Specification / Capability |
| Pipe Diameter Range | Typically 100mm to 1200mm (customizable) |
| Liner Material | Glass Fiber Reinforced Composite |
| Control System | PLC with Industrial Touchscreen HMI |
| Power Requirements | Electric, configurable for 380V/50Hz or 460V/60Hz |
| Frame Construction | Reinforced Steel for Site Durability |
| Primary Application | Industrial & Municipal Sewer Line Rehabilitation |
Benefits for Your Business:
Project Efficiency: Dramatically reduces project timelines compared to traditional dig-and-replace methods. Minimal surface restoration means faster completion and less traffic disruption.
Cost Reduction: Lowers overall project costs by eliminating extensive excavation, reducing labor needs, and minimizing social costs associated with road closures.
Long-Term Reliability: The installed glass liner creates a structurally sound, corrosion-resistant pipe with a long service life, reducing future maintenance liabilities.
Environmental Sustainability: The trenchless process preserves the existing landscape, generates less waste, and is a greener alternative to full pipe replacement.
Enhanced Safety: Reduces risks associated with deep trench excavations, enhancing worksite safety for personnel and the public.
Frequently Asked Questions (FAQ):
What is the main advantage of using a glass liner over a standard felt liner?
Glass fiber liners offer higher tensile strength and better corrosion resistance, making them suitable for more demanding applications, including industrial effluents and pipes under higher structural stress.Can this machine handle large-diameter sewer pipes?
Yes, our standard models are designed for a wide range, and we offer customization to handle specific large-diameter requirements common in industrial and major municipal lines.What kind of training or support is provided with the machine?
We provide comprehensive operational manuals and can arrange on-site or remote training sessions for your crew. Technical support is available throughout the machine's lifecycle.How does the curing process work with this equipment?
The machine prepares and installs the resin-impregnated liner. The actual curing is typically done using a separate boiler for hot water/steam or a UV light train, which is fed through the newly lined pipe. Our machine ensures the liner is perfectly prepared for this subsequent step.Is the machine difficult to transport to different job sites?
Its modular and robust design considers mobility. While it is industrial equipment, it can be disassembled into major components for transport on standard trailers and reassembled on-site with relative ease.What are the power requirements for operation?
The machine operates on standard industrial three-phase power. Specific voltage and frequency (e.g., 380V/50Hz or 460V/60Hz) can be configured based on your regional standards.Do you offer different models for different project scales?
We have a range of configurations and can tailor the machine's capabilities, such as liner width capacity and control system features, to match the scale and frequency of your typical projects.What is the typical lead time for delivery?
Lead times vary based on order specifications and customization. Please contact our sales team with your project details for an accurate production and delivery schedule.
Backed by a dedicated team of 51-100 professionals and an annual export value reflecting strong international trust, Qingdao Yongke Machinery is committed to delivering not just equipment, but reliable trenchless solutions. Our manufacturing processes are structured under recognized management systems, ensuring consistent quality. Serving diverse markets from North America and Europe to Southeast Asia and Oceania, we understand the varied requirements of global infrastructure projects. Choosing our CIPP Glass Liner Machine means investing in a proven technology backed by manufacturer expertise, designed to enhance your operational capabilities and profitability in the growing pipeline rehabilitation sector. Contact us today to discuss how this machine can be configured for your specific industrial sewer line repair needs.
