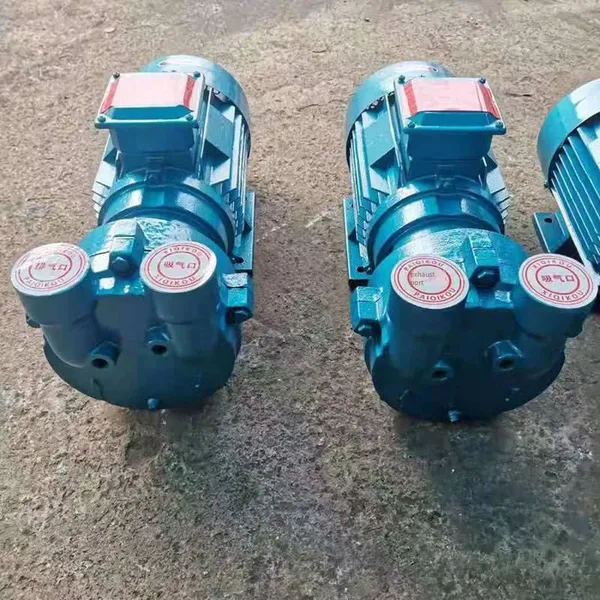

Luoji Pump Industry Supplies Parameter Selection of sk Series 2bv5161 Water Ring Vacuum Pumps
US$ 184.62
2 - 4 Units
US$ 169.23
≥5 Units
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Shanghai, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Gear Speed-regulating Stainless Steel Cam Rotor Pump for Oil-gas Mixed Transportation Lq3a - 52 Resin Transfer PumpUS$ 384.62 - 461.54MOQ: 2 Units -
Water Pressure Test Pump, Pipeline Valve Pressure Detection Equipment, Corrosion-resistant, Can be Equipped With a Pressure GaugeUS$ 461.54 - 769.23MOQ: 5 Units
-
High-pressure Plunger Pressure Test Pump, a Special Pump for Valve Pressure Testing, Supports Customized Solution DesignUS$ 461.54 - 769.23MOQ: 5 Units
-
Model 4dsy-6.3 Electric Pressure Test Pump, Fire Pipeline Water Pressure Testing Equipment, Factory In-stockUS$ 461.54 - 769.23MOQ: 5 Units
-
Dsy-60 Electric Pressure Test Pump, High-flow Water Pressure Test, Special Equipment for Engineering ConstructionUS$ 461.54 - 769.23MOQ: 5 Units
The SK series water ring vacuum pumps and compressors are used to suck or compress air and other non-corrosive gases that are insoluble in water and contain no solid particles, so as to create vacuum and pressure in a closed container. The inhaled gas is allowed to be mixed with a small amount of liquid. SK water ring vacuum pumps and compressors are widely used in the fields of machinery, petrochemical, pharmaceutical, food, sugar-making industries and electronics.
During the working process, the gas compression process is isothermal. Therefore, when compressing and sucking explosive gases, it is less likely to be dangerous, so its application is more extensive.
No. |
Pumping capacity (m3/min) | Ultimate pressure of vacuum pump | Motor power kw | Pump speed r/min |
Compressor pressure MPa |
Caliber mm | ||||
| Maximum | Suction pressure is -0.41 MPa (-450mmHg) |
mmHg | MPa | Vacuum pump | Compressor | Inlet | Outlet | |||
SK-1.5 |
1.5 | 1.35 | -680 | -0.091 | 3 | 4 | 1440 | 0～0.1 | 70 | 70 |
SK-3 |
3 | 2.8 | -700 | -0.093 | 5.5 | 7.5 | 1440 | 0～0.1 | 70 | 70 |
SK-6 |
6 | 5.4 | -700 | -0.093 | 11 | 15 | 1460 | 0～0.1 | 80 | 80 |
SK-12 |
12 | 10.8 | -700 | -0.093 | 18.5 | 30 | 970/980 | 0～0.1 | 80 | 80 |
SK-20 |
20 | 18 | -700 | -0.093 | 37 | 55 | 740 | 0～0.1 | 150 | 150 |
SK-30 |
30 | 27 | -700 | -0.093 | 55 | 75 | 740 | 0～0.1 | 150 | 150 |
SK-42 |
42 | 37.8 | -700 | -0.093 | 75 | - | 740 | - | 150 | 150 |
SK-60 |
60 | 54 | -700 | -0.093 | 90 | - | 590 | - | 250 | 250 |
SK-85 |
85 | 76.5 | -700 | -0.093 | 132 | - | 590 | - | 250 | 250 |
SK-120 |
120 | 108 | -700 | -0.093 | 185 | - | 490 | - | 300 | 300 |
