In industries such as fire protection engineering, pipeline installation, and pressure vessel testing, water pressure testing is a crucial step to ensure the safety and sealing performance of the system. Traditional manual pressure test pumps not only require strenuous operation and have low efficiency but also have poor pressure control accuracy, making it difficult to meet the high requirements of modern engineering for testing efficiency and result accuracy. Especially in the testing of large-scale fire protection pipe networks, water supply systems in high-rise buildings, and high-pressure industrial pipelines, where the test pressure is high and the test time is long, the limitations of manual pumps are more prominent. The labor intensity of testers is high, and there is a risk of misjudgment or safety hazards due to pressure fluctuations. Shanghai Luoji Pump Industry Co., Ltd., a professional enterprise with a registered capital of 10 million yuan, dedicated to the R & D and manufacturing of pump products, deeply understands this industry pain point. Relying on years of technical accumulation and manufacturing experience, we have successfully developed the 4D - SY series of electric pressure test pumps. This series of products aims to completely solve the problems of low efficiency, poor accuracy, and high labor intensity of traditional testing methods through advanced electric drive technology and precise pressure control solutions, providing efficient, reliable, and intelligent solutions for pressure testing in fields such as fire protection engineering, municipal construction, petrochemical industry, and power energy.
Product working mechanism and core features

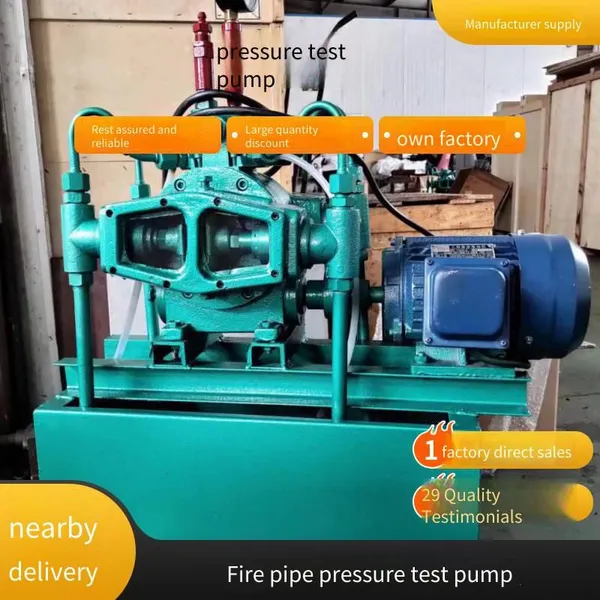

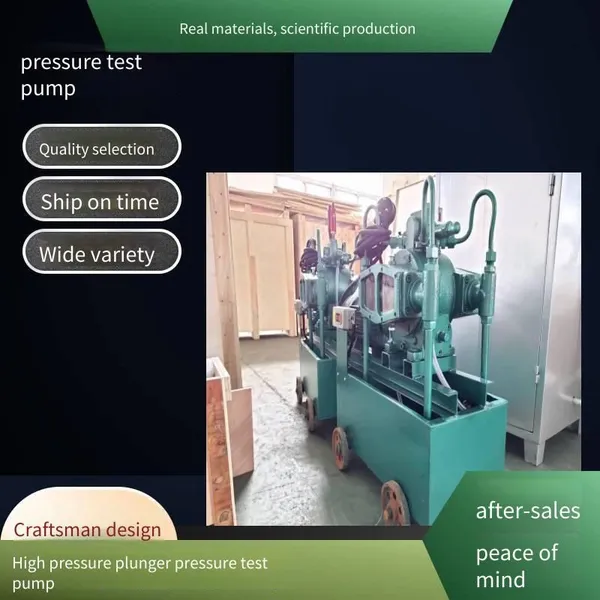

The 4D - SY series of electric pressure test pumps use an electric motor as the power source to drive the high - pressure plunger pump for reciprocating motion, pressurizing water or other suitable test media to the preset value. Its core lies in the integration of a precise pressure control system and an automatic pressure - holding function, realizing the automation and intelligence of the testing process. The following are its main working mechanisms and prominent features:
- Efficient electric drive: Abandoning the traditional manual crank, it uses a high - performance motor for direct drive, greatly improving the pressurization speed, shortening the test cycle, and significantly reducing the physical consumption of operators.
- Wide - range pressure output: The pump models in this series are designed to cover a wide range of testing requirements from low pressure to high pressure. The maximum working pressure can be customized according to customer requirements, and can flexibly meet the testing standards of different specifications of pipelines, valves, boilers, and pressure vessels.

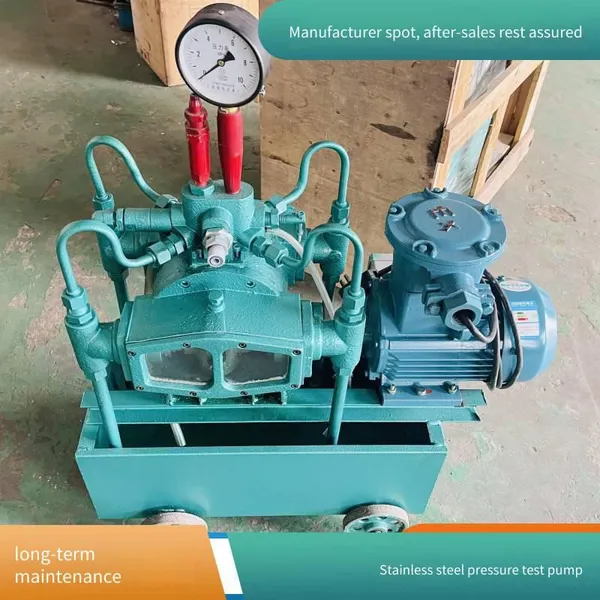

- Precise pressure control and automatic pressure - holding: Equipped with a high - precision pressure gauge and/or digital pressure controller, it can accurately display the system pressure in real - time. When the pressure reaches the set value, the pump can automatically stop or enter the pressure - holding state and automatically replenish the pressure when the pressure drops, ensuring that the pressure remains stable within the allowable deviation range during the entire test period, greatly improving the accuracy and credibility of the test results.
- Multiple safety protections: The design includes multiple overload protection devices such as relief valves and safety valves. When the system pressure exceeds the safety limit value, it automatically releases pressure, effectively protecting the pump body itself and the tested system and preventing over - pressure accidents.
- Excellent medium adaptability: The core flow-through components can be made of corrosion-resistant materials such as stainless steel according to customer requirements. It is not only suitable for clean water but also for test environments with corrosion requirements (the medium situation needs to be specified in advance).

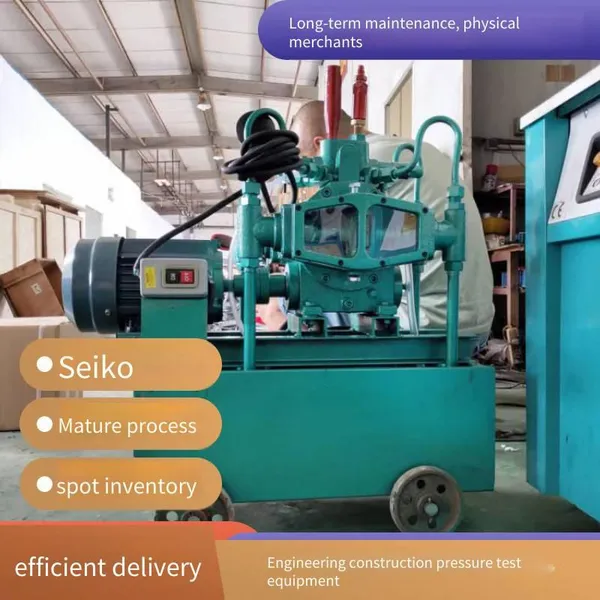

- Easy operation and convenient movement: The whole machine has a compact structure. Some models are equipped with mobile trolleys or handles, which is convenient for transportation between different construction sites or test points. The control panel is simple and clear. Even non-professionals can quickly get started after simple training.
Detailed technical specifications and parameters
The following table lists some typical technical parameters of the 4D-SY series electric pressure test pumps. Please note that the specific parameters may vary depending on the model, configuration, and customization requirements. It is recommended to communicate with our technical team before purchasing to confirm the specifications that best suit your needs.
| Parameter item | Parameter description/range |
| Rated working pressure | Can be customized according to requirements, and the common range covers several MPa to dozens of MPa. |
| Rated flow | It is inversely proportional to the pressure, and the specific value depends on the motor power and pump head design. |

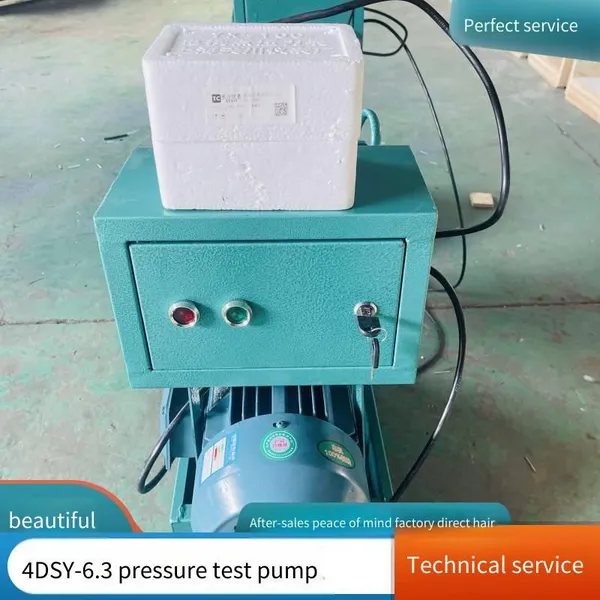

| Drive method | Three-phase/single-phase AC motor |
| Power supply specification | 380V/50Hz or 220V/50Hz (depending on the motor configuration) |
| Medium type | Clean water, oils (with moderate viscosity), or other specified non-corrosive/weakly corrosive liquids |
| Main materials | Pump head: stainless steel or high-quality carbon steel; Machine body: cast iron or steel structure |
| Pressure holding accuracy | It can usually remain stable at the set pressure with a small fluctuation range (depending on the specific configuration). |
| Protection level | IP54 (dustproof and splash-proof, suitable for indoor and general outdoor environments) |
| External dimensions and weight | Due to the large differences in models and pressure ratings, specific inquiries are required |
In - depth analysis of product advantages
1. Improve testing efficiency and economic benefits: Compared with manual operation, electric drive can shorten the testing preparation and pressurization time by several times. For fire acceptance projects with tight schedules or large - scale pipeline projects, this means a significant saving in labor and time costs, directly improving the overall economic benefits of the project.
2. Ensure testing quality and compliance: The precise pressure control and automatic pressure - holding function ensure that the testing pressure strictly meets the requirements of relevant national standards (such as the acceptance specification for fire water supply systems). The data is accurate and reliable, and the generated test reports are more authoritative, which helps to pass the acceptance smoothly.
3. Enhance operational safety and user - friendliness: Remote control or panel operation reduces the risk of testers being in close contact with high - pressure systems. Multiple safety valve groups form a solid safety barrier, reducing the risk of accidental over - pressure to a very low level. The user - friendly design reduces labor intensity and dependence on skilled workers.
4. Flexible solution customization ability: Shanghai Luoji Pump Industry Co., Ltd. not only provides standard models but also focuses on "providing technical solutions". Our engineering team can customize the most suitable pump group configuration, pipeline connection scheme and operation process suggestions for you according to your specific testing pressure, flow rate, medium, on - site power supply conditions (such as using single - phase motor solutions when there is no three - phase power), mobility requirements, etc.
5. Wide industry applicability: In addition to the core fire engineering water pressure testing, this series of pumps can also be widely used in:
- Municipal engineering: Strength and sealing tests of water supply networks and drainage pipelines.
- Petrochemical industry: Factory tests and regular inspections of process pipelines, valves, and pressure vessels (boilers, heat exchangers).
- Power industry: Water pressure tests of power station boilers and tests of thermal pipelines.
- Manufacturing industry: Pressure detection of refrigeration equipment and automobile parts (radiators, oil pipes).
Maintenance and operation points
To ensure the long - term stable operation and extend the service life of the 4D - SY series electric pressure test pumps, it is recommended that users follow the following maintenance procedures:
1. Daily inspection: Before each use, check whether the power cord is in good condition, whether all connecting pipelines and joints are tightened without leakage, and whether the safety valve is sensitive. Check whether the lubricating oil level in the reduction gearbox or chassis is normal.
2. Medium filtration: The test liquid poured into the pump should be as clean as possible. It is recommended to install a filter at the water inlet to prevent impurities from entering the pump cylinder and causing wear or blockage.
3. Observation during operation: During the operation of the pump, pay attention to listening for any abnormal noises or vibrations, and observe whether the pointer of the pressure gauge rises smoothly. It is strictly prohibited to operate at a pressure exceeding the rated pressure for a long time.
4. Post-shutdown treatment: After the test is completed, be sure to open the pressure relief valve to completely release the system pressure. If the test medium is a corrosive liquid or the pump is not used for a long time, the inner cavity of the pump needs to be thoroughly flushed with clean water and emptied. Apply anti-rust oil if necessary.
5. Regular maintenance: According to the requirements of the user manual, regularly replace the seals (such as plunger seals), check the status of vulnerable parts, and lubricate the motor bearings, etc. It is recommended to establish equipment maintenance records.
Shanghai Luoji Pump Industry Co., Ltd. has been deeply involved in the pump industry for many years, with a registered capital of 10 million yuan, which reflects our strength and commitment to long-term operation. We not only produce pressure test pumps, but our product line also covers a wide range of categories such as submersible pumps, deep well pumps, multi-stage pumps, and chemical pumps, in various forms, which endows us with profound technical background in the fields of fluid transportation and pressure control. Our products have successfully served many engineering supporting projects, industrial plants, civil buildings, and fire protection systems, and their "superior performance and excellent quality" have been widely verified by the market. We deeply understand that a reliable pressure test pump is not only a tool, but also a guardian of project safety and quality. Therefore, what we provide is not just a single product, but a complete technical solution support from working condition analysis, equipment selection to operation guidance. We have an experienced technical team that can provide professional consultation and advice for the special test requirements (such as ultra-high pressure, special media, automation integration, etc.) encountered in your project. Choosing the 4D-SY series electric pressure test pump means you choose an efficient and reliable pressure test solution and a partner that values service and cooperation. We look forward to using our professional knowledge and enthusiasm to assist you in overcoming the next pressure test challenge. If you need more detailed information, obtain a customized solution, or discuss specific applications, please contact us at any time, and we will provide you with technical support immediately.
FAQ (Frequently Asked Questions)
Q1: Is the 4D-SY series electric pressure test pump suitable for testing gas pipelines?
A1: In principle, it is not recommended. This series of pumps is designed for pressure testing of liquid media (such as water and oil). Testing gases requires dedicated pneumatic pressure test pumps or gas booster pumps because gases have high compressibility, and there are great safety hazards when using liquid pumps for testing, and the pump's structure and seal design may also be incompatible. If you need gas testing equipment, please consult us for other relevant products.
Q2: What is the maximum working pressure of the pump? How to determine the required pressure when selecting?
A2: The maximum working pressure can be customized according to customer requirements. The common high-pressure models can reach up to 60MPa or even higher. To determine the required pressure, you should base on the design working pressure of the tested system (such as fire pipes, boilers), relevant national or industry test standards (usually 1.5 times the design pressure), and the safety factor. We recommend that you provide specific test standards or design parameters, and our engineers will assist you in selecting the appropriate pressure level.
Q3: How is the automatic pressure-holding function achieved? How much pressure drop during pressure holding is considered normal?
A3: The automatic pressure-holding is usually achieved through an electric contact pressure gauge or pressure sensor combined with a relay/PLC control system. When the pressure reaches the set upper limit, the control system cuts off the power supply of the motor; when the pressure drops to the set lower limit, the motor is automatically started to replenish the pressure. The allowable pressure drop during pressure holding depends on the test standards and the requirements for the system's sealing performance, and it is usually very small. The specific fluctuation range is related to the pump's sealing performance, control accuracy, and the volume of the tested system. Our products are designed to extend the pressure replenishment interval and minimize the pressure fluctuation.
Q4: If there is only a 220V single-phase power supply at my construction site, can I use this pump?
A4: Yes. The 4D-SY series offers two motor configuration options: single-phase 220V and three-phase 380V. The single-phase motor models may be slightly lower in power and maximum pressure than the three-phase models of the same specification, but they are sufficient to meet the needs of many small and medium-sized test scenarios. Please clearly inform the on-site power supply conditions when making an inquiry so that we can recommend the most suitable model.
Q5: Is the flow rate parameter of the pump important? What is the relationship between it and the pressure?
A5: Flow rate and pressure are two core parameters of the pressure test pump, and they are usually in an inverse relationship. With a certain motor power, the higher the output pressure of the pump, the smaller the flow rate. The flow rate determines the time required to pressurize to the target pressure. For large-volume tested systems (such as long-distance pipelines), a larger initial flow rate can quickly fill and initially boost the pressure, improving efficiency. Our technical solutions will comprehensively consider your system volume, target pressure, and time requirements to recommend a pump model with a suitable flow rate.
Q6: Can the material of the pump be selected? For example, for testing slightly corrosive liquids.
A6: It can be customized. The standard configuration of the flow-through components (such as the pump head, plunger, valve) may be made of high-quality carbon steel. If the test medium is corrosive (such as seawater, certain chemical solutions), we can provide options for flow-through components made of stainless steel (such as 304, 316) or other more corrosion-resistant materials. Please provide detailed information about the chemical composition, concentration, and temperature of the test medium before purchasing so that we can make the most reasonable material recommendations.
Q7: Does the manufacturer provide installation and operation training after purchase?
A7: Yes. We will provide detailed Chinese user manuals, circuit diagrams, and pipeline connection schematics. For complex systems or bulk purchases, we can arrange technical personnel to provide installation guidance and operation training via phone, video, or on-site (depending on the situation) to ensure that users can use the equipment safely and correctly.
Q8: Is the daily maintenance of this pressure test pump complicated? Which vulnerable parts need to be replaced mainly?
A8: The daily maintenance is not complicated. It mainly involves keeping it clean, checking lubrication, and fasteners. The most important vulnerable part is the plunger seal ring (packing). After long-term high-pressure operation, normal wear may occur, resulting in slow pressure build-up or slight leakage, which requires regular replacement. In addition, the valve cores and valve seats of the inlet and outlet valve groups may also be worn due to impurities in the medium. We have all vulnerable parts in stock, and users can easily purchase and replace them. Please refer to the accompanying manual for detailed maintenance cycles and steps.
