In the quality inspection links of valve manufacturing, pipeline engineering, pressure vessel production, and various pressure-bearing equipment, pressure testing is the core process to ensure the safety and reliability of products. However, traditional pressure testing methods often face many challenges: unstable test pressure leads to fluctuating readings, affecting test accuracy; the manual pressurization process is time-consuming and laborious, with low efficiency; for test objects of different specifications and pressure levels, general-purpose equipment often has difficulty meeting precise test requirements; in addition, safety issues during the test process, such as sudden pressure drops or leaks, also constantly trouble operators. These pain points not only increase production costs and extend the delivery cycle but also pose potential threats to the quality reputation of the final products.
As a physical enterprise focusing on the processing and manufacturing of the pump industry, Shanghai Luoji Pump Industry Co., Ltd. deeply understands the core needs of the industrial fluid equipment field. Relying on the rich experience and technical precipitation accumulated in the design and production of pump products, we are committed to providing high-performance and highly reliable professional solutions to the market. In response to the above industry pain points, we have carefully developed this High-pressure Plunger Pressure Test Pump. This product is not simply a pressure generating device but a professional testing tool integrating advanced plunger pump technology, a precise pressure control system, and flexible customization capabilities. It aims to fundamentally solve the problems of stability, efficiency, and adaptability in the pressure testing process through technological innovation, helping customers improve the quality control level and ensure production safety.
Working Mechanism and Core Features

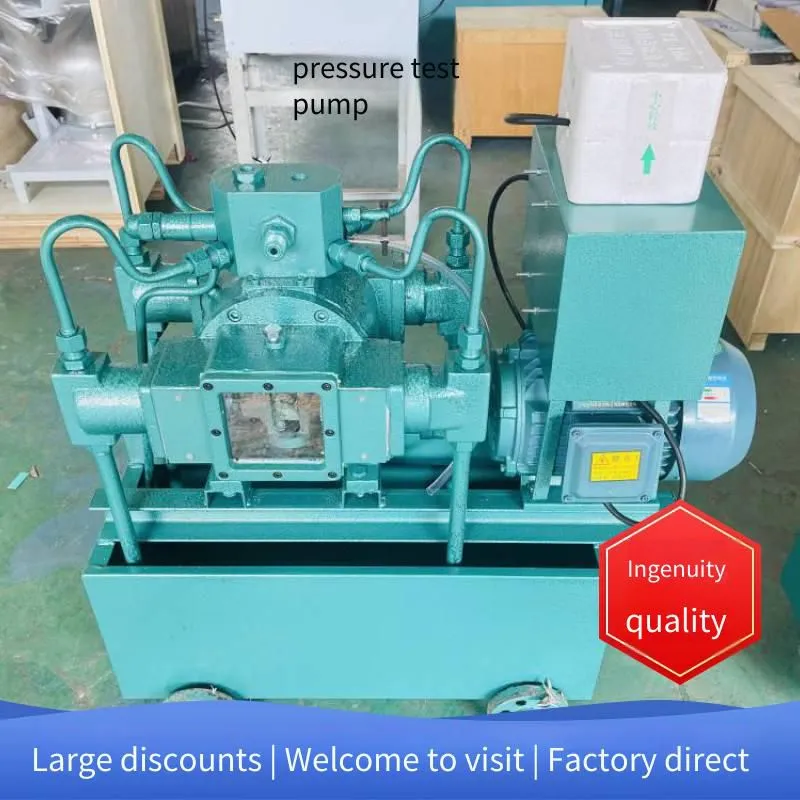

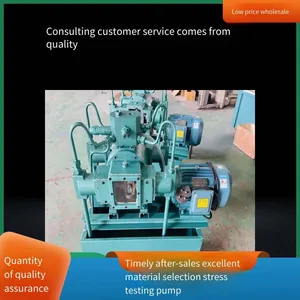

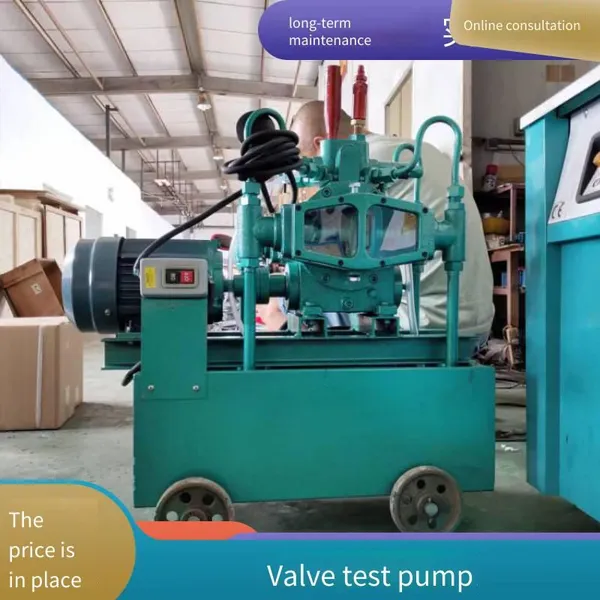

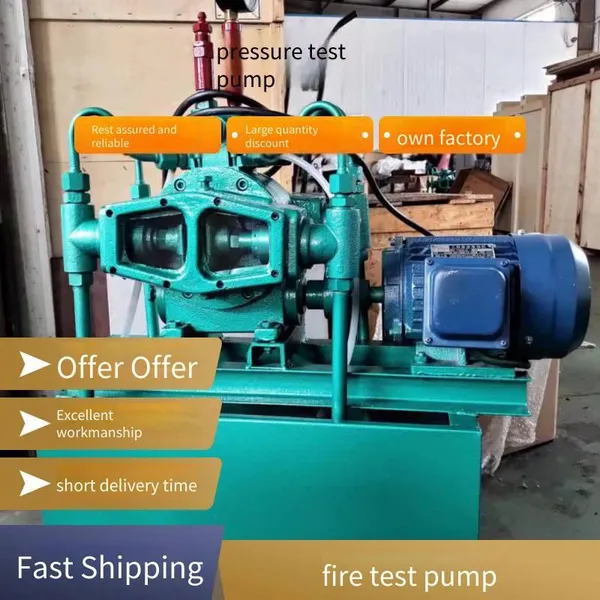

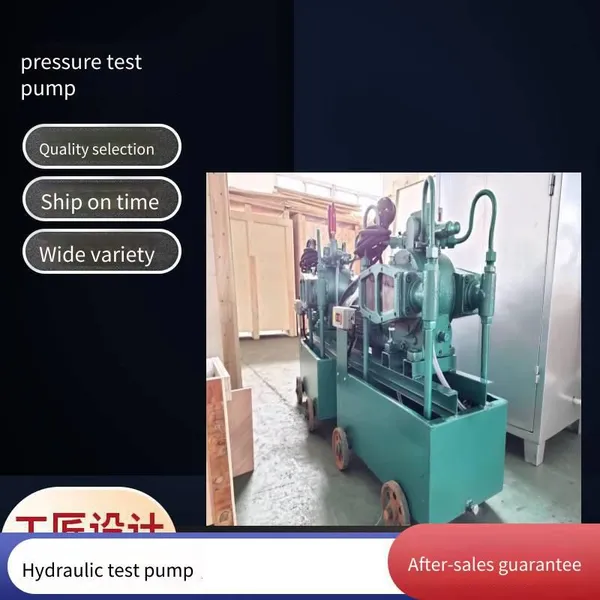

This high-pressure plunger pressure test pump adopts the working principle of multi-stage plunger reciprocation. The motor drives the crankshaft connecting rod mechanism to drive multiple precisely machined plungers to perform reciprocating linear motion in the cylinder. During the suction stroke, the medium (usually clean water or oil) is sucked into the cylinder through the one-way valve; during the discharge stroke, the plunger compresses the medium and discharges it through another set of high-pressure one-way valves, thus achieving continuous output of high-pressure liquid. By adjusting the motor speed or using frequency conversion control, the reciprocating frequency of the plunger can be steplessly adjusted, thereby achieving precise control of the output flow and pressure build-up speed.
The significant features of this product include:
- High-pressure Output and Stability: Using high-strength materials and precisely matched plunger pairs, it ensures long-term stable operation at pressures up to 60MPa or even higher. The output pressure pulsation is extremely small, providing a stable pressure source for the test instrument and ensuring the accuracy of test data.
- Wide Pressure Coverage Range: Through the combined design of different plunger diameters and strokes, as well as an adjustable drive system, one pump can cover a wide test range from low pressure to ultra-high pressure, meeting various test requirements from conventional valves to high-pressure vessels.
- Flexible customized solutions: We deeply understand the meaning of "specialized". The product supports in-depth customization, including but not limited to specific pressure and flow parameters, special medium compatibility (such as anti-corrosion treatment for chemical testing), explosion-proof motor configuration, integrated digital pressure sensors and data recorders, remote control interfaces, etc., to ensure seamless integration of the pump body with your test system.
- High safety and reliability: The pump body is designed with multiple safety measures, such as relief valves to limit the maximum pressure, pressure gauges or sensors to monitor the system pressure in real time, and a sturdy frame and protective cover to ensure safe operation. Key components are made of wear-resistant and corrosion-resistant materials to extend the service life.
- Easy operation and maintenance: The structure is compact and reasonable in design, and the daily maintenance points (such as packing boxes and lubricating oil filling ports) are easy to access. Detailed operation and maintenance manuals are provided to lower the user's threshold for use and maintenance costs.
Technical specifications and parameters
The following are examples of technical parameters for some standard models. The specific parameters can be adjusted according to customization requirements:
| Parameter item | Parameter range/description |
|---|---|
| Rated discharge pressure | 0 - 60 MPa (higher pressure can be customized according to requirements) |
| Rated flow | 0 - 200 L/h (adjustable, depending on the pressure setting) |
| Number of plungers | 3 plungers or more (to ensure smooth flow) |
| Drive power | 1.5 kW - 7.5 kW (matched according to pressure and flow) |
| Medium temperature | 0°C - 60°C (for clean water or hydraulic oil) |
| Inlet and outlet connections | G thread or flange connections (standard or customized) |
| Control method | Manual start/stop, variable frequency speed regulation, automatic pressure control (optional) |
| Main materials | Pump head: stainless steel; Frame: carbon steel spraying |
In practical applications, for example, when conducting a shell strength test on a batch of gate valves with a nominal pressure of PN40, our high-pressure plunger pressure test pump can quickly increase the test pressure to 1.5 times the nominal pressure (i.e., in the order of 60MPa) and maintain this pressure for the specified time. The pressure drop is strictly controlled within the range allowed by the standard. For the factory test of fire pumps, it can simulate the pipe network pressure conditions and conduct continuous pressure-flow characteristic curve tests.
Trust Endorsement and Cooperation Value
As a physical manufacturing enterprise with a registered capital of 10 million yuan, Shanghai Luoji Pump Industry Co., Ltd. always puts product quality and customer service first. Our product line covers various types such as pressure test pumps, chemical pumps, and multi-stage pumps, in various forms including vertical and horizontal. This provides a solid foundation for us to understand the fluid transportation and pressure control requirements in different application scenarios. The performance and quality of this high-pressure plunger pressure test pump we produce have been practically tested by customers in many fields such as engineering supporting, industrial manufacturing, and equipment testing, and have won wide recognition.
We firmly believe that the value of an excellent professional equipment lies not only in its parameters but also in whether it can be perfectly integrated into the customer's production and quality inspection processes to solve practical problems. Therefore, what we provide is not only standard products but also a complete service chain from solution consultation, parameter determination, customized design to after-sales support. Our engineer team is willing to communicate with you in depth, analyze your specific test objects, standard requirements, and operating environment, and recommend or design the most suitable pressure test pump solution for you to avoid waste or insufficient efficiency caused by improper equipment selection.
If you are looking for a reliable, efficient, and flexible solution for the pressure test of valves, pipes, pressure vessels, or other pressure-bearing components, please feel free to contact us at any time. Please provide your test pressure range, medium type, required flow rate, and any special automation or integration requirements. Our professional team will provide you with detailed technical consultation and preliminary solution design, and jointly discuss how to optimize your test process.
Frequently Asked Questions (FAQ)
-
Q: Can this high-pressure plunger pressure test pump be used to test gas pressure?
A: This pump is designed to transport liquid media (such as water and oil) to generate high pressure. Using it directly for gas compression is extremely inefficient and unsafe. For gas pressure testing, a dedicated gas booster pump or compressor is usually required. If you need to conduct an airtightness test, we can discuss the solution of integrating a pneumatic system, but the pump itself is the core of the hydraulic drive. -
Q: How long does the delivery cycle usually take to customize a pump that meets my specific pressure and flow requirements?
A: The delivery cycle depends on the complexity of the customization. For parameter adjustments of standard models (such as replacing the plunger diameter within the existing framework), the cycle may be 2 - 4 weeks. If a brand-new structural design, special materials, or complex control system integration is required, it may take 6 - 8 weeks or longer. Before the project starts, we will provide a detailed assessment and time plan. -
Q: How to ensure stable pressure and reduce pump wear during a long-term pressure holding test?
A: For tests that require long-term pressure holding, our pumps can be equipped with automatic unloading and pressure replenishment functions. When the system reaches the set pressure, the pump can automatically stop or run at a low speed, and the pressure is maintained by the accumulator or the system's sealing performance. When the pressure drops to the set lower limit, the pump automatically starts to replenish the pressure. This intermittent working mode greatly reduces the continuous operation time of the pump, reducing wear and energy consumption. -
Q: Can the pump be used if the test medium is a corrosive liquid (such as certain acidic or alkaline solutions)?
A: Yes, but it needs to be customized. The standard pump head is made of stainless steel, which has good resistance to general water or oil media. For highly corrosive media, we need to select higher-grade corrosion-resistant alloys (such as Hastelloy, titanium) or perform lining treatment according to the chemical properties of the media. Please provide the specific composition and concentration of the media when consulting. -
Q: Is the flow rate of the pump adjustable? How to achieve precise pressure control?
A: Yes, the flow rate can be adjusted in various ways. The most basic way is to change the reciprocating frequency of the plunger by adjusting the motor speed (variable frequency control). More precise pressure control requires a closed-loop system: the pressure sensor feeds back the signal to the controller, and the controller adjusts the pump output in real-time (such as the frequency of the inverter) to make the system pressure accurately follow the set value, achieving constant pressure output or running according to a specific pressure curve. -
Q: Is this pump suitable for outdoor or mobile test occasions?
A: Yes. We can provide configurations such as a motor with a protection level (such as IP54), a sturdy mobile cart or skid base, and a rain and sun protection cover to integrate the pump into a mobile pressure test unit. At the same time, a diesel engine drive option can be integrated to achieve fully independent field operation capabilities. -
Q: What are the main contents and cycles of daily maintenance?
A: Daily maintenance mainly includes: regularly checking and tightening all connecting bolts; checking and replenishing lubricating oil (if any); observing the leakage at the packing box and adjusting or replacing the packing if necessary; keeping the liquid inlet filter clean. It is recommended to conduct a comprehensive inspection every 500 operating hours. A detailed maintenance plan will be provided with the equipment manual.
