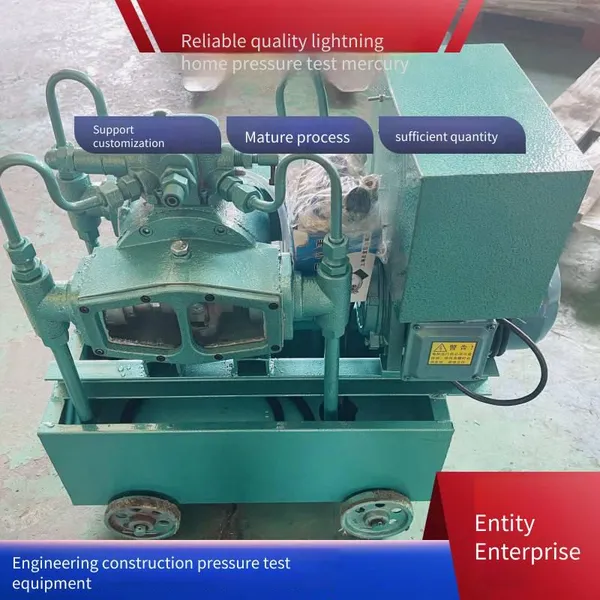

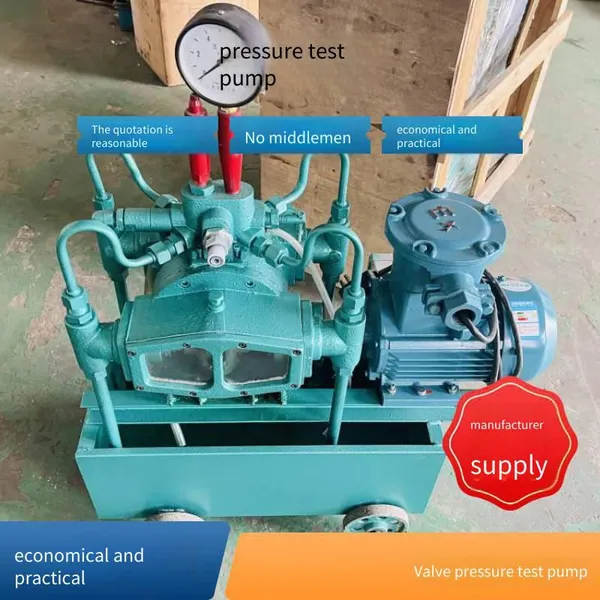

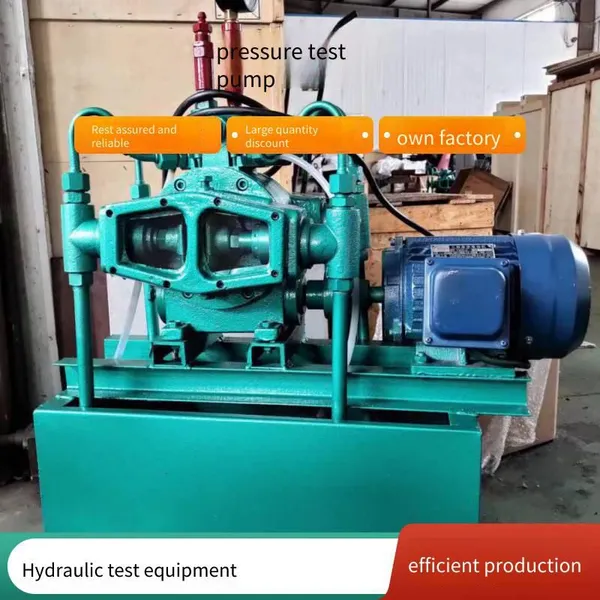

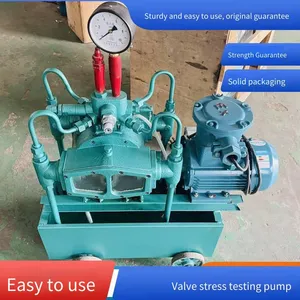

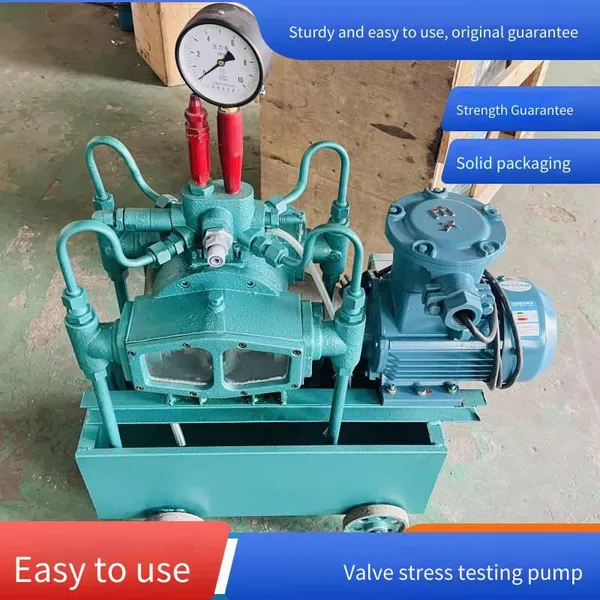

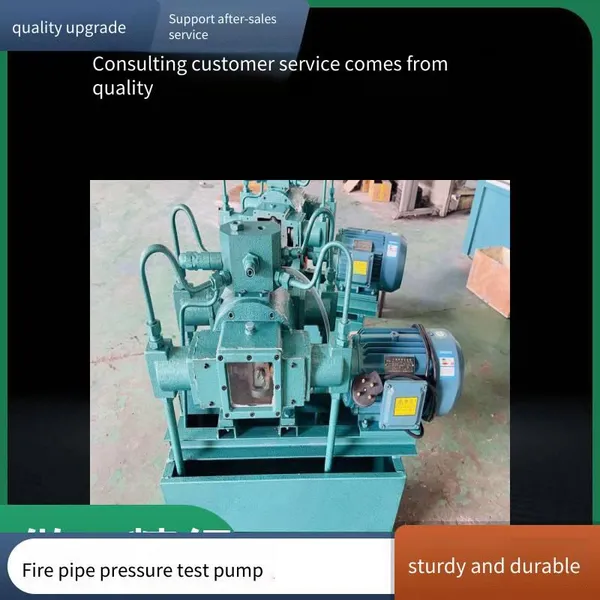

Help CenterDsy-40 Electric Pressure Test Pump Made in Jiangsu, Stainless Steel Material, for Water Pressure Detection at Engineering Sites
Related Products
-
4d-sy Series Electric Pressure Test Pumps for Hydraulic Pressure Testing in Fire Protection Engineering, Technical Solutions ProvidedUS$ 461.54 - 769.23MOQ: 5 Units -
Cam Rotor Pump Lq3a Resin Syrup Pump for Transporting Viscous Liquids, High-viscosity and High-concentration Colloidal ParticlesUS$ 461.54 - 415.38MOQ: 2 Units
-
Silent Shield Pump for Air Conditioners, Low-noise Pipeline Centrifugal Pumps, and Multi-stage Stainless Steel Water PumpsUS$ 1384.62 - 1846.15MOQ: 2 Units
-
High-flow Electric Pressure Test Pump 4gsy-180/40, Plunger Reciprocating Pump, Chemical Process PumpUS$ 769.23 - 846.15MOQ: 2 Units
-
Supply of Plunger Pump, 250 kg High-flow Electric Pressure Test Pump, Self-controlled Type 4gsy - 260/25US$ 1169.23 - 1200MOQ: 10 Units
In industries such as construction engineering, pipeline installation, fire protection system acceptance, and pressure vessel manufacturing, ensuring the pressure-bearing capacity and sealing performance of pipeline systems or closed containers is a crucial core link. However, traditional pressure testing methods, such as manual pressure test pumps, often have pain points such as low efficiency, high labor intensity, inaccurate pressure control, and difficult data recording. Especially at large engineering sites, these disadvantages are particularly prominent. Unstable pressure output may lead to distorted test results and even cause safety hazards, affecting the project progress and quality acceptance. Shanghai Luoji Pump Industry Co., Ltd., a professional enterprise with a registered capital of 10 million yuan, focusing on the R & D and manufacturing of pump products, deeply understands these industry challenges. Relying on years of technical accumulation and accurate grasp of engineering requirements, we have launched the DSY - 40 electric pressure test pump. This product aims to fundamentally solve the many inconveniences caused by traditional pressure testing methods through electric drive, stainless - steel material, and precise pressure control technology, providing an efficient, stable, and reliable water pressure testing solution for engineering sites and helping customers improve work efficiency and safety guarantee levels.
Working mechanism and core features of the DSY - 40 electric pressure test pump
The DSY - 40 electric pressure test pump is an electric device specially designed for high - pressure water pressure testing. Its core working mechanism is to drive the plunger or piston to reciprocate through the motor, suck low - pressure water into the pump cavity, and then convert it into high - pressure water flow through the pressurization mechanism, and continuously and stably output it to the pipeline or container to be tested. The entire system is equipped with a precise pressure gauge and a pressure relief valve, allowing operators to monitor and precisely control the test pressure in real - time to ensure that the test process meets the preset standards.
Main features and technical advantages of the product:
- High - strength stainless - steel material: The pump body and key flow - through components are made of high - quality stainless steel, with excellent corrosion resistance and high strength. It can adapt to the complex and changeable environment at the engineering site, effectively extending the service life of the equipment, especially suitable for working conditions where the test water may contain impurities.
- Efficient electric drive: Using a high - performance motor as the power source, compared with manual pumps, it greatly reduces the labor intensity of operators and significantly improves the test efficiency, enabling it to quickly reach and maintain the preset high test pressure.
- Precise pressure control and display: Equipped with a high - precision pressure gauge, the pressure reading is clear and intuitive. Combined with a reliable pressure relief valve and safety valve, it can achieve precise pressure setting and automatic over - pressure protection, ensuring the safety of the test process and the accuracy of data.
- Wide applicability: With a compact design and convenient mobility, it is very suitable for use in various engineering sites, such as construction sites, pipeline laying sites, fire protection system installation sites, boiler and pressure vessel manufacturing workshops, etc.
- Stable performance output: The optimized hydraulic design and manufacturing process ensure that the pump can output a stable and pulsation-free high-pressure water flow during long-term continuous operation or intermittent operation, and the test results have good repeatability.
- Easy operation and maintenance: The reasonable structural design results in fewer daily maintenance points. The operation is simple and easy to learn, which lowers the usage threshold and maintenance cost of the equipment.
Technical specification parameter table of DSY-40 electric pressure test pump:
| Parameter item | Specification/Parameter value |
| Model | DSY-40 |
| Maximum working pressure | 40 MPa (megapascal) |
| Driving mode | Electric (Three-phase/single-phase optional, please consult for details) |
| Main material of pump body | Stainless steel |
| Approximate rated flow | The flow rate is relatively large in the low-pressure stage, and it decreases as the pressure increases in the high-pressure stage. Please refer to the technical manual for the specific curve. |
| Setting range of safety valve | Adjustable, usually covering 0 - 40 MPa |
| Accuracy of pressure gauge | Grade 1.6 or higher accuracy |
| Connection diameter of inlet and outlet | Usually standard G thread (such as G1/2" or G3/4"), subject to the actual product. |
| Applicable medium | Clean water, emulsion or oil with a viscosity similar to that of clean water |
| Main applications | Hydraulic strength test and sealing detection of pipelines, valves, pressure vessels, fire protection systems, boilers, etc. |
In addition to the above core parameters, in actual operation, the advantages of the DSY-40 electric pressure test pump are also reflected in its detailed design. For example, its motor usually has an overload protection function to prevent the motor from burning out due to accidental jamming or overloading. The pump head is designed with a vent valve to facilitate the removal of air in the pipeline before testing, ensuring the accuracy of the test. To adapt to different on-site power supply conditions, some models can provide 380V three-phase power or 220V single-phase power configuration options. Users can clarify their needs according to their own conditions when purchasing. In addition, although it is named a "pressure test pump", its stable high-pressure output characteristics also make it suitable for auxiliary operations such as a small amount of flushing that require a constant high-pressure water source, reflecting the multi-functional value of the equipment.
In terms of industry application scenarios, the DSY-40 electric pressure test pump performs particularly well. In the sectional pressure test after the laying of long-distance oil and gas pipelines, it can quickly raise the water pressure to the required strength level (such as 20MPa or 30MPa) and maintain the pressure for a sufficient time to inspect the quality of welds and pipes. In the acceptance of fire protection pipelines in high-rise buildings, it can simulate the working pressure required by the sprinkler system during a fire to ensure that the pipes and sprinklers on each floor can start normally at critical moments. For small pressure vessel manufacturers, it is an essential equipment for the hydraulic pressure strength test before leaving the factory. Its maximum pressure of 40MPa is sufficient to cover the testing requirements of most medium and high-pressure vessels. These extensive application scenarios prove its reliability and practicality as a professional engineering detection tool.
Shanghai Luoji Pump Industry Co., Ltd. is not only the producer of the DSY-40 electric pressure test pump but also a provider of pump industry solutions. We have a registered capital of 10 million yuan, which provides a solid financial foundation for the company's continuous technological R & D, strict quality control, and stable production and supply. The company's product line covers various types of pumps such as pressure test pumps, multistage pumps, chemical pumps, and fire pumps, in forms including vertical, horizontal, and self - priming. The service fields cover many industries such as industrial supporting, building water supply and drainage, HVAC refrigeration, fire protection and sewage, petrochemical, and pharmaceutical printing and dyeing. We deeply understand that a good piece of equipment cannot do without professional services. Therefore, we adhere to the principle of user service. From pre - sales technical consultation and model selection, to in - sales operation guidance, and even after - sales maintenance support, we strive to provide customers with satisfactory services. By choosing Luoji Pump Industry, you will not only get a DSY - 40 electric pressure test pump with reliable performance but also a trustworthy partner.
Based on our many years of experience in the pump field, we suggest that when purchasing a pressure test pump, in addition to paying attention to the maximum pressure parameter, you should also comprehensively consider your actual testing needs (such as test volume and pressure - holding time requirements), on - site power supply conditions, characteristics of the test medium, and the portability of the equipment. Correct model selection is the first step for efficient and safe work. If you have further questions about the specific technical details, configuration options, or prices of the DSY - 40 electric pressure test pump, or if you need a more suitable pump product recommended for your specific application scenario, our professional technical team is ready to provide you with detailed consultations and professional suggestions at any time. Welcome to contact us through the company's official channels. We look forward to discussing with you how to improve the efficiency and safety of your engineering detection with reliable equipment.
Frequently Asked Questions (FAQ)
1. The maximum working pressure of the DSY - 40 electric pressure test pump is 40MPa. Which common testing scenarios is this pressure value suitable for?
40MPa (approximately equal to 400 kgf/cm²) belongs to the high - pressure range. It is suitable for most high - pressure pipelines (such as some process pipelines in the petroleum and chemical industries), medium and high - pressure pressure vessels (such as reaction kettles and gas storage cylinders), main pipes of high - pressure fire protection systems, some pressure - bearing parts of boilers, and the factory hydraulic pressure test of certain special hydraulic components. Before purchasing, please make sure that the highest test pressure required by your testing standards is within this range.
2. What are the advantages of stainless steel material compared with ordinary cast iron material? In what environment must a stainless steel pressure test pump be used?
The main advantages of stainless steel material lie in its excellent corrosion resistance and higher strength. When the test medium is seawater, water containing chemical impurities, or the equipment needs to be stored and used for a long time in corrosive environments such as humid or outdoor areas, the stainless steel pump can effectively prevent rust, ensure the internal cleanliness of the pump and the long-term stability of its performance, and extend its service life. For occasions with high requirements for the cleanliness of the test medium (such as related tests in the food and pharmaceutical industries), stainless steel is also a better choice.
3. Does the motor need to run continuously during the continuous long-term pressure holding test of this electric pressure test pump?
No. The working mode of the electric pressure test pump is usually intermittent: first, start the motor to drive the pump to raise the pressure to the preset value; after reaching the target pressure, the motor can be turned off, and the pressure is maintained by the check valve at the pump outlet and the sealing performance of the test system. During this period, the motor stops working, and the motor only needs to be started again to supplement the pressure when the system has a slight leakage and the pressure drops to a certain threshold. This design saves energy and reduces equipment wear.
4. What are the safety protection measures of the equipment? How to prevent the danger caused by excessive pressure during the test?
The DSY-40 pressure test pump is standardly equipped with multiple safety protections: 1) Adjustable safety valve (pressure relief valve): It automatically opens to relieve pressure when the system pressure exceeds the set safety value, which is the core device to prevent overpressure. 2) High-precision pressure gauge: It displays the system pressure in real time for easy monitoring. 3) Motor overload protection: It prevents the motor from being damaged due to overload. During operation, be sure to correctly set the pressure of the safety valve before the test (usually slightly higher than the maximum test pressure) and regularly check its effectiveness.
5. For a pipeline system with a large test volume, how is the water filling and pressure rising speed of this pump? Is it necessary to configure an additional water tank?
The pressure rising speed of the electric pressure test pump is jointly affected by its displacement (flow rate) and the system volume. The DSY-40 pump has a relatively large flow rate in the low-pressure stage and can fill the large-volume system relatively quickly. However, when the pressure increases, the flow rate will naturally decrease. For ultra-large volume tests, to shorten the water filling time, it is recommended to adopt a scheme of cooperating with a large-flow water injection pump, that is, first use the large-flow pump to quickly fill water to a lower pressure, and then use the DSY-40 for precise pressure rising and pressure holding in the high-pressure stage. The pump itself usually comes with a small water tank, but for long-term or large-capacity tests, it is a common practice to connect an external large-capacity water tank.
6. How should the pressure test pump be maintained after daily use?
Maintenance is crucial: 1) After each use, drain the test water from the pump and the pipeline. Especially after using non-clear water media, flush the pump chamber with clean water. 2) Regularly check whether the connecting threads and seals are in good condition and whether there are any leaks. 3) Regularly (e.g., every six months or according to the frequency of use) verify the accuracy of the pressure gauge and safety valve. 4) When not in use for a long time, drain the accumulated water and store the pump in a dry place. Apply anti-rust grease to the moving parts. 5) According to the motor maintenance requirements, regularly check the motor wiring and lubrication status.
7. What other key parameters need to be confirmed with the supplier besides pressure when purchasing?
The key parameters to be confirmed include: 1) Power supply specification: Whether it is 380V three-phase or 220V single-phase, it must match the on-site power supply. 2) Interface diameter and thread standard: Ensure that it can be conveniently connected to your test pipeline. 3) Rated displacement (flow) curve of the pump: Understand the actual output capacity under different pressures, which is important for estimating the pressure rise time. 4) Equipment weight and dimensions: Evaluate the convenience of on-site movement and placement. 5) Whether necessary accessories are included: Such as pressure gauges, safety valves, high-pressure hoses, tools, etc.
